Why doesn’t my battery charge?

Discussion in 'Defender 90 / 110 / 130' started by payydg, Sep 25, 2021.

< Previous Thread | Next Thread >
  1. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    3,644
    Likes Received:
    1,910
    Location:
    Aberdeenshire
    68EBD725-EB2E-4BF3-81DC-6069078B44B9.jpeg 5F6E13C4-AFE8-448B-97F8-99813E6A66A5.jpeg After having the engine and transmission out it’s all back together. Starts fine. Problem is alternator doesn’t charge at the battery.

    Theres charge coming out of the back of the alternator (about 15 volts) it’s just not getting to the battery. All the wires are connected.

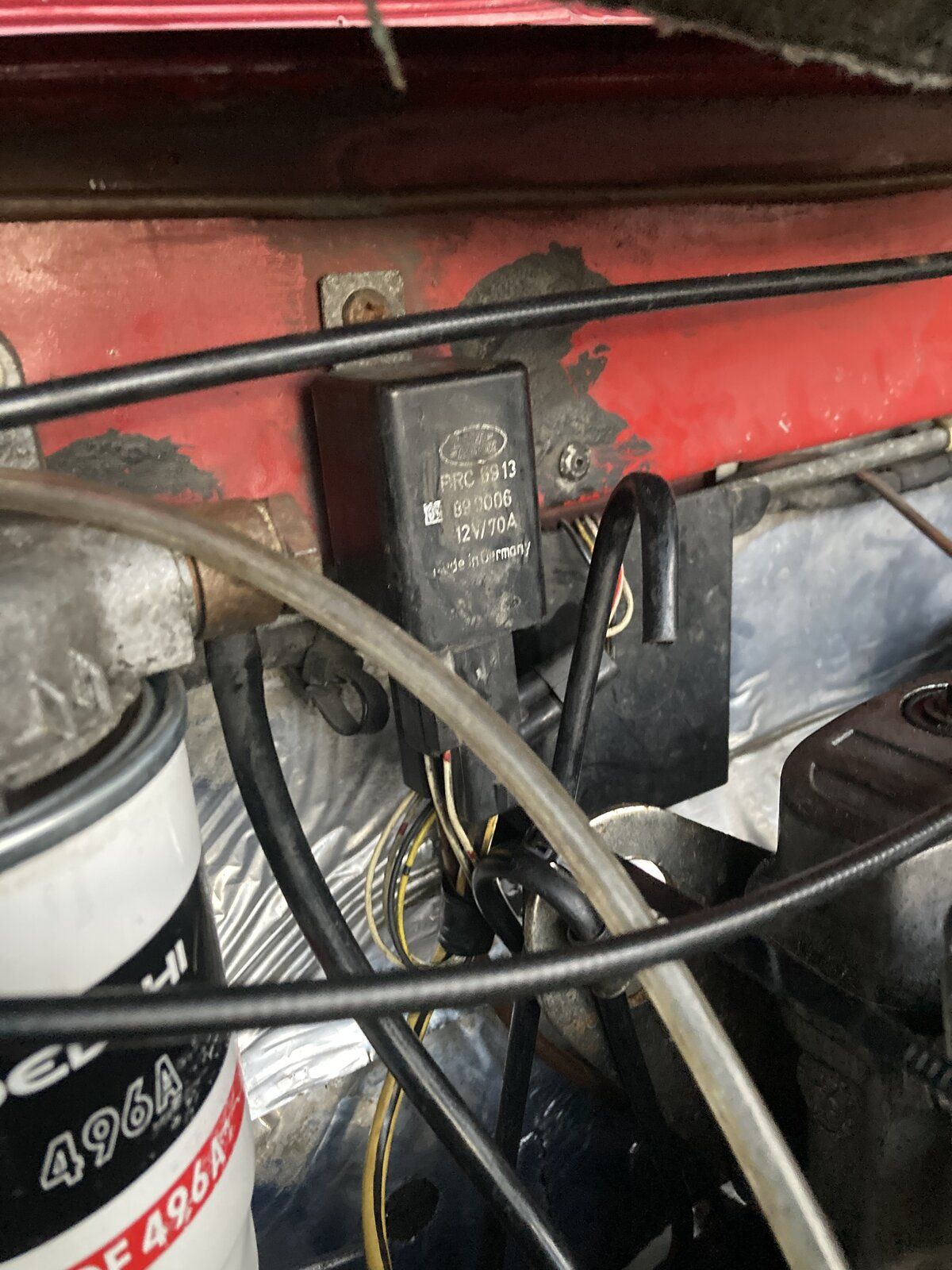

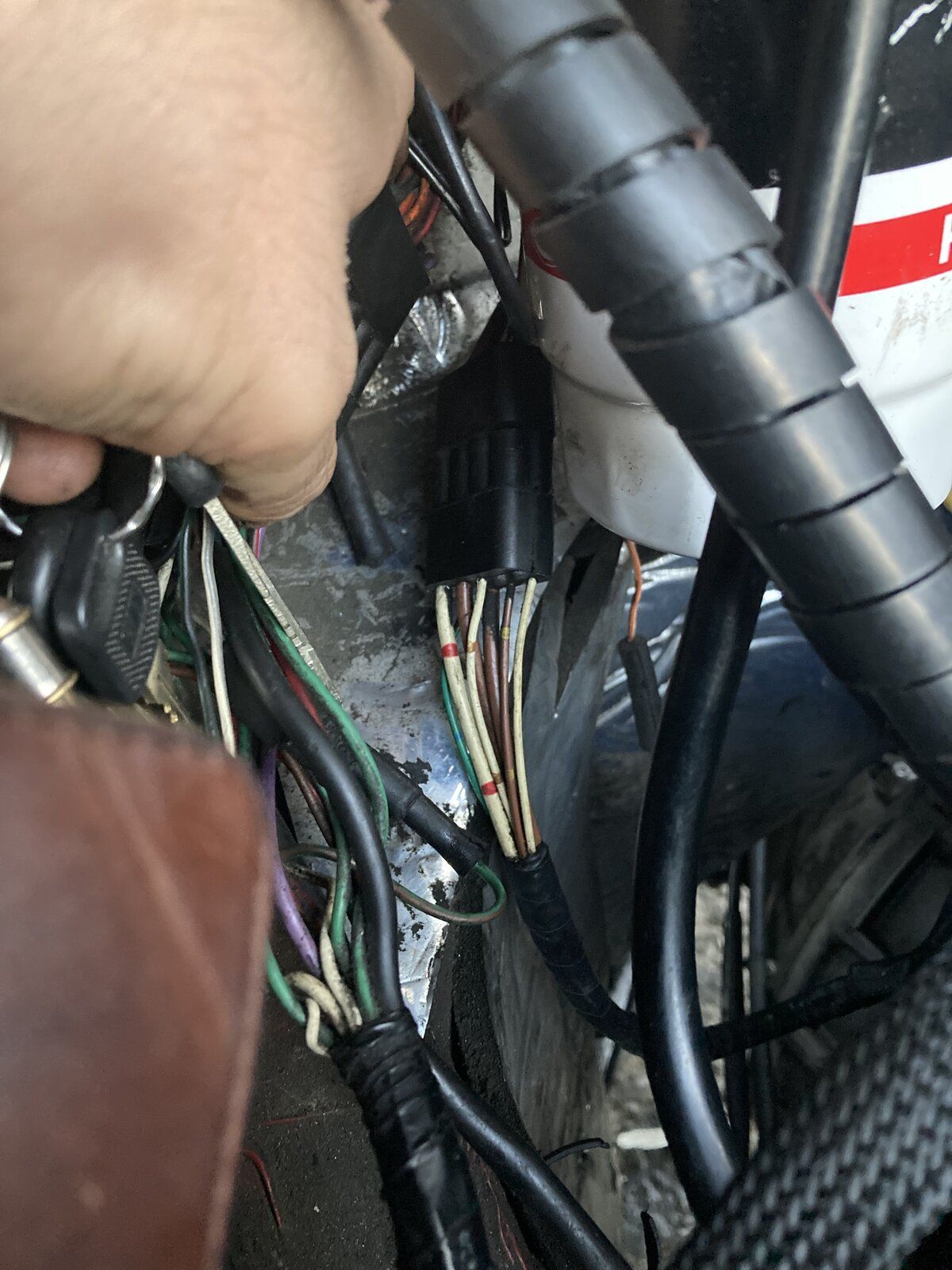

    I’m going to get the multimeter out tomorrow but how does the charging system work? There’s no wire directly from the alternator to the battery? The thick brown wire from to the battery goes to a relay in the engine bay (photo two) and the a couple of wires go from the alternator to a plug (photo 1).

    Any thought. Have I ****ed something up?

  2. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    14,967
    Likes Received:
    16,314
    Location:
    North Shropshire
    There should be a big thick cable (finger thickness) going direct to the battery from the alternator. There should be another thick cable going to the fusebox from the battery.
    There should be an earth of the same thickness going from the chassis to the battery

  3. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    14,967
    Likes Received:
    16,314
    Location:
    North Shropshire
    Non of the wires in your pics are thick enough for alternator output

  4. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    3,644
    Likes Received:
    1,910
    Location:
    Aberdeenshire
    Thanks mate. It seems the thick brown cable goes from the battery to the relay in picture two - you can just see the brown cable at the bottom of that picture.

    maybe the cable you describe has got hidden behind something and I didn’t notice

    kermit_rr likes this.
  5. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    17,609
    Likes Received:
    14,992
    Location:
    Kent
    Most cars have the alt wire running direct to the positive terminal on the starter motor, then a fatter cable from that terminal back to the battery positive.

  6. Scooby22

    Scooby22 Well-Known Member

    Joined:
    Aug 11, 2017
    Posts:
    1,089
    Likes Received:
    376
    Location:
    County Durham

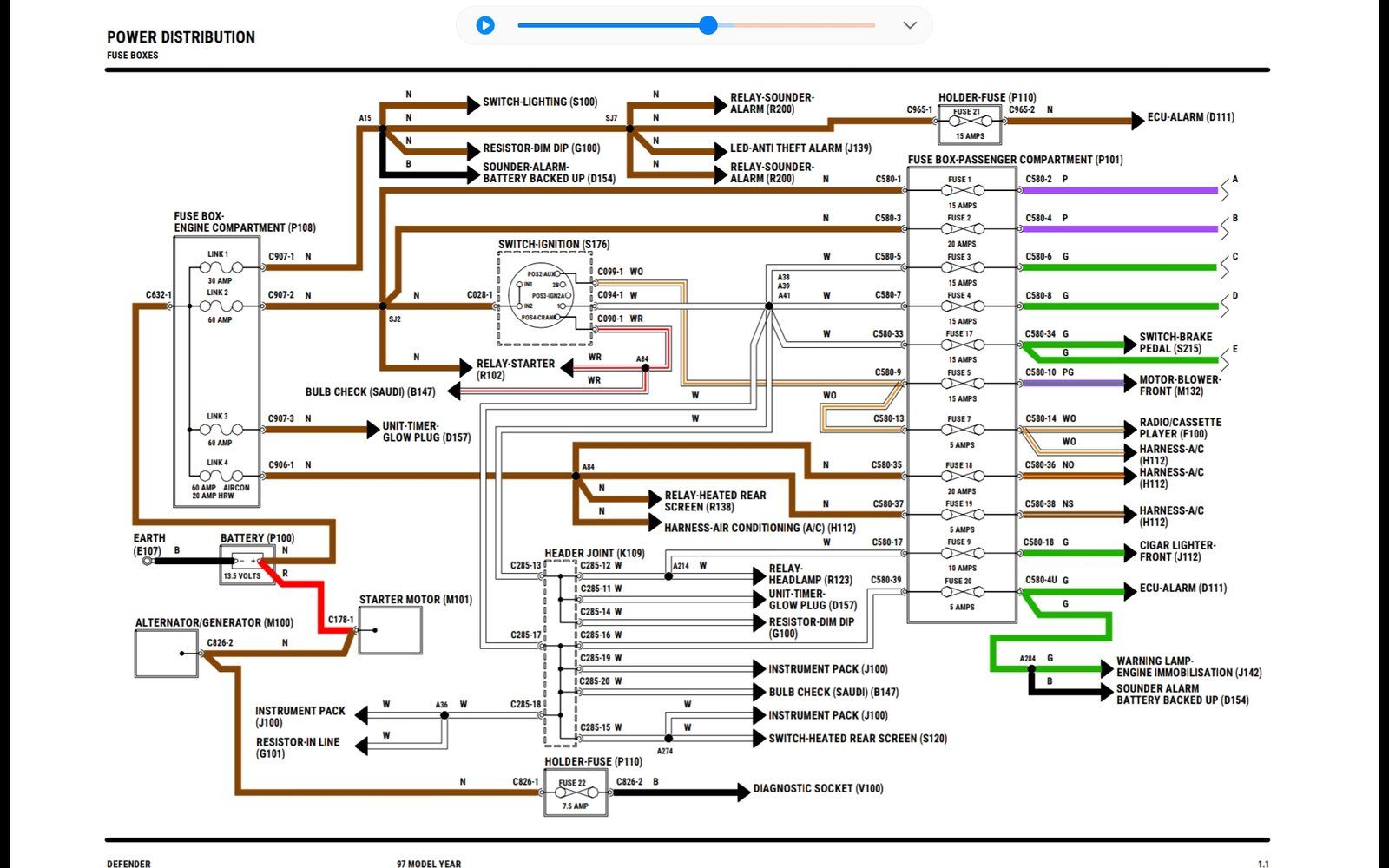

    Not sure what model/engine you have but this is a 300 tdi diagram.
    Screenshot_20210925-212828_Drive.jpg m

    payydg and kermit_rr like this.
  7. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    3,644
    Likes Received:
    1,910
    Location:
    Aberdeenshire
    Thanks, it a 200 tdi but maybe I missed a wire that connects to the starter

  8. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    3,644
    Likes Received:
    1,910
    Location:
    Aberdeenshire
    You were all right I’d missed the cable from alternator to starter

    kermit_rr and Scooby22 like this.
