Freelander 1 what is MAX. size for tyre?

Discussion in 'Land Rover Freelander' started by elameed elaneed, Jun 6, 2016.

< Previous Thread | Next Thread >
  1. elameed elaneed

    elameed elaneed Active Member

    Joined:
    Feb 29, 2016
    Posts:
    158
    Likes Received:
    6
    Location:
    bahrain
    my car freelander 2004 KV6
    i need to make my car little height so i decide to change all tires
    now i have 215/65R16

    some people advice me to change to (225/70R16) or (225/75R16)

    now you are professional people, tell me your advice ?

    Last edited: Jun 6, 2016
  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,148
    Likes Received:
    7,526
    Location:
    Near Newquay
    The largest practical diameter is around 29 inches, keeping width to 225, maybe 235.
    I have a set of 225/60/17 on my SE auto which fit ok. I'd run into clearance problems if I went bigger though.

  3. elameed elaneed

    elameed elaneed Active Member

    Joined:
    Feb 29, 2016
    Posts:
    158
    Likes Received:
    6
    Location:
    bahrain
    I don't need to change my rims it 16inch, only need tire

  4. elameed elaneed

    elameed elaneed Active Member

    Joined:
    Feb 29, 2016
    Posts:
    158
    Likes Received:
    6
    Location:
    bahrain
    can I change to
    225/75/R16
    this size is suitable to my car

  5. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,148
    Likes Received:
    7,526
    Location:
    Near Newquay
    At 29.3 inches in diameter, I'd say it might hit the spring cups. You might need spacers on the hubs to give you extra clearance.

  6. wammers

    wammers No longer with us, RIP Donater

    Joined:
    Oct 19, 2008
    Posts:
    58,171
    Likes Received:
    11,667
    Location:
    Preston Lancs.
    Your speedo would under read by 2.5 MPH at 30 and 5.1 MPH at 60 with those fitted. Don't know about regs where you are, but here it would be illegal.

  7. elameed elaneed

    elameed elaneed Active Member

    Joined:
    Feb 29, 2016
    Posts:
    158
    Likes Received:
    6
    Location:
    bahrain
    WP_20160609_14_45_14_Pro.jpg WP_20160609_14_45_03_Pro.jpg I think there is big distance to spring cup

  8. elameed elaneed

    elameed elaneed Active Member

    Joined:
    Feb 29, 2016
    Posts:
    158
    Likes Received:
    6
    Location:
    bahrain
    thanks for helping me

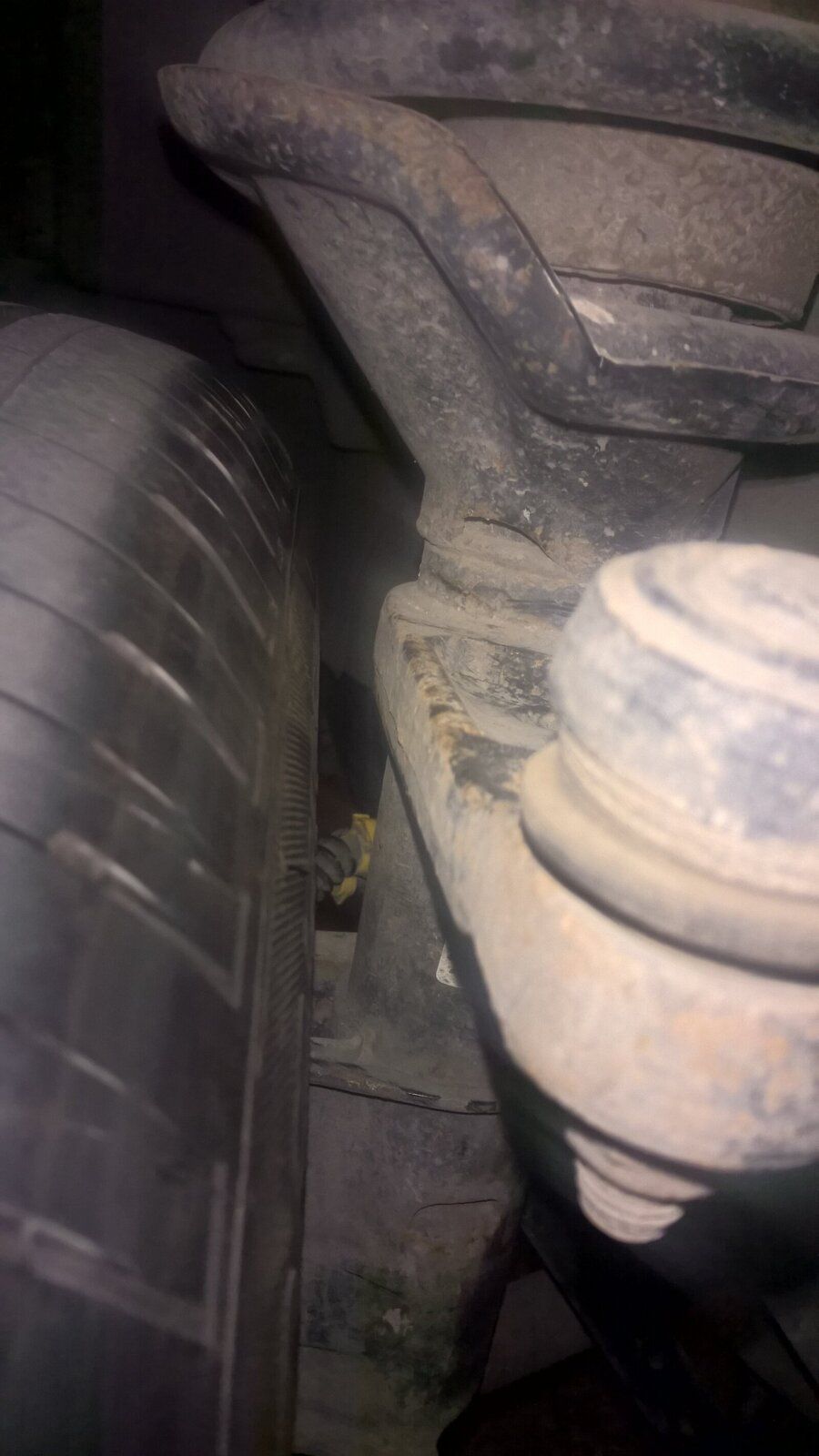

    today I fixed my new tire and I check almost size and found best one for travel for long distance 235/60/R16
    no friction and fit
    WP_20160611_20_34_21_Pro.jpg WP_20160611_20_34_21_Pro.jpg

  9. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,148
    Likes Received:
    7,526
    Location:
    Near Newquay
    That size equates to about 27.1 inches which will fit without any fuss.

  10. elameed elaneed

    elameed elaneed Active Member

    Joined:
    Feb 29, 2016
    Posts:
    158
    Likes Received:
    6
    Location:
    bahrain
    tire fit with tire area with out any nose and frictions,I test this up to 140km nothing happened

  11. HenrikN

    HenrikN New Member

    Joined:
    May 22, 2022
    Posts:
    3
    Likes Received:
    0
    Location:
    SWEDEN
    Can I fit 225/75 R16 under my freelander 2006?

  12. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    1,105
    Likes Received:
    423
    Location:
    Pedronapper (Peterhead)
    I can't comment on FL2's but I've personally ran both 235/70/16 & 225/75/16 on standard 16" alloys on my 2002 FL1. It's widely accepted that anything that gives you a 29" diameter tire is the limit, soYou are perilously close to the underside of the spring seat with those tyres, spacers would buy you more room for larger diameter, but you'd need to be mindful of body work clearance going for bigger overall diameter tyres with wheel spacers.

  13. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,148
    Likes Received:
    7,526
    Location:
    Near Newquay
    Is it a Freelander 1 or 2?

  14. HenrikN

    HenrikN New Member

    Joined:
    May 22, 2022
    Posts:
    3
    Likes Received:
    0
    Location:
    SWEDEN
    Its a 2006 prob a 1

  15. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,148
    Likes Received:
    7,526
    Location:
    Near Newquay
    Not necessarily, the Freelander 2 was released in 2006.
    If the rear door opens sideways, it's a FL1, if it lifts up then it's a FL2. ;)

  16. HenrikN

    HenrikN New Member

    Joined:
    May 22, 2022
    Posts:
    3
    Likes Received:
    0
    Location:
    SWEDEN
    Then its a Freelander 1

  17. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    27,148
    Likes Received:
    7,526
    Location:
    Near Newquay
    There are several owners with 225/65/17 tyres fitted, which are 28.5" in diameter, and clear the spring cups ok.

    So any tyre with a similar width and diameter under 29" will also fit.
    215/75/16 = 28.7" diameter.
    225/70/16 = 28.4" diameter.
    235/65/16 = 28" diameter.
    So using 225/75/16 would likely depend on the actual tyres chosen, as that's getting right to the limit of what will fit.

    Remember, the wider you go, the smaller the diameter has to be, or the tyres hit the spring cups, and you can't really go wider than 245 on the standard wheels, or the side walls contact the strut tube.

  18. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    1,105
    Likes Received:
    423
    Location:
    Pedronapper (Peterhead)
    I ran 225.75/16 Kumho kl71 tyres, fitted brand new to standard alloys, without spacers.KL71's are insanely aggressive, starting life with like 22mm tread blocks, these were admittedly precariously clost to the spring seats, but they do fit.

    Nodge68 likes this.
