what are these parts?

Putting my front wings back on again.

I'm usually very good at making notes and taking photos but I don't have a record of where these bits came from.

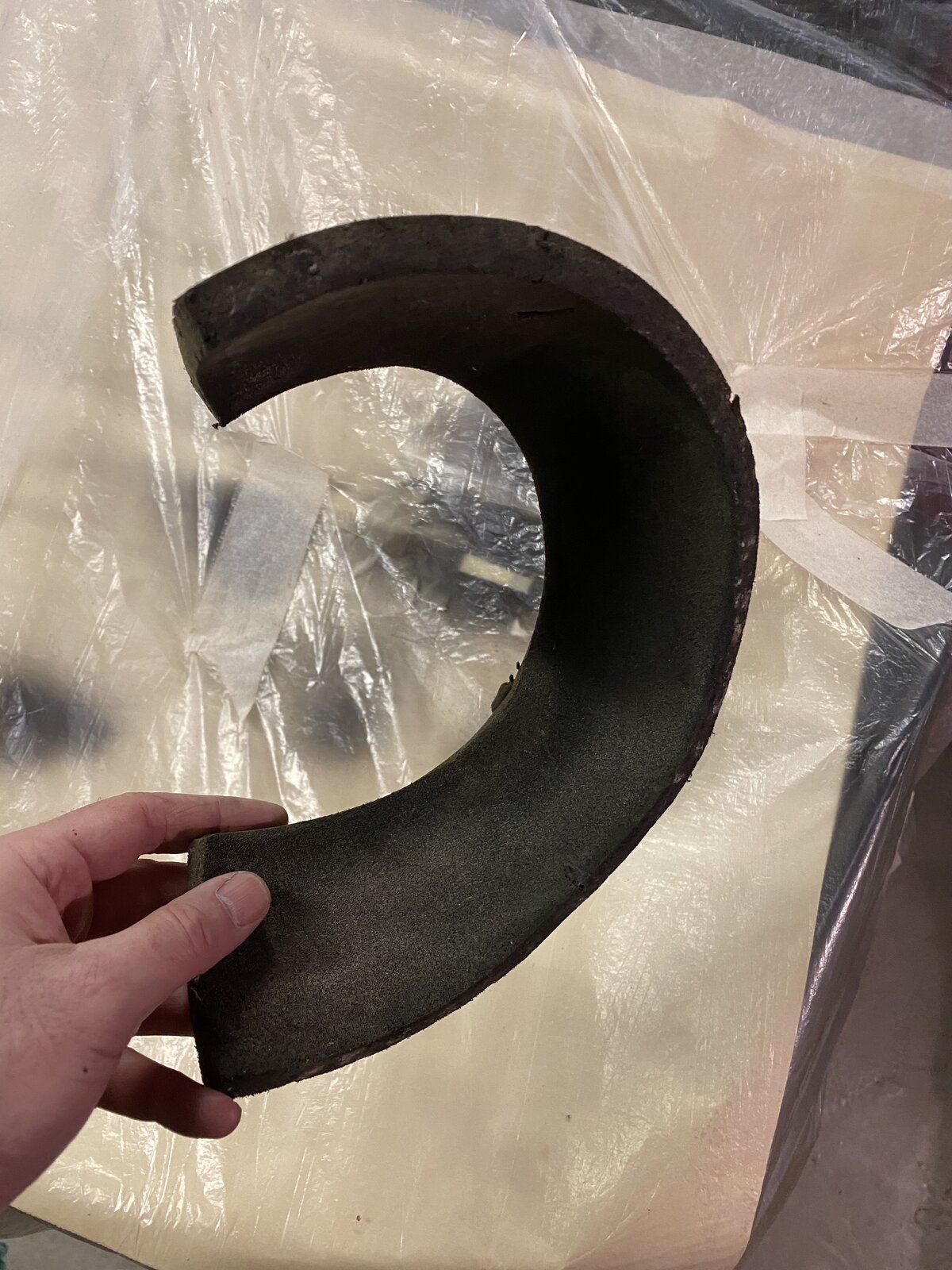

I think this foam piece may go between the heater fan and the inlet on the lhs front wing? But I can't see this part on relevant diagrams.

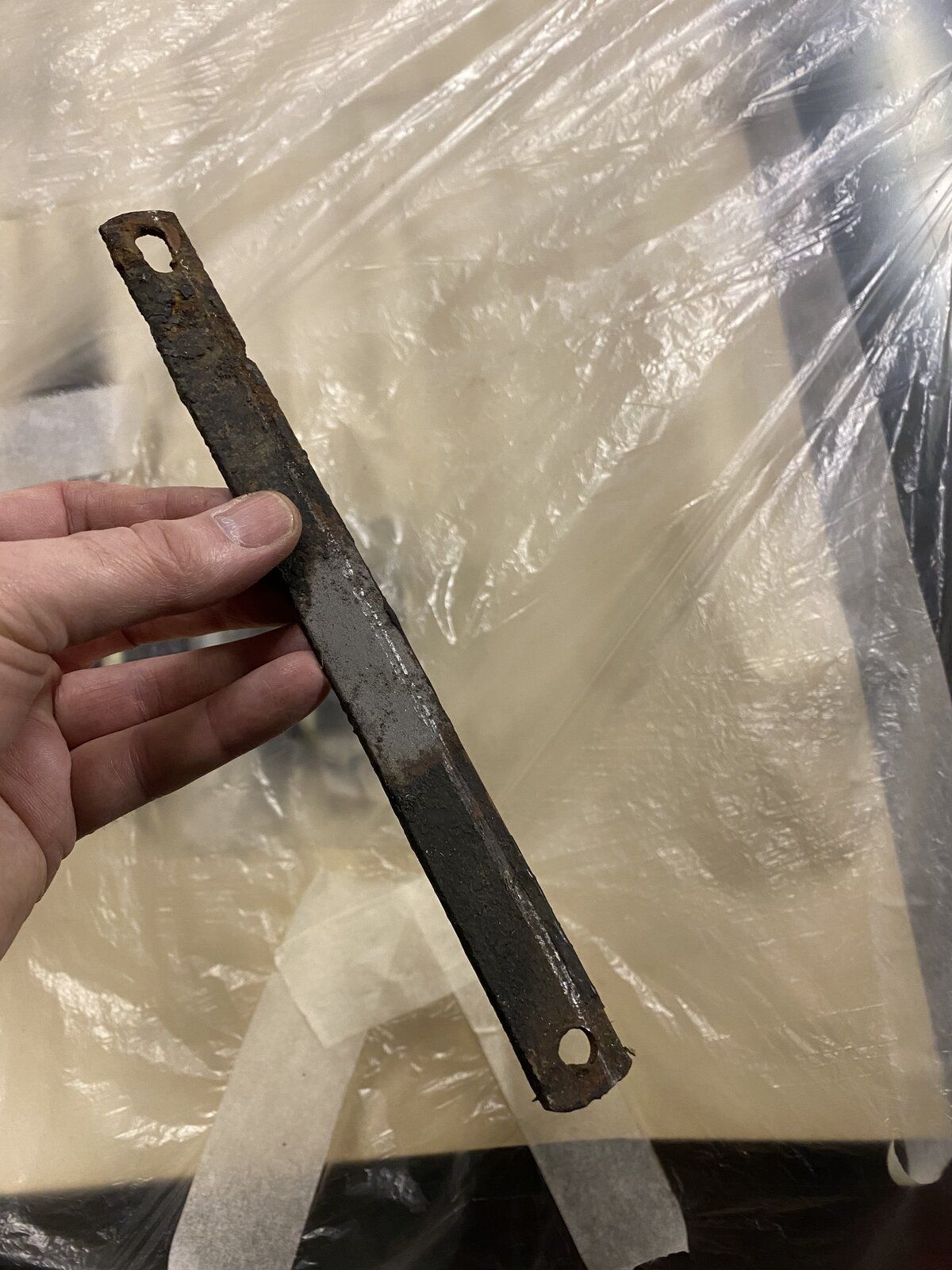

These metal strips look like they were exposed to the elements somewhere inside the front wings, one on each side.


Thanks in advance!
Al

Random guess, but could the metal strip be mud flap retainer ?

Strip is support for the front wing lower edge to footwell.

tottot said:

Strip is support for the front wing lower edge to footwell.

Click to expand...

Ah, goes across at about 45 degrees to stop the rear edge of the wheelarch from flexing?

The foam stuff is as you say the inlet in the wing.

LincolnSteve said:

The foam stuff is as you say the inlet in the wing.

Click to expand...

I'm thinking maybe those open ends should be glued together?
Al.

seems there is a standard fix...

Flat 6 said:

Ah, goes across at about 45 degrees to stop the rear edge of the wheelarch from flexing?

Click to expand...

Yes.
