L322 Water ingress, boot electrics

Discussion in 'Range Rover' started by youmitegetian, Jan 18, 2018.

< Previous Thread | Next Thread >
  1. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    737
    Likes Received:
    49
    Location:
    evesham
    Ok so....
    I’ve noticed some moisture in the boot, what looks like condensation really, in the wheel well and also on the carpet by the cubby on the left with all the audio etc, I know there are plenty of threads to read but I thought I’d ask the obvious (maybe) question,
    My roof bar fixing covers in the roof rails ( the ones that lift up I presume, to expose the bolt holes) are missing, all 6, could water be getting in through them?

  2. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    8,210
    Likes Received:
    3,151
    Location:
    heathrow
    Is there a tow bar as that can cause a leak if not sealed properly, iirc tailgate seal you tweak the flange the seal goes on it was in the service bulletins
    iirc @holidaychicken went through it with the leaks

  3. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    737
    Likes Received:
    49
    Location:
    evesham
    No towbar but am fitting one and read about making sure it’s sealed correctly,
    Would that cause water to be in the electrics cubby and the boot floor to get wet??
    I’d say it’s a new issue with my car as I checked when I bought it and there was no damp, I’ve only had it a month so wondered if it used to have a roof rack and was removed before selling and now I’m getting water inside, was just a thought

  4. holidaychicken

    holidaychicken Well-Known Member

    Joined:
    Jun 30, 2013
    Posts:
    3,894
    Likes Received:
    1,056
    Location:
    Kent
    I had deep puddles in my boot from fitting an OEM towbar and that was th sealing along the top of the mounting brackets.
    I don’t know anything about the roof rack but if something is missing I would replace it. The boot seal is another common one and as you have a wet carpet then it has to be coming from somewhere high up so I would check the seal. @anorakmark had a long term leak that was coming from a seam in the bodywork near the hinges I believe of the upper tailgate and if the electrics are wet high up then the side windows could be leaking and the land rover official solution is a bag to cover them

  5. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    737
    Likes Received:
    49
    Location:
    evesham
    I checked the boot seal and it looks ok, nothing obviously wrong, I want to replace the bolt hole covers on the roof but can’t find just the covers, looks like I might have replace the weather strips both sides, not sure why anyone would actually snap off the covers, seems a bit pointless but hey ho

  6. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    737
    Likes Received:
    49
    Location:
    evesham
    Sounds very technical, a bag to cover wet electrics lol, might be a good short term fix though I guess

  7. Dippypud

    Dippypud Never Knowingly Understood

    Joined:
    May 2, 2011
    Posts:
    51,375
    Likes Received:
    24,598
    Location:
    Out of the way
    Dry the boot carefully ... chuck a load of talc over it ... play a hose over the tailgate and rear lights ... check for water tracks to try and find a flow route ...

  8. holidaychicken

    holidaychicken Well-Known Member

    Joined:
    Jun 30, 2013
    Posts:
    3,894
    Likes Received:
    1,056
    Location:
    Kent
    Good point, I did that but used flour which made my boot look like I was a very messy drug smuggler and eventually turned into a big biscuit looking mess in the bottom of my spare wheel well.
    If @tomcat59alan offers to show you a soggy biscuit you need to decline as that is something entirely different ...

    Dippypud likes this.
  9. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    737
    Likes Received:
    49
    Location:
    evesham
    Sounds like a plan, it’s definitely coming from higher than the rear bumper mounts or as well as, if I put my hand down the carpet in the n/s Cubby I can feel it’s wet at the bottom, oddly doesn’t seem wet under the ecu’s but I need to have a closer inspection, definitely water in the boot, looks more like condensation as it’s all around the boot and spare wheel but not puddles anywhere

  10. Dippypud

    Dippypud Never Knowingly Understood

    Joined:
    May 2, 2011
    Posts:
    51,375
    Likes Received:
    24,598
    Location:
    Out of the way
    Can be seam joins not sealed fully, or sealer failure ... even the floor seams may suffer ....

    Turboman likes this.
  11. holidaychicken

    holidaychicken Well-Known Member

    Joined:
    Jun 30, 2013
    Posts:
    3,894
    Likes Received:
    1,056
    Location:
    Kent
    Don't the covers push in and slide back to reveal the bolts ?

  12. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    737
    Likes Received:
    49
    Location:
    evesham
    Yeah they push down and slide under But on mine they’ve been snapped off for some strange reason

  13. Dippypud

    Dippypud Never Knowingly Understood

    Joined:
    May 2, 2011
    Posts:
    51,375
    Likes Received:
    24,598
    Location:
    Out of the way
    Sounds like someone made a boo boo trying to shift 'em ....

    Turboman likes this.
  14. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    737
    Likes Received:
    49
    Location:
    evesham
    Or was just lazy

  15. holidaychicken

    holidaychicken Well-Known Member

    Joined:
    Jun 30, 2013
    Posts:
    3,894
    Likes Received:
    1,056
    Location:
    Kent
    make some and neatly seal them in place or fit some roof bars or a sexy roof box.
    failing that fit an expedition roof rack and you have somewhere for the wife and kids to sit on long journeys :)

  16. anorakmark

    anorakmark Active Member

    Joined:
    Sep 24, 2010
    Posts:
    329
    Likes Received:
    3
    Location:
    Kent
    Grrrrrrrrrrrr @holidaychicken the dreaded water in the boot!!!!
    OK here is my story that @holidaychicken knows so well.
    Boot spare wheel well like a pond, all I needed was a few ducks to compliment the situation.
    First I started with a new genuine LR boot seal thinking this would cure the problem, but no it didn't.
    My good and extremely helpful friend @holidaychicken was kind enough to remove the rear bumper and re-seal where the mating flanges meet and the tow bar (thank you Andy) Water still entering after a good pee down.
    Now here's the strange part. My drive way is on a fairly steep gradient and funny enough depending on which way I parked the beast made a big difference to if I was greeted with a pond of water or a nice dry desert.
    Parked with arse in the air and nose pointing down, no water seemed to enter the boot well even after having the wife stand with the hose on full pelt.
    Now with the car parked facing in the opposite direction, nose in the air and arse on the floor things were a lot different.
    Each morning I was greeted with a boot full of water in the spare wheel well, lucky my electric cupboards were always dry.
    After more extensive tests with the hose pipe I can confirm water was not breaching the boot seal, so well the hell was this coming in.
    Upon further investigation the only place I could pin point was the near side upper tailgate hinge flange. Water was entering underneath the mating face of the flange to the body and travelling left underneath the seem and down inside the rear pillar behind the speaker to the boot well.
    Anyway to cut a long story and stressful saga short the upper tailgate was removed and a gasket made to an exact fit, with the aid of some high quality sealant tailgate refitted and I can now confirm my boot is dry as a Nuns you know what and has been for the last 3 months.
    I still can't get out of the habit of checking it after a good down pour but no more water is entering the boot well. So this area around the upper tailgate hinges is worth a check.

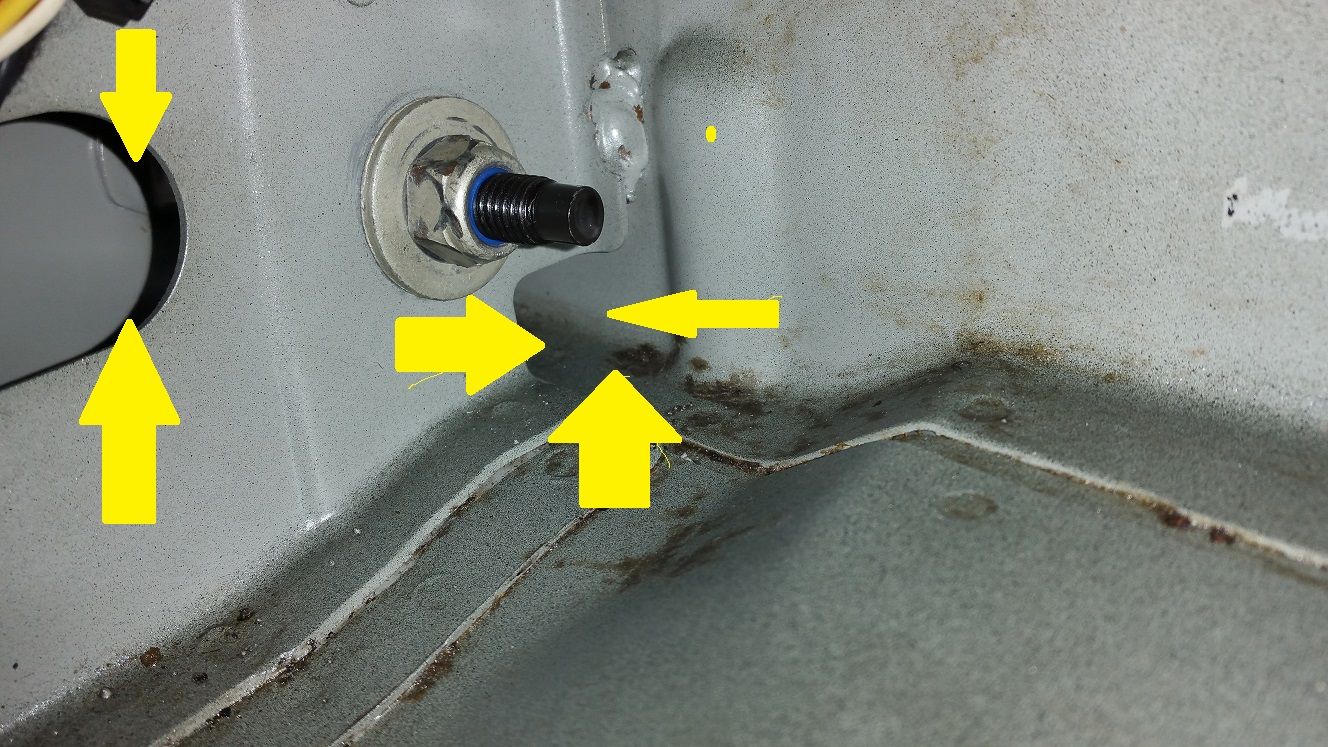

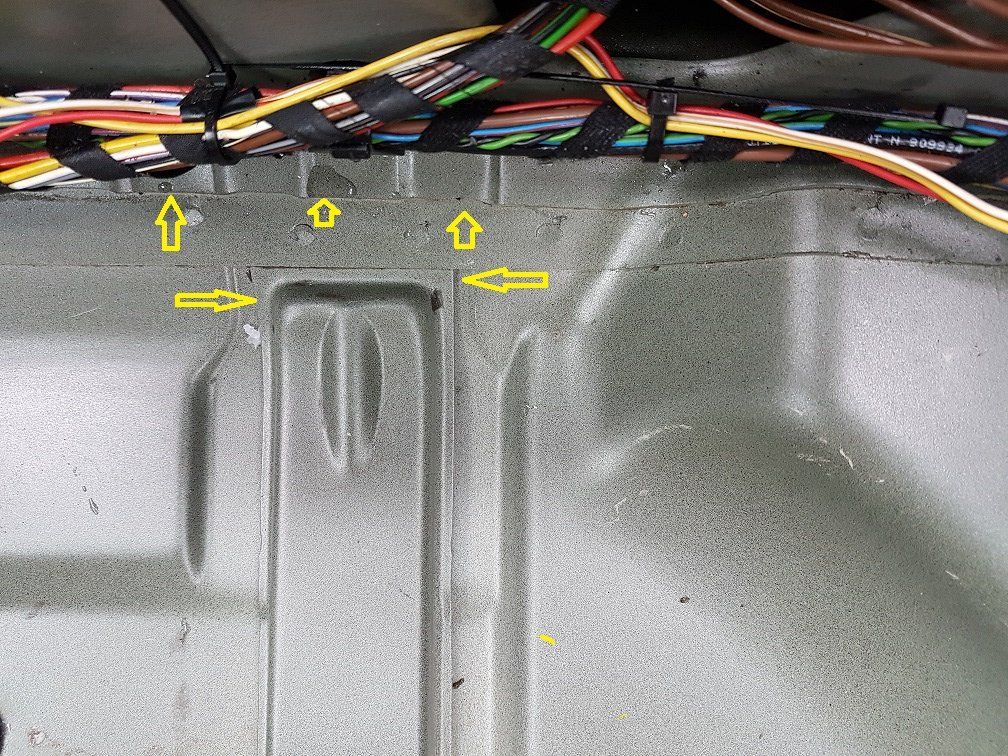

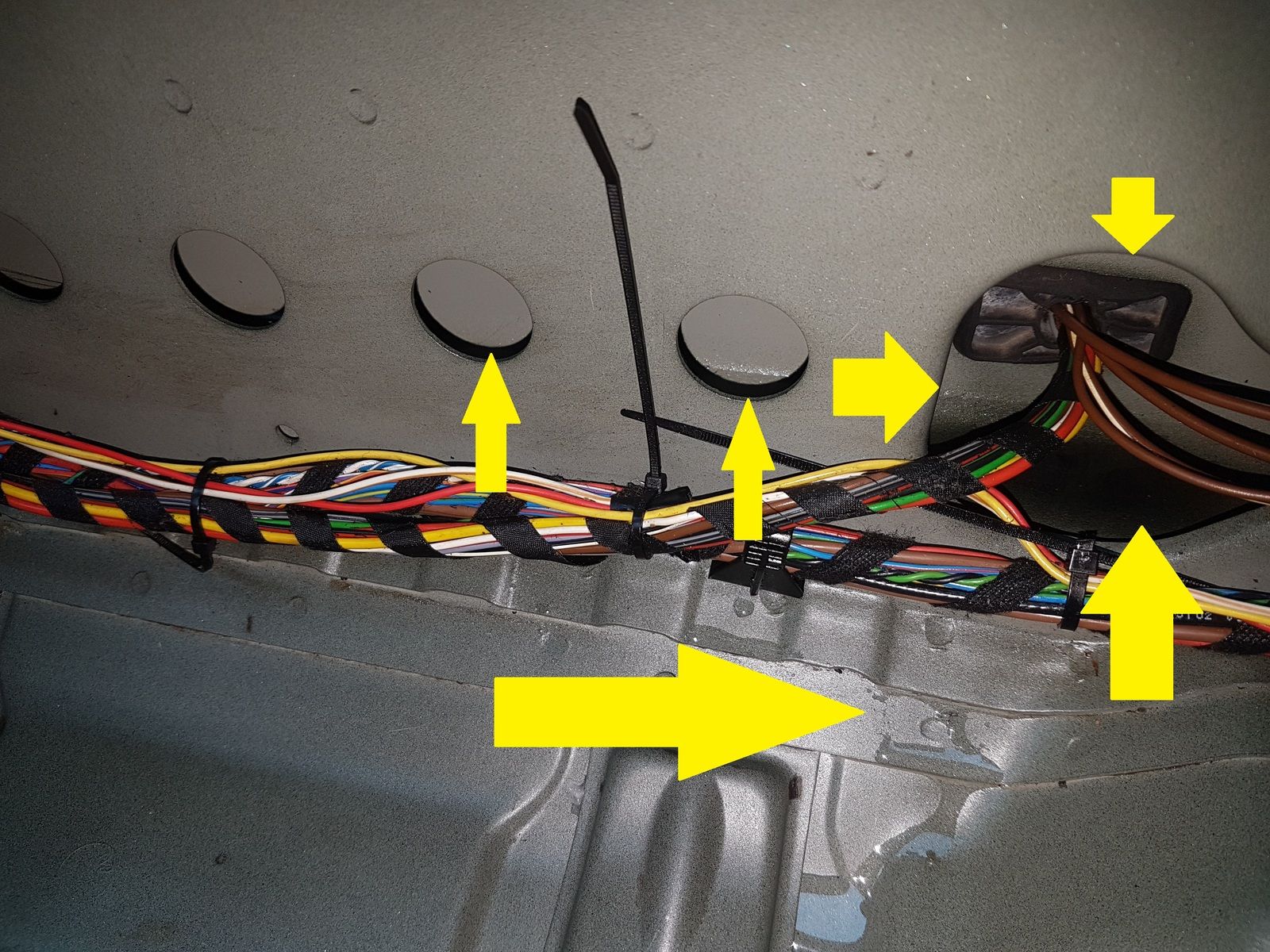

    I have attached pictures below of where the water was entering in the boot well after travelling from the upper tailgate via the rear pillar


    Attached Files:

    Tricky of York and gold rover like this.
  17. holidaychicken

    holidaychicken Well-Known Member

    Joined:
    Jun 30, 2013
    Posts:
    3,894
    Likes Received:
    1,056
    Location:
    Kent
    Nice one Mark, glad you are still dry !
    Definitely try the talc method that Dippy mentioned with everything taken out the boot that you can

  18. youmitegetian

    youmitegetian Active Member

    Joined:
    Dec 26, 2008
    Posts:
    737
    Likes Received:
    49
    Location:
    evesham
    Well this is today’s job, sounds like you had a nightmare,
    My leaks seems different, not a great deal under the boot floor, some is getting in as its damp all around the wheel well but no puddled water, I do seem to have water in the electrics compartment on the passenger side, but oddly only on the side carpet and only at the bottom, I’ll strip out what I can and see where we go, I was wondering if it could be coming in by the rear light, but hopefully I’ll find out today

  19. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    11,612
    Likes Received:
    2,896
    Location:
    wirral and triquivijate
    @holidaychicken ,you just carn't resist mating flanges (#post 16) can you Andy. Not the photos I was expecting. ;):D

    myfirstl322 likes this.
  20. myfirstl322

    myfirstl322 Well-Known Member

    Joined:
    Dec 29, 2012
    Posts:
    19,489
    Likes Received:
    7,691
    Location:
    Geroutavit.....
    Do not google wet flange...that be a slippery slope..:p

    tomcat59alan likes this.
