UJ Help!

Jason2 · May 13, 2009

Hi

Ordered some new UJ's for the propshaft on my 1985 110 2 1/4 petrol, took the old ones out and the new ones are too fooking small

checked references and I have been sent ones for a early series 3

Thought I was in luck as I had some for a Disco kicking around but they are slightly too small too (on lengh between the circlips, about 2mm)

Now wondering whether it's original prop as it's not the same as a 110 200tdi either......Help!!!!!!!!

Trewey · May 13, 2009

measure the width across the outside of your propshaft yokes.
If it's about 93mm, you have the earlier type and need UJ part number RTC3346.
If it's about 87mm, you have the later type and need UJ part number RTC3291.

iannotts · May 13, 2009

a 1985 110 should use rtc3346 or tvg100010 unless the prop has been changed

Jason2 · May 13, 2009

Treworgey 90 said:
measure the width across the outside of your propshaft yokes.
If it's about 93mm, you have the earlier type and need UJ part number RTC3346.
If it's about 87mm, you have the later type and need UJ part number RTC3291.

I was just about to "Hug" yeh Treworgey until I measured mi Yokes:Mine are approx 89mm

Jason2 · May 13, 2009

iannotts said:
a 1985 110 should use rtc3346 or tvg100010 unless the prop has been changed

And what if the prop has been changed?

Just had a look on the "hardy Spicer" website, wow

complicated or what!

Trewey · May 13, 2009

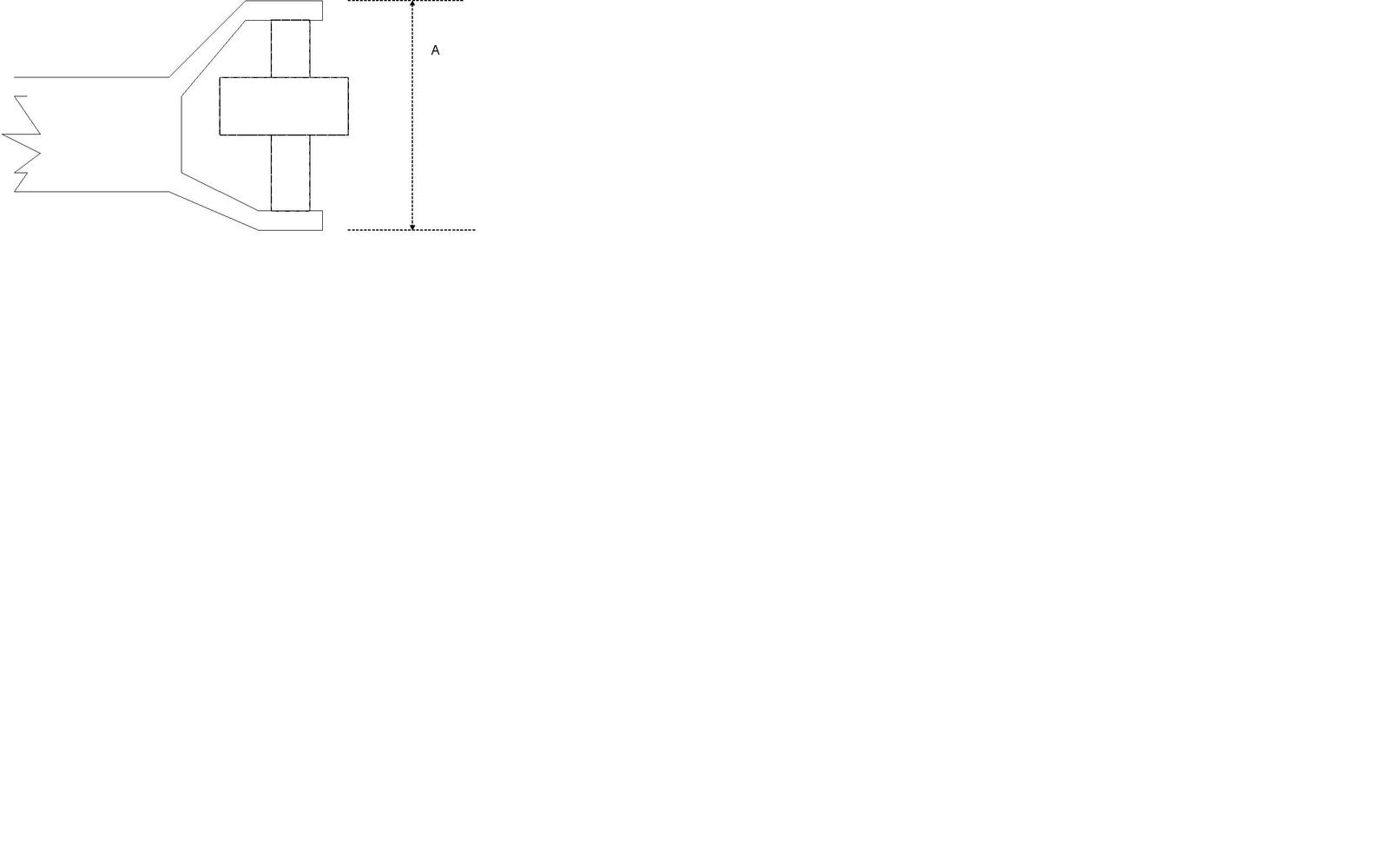

Crappy pic, but you are measuring "A" aint yer?

Jason2 · May 13, 2009

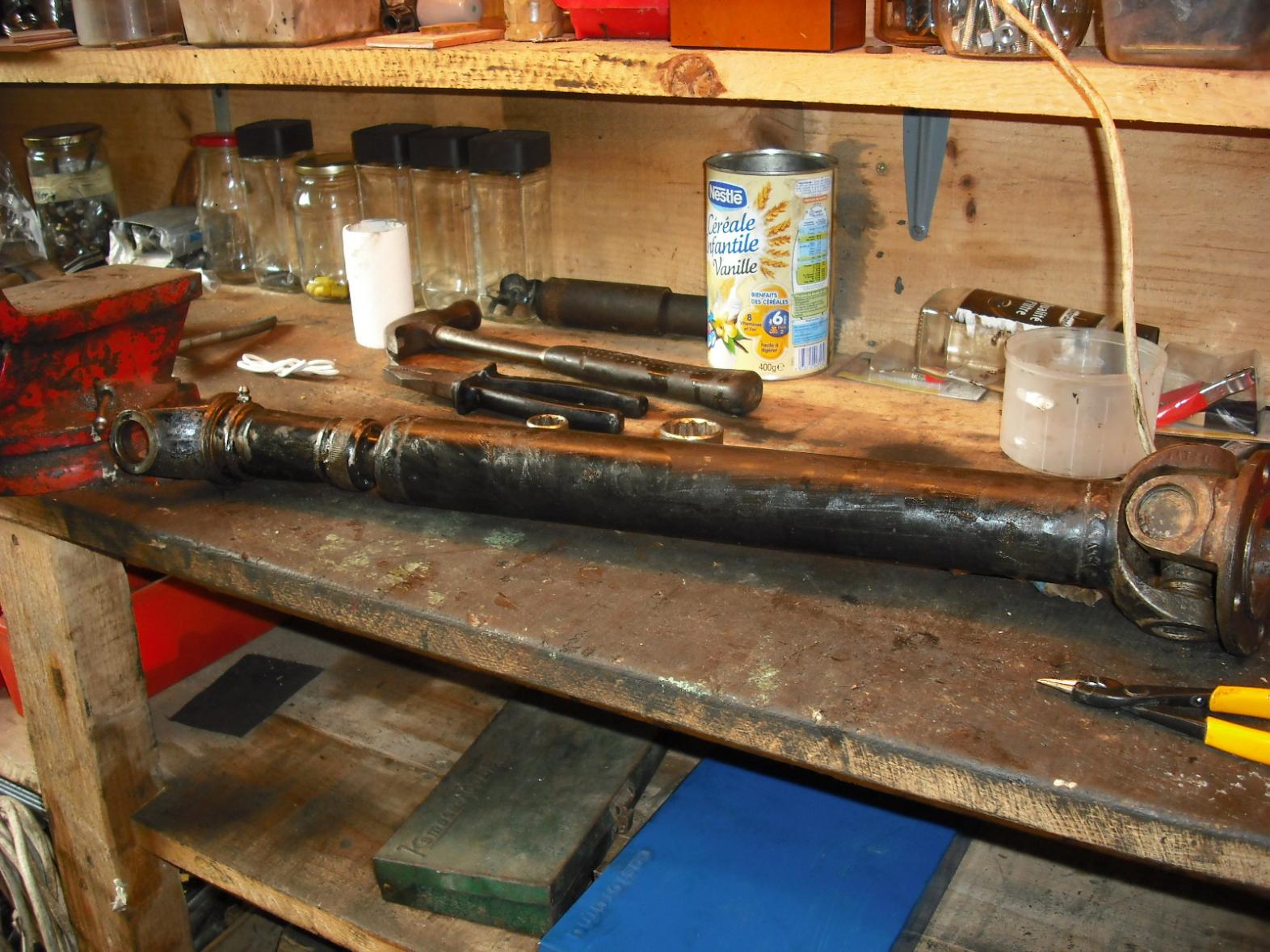

Anyone reconise this as a early 110 prop shaft, it has a screw collar where the slidy bit is!

Jason2 · May 13, 2009

Treworgey 90 said:
Crappy pic, but you are measuring "A" aint yer?

Yip! but will measure again!

Trewey · May 13, 2009

That looks zackly like my early 90 one - cept it's longer.
Mine uses RTC3346.
It's 93mm across the outside of the yoke, in the centre of the UJ hole - if you get what I mean.

iannotts · May 13, 2009

The series also uses RTC3346

Jason2 · May 13, 2009

89mm across the flat machined bit's on yokes !

Ordered for a 1985 110 and got RTC3291

Got a prop shaft for a Disco but that's too short, not that it solves the problem but would a 110 tdi prop fit?

Trewey · May 13, 2009

well fook knows what you've got there.
for the sake of the price of a uj, I'd try a RTC3346 and see if it fits.

Jason2 · May 13, 2009

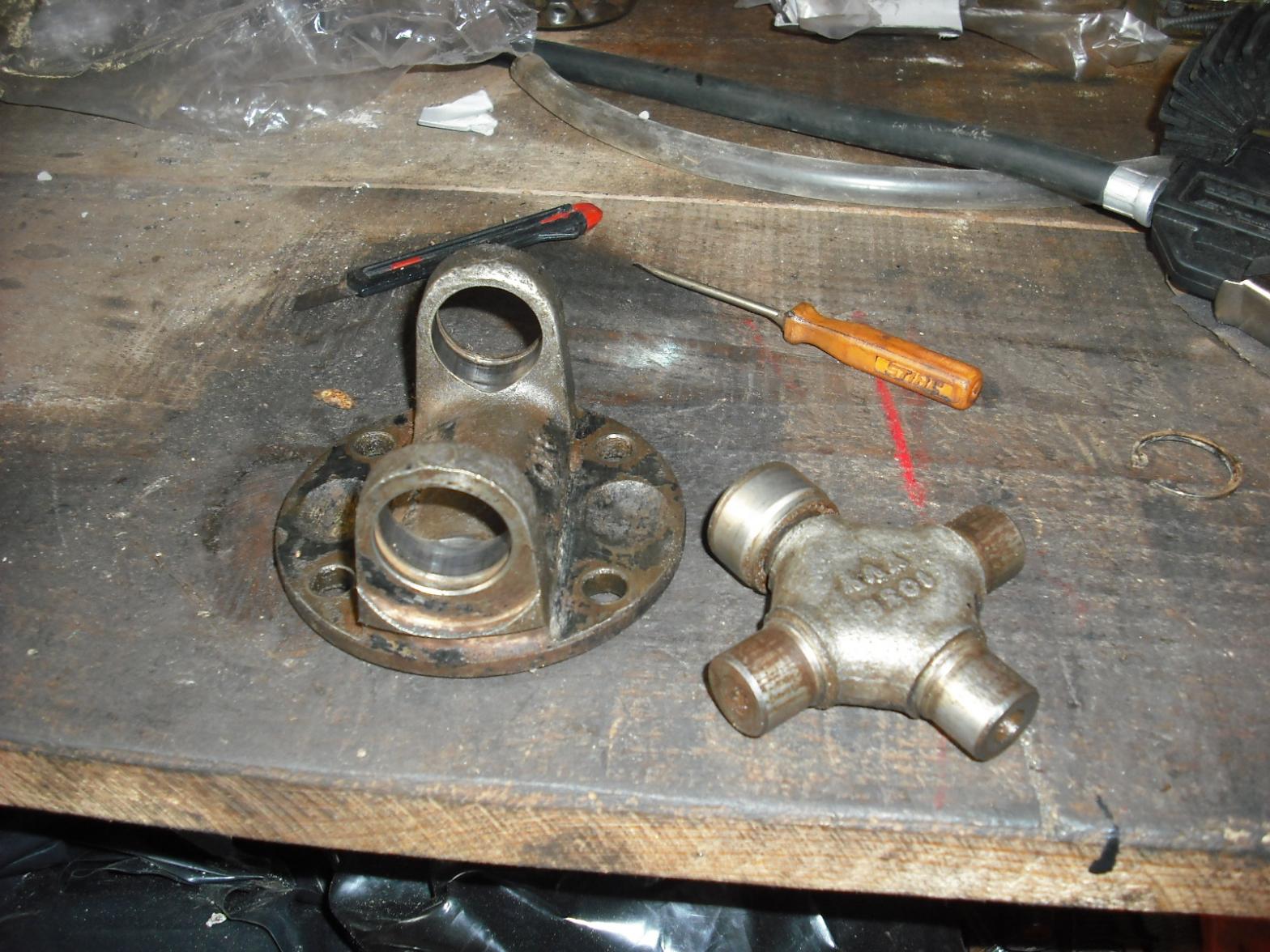

My UJ's are 76.5mm wide with out the cups!

My Discovery 1 UJ's are 70mm wide with out the cups!

The RTC 3291 UJ's that I was sent are 66mm wide with out the cups!

All three have the same cup dia of 27mm.

Will do that Trew cos it's doing "me head in", I will get some RTC 3346's ordered and if there not reight can give em to the wife for Crimble and make a **** (sorry ment to say twerp) of myself in 2 wheel drive at weekend after next's off road event

Thanks for all your help

ADHA2 · May 15, 2009

Hi Just as an aside and not recomended. A couple of years ago I had to fit (in the middle of nowhere in Africa) a severley undersised set of UJs that had a lateral movement of at least 5mm, and 3000km later (on and off bush roads) they were still fine with no measurable wear. However I did have a new yolk fitted. cheers ADHA

Griffdowg · May 15, 2009

always take spare UJ's if venturing further afield than Chelte 'nam

I always carry a pair of the CORRECT size

G

HOOK · May 16, 2009

plus spare wheel bearings. oils. brake pads.etc etc

Jason2 · May 19, 2009

Sorted

It was the RTC 3346's UJ's that i needed, got them today,fitted and "Jobs a good un"

Thanks once again
