Top dash removal

codfather79

Well-Known Member

Posts

649

Location

Kent

• Aug 14, 2022

• #1

Hi there.
Nearly got the dash off, but am stuck.

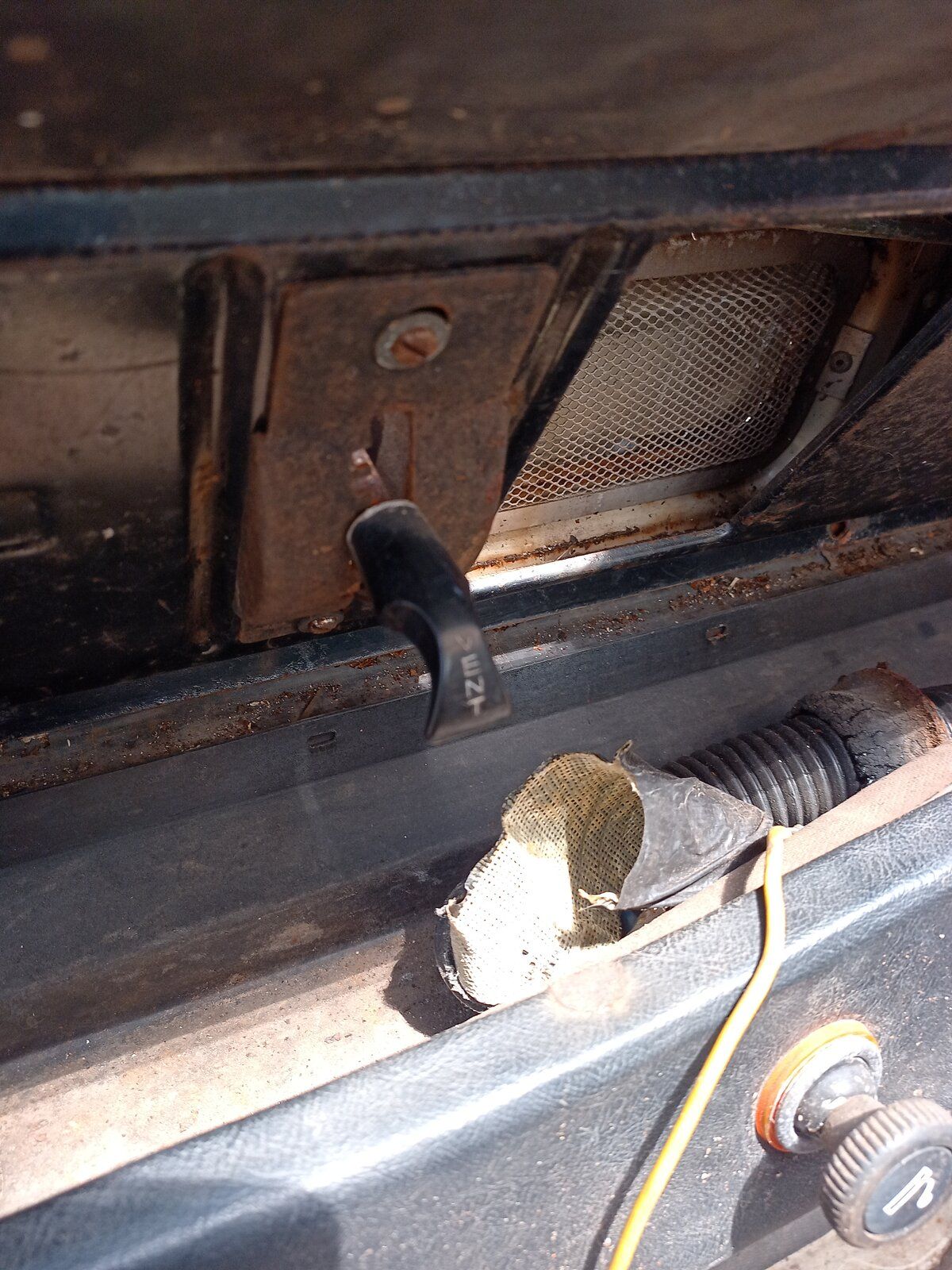

Does the vent lever unscrew (plastic bit)
Or do I unbolt from behind?
Cheers Shirley



H

Hicap phill

Well-Known Member

Posts

16,319

Location

Wiltshire

• Aug 14, 2022

• #2

You can open the flap & remove the nut/bolt from the outside. Then back inside & remove the 2 screws above/below the vent knob



dag019

Well-Known Member

Posts

6,148

Location

Warwick

• Aug 14, 2022

• #3

Hicap phill said:

You can open the flap & remove the nut/bolt from the outside. Then back inside & remove the 2 screws above/below the vent knob

Click to expand...

^^ This one
It is by far the easiest way to remove the dash support panel, but unless you need to remove the vent levers entirely you can just undo the two bolts under the vent itself and do not need to fully remove them form the panel.



codfather79

Well-Known Member

Posts

649

Location

Kent

• Aug 14, 2022

• #4

Thank you
