TD6 breather

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

47p2

New Member
Posts
86
Location
Between there and there
Sold my Classic LSE and bought an L322 last week. It's a 2002 and has full LRSH except for the last service which was done by the cowboy I bought the car from.

Today I went into my LR dealership and bought some filters and gave it a proper service. When speaking to the spares man he said I should change the breather under the engine cover so I came away with one. When I removed the cover I couldn't see where the breather was, so if anyone could point me in the right direction it would be appreciated.

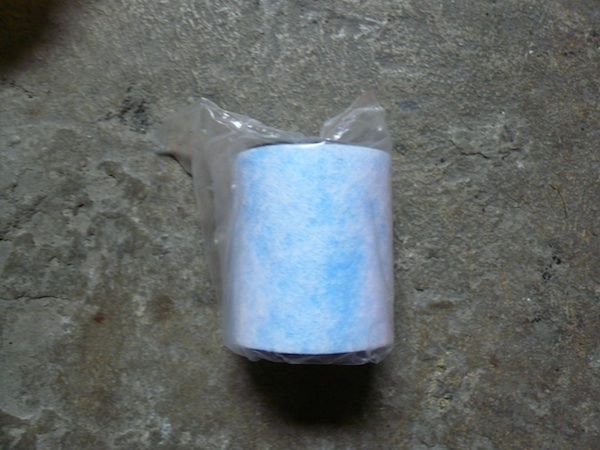

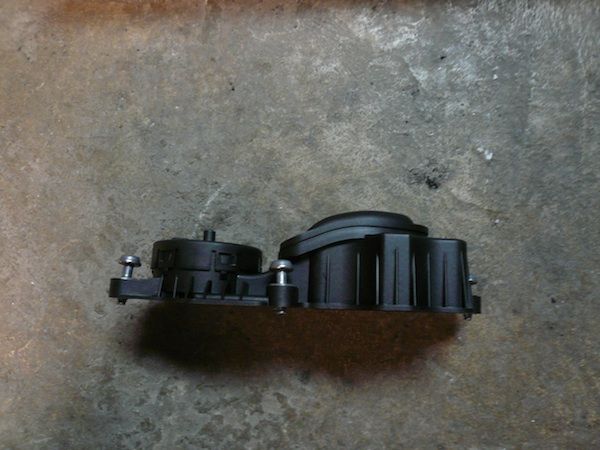

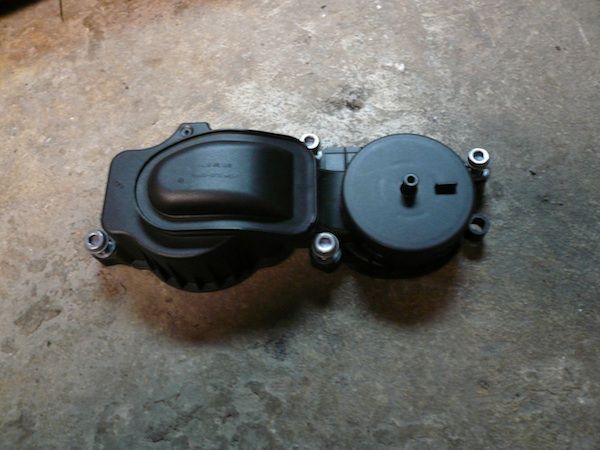

See attachments for the breather pictures, the blue cylinder fits inside the black casing

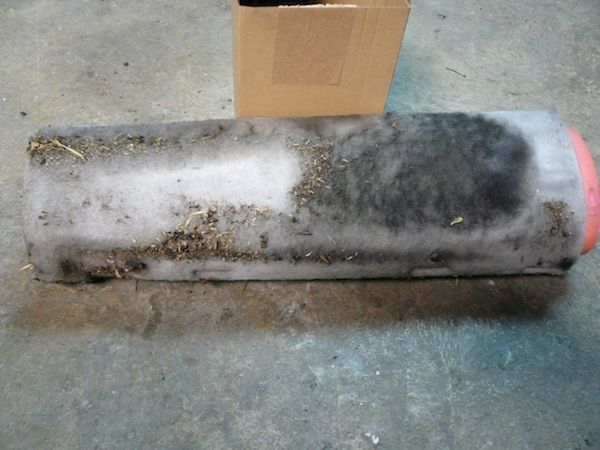

Finally the vehicle was supposedly serviced just before I bought it, look at the state of the air filter


Attachments

  • P1040132.jpg
    43.3 KB · Views: 517
  • P1040133.jpg
    43.9 KB · Views: 396
  • P1040135.jpg
    44 KB · Views: 423
  • P1040131.jpg
    45.8 KB · Views: 456
Last edited:
take the covers off so you can see the injector wiring, the breather is on the top towards the rear. you have to unplug the injector wiring and undo its little retaining screws that hold the loom down, its an easy little job really. crack on.;)
