Is there anyway to fit a pressure sensor and leave it there, maybe add a fuel pressure gauge somewhere. im pretty sure that would be very handy in diagnosing an engine problem. I was thinking a t connector where there is the fuel temperature sensor? not sure if there would be enough space cause i think it is pretty restricted
Disco 2 TD5 Permanent Fuel Pressure Gauge
- Thread starter mad85
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
raywin
Well-Known Member
- Posts
- 3,808
- Location
- North Yorkshire
Should be too hard, maybe put a tee in the temperature connection on the fuel pressure regulator.
I bought a small led device which reads temperature, pressure, and voltage and displays it in colour, but still waiting to install it.
I bought a small led device which reads temperature, pressure, and voltage and displays it in colour, but still waiting to install it.
DaveM-sport
Active Member
- Posts
- 847
- Location
- Cork, Ireland
I machined a some steel to make a T piece and then used the fittings and one of the hoses from an old fuel pressure regulator to connect it all up inline.
Displayed the readings on one of the pressure readouts of my Madman EMS2 then.
Displayed the readings on one of the pressure readouts of my Madman EMS2 then.
So you did not use the port for the fuel temperature sensor?
Hellastony
Active Member
- Posts
- 244
- Location
- Essex and Pelion, Greece

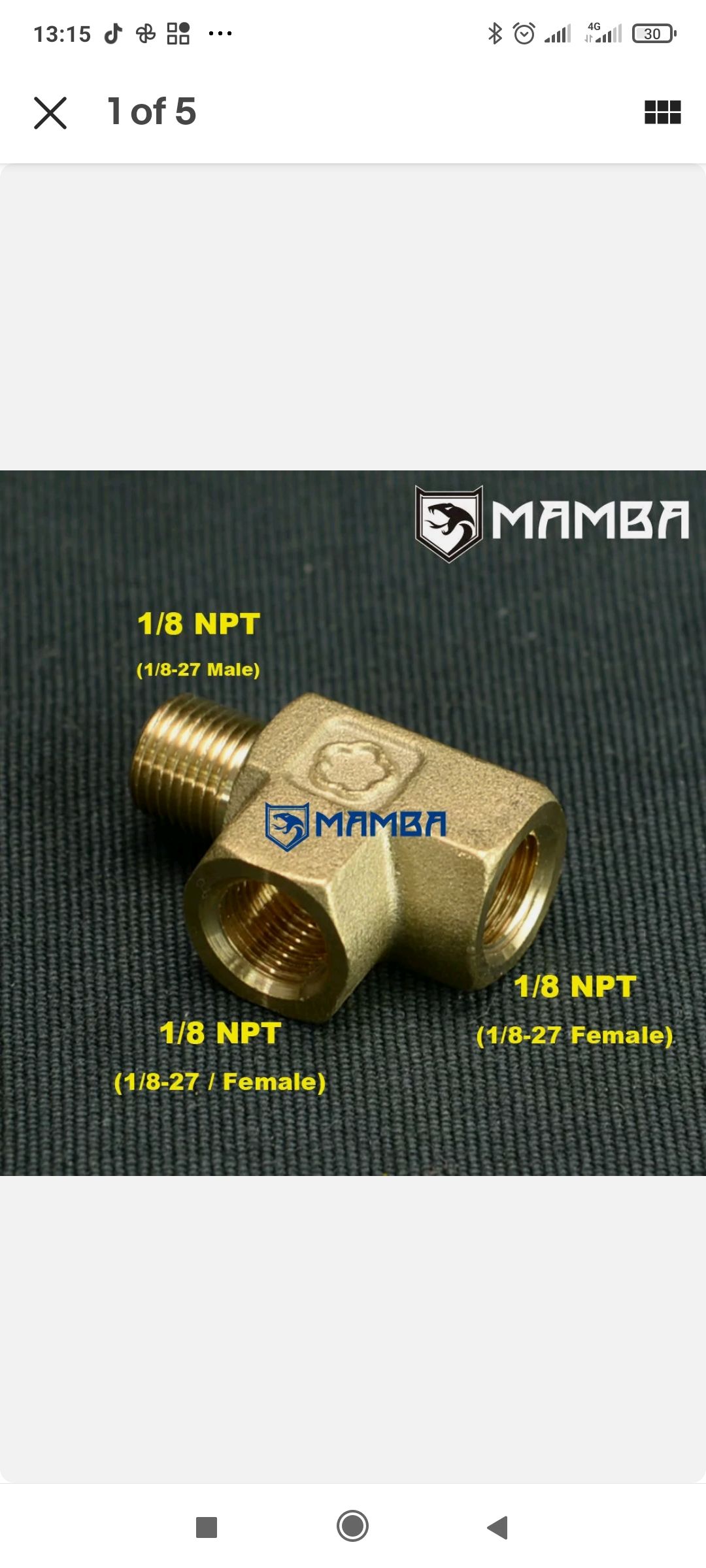

Best to use a T piece, so you keep the fuel temperature sensor in place. Several have done it this way, either permanently fitted, or or just for use as a test for the fuel pump.
DaveM-sport
Active Member
- Posts
- 847
- Location
- Cork, Ireland
I'll take a pic of mine tomorrow. The T-piece is put on the fuel feed line from the tank to the fuel pressure regulator
raywin
Well-Known Member
- Posts
- 3,808
- Location
- North Yorkshire
I think that the best way, you can tee into the temperature unit port but there's some risk of the sensor not getting into the fuel flow and the temperature readings could lag slightly.
Would also be interested to see your setup.
Yep, that would be the easiest way but as you point out it might affect the temperature reading somehow. not sure how accurate it needs be though
DaveM-sport
Active Member
- Posts
- 847
- Location
- Cork, Ireland

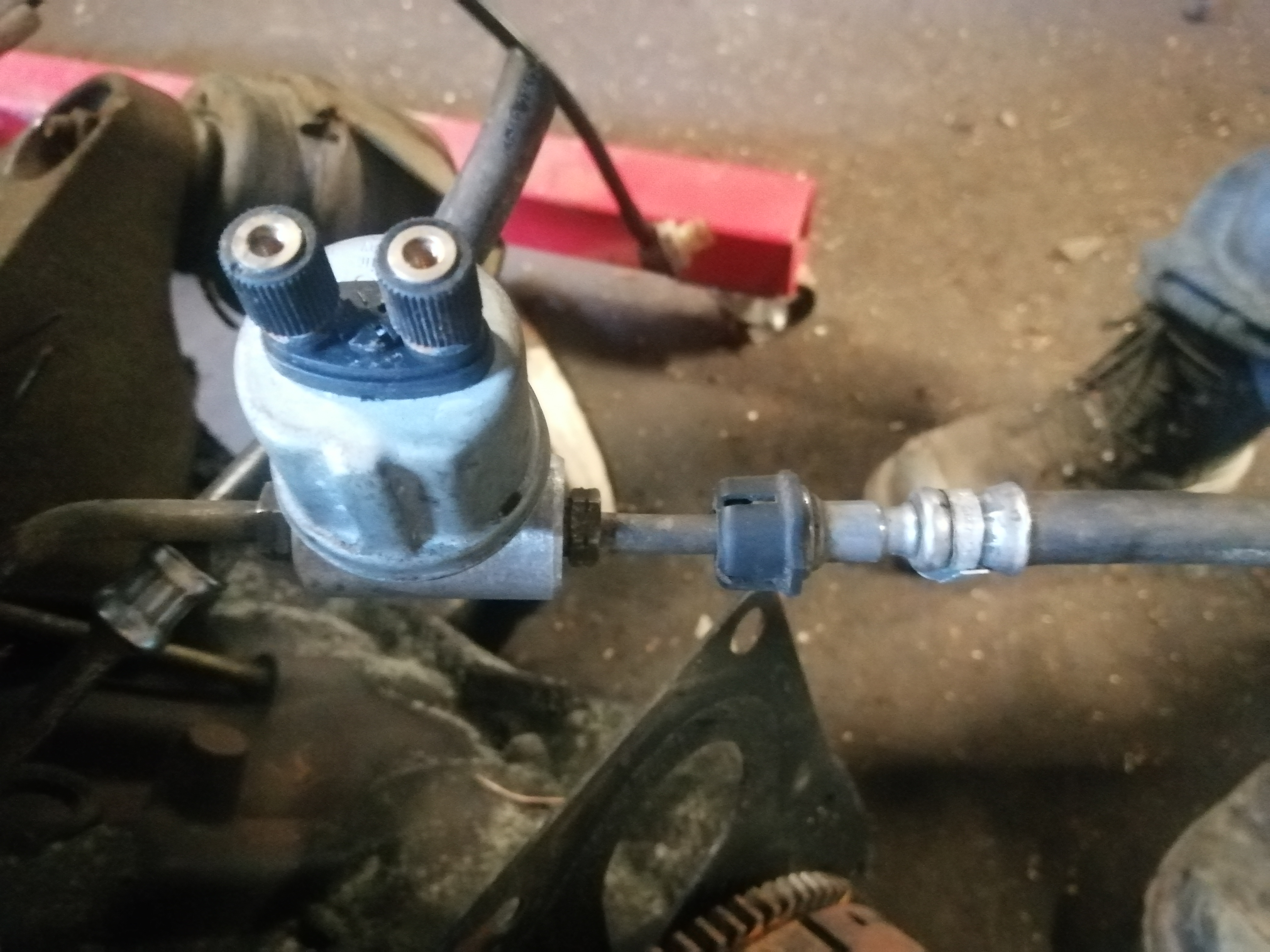

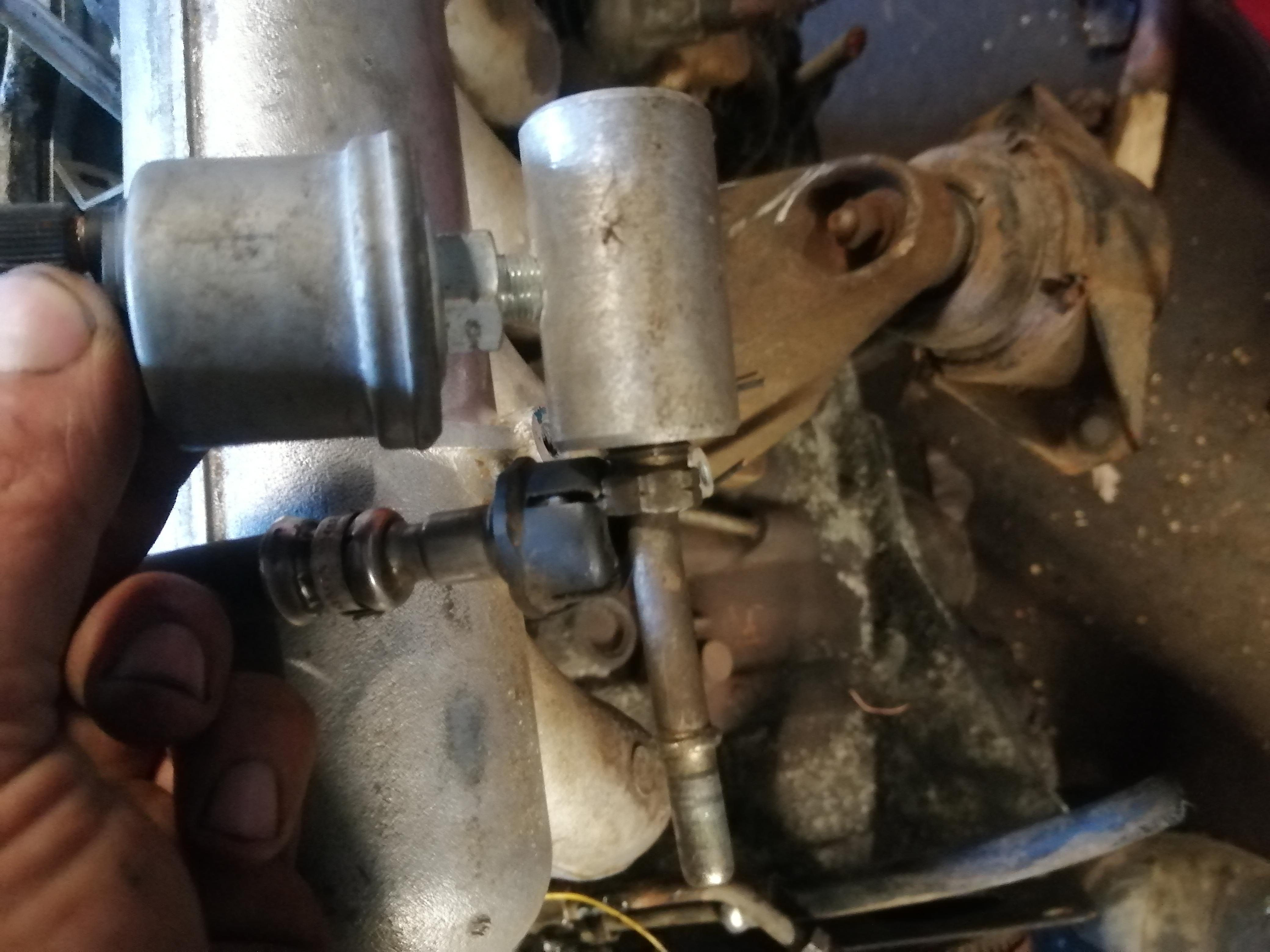

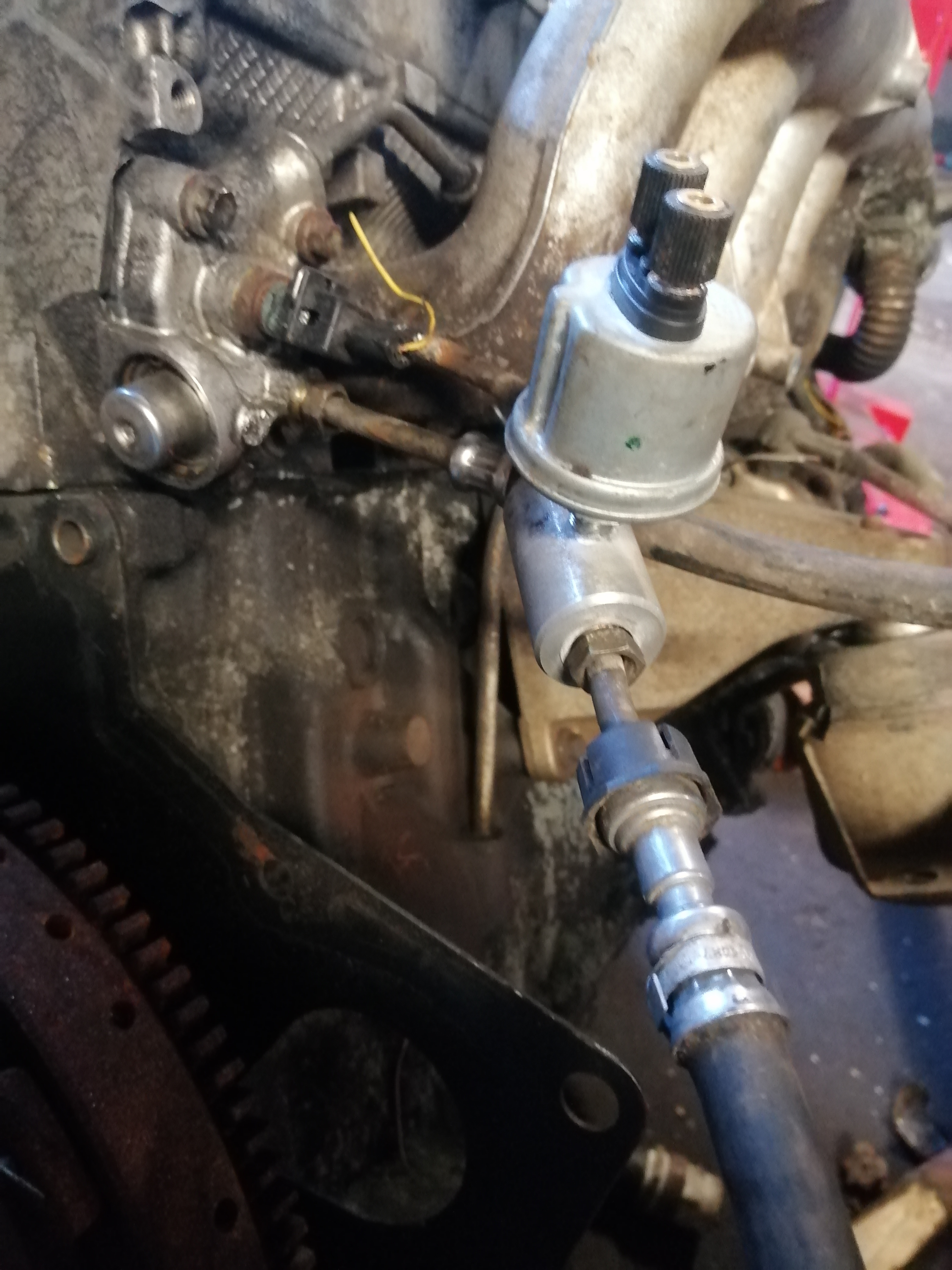

Just put it together quickly on a engine I've out on the ground to make it handier to see
One I've done for the Defender is abit neater and tidier but this just to show how it works on the pipes. For a Discovery, I'd go with a flexible hose on the regulator side too due to engine being tight enough to the bulkhead. Can mount the sender on the bulkhead or somewhere out of the way then too

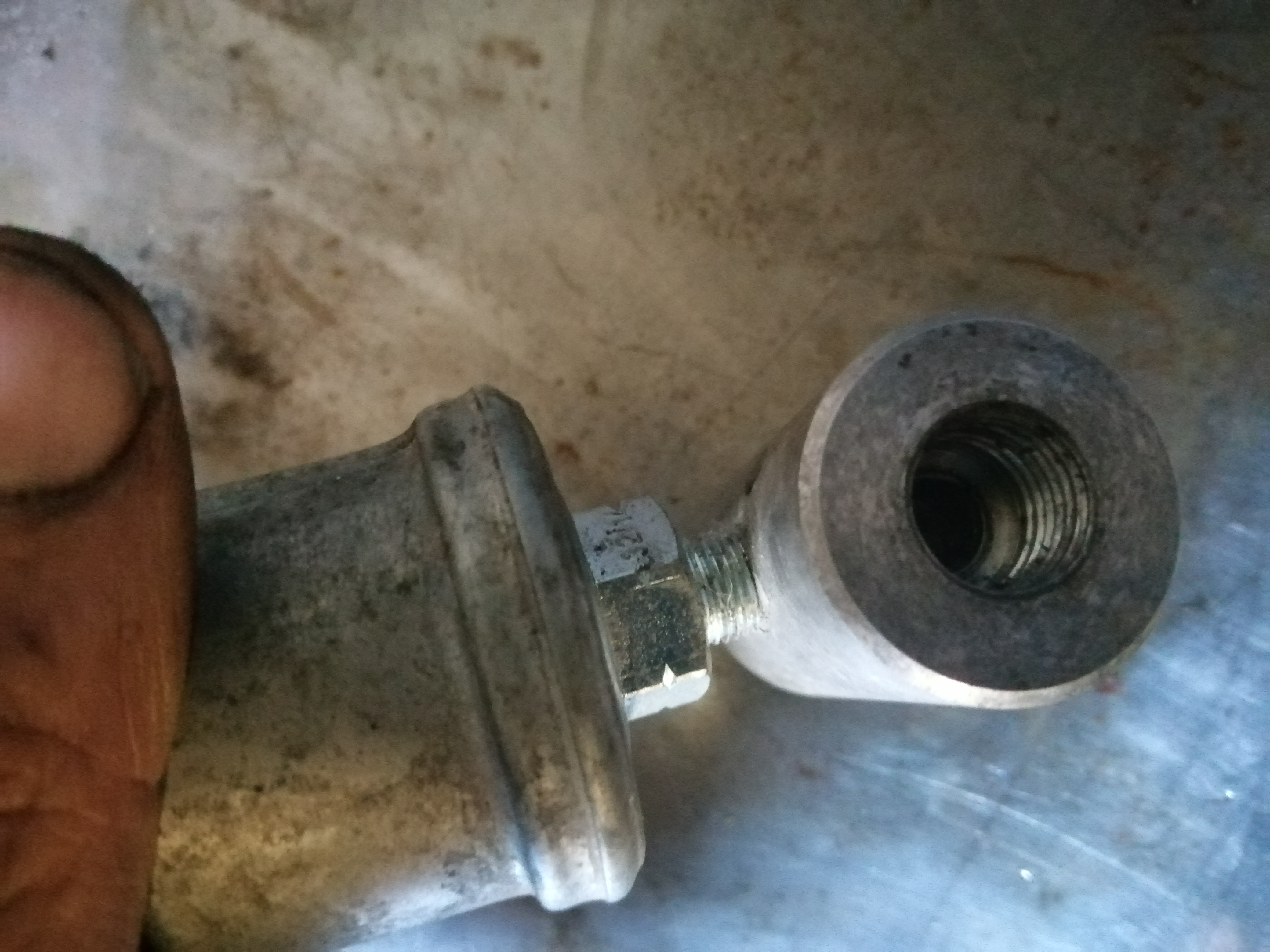

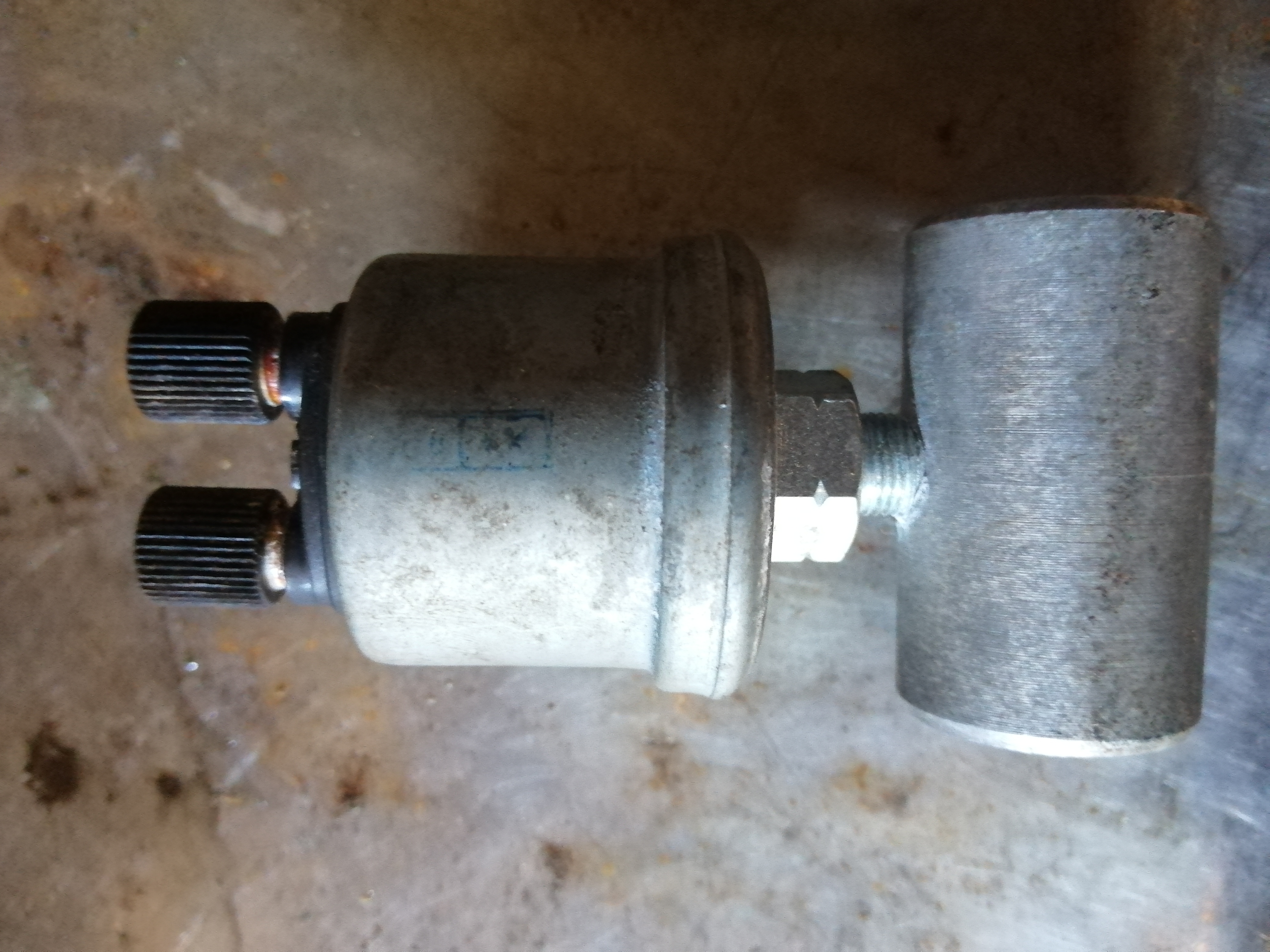

It's a VDO sender and T-piece is just some machined alloy with M10x1 thread for the sender on the T and then two ports to take the TD5 fuel pipe barbs
Could make another couple for people but they're quite easy to do really.
One I've done for the Defender is abit neater and tidier but this just to show how it works on the pipes. For a Discovery, I'd go with a flexible hose on the regulator side too due to engine being tight enough to the bulkhead. Can mount the sender on the bulkhead or somewhere out of the way then too
It's a VDO sender and T-piece is just some machined alloy with M10x1 thread for the sender on the T and then two ports to take the TD5 fuel pipe barbs
Could make another couple for people but they're quite easy to do really.
my previous post would not work and an adapter as described by DaveM-sport is better.
I would take you up for that offer if you re still up for it . let me know
Mark
Just put it together quickly on a engine I've out on the ground to make it handier to see
Could make another couple for people but they're quite easy to do really.
I would take you up for that offer if you re still up for it . let me know
Mark
DaveM-sport
Active Member
- Posts
- 847
- Location
- Cork, Ireland
Yep, that be no problem at all. I'll try get a couple made up next week
