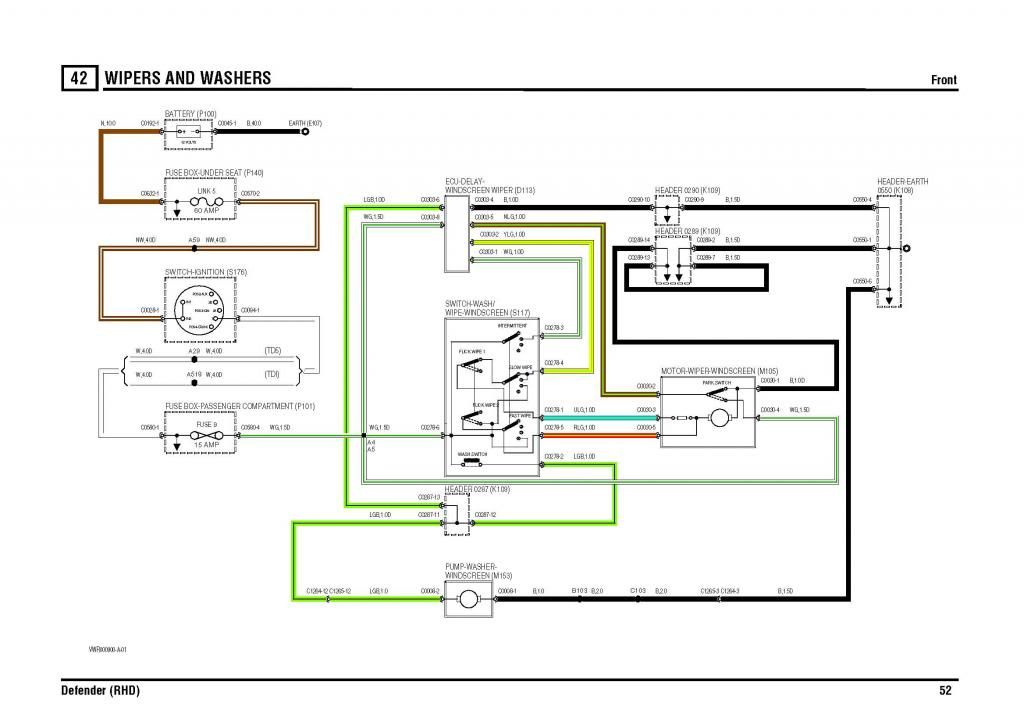

OK, further to my earlier thread, I've found the following circuit diagram for the possible problem fuse No. 9:
Am I right in assuming that all that is connected to this fuse is the wiper controls and washers??
If this is correct, I'm guessing that the 0.55 amps being constantly drawn through this circuit is likely to be the source of the battery drain given that it only seems to protecting the washers etc.
Anyone have any suggestions where to go from here to find what is problem causing the power drain??
Are all the relays the same, ie: can I take one out and swap it with another one to find if one is faulty??
Any help would be appreciated?
