TD5 fuel filling problem

F

fairline

New Member

Posts

2

• Aug 1, 2009

• #1

When filling up with diesel the fuel keeps backing up and gurgling before clearing. Is there a breather pipe that lets out the air when filling? Takes forever to fill up and keeps covering mi boots with fuel



B

Blackpig2

New Member

Posts

7

Location

South Cambs

• Aug 2, 2009

• #2

Breather exits just next to filler tube, mine does same, but only in Tescos....
Fine in other garages, think it may be something to do with the addatives.



listerdiesel

Well-Known Member

Events Planner

Posts

3,275

Location

Rushden, Northants, UK

• Aug 2, 2009

• #3

The breather from the tank to the filler neck may have collapsed or kinked.

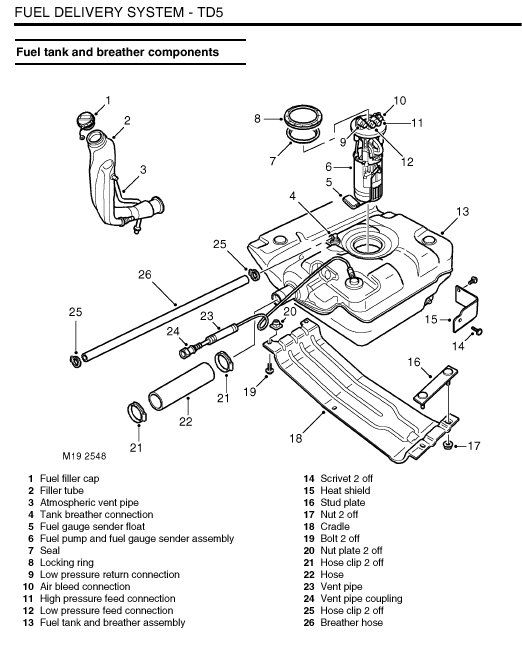

Have a look at the picture below for the component parts.

Peter



Attachments

•

  62.2 KB · Views: 5,710

F

fairline

New Member

Posts

2

• Aug 2, 2009

• #4

Thanks Guys.



J

JamesJefferson

New Member

Posts

8

Location

Lesmahagow, South Lanarkshire

• Mar 22, 2010

• #5

I have exactly the same problem on my 52 plate range rover. I had a look at the diagram but could anyone give me some guidance about how to get access to see and check the breather pipe?

Thanks
JJ
