TD5 bonnet switch location

Discussion in 'Defender 90 / 110 / 130' started by huffhuff, Nov 13, 2017.

< Previous Thread | Next Thread >
  1. huffhuff

    huffhuff Well-Known Member

    Joined:
    Feb 26, 2015
    Posts:
    768
    Likes Received:
    109
    Location:
    Home Counties
    Hi all,

    2001 Defender TD5. Bonnet alarm switch. Where should the switch go and should there be a loom/wire to pick up somewhere in the engine bay (purple with blue trace)?

    Cheers in advance

  2. raywin

    raywin Well-Known Member

    Joined:
    Feb 17, 2014
    Posts:
    3,809
    Likes Received:
    2,678
    Location:
    North Yorkshire
    Mine is on the bulkhead near the brake servo I will try and ad a photo this morning.

    bankz5152 likes this.
  3. raywin

    raywin Well-Known Member

    Joined:
    Feb 17, 2014
    Posts:
    3,809
    Likes Received:
    2,678
    Location:
    North Yorkshire

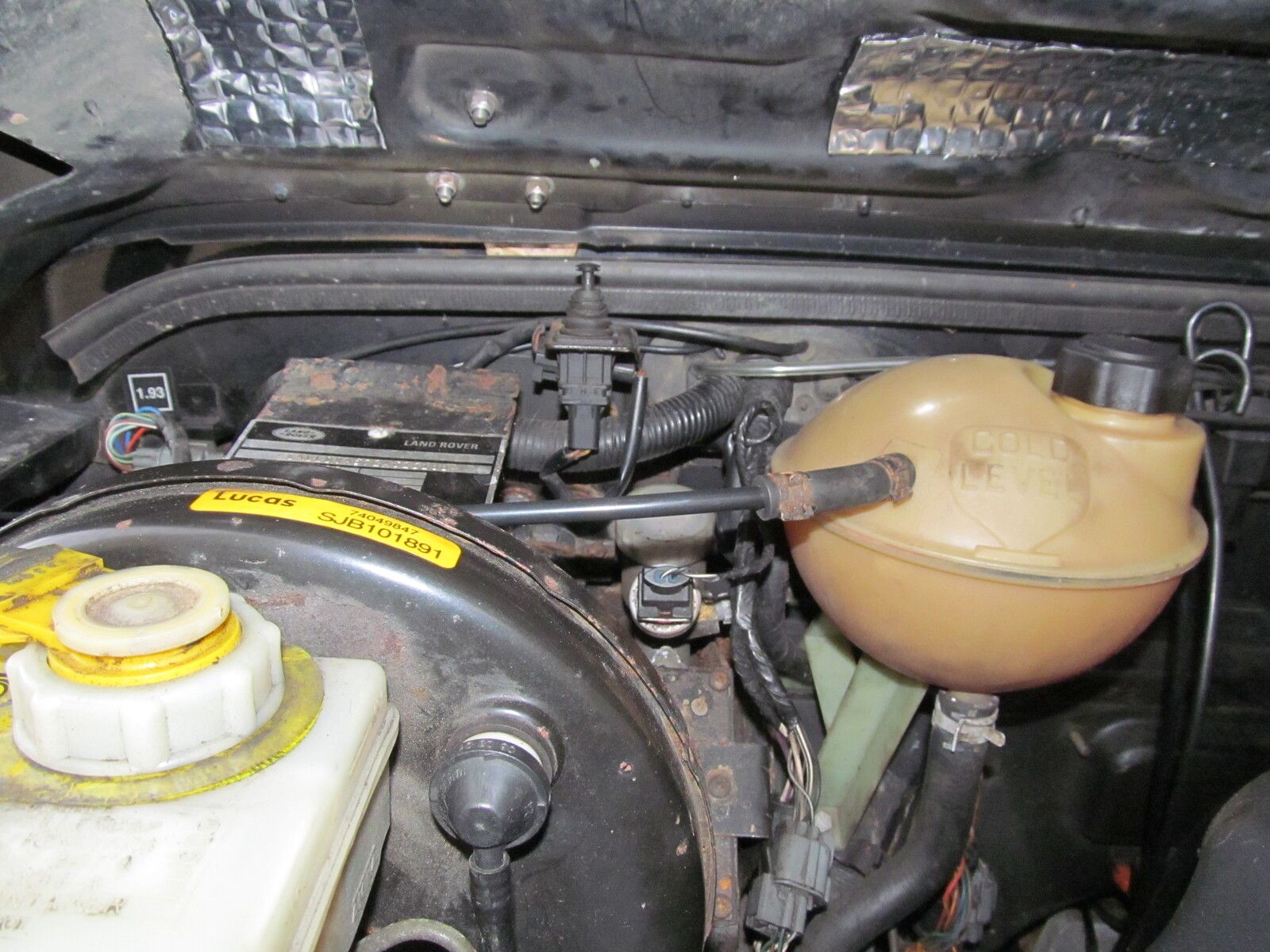

    Here it is, Connection sees to be in the thin loom you can see coming through the bulkhead behind the switch.


    Last edited: Nov 13, 2017
    huffhuff and bankz5152 like this.
  4. huffhuff

    huffhuff Well-Known Member

    Joined:
    Feb 26, 2015
    Posts:
    768
    Likes Received:
    109
    Location:
    Home Counties
    Thank you @raywin

    I definitely do not have that, so will check the cable is there and give the switch an eBay search :)

    Ta muchly.

    (now if there is a cable in there, i'm thinking I might run additional switches to the rear of the headlights...)
