TD4 filter assembly

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Campsea

Member
Posts
10
Location
Suffolk
1. Both the 10mm bolts are knackered that hold the plastic tray for the filter assembly I have therefore took the wheel lining out I can now see the assembly but not get to it can you bend the two steel brackets that hold the plastic cover to pull the unit out?

2. There is a plug that is not attached does anyone know what it is?

Thanks


Attachments

  • 7F213611-C98A-4C75-BC9C-B5A0EFDF679C.jpeg
    172.7 KB · Views: 151

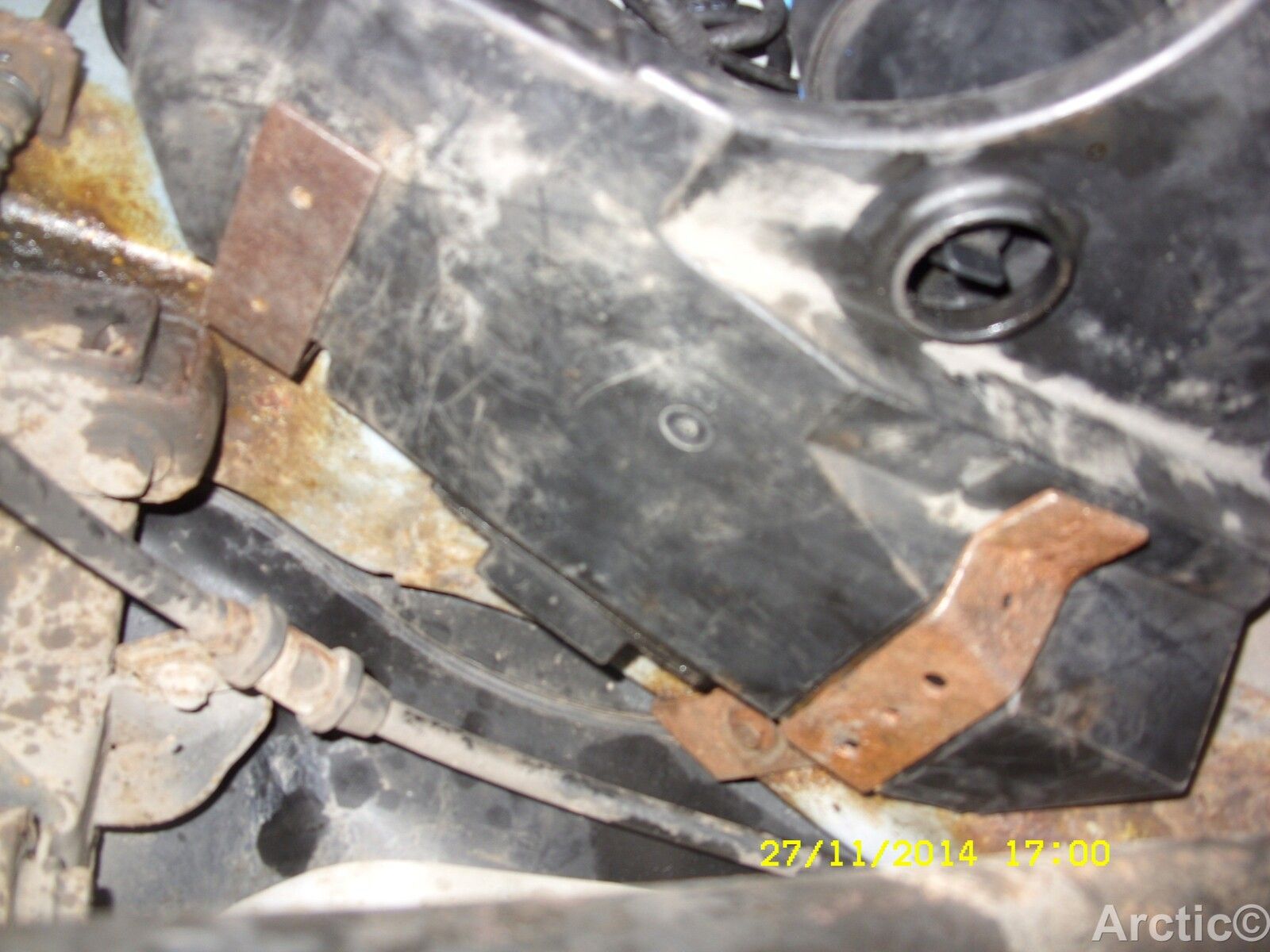

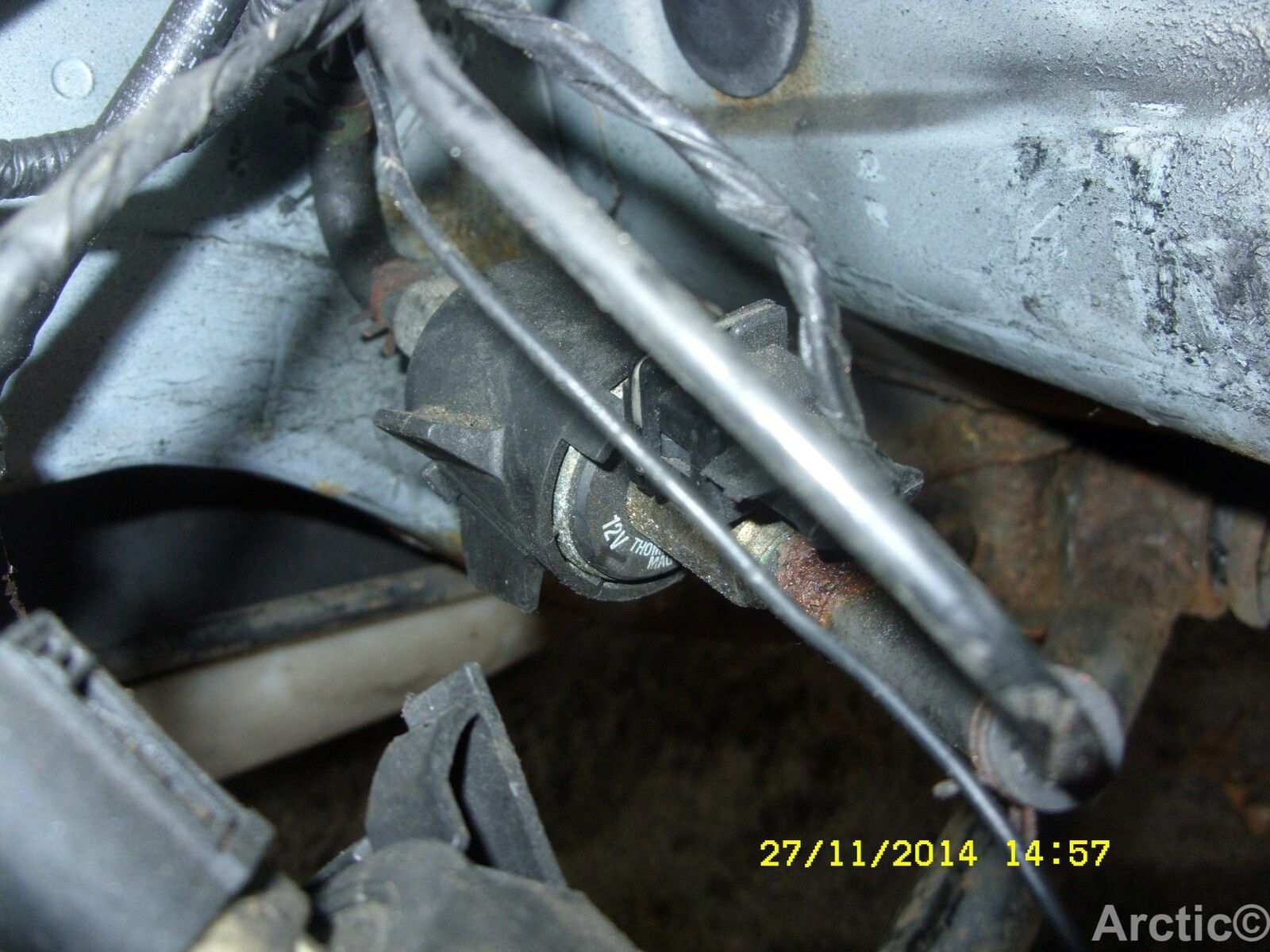

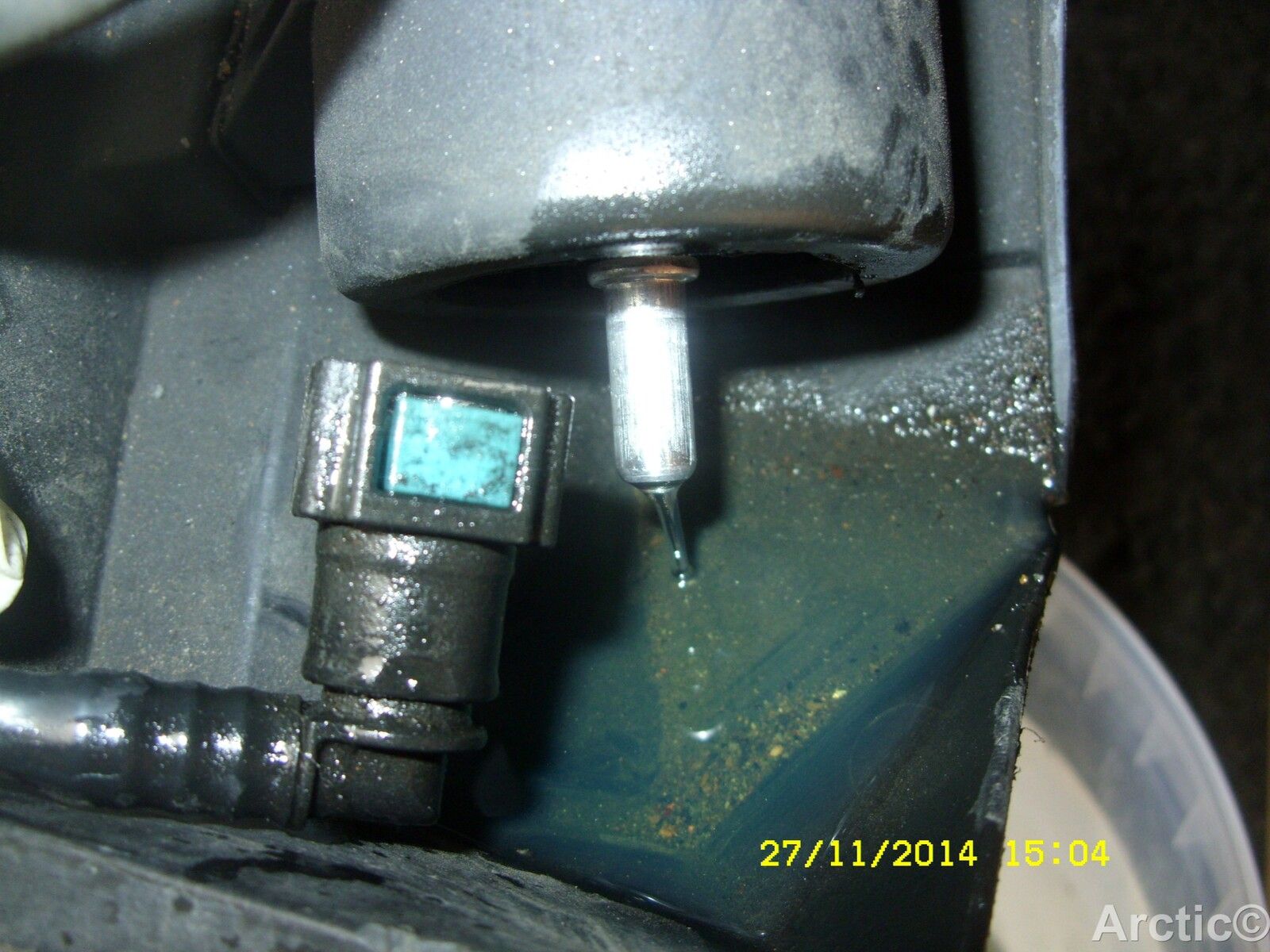

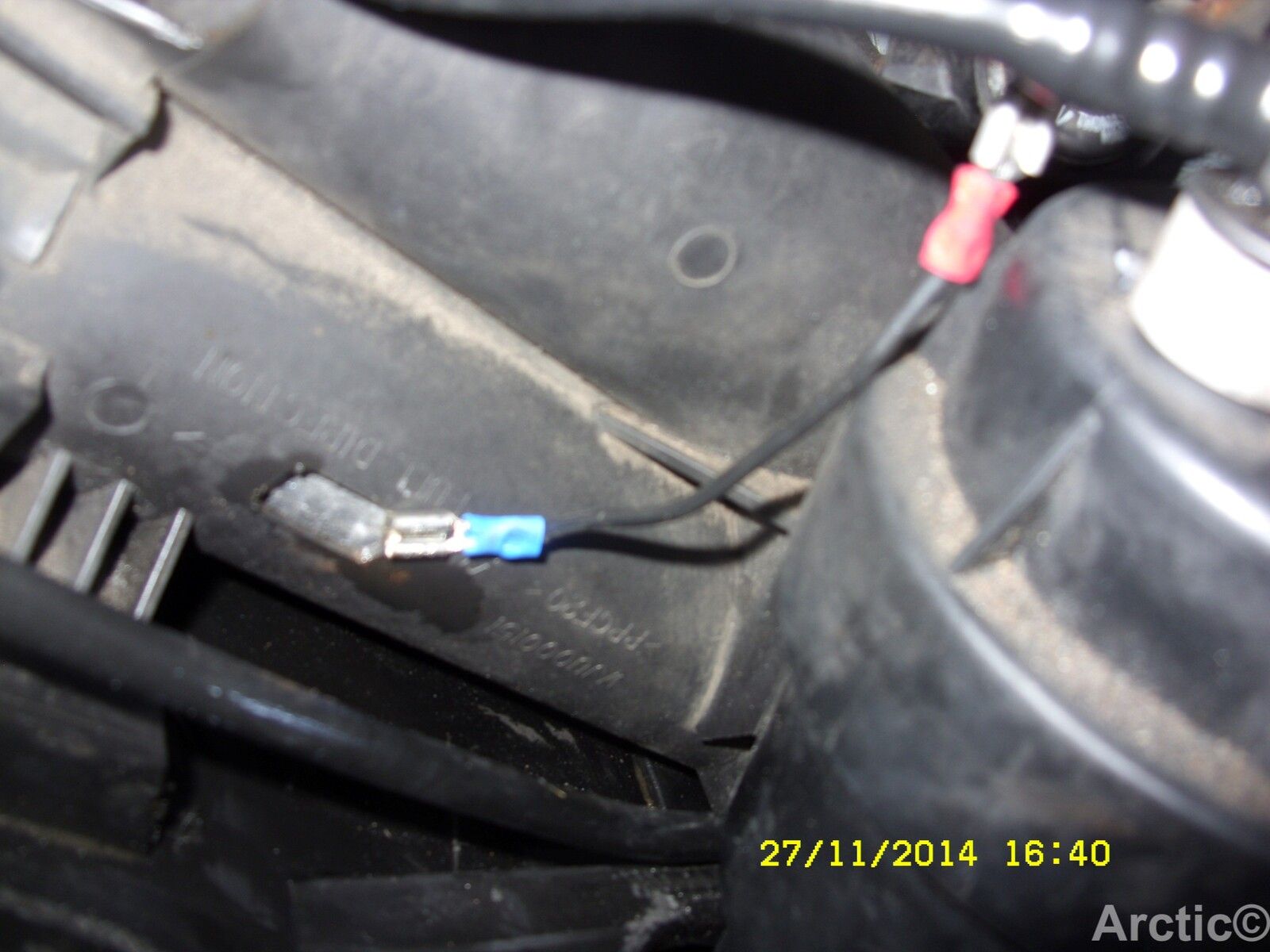

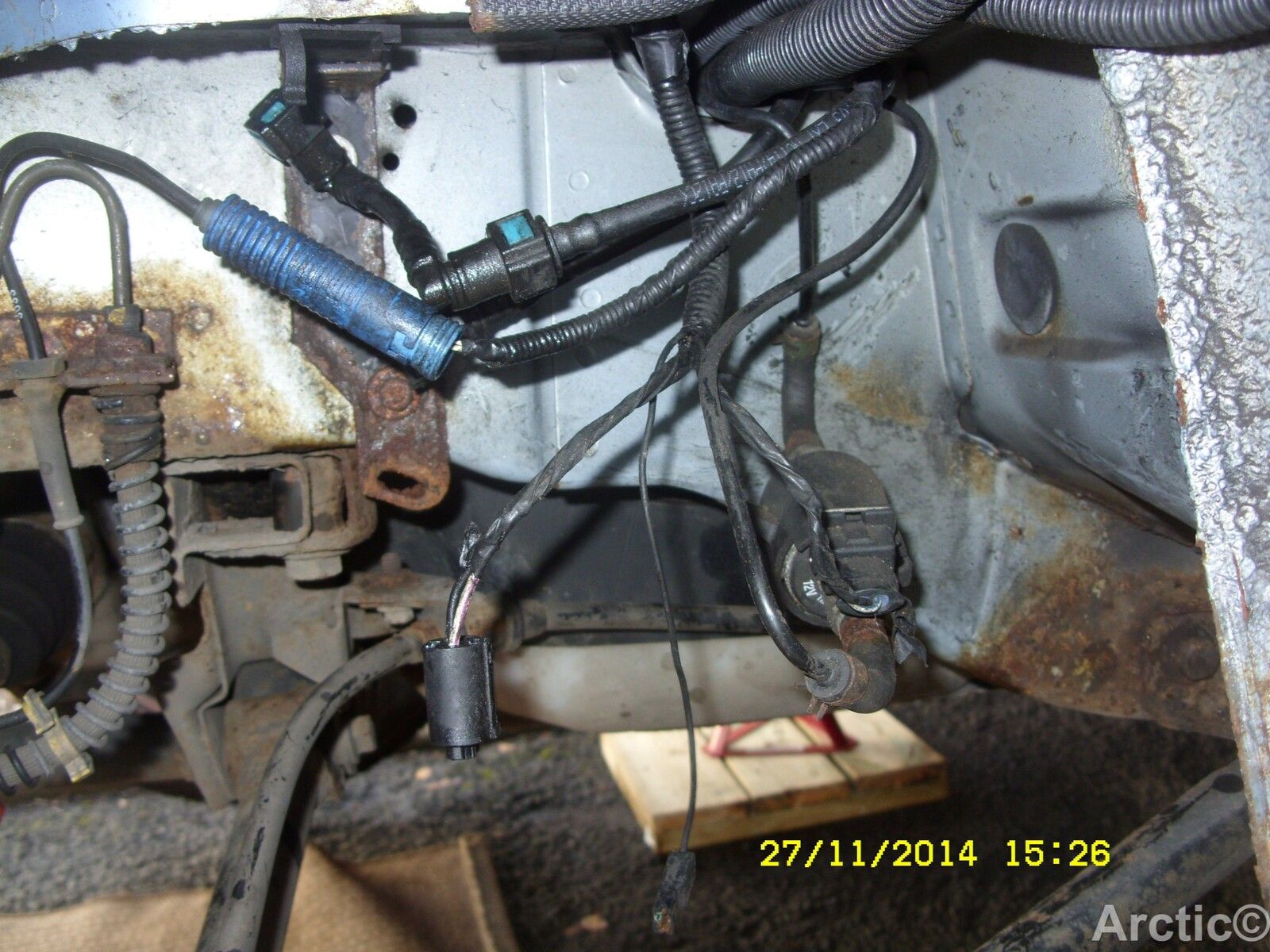

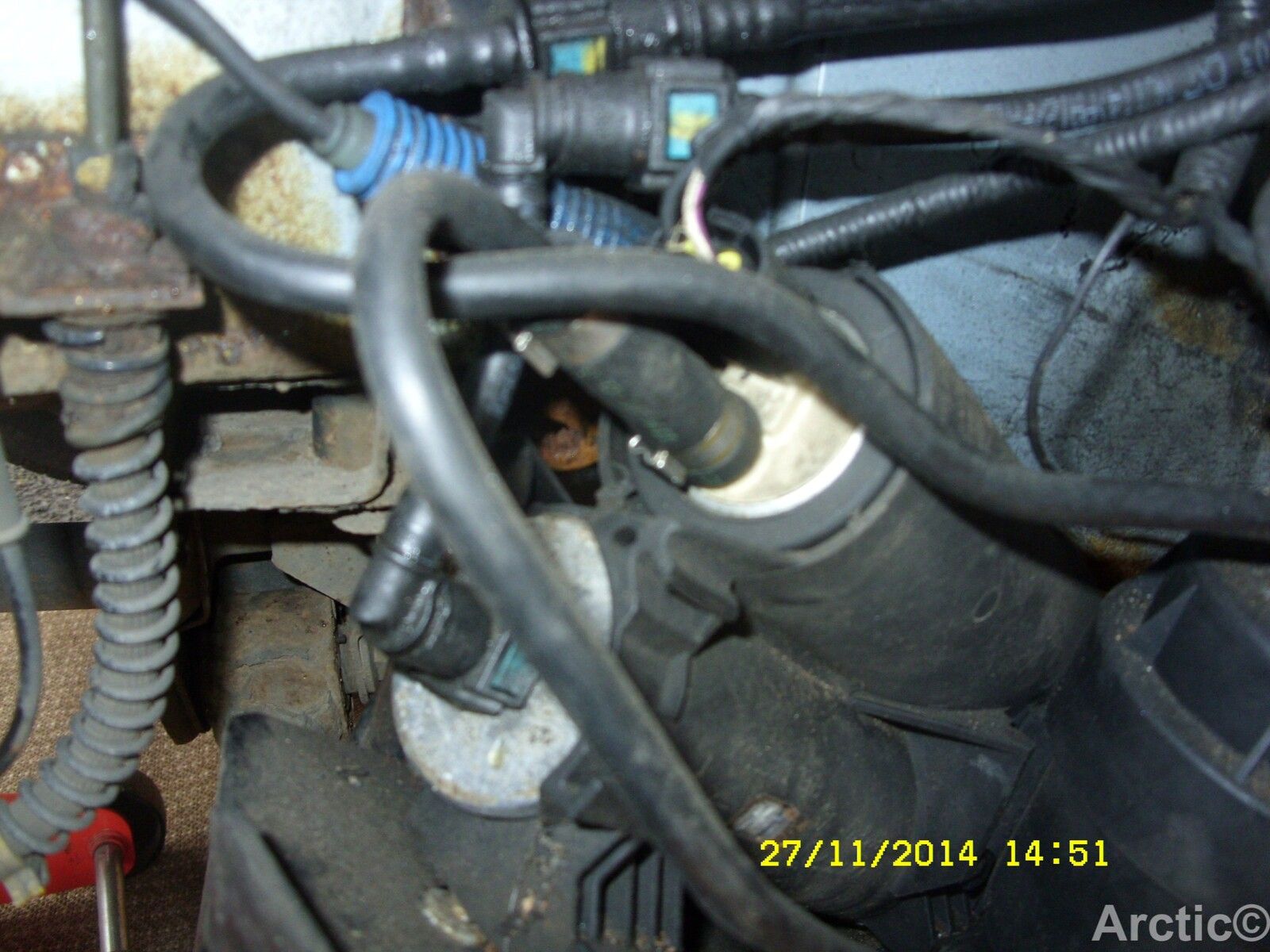

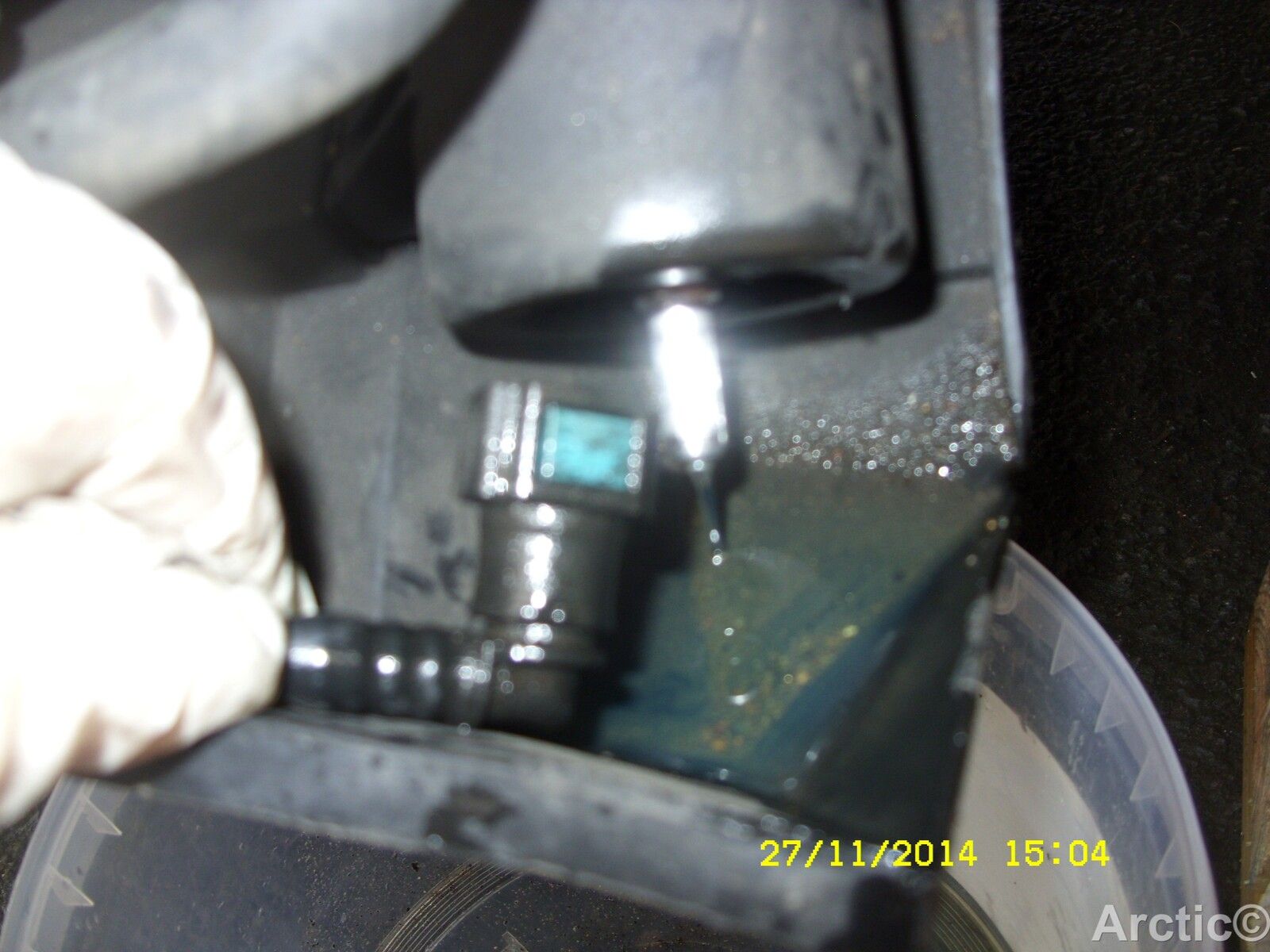

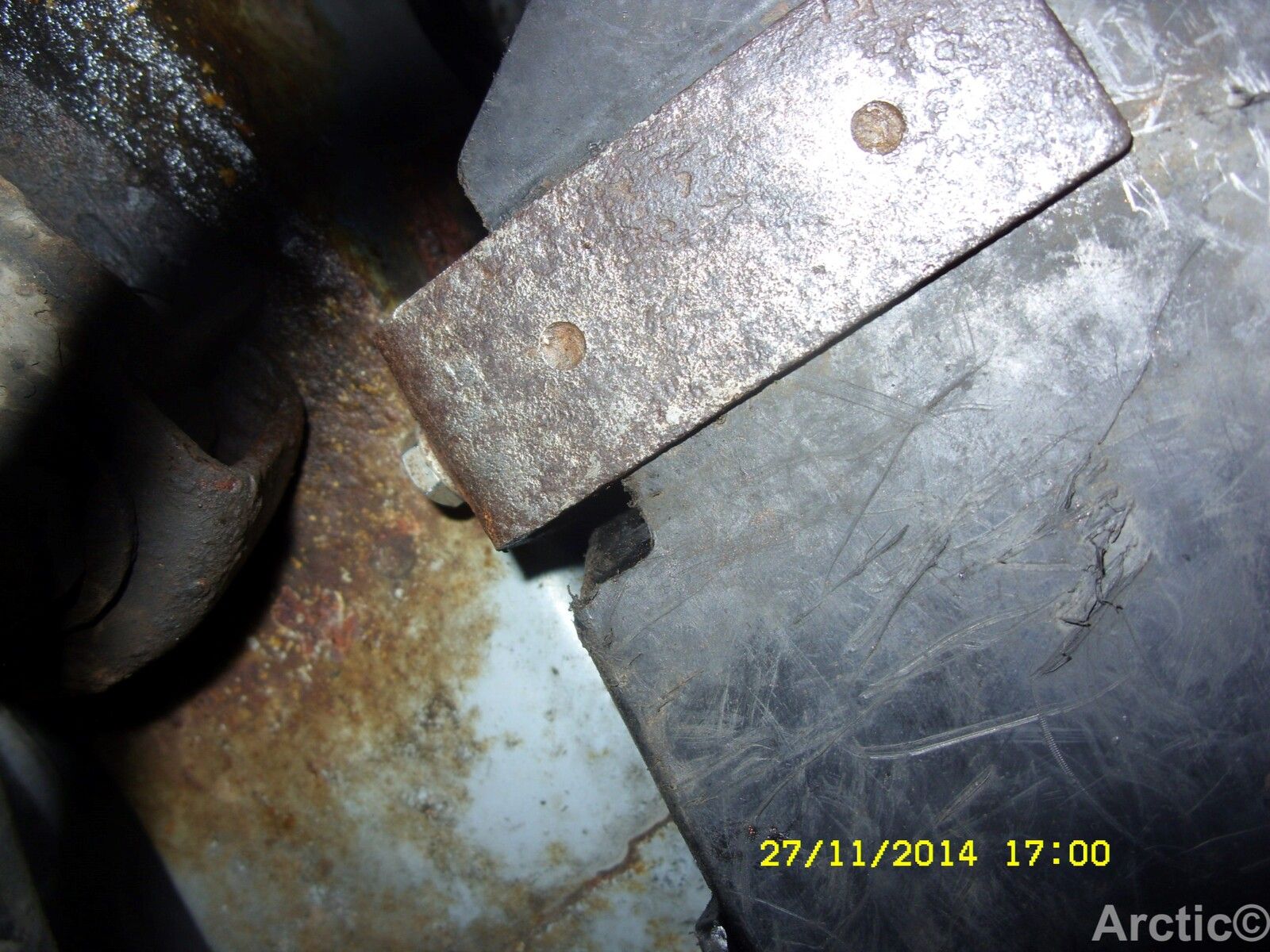

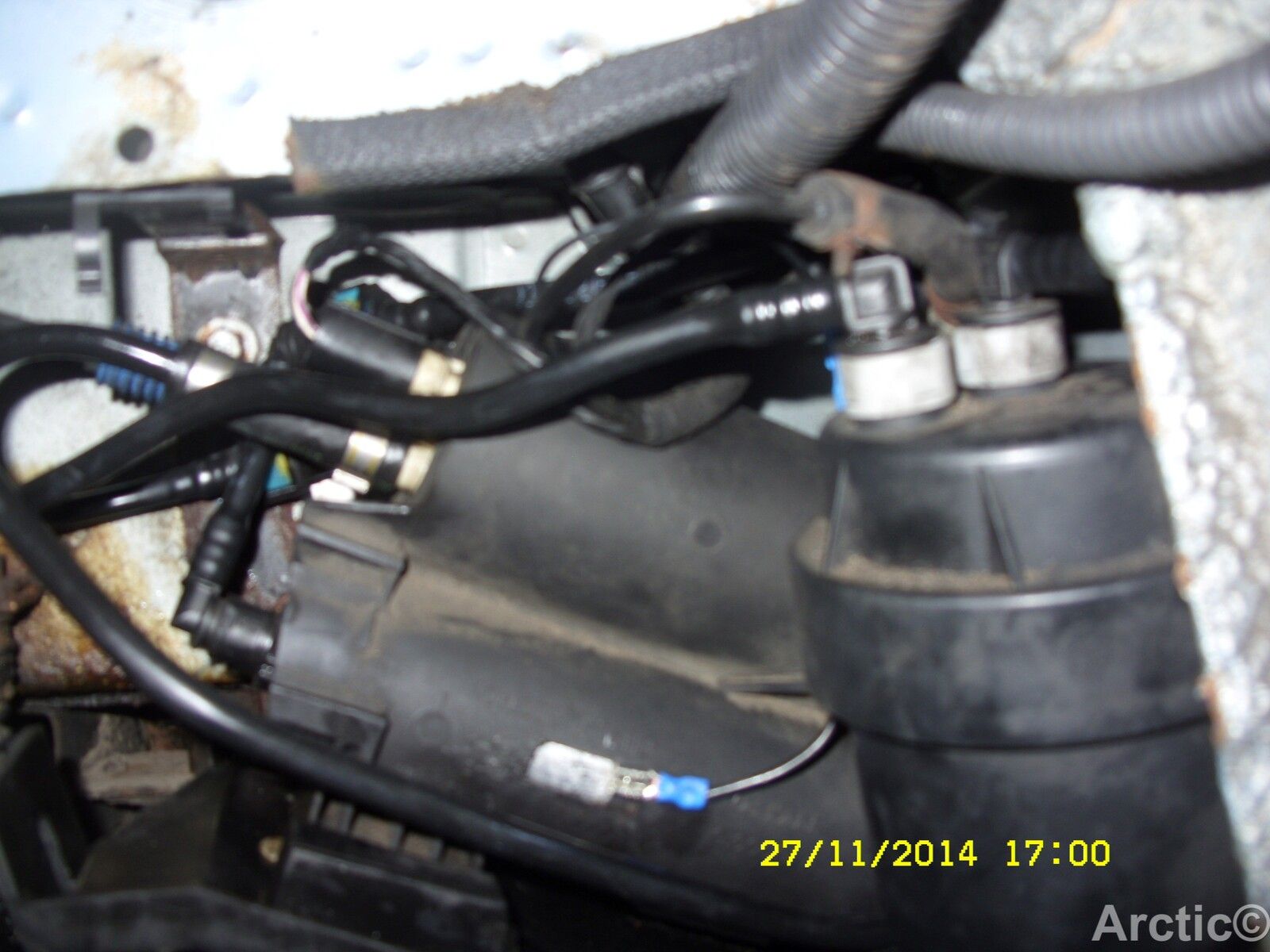

That female spade end is an earth connector which should be fitted to a piece of metal with a male end on it into the plastic and touch the outside of the fuel filter. few photo's below, the brackets holding the plastic cage are pop riveted so you could cut them or grind them off then slide the cage out whole, but I would try and remove the bolts if you can.


Attachments

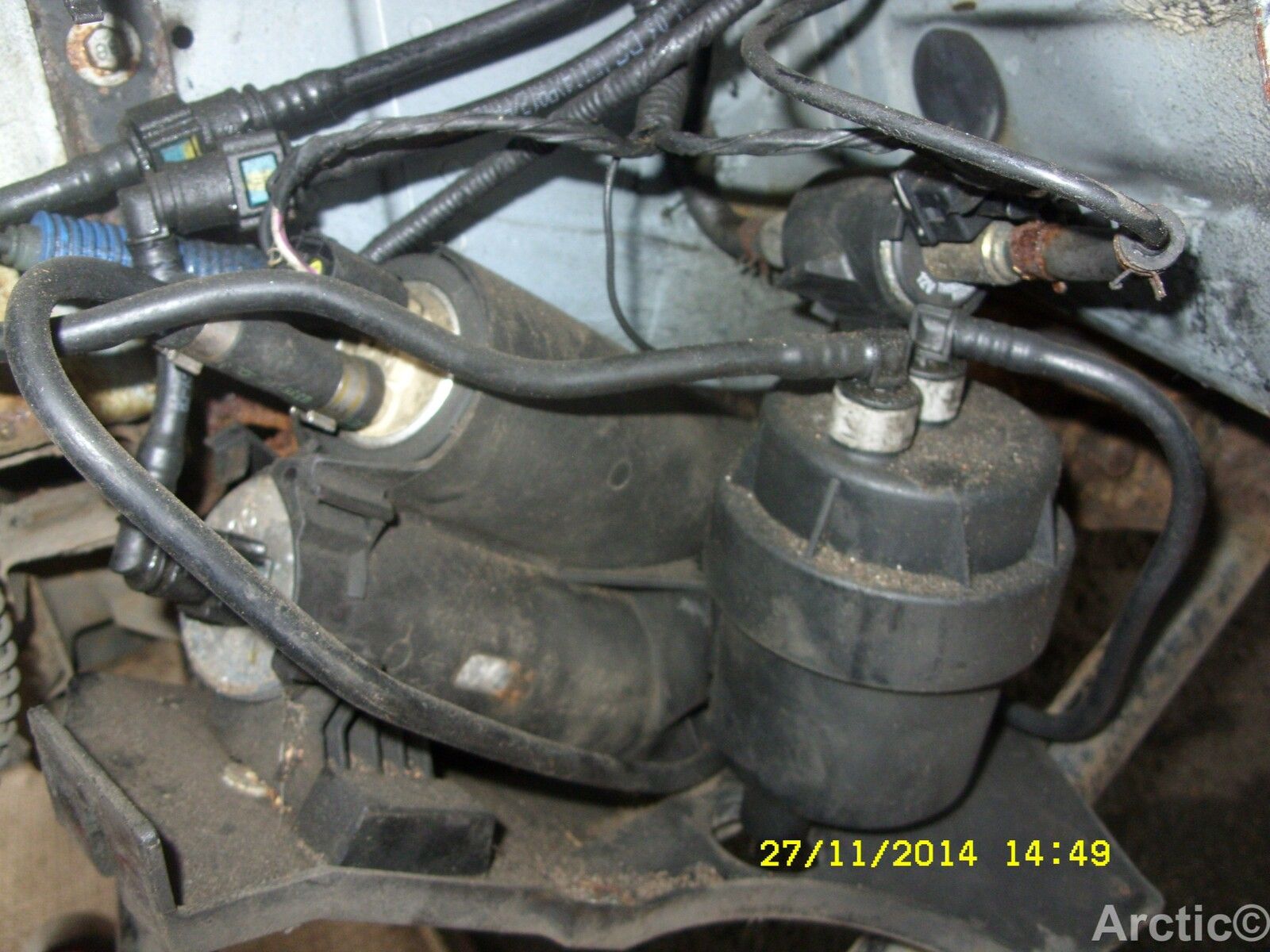

  • SDC16498.JPG
    247.4 KB · Views: 95
  • SDC16499.JPG
    232.9 KB · Views: 128

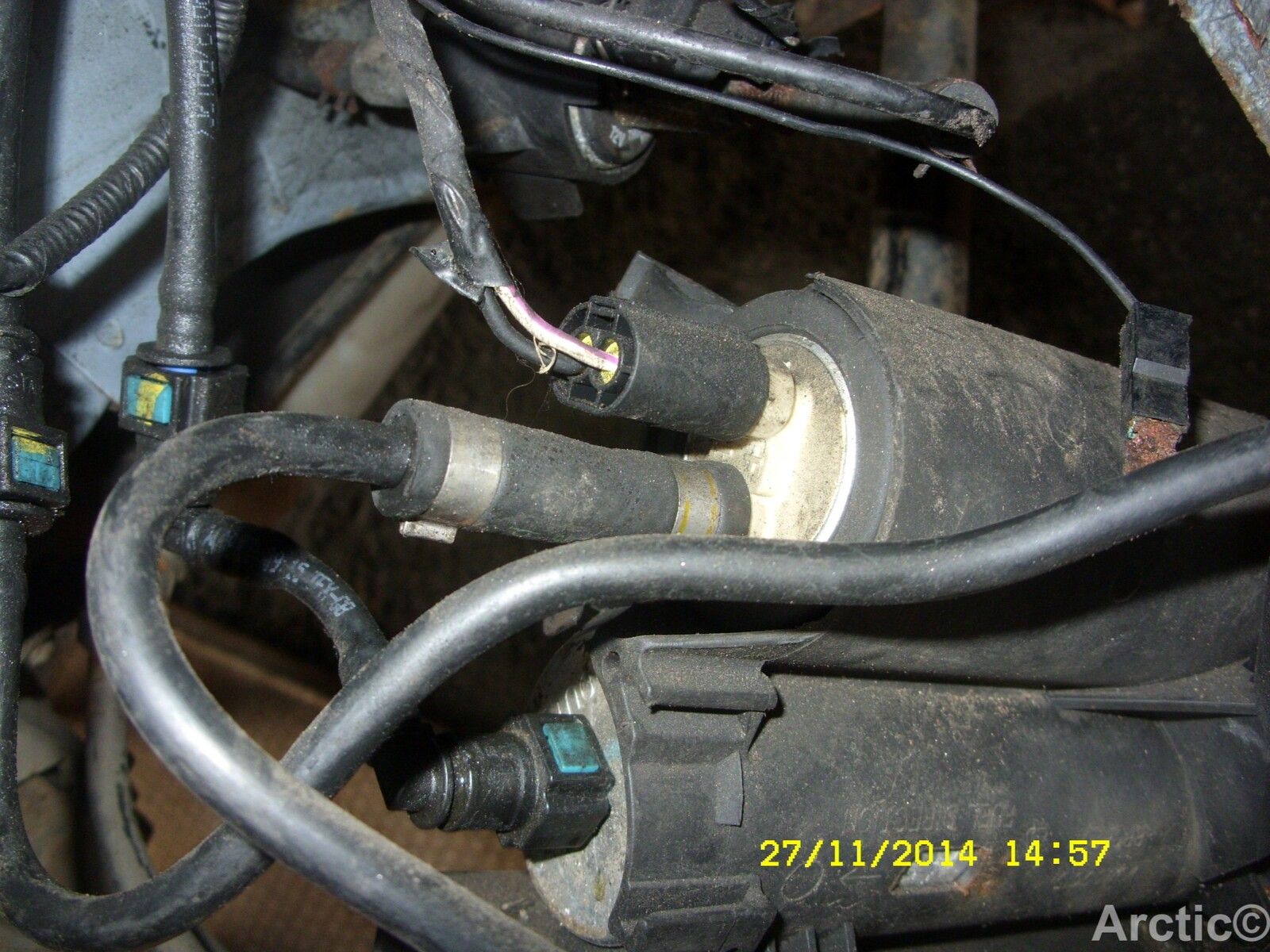

  • SDC16508.JPG
    300 KB · Views: 120
  • SDC16509.JPG
    266 KB · Views: 149
  • SDC16510.JPG
    181.6 KB · Views: 135
  • SDC16511.JPG
    241.5 KB · Views: 108
  • SDC16514.JPG
    302.2 KB · Views: 89
  • SDC16523.JPG
    299.5 KB · Views: 108
  • SDC16524.JPG
    160.5 KB · Views: 89
  • SDC16525.JPG
    200 KB · Views: 122
  • SDC16526.JPG
    323.9 KB · Views: 107

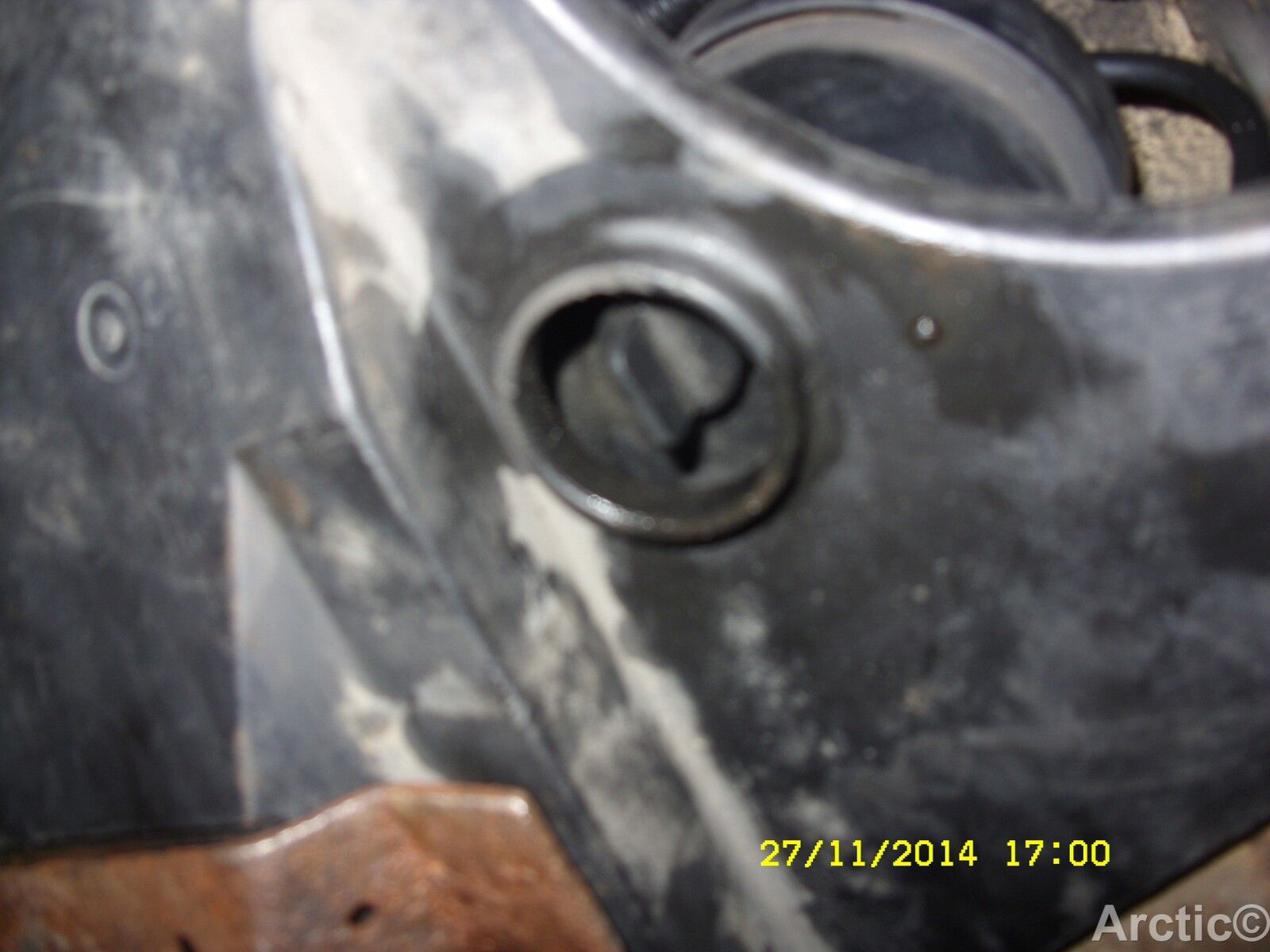

  • SDC16527.JPG
    149.9 KB · Views: 102
  • SDC16528.JPG
    177 KB · Views: 101
