td4 drive belt
- Thread starter cremator
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Chaser
New Member
- Posts
- 2,175

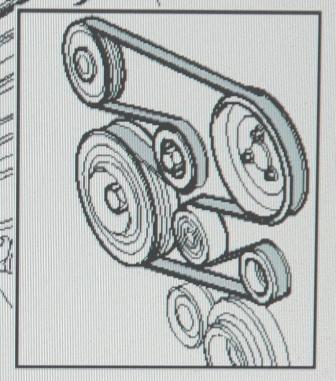

Is this it....
Attachments
yes i think so are td4 and lseries the same got old belt off but new looks to big how do u retension it when i hold belts together they are the same length thank you
Chaser
New Member
- Posts
- 2,175
Not sure what your asking?
The tensioner is automatic, just hold off the tensioner (turn anti-clock) fit the belt and release when your sure the belt is sitting correctly.
AllanI
New Member
- Posts
- 189
- Location
- High Peak, Derbyshire
That's a Haynesism if ever I read one.
The tensioner is veeeery strong and needs lots of muscle. I used a jack under a breaker bar and Ming has a method using molegrips.Allan
Chaser
New Member
- Posts
- 2,175
That's a Haynesism if ever I read one.
Allan
...didn't say it would be easy, just that it needs holding off...vic.middleton
Active Member
- Posts
- 285
- Location
- Risley, Derby
Of course LR say use special tool xxxxx!
I made one which works effectively and gives good control using tyre lever approximately 2ft long. Drill a hole near one end and fit an 8mm socket head nut/bolt. Cut off the excess thread back to the nut because there isn't much room down there.
Fit the belt over all of the pulleys including as far as possible the one on crankshaft.
The head of the bolt fits nicely into the bore in the centre of the tensioner. A piece of wood approx. 15mm thick between the lever and the valence ensures that the head cannot come out of the tensioner. Use the lower idler as a fulcrum for the lever and push the bar forward. This gives a nice lever ratio and the belt can be drawn down over the crankshaft pulley. The arrangement keeps the lever out of the working area giving good access.
I made one which works effectively and gives good control using tyre lever approximately 2ft long. Drill a hole near one end and fit an 8mm socket head nut/bolt. Cut off the excess thread back to the nut because there isn't much room down there.
Fit the belt over all of the pulleys including as far as possible the one on crankshaft.
The head of the bolt fits nicely into the bore in the centre of the tensioner. A piece of wood approx. 15mm thick between the lever and the valence ensures that the head cannot come out of the tensioner. Use the lower idler as a fulcrum for the lever and push the bar forward. This gives a nice lever ratio and the belt can be drawn down over the crankshaft pulley. The arrangement keeps the lever out of the working area giving good access.
