Swivel balls braking.

Discussion in 'Defender 90 / 110 / 130' started by landy-lee, Dec 14, 2020.

< Previous Thread | Next Thread >
  1. landy-lee

    landy-lee Well-Known Member

    Joined:
    Mar 11, 2017
    Posts:
    490
    Likes Received:
    285
    Location:
    derby
    Good evening guys.

    Yesterday i seen a photo online of a Defender 110 with its front wheel hanging off! I am seeing this more and more recently and all of the landys have dished wheel rims on them and wheel spacers fitted.

    I believe the dished rims and spacers put a lot more stress on the swivel balls and thats causes them to crack and snap off.

    Or is this only happening to the aftermarket swivel balls that are not made to the same standards as the original genuine units?

    Whats your thoughts?

    Cheers Landy Lee

    8ha likes this.
  2. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,863
    Likes Received:
    10,527
    Location:
    Current
    Have read about a few over the years, I reckon in most cases there is a back story, ie as you suggest poor quality pattern parts or the axle/car has had an accident/hard off road impact some time in its past life, which has somehow started the fracture/stress/failure point.
    I have no idea of the forces invlolved, but think when you cannot undo something you reach for a longer lever, and the same must apply with wheel spacers?

    8ha and flat like this.
  3. landy-lee

    landy-lee Well-Known Member

    Joined:
    Mar 11, 2017
    Posts:
    490
    Likes Received:
    285
    Location:
    derby
    Yes the fulcrum/lever affect.

    8ha and tottot like this.
  4. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,863
    Likes Received:
    10,527
    Location:
    Current

    I can remember not so long back there was an issue with the pattern balls having to coarse a machined finish under the chrome so the seals would not seal, this was on series models though, sure they corrected it though, but who knows what else is not quite right?

    landy-lee likes this.
  5. landy-lee

    landy-lee Well-Known Member

    Joined:
    Mar 11, 2017
    Posts:
    490
    Likes Received:
    285
    Location:
    derby
    Yeh thats why im thinking of keeping my original swivel balls when i rebuild the axle as they look in ok condition and not leaking.

    tottot, v8250 and lynall like this.
  6. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,433
    Likes Received:
    3,350
    Location:
    Far away from you!!
    i thouht the same thing, i wondered if they could be re-chromed

    lynall and landy-lee like this.
  7. 110tim

    110tim Member

    Joined:
    Dec 22, 2015
    Posts:
    24
    Likes Received:
    8
    Location:
    Maldon
    19 years ago I replaced the swivles with pattern ones which did not fit properly so cleaned up the originals and filled the minor corrosion pit marks with a high grade epoxy filler and then filled them with the special grease and that was 97000 miles ago with no problems since, I am very wary of pattern parts

  8. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    5,197
    Likes Received:
    1,442
    Location:
    west wales coast
    I did the same as 110tim with the tube of a hydraulic ram I could not find a replacement for, worked for many years more with no leeks.

  9. landy-lee

    landy-lee Well-Known Member

    Joined:
    Mar 11, 2017
    Posts:
    490
    Likes Received:
    285
    Location:
    derby
    This is what im willing to do if they are pitted. Epoxy resins are fantastic!

    tottot likes this.
  10. owas

    owas Well-Known Member

    Joined:
    Jul 30, 2014
    Posts:
    1,048
    Likes Received:
    857

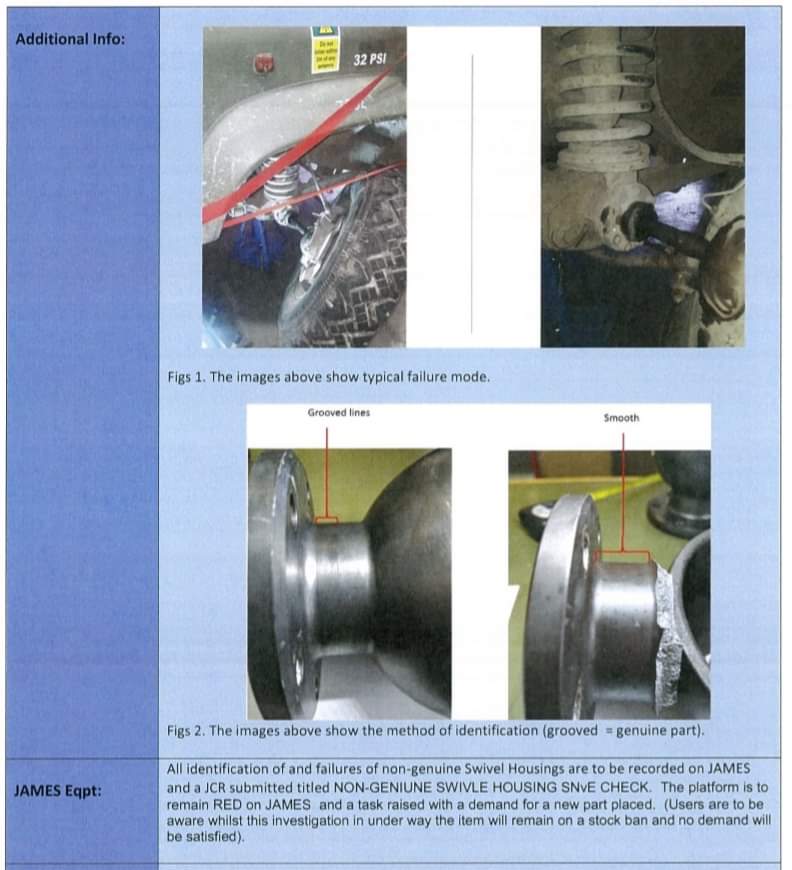

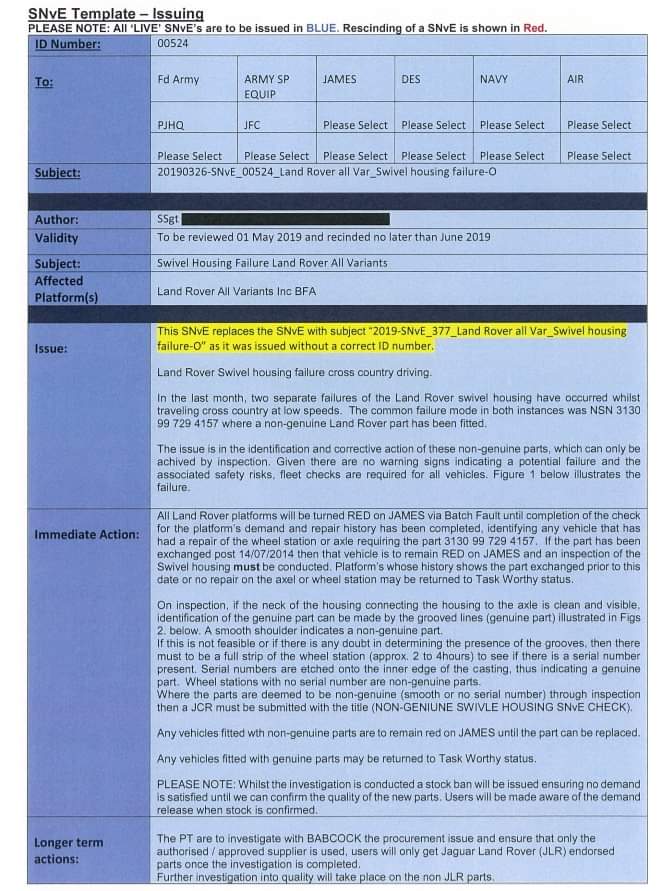

    MOD had this problem 104409122_10223807392672475_3436780451284413868_n.jpg 104048604_10223807399232639_5169323597423983353_n.jpg

    lynall and 8ha like this.
  11. landy-lee

    landy-lee Well-Known Member

    Joined:
    Mar 11, 2017
    Posts:
    490
    Likes Received:
    285
    Location:
    derby
    8ha and lynall like this.
  12. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,863
    Likes Received:
    10,527
    Location:
    Current
    Is everyone thinking blue boxes!
    Pretty sure I read britpart had the military supply contract for spare lr parts?

    landy-lee likes this.
