Suspension drops over 50mph to bump stops

Discussion in 'Range Rover' started by Big Fuz, Jan 21, 2022.

< Previous Thread | Next Thread >
  1. Big Fuz

    Big Fuz Member

    Joined:
    Aug 8, 2018
    Posts:
    34
    Likes Received:
    9
    Location:
    N. Ireland
    Hi folks I have a 2005 L322, (06) Model) that has developed a suspension fault. The car drives fine with the suspension going up and down with no problems. As soon as the car is driven over 50mph, the air suspension lights turn off, I get an error (suspension fault) and the car slowly drops the bump stops. I get the tyres rubbing on the rear arches, as they are not standard and wider than the arches. As soon as I pull over turn the car off and turn it on again its fine as long as i don't go over 50mph. I can drive all day with no probs under 50
    She's in today for a service and just off the phone with the mechanic, no faults showing up on diagnostics and all sensors look intact and attached. New compressor and both drivers side airbags done 1 yr ago. Any ideas folks Thanks

  2. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    39,534
    Likes Received:
    6,900
    Location:
    Near Poitiers SW France
    Don't go over 50mph:cool:

  3. biketeacherdave

    biketeacherdave Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    4,173
    Likes Received:
    1,566
    Location:
    south east london
    It's dropping to motorway heights, you need the eas recalibrate for the bigger wheels and tyres they should not rub.

    tomcat59alan likes this.
  4. Jon Dor

    Jon Dor Well-Known Member

    Joined:
    May 1, 2017
    Posts:
    1,509
    Likes Received:
    1,302
    Location:
    Beverley, East Riding of Yorkshire
    What Keith says...logical really...and simple...and ANNOYING to live with 'til it's fixed!
    Hope you get it sorted soon...

  5. Big Fuz

    Big Fuz Member

    Joined:
    Aug 8, 2018
    Posts:
    34
    Likes Received:
    9
    Location:
    N. Ireland
    Shoulda mentioned, this is a new fault as I've had her 4 years without this problem before and just started doing this last week.

  6. backinblack

    backinblack Well-Known Member Full Member

    Joined:
    Jan 30, 2015
    Posts:
    3,841
    Likes Received:
    3,296
    Location:
    North Manchester
    It shouldn't drop to motorway height until it gets to 62mph. Are you reading speed from dash or GPS device due to running bigger wheels? (yes I know bigger wheels will read slower speed):)
    IMO you need to read the error codes while they are still showing i.e. before you restart the car. Have you got your own diagnostics?

    Motorway Ride Height
    Motorway ride height lowers the vehicle by 20 mm, and improves the high speed handling of the vehicle. Motorway
    ride height is only active when the vehicle is travelling at more than 62 mph (100 km/h) for more than 30 seconds, and
    is not selectable by the driver.
    If the vehicle speed falls to below 43 mph (70 km/h) for more than 60 seconds, the ECU automatically returns the
    vehicle to the standard ride height setting. If the vehicle stops while the motorway ride height is active, the timer is
    paused, stopping the vehicle rising unnecessarily.

    Tricky of York and Big Fuz like this.
  7. Big Fuz

    Big Fuz Member

    Joined:
    Aug 8, 2018
    Posts:
    34
    Likes Received:
    9
    Location:
    N. Ireland
    Cheers backinblack I don't have my own diagnostics (any recommendations) I was thinking it was a fault as it's never done it before at those speeds. Saw a suggestion to lock the ride height and try again but a bit dubious in trying that incase i ruin a tyre. Mainly thinking doing that to eliminate something else and maybe point to a faulty sensor or ecu requiring reprogramming.

  8. biketeacherdave

    biketeacherdave Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    4,173
    Likes Received:
    1,566
    Location:
    south east london
    Should still check the heights with diag just to be sure.

    backinblack and Big Fuz like this.
  9. backinblack

    backinblack Well-Known Member Full Member

    Joined:
    Jan 30, 2015
    Posts:
    3,841
    Likes Received:
    3,296
    Location:
    North Manchester
    I have a Foxwell NT510 Pro but that's been replaced by the NT530 now. Have a search for L322 diagnostics tool in the search bar as there's a few other options, Gap IID, Snapon, etc that I don't use.

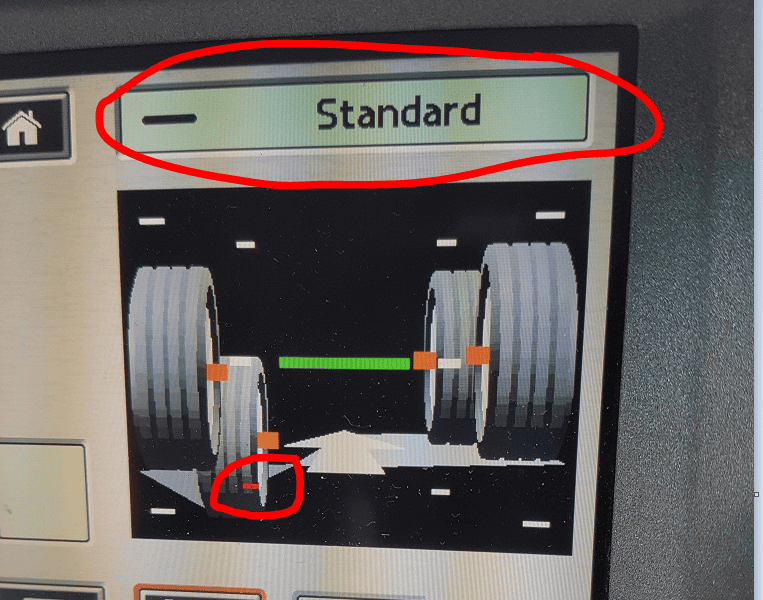

    IMO worth locking the suspension at normal and see what happens over 50mph, can't do any harm. Also maybe worth putting your head unit on 4x4 screen and see if you get any red markers on your height sensors, or strange things for the ride height.


    Big Fuz and Mark Piercy like this.
  10. Big Fuz

    Big Fuz Member

    Joined:
    Aug 8, 2018
    Posts:
    34
    Likes Received:
    9
    Location:
    N. Ireland
    Cheers I will try that when I get her back on Monday Thanks

  11. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,532
    Likes Received:
    12,425
    Location:
    wirral and triquivijate
    +1^^

  12. backinblack

    backinblack Well-Known Member Full Member

    Joined:
    Jan 30, 2015
    Posts:
    3,841
    Likes Received:
    3,296
    Location:
    North Manchester
    OP said it drops to the bump stops.

    Big Fuz likes this.
  13. biketeacherdave

    biketeacherdave Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    4,173
    Likes Received:
    1,566
    Location:
    south east london
    Yes but if the calibration has gone out it needs checking.

    Big Fuz and backinblack like this.
  14. backinblack

    backinblack Well-Known Member Full Member

    Joined:
    Jan 30, 2015
    Posts:
    3,841
    Likes Received:
    3,296
    Location:
    North Manchester
    Worth checking anyway but normal height would need to be set at less than 20mm off bump stops and I'm pretty sure my Foxwell won't set it that low, don't know about other diags though.

    Big Fuz likes this.
  15. Tricky of York

    Tricky of York Well-Known Member

    Joined:
    Feb 7, 2017
    Posts:
    524
    Likes Received:
    498
    Location:
    York
    Hi just to add that if you lock the suspension height it will automatically raise the car or disable the lock once you get moving, can’t remember speed but it’s only around 10 mph from memory. Bell pings like mad to let you know you’re a muppet :p.
    If you haven’t changed anything on the car before this became an issue I’d be looking for leaks in the air bags because your description is exactly what happened to my L322 when the bag developed a pin hole and it didn’t blow enough until moving. Worth a slop around with soapy water at all height settings I’d say. Good luck.
    Tricky :)

    backinblack and Big Fuz like this.
  16. backinblack

    backinblack Well-Known Member Full Member

    Joined:
    Jan 30, 2015
    Posts:
    3,841
    Likes Received:
    3,296
    Location:
    North Manchester
    Isn't this only if you lock it in access height? If you lock it at normal there's no need for it to raise.

  17. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    39,534
    Likes Received:
    6,900
    Location:
    Near Poitiers SW France
    Can you lock it on an L322? I thought it was not possible. You can lock at motorway or normal height on the P38 though.

    Big Fuz likes this.
  18. backinblack

    backinblack Well-Known Member Full Member

    Joined:
    Jan 30, 2015
    Posts:
    3,841
    Likes Received:
    3,296
    Location:
    North Manchester
    Yes you can, I used it when I had a problem with my height sensor and it kept throwing up a fault when going to motorway height.

    From rave manual.
    When the vehicle is in standard ride height, the 'Hold' switch can be selected. This prevents automatic height changes
    from taking place and disables manual height changes until the 'Hold' switch is deselected. If a height change is
    selected with the hold function active, the standard height LED will flash.

    Tricky of York and Big Fuz like this.
  19. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    39,534
    Likes Received:
    6,900
    Location:
    Near Poitiers SW France
    Thanks for that:D

    backinblack likes this.
  20. Big Fuz

    Big Fuz Member

    Joined:
    Aug 8, 2018
    Posts:
    34
    Likes Received:
    9
    Location:
    N. Ireland

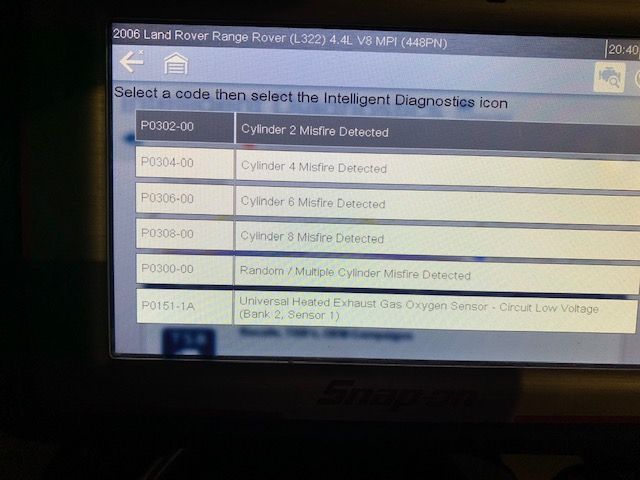

    Update - I got the beast back from the garage (in for a service) yesterday after a few days of messing about with 3 wrong O2 sensors. Still the wrong one so another coming today fingers crossed. Also got a few codes up last night just after mot which I'm hoping is connected to the O2 sensor EML fault.
    OBD Range Rover Jan 22.jpg BTW he cleaned the old one and refitted it and it passed mot test last night. Anyway I took her for a scalp up the road over 60mph and suspension seems to have no problems at all. All I can think is that if he had her jacked up and checked the height sensors which he said were OK he has maybe freed up or loosened a problem one (if it was a sensor) Sorry I haven't got a definitive answer for problem solved..

    Tricky of York likes this.
