Freelander 1 stiff gears petrol

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
P

PRO

Well-Known Member
Posts
637
Location
West Yorkshire
Hello again, now I have a weird issue. It hardly goes into gears, hot or cold.
The clutch is quite new, previous owner.
Just fitted a new bracket, old one was fine but anyway.
Slave cylinder is new...

I am guessing an oil change is next but if that is not curing it then what would be left to look at?
Thanks,
Paul

I put floor mats in my Freelander, but the bite point of the clutch was so low that the extra thickness of the driver's mat was stopping me from getting the clutch all the way to the floor. That stopped me from getting the gears selected properly. I'd check the gear oil level and bleed the clutch hydraulics. Also, probably for the best to have a look at your master cylinder.

These are new but I do suspect a improper job on clutch change. Thanks, not too many things that can be but the gear linkage will be hard to source.

Lubricate the arm that is pushed by the slave. They seize up in the bell housing and the guy that changed the clutch probably didn't free it up.

Question what should I use? I do have some camshaft lube, general purpose grease and some for the driveshaft gaiter...

From memory you need to spray whatever release oil you have to get it loosened up, then a few drips of engine oil and the same again every time you do an oil change.



These are the notes below the video.
"Not lubricating the clutch release pivot can result in the clutch slave support fracturing which then puts pressure on the plastic piston arrangement which then fractures leaving you with no gears. So if you have difficulty selecting gears check under the car while someone operates the clutch pedal. If you see any movement like this then replace the , mounting bracket and/or the master cylinder system and don't forget to lubricate the pivot"

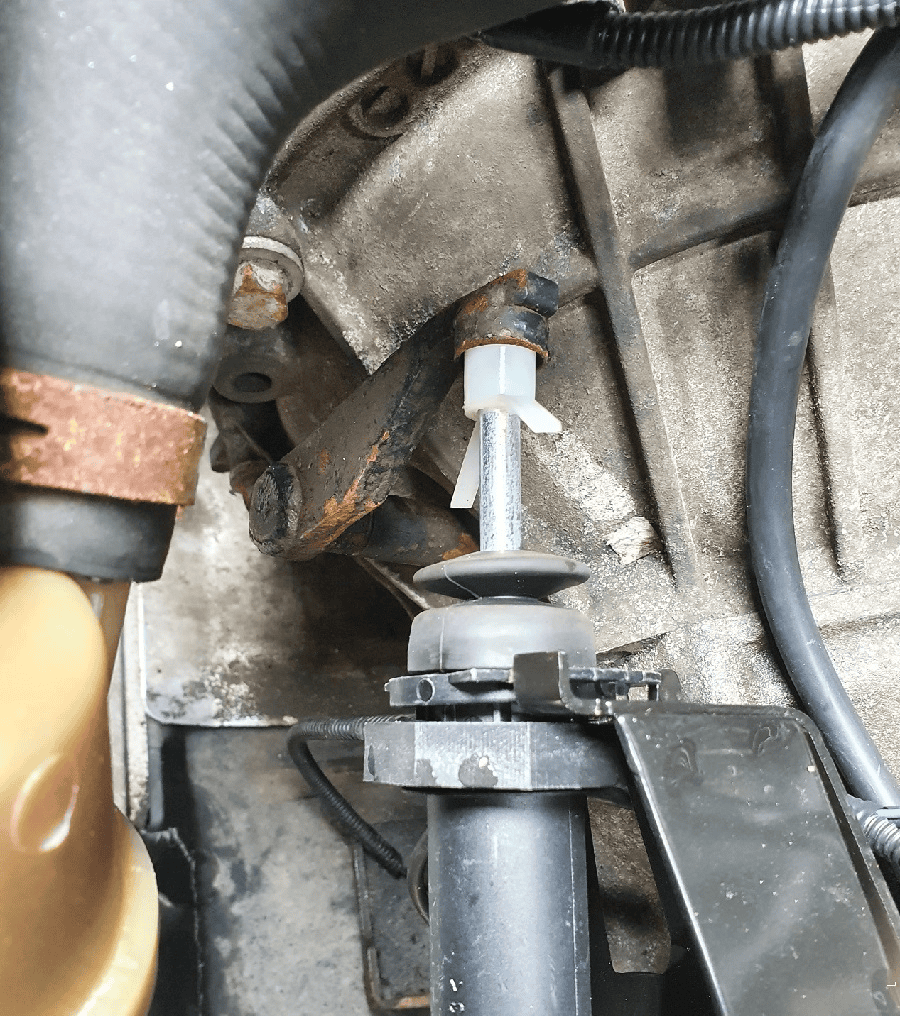

here it is, looks like would need some greasin'


Yep some halfords release spray did it, now goes into gears however clutch pedal is on the floor.
I suspect the master/slave cyl has been affected by this?
Pushes in but won't come back....

PRO said:
Yep some halfords release spray did it, now goes into gears however clutch pedal is on the floor.
I suspect the master/slave cyl has been affected by this?
Pushes in but won't come back....
Click to expand...
Are you sure the slave is still mounted in the holder correctly. They are normally held on with a wish and a prayer

It's hard to see from the photo but are you sure the arm is now free and not just moved to a different position.
It normally takes a bit of brute force to move it back and forward to free it up properly.
If you watch the video I posted earlier and then get someone to operate the clutch for you, you'll see what's happening.

Is the lever springing back properly, It should take a lot of force to move it but it should spring back pushing the slave back in and your pedal back up.
