Sticking Hand Brake
- Thread starter Collman
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Anaconda
Well-Known Member
- Posts
- 1,983
- Location
- Thames Valley
Probably don't want to get WD40 on the brake shoes.
I washed my son's transmission brake out with water. Took all the little adjusters out, greased them all up and put everything back together.
I washed my son's transmission brake out with water. Took all the little adjusters out, greased them all up and put everything back together.
Anaconda
Well-Known Member
- Posts
- 1,983
- Location
- Thames Valley
Should mention his was stuck solid with mud.
- Posts
- 21,158
- Location
- In the next Glen
Ive got a disc hand brake I got rid of the drum, probably the best mods ive ever done on my landys.
tottot
Well-Known Member
- Posts
- 7,463
- Location
- west wales coast
May well be simpler to replace the shoes, springs, expander, adjuster, after all they are nearly 20 years old and do wear.
D1Nut
Well-Known Member
- Posts
- 252
- Location
- South Africa
Anaconda
Well-Known Member
- Posts
- 1,983
- Location
- Thames Valley
Disc Handbrake Conversions - Paddock Spares - Paddock Spares
Buy X-Engineering Disc Handbrake Conversions at Paddock Spares. Great prices on X-Engineering Disc Handbrake Conversions so buy now at Paddock Spares
I also have an x-eng disc hand brake conversion on mine but I bought it second hand about 10 years ago so it was very cheap. I dont know if I would bother doing it again. It is better than the old style lever handbrake mechanism but the more modern handbrake where the cable goes into the backing plate I do not know if there is much benefit unless you spend your entire life in muddy soup and fill the drum with slime and then do not maintain it afterwards.
Last edited:
Scooby22
Well-Known Member
- Posts
- 1,228
- Location
- County Durham
Usually caused by the cable bending at hand brake lever connection, a very common fault, new cable required. Changed mine for same fault and now perfect.
Same here X engineering one, been bloody good for over 10 years now.
Flossie
Well-Known Member
- Posts
- 10,638
- Location
- Shropshire
Yes.
Flossie
Well-Known Member
- Posts
- 10,638
- Location
- Shropshire
And you can build it all back up on the bench too, better than wrestling underneath. Been a while since I did mine but I recall putting a couple of old bolts through 2 of those 4 bolt holes so I could clamp the whole backplate complete in a vice and build it back up again. Strip the actuator down and clean, grease it well, paying particular attention to how it's assembled, it's easy to cock that bit up.
Anaconda
Well-Known Member
- Posts
- 1,983
- Location
- Thames Valley
If you're on a budget I reckon that will all clean up.

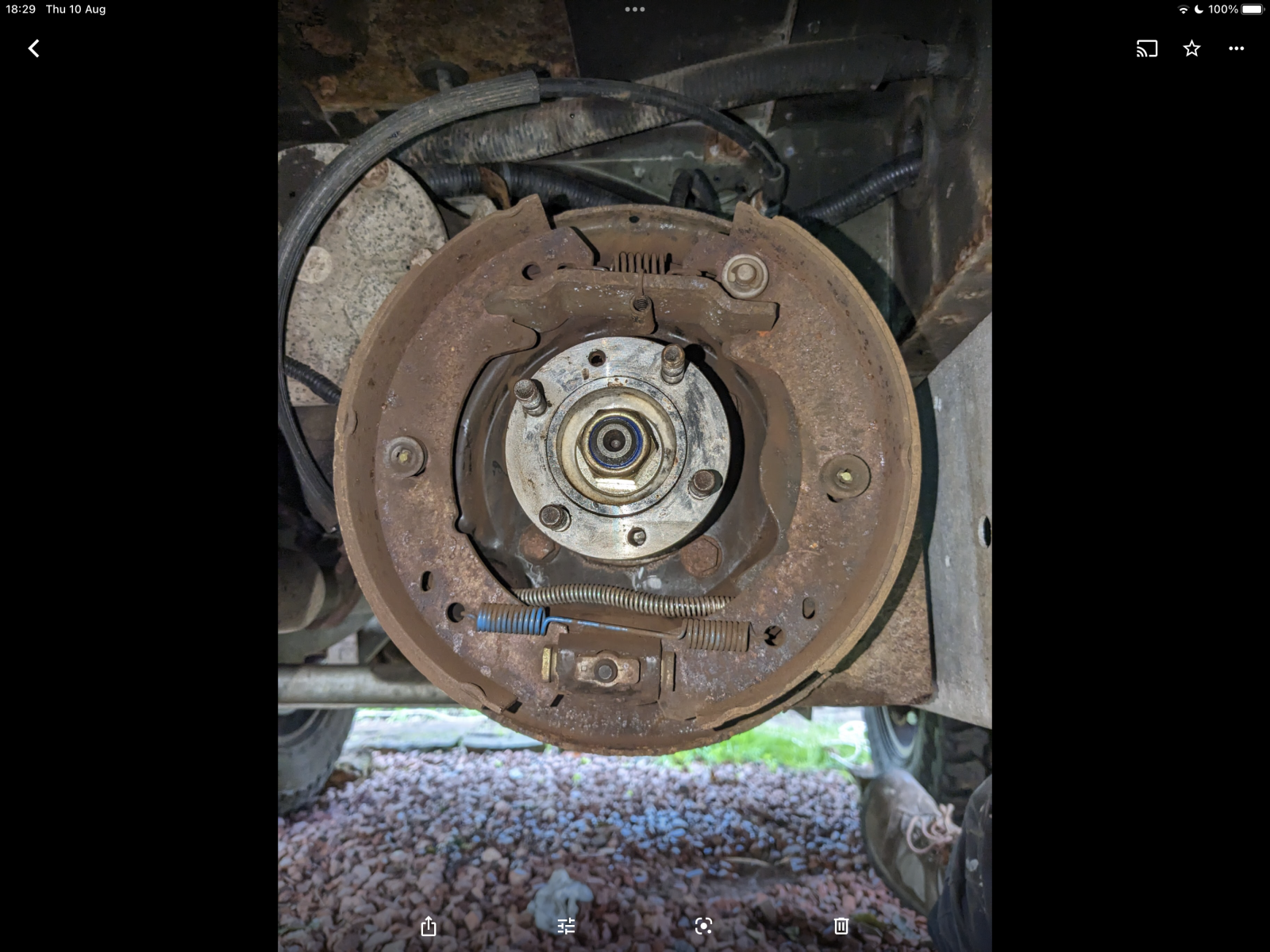

I opened it up today and everything is coated in a brown dust. Have ordered new brake shoes, new springs and a new cable. It would be easier to clean up the back plate of the vehicle; is removing it just a case of undoing the four bolts on the plate?
I don’t mind spending on it but most of it does seem ok under the dust. New springs and a good greasing should do the job.
Attachments
tottot
Well-Known Member
- Posts
- 7,463
- Location
- west wales coast
As noted by Flossie, make sure the pistons in the actuator go back in with inner ends angled the same way as they came out. Putting in wrong is common mistake and results in hand brake no worky
My brake is cable only; I don’t thing that there are any pistons!
Anaconda
Well-Known Member
- Posts
- 1,983
- Location
- Thames Valley
Bottom middle of picture.
