Steering drop arm

I am looking to replace the steering drop arm on my 1997 110 csw defender and have been looking on paddocks for the part. They are described as PAS drop arm, with the choice of 3,4 or 6 bolt where do i look on my truck to decide which one i need

nicholiath said:

I am looking to replace the steering drop arm on my 1997 110 csw defender and have been looking on paddocks for the part. They are described as PAS drop arm, with the choice of 3,4 or 6 bolt where do i look on my truck to decide which one i need

Click to expand...

Look on top of the power steering box and count the bolts ye see around the top.
This is what a 6 bolt one looks like...

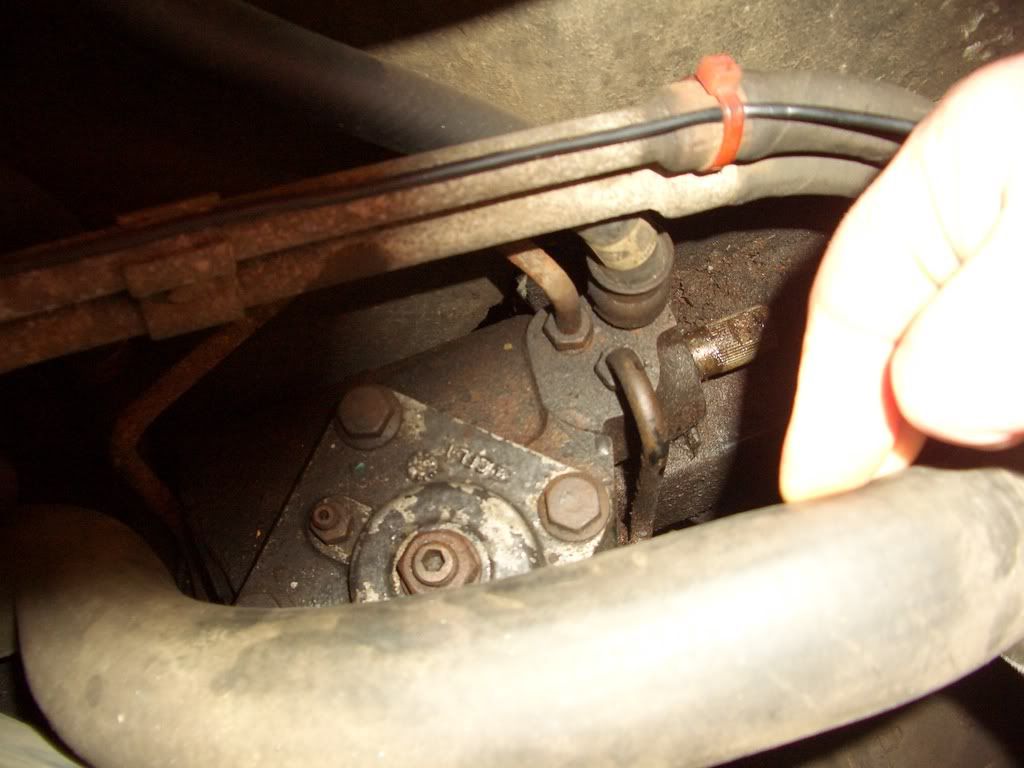

and this is the 4 bolt one hiding below the radiator bottom hose...

Thanks very much. I think i am going to replace the whole arm as it will be the second time i have replaced just the ball joint!

did you do ball joint top cup at same time?

Don't think i did so i may try this first, depending on how corroded it is in there!

needs pressing out-that will be why it went again

it's a ****er to get off!!!

Oddie said:

it's a ****er to get off!!!

Click to expand...

Aye tell me about it...

http://www.landyzone.co.uk/lz/f41/drop-arm-ball-joint-renewal-63811.html

Thats why i was thinking i might just cut it and split it and put a new arm on if the arm puts up too much resistance to removal!

My new drop arm arrived from paddocks today! i was not looking forward to removing the old one. There appeared a small amount of vertical play in the drop arm Imagine my suprise when it fell off! the nut was not very tight at all the lock washer appeared to be only bent on one side to the front of nut and not bent up the back of the arm aswell
