Steep learning curve

Discussion in 'Members Vehicles/Projects' started by resto_d1, May 6, 2018.

< Previous Thread | Next Thread >
  1. Chrisw8

    Chrisw8 Well-Known Member

    Joined:
    Apr 10, 2013
    Posts:
    1,883
    Likes Received:
    481
    Location:
    Top of the Hill
    Good progress Resto.

    i haven’t touched mine since the winter. It’s at my mums, so I haven’t been there coz of Lockdown. Hope to get some work done after August.

  2. Scottishmech

    Scottishmech Active Member

    Joined:
    Jul 21, 2019
    Posts:
    140
    Likes Received:
    56
    Location:
    Ammanford wales
    Mines is on stop at present started a new job for 4x4 specialist in land rovers I'm a gluten for punishment haha, got weekends but weather here is crap did pick another chassis up a few weeks ago very cheap to cut and use for likes of outriggers and boot floor supports though come with axles gearbox/transfer box all for 200 couldn't say no

  3. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire
    excellent - well done on both fronts and good luck with the job!

  4. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire
    Thanks Chris - hope your well

  5. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,110
    Likes Received:
    6,737
    Location:
    Roaming the UK on assignments
    Oh I got new saga, won't bore you, but I've done a grand in the last month on this that and the other :(

  6. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire
    the 200? I’ve been watching if so! I covered all that in horrible under seal stuff today. It’s gunna get wood ontop anyway.
    I got a full day on it tomorrow I’m not decided on what but I may attack the box section sills and cut out the old stuck on inner sill and clean all up along with inner b pillar. I was looking over a few old bits of work today and not totally happy with them. Couple really proud welds on chassis etc. Think I’ll revisit at some point. Also need to go across all underside boot and clean and seal. Got an inner wing under kitchen table too

  7. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire
    Don’t suppose you got access to an engine crane also?!

  8. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,110
    Likes Received:
    6,737
    Location:
    Roaming the UK on assignments
    No, but I'm looking at plastic fuel containers and petrol at the pumps with renewed interest......

  9. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire
    A day spend undoing bodges and ****. Do many cutting discs used!
    In a nutshell, the po pigeon ****ted the inner sills to the box section. Box section wasn’t painted before this was done and the whole lot is so untidy.
    Think I’m going to replace inner sills with a bit of angle as everything now sits too high to go straight onto the box. Not sure? @dieseldog69 what you think - spot straight onto the top of the box? It’s about 3-4mm lower In height than where the floor edge should actually be...
    Will take circa 2 days per side so worth doing I think.
    Got up to here today...

  10. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    9,110
    Likes Received:
    6,737
    Location:
    Roaming the UK on assignments
    The floor is a progressive taper down from the tunnel to the door lip.

    I spotted mine through the top and seam welded underneath in the 3mm gap to close it up, wasn't too worried as it was getting seam sealed and painted afterwards.

    Had I been replacing the floor sections then I would have just butted them to the inner edge of the box and seam welded them from above and seam sealed below.

    resto_d1 likes this.
  11. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire
    cheers mate, I’ll go with that as cleaned up top of box nicely and ripping off inner sills. I can melt it in on a high heat with the box as the base metal too

    dieseldog69 likes this.
  12. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire

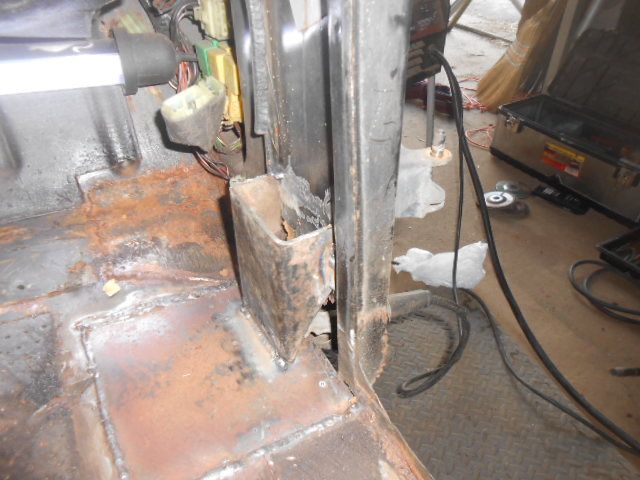

    @dieseldog69 Can you remember what you did with the seat belt mounting plate here?!

  13. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire
    I’ve Sussed it. I tell you what, I’d feel sorry for myself if I didn’t watch other threads like borders. I have very little motivation to build this thing right now. I hope it comes back.
    I got half way through and realized I had an os repair kit rather than ns. Oops.
    0973954F-32A9-4B37-B3EE-C6F58C8CB18E.jpeg EAF8524D-FBD9-47AB-9449-AC9CED4651A0.jpeg 88E367F5-4DBD-440A-9834-59B5165B7DDB.jpeg

    dieseldog69, haza88 and Hicap phill like this.
  14. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire
    Morning.

    Firstly, I hope you all keep yourself sane during the next lockdown. I have had some busy times both with house and life and also my 90 daily! I haven’t bothered documenting that but may do one day.
    Anyway, I recommenced with the poorly pickup yesterday and will be moving my d1 under the dry so I’m now hoping to progress on both over the winter.

    Trailstar, RAW111111 and LincolnSteve like this.
  15. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire
    A bit of rain and wind protection and the fact I don’t have to watch the noise or feel bad for the noise is a winner! And, I have a drive again!!!
    Got a fair bit of welding left on the defender and a chunk on the disco but not loooooaaads.
    I’ve got the compressor now set up properly (thanks again!) and have a needle gun and a spray set up. I’ve used lidl metal paint as sacrificial on the defender. Plan is, once welding on chassis is complete, I’ll needle gun the lot and spray it in one swoop rather than setting up just to paint a patch.
    My life seems to have been taken over by these things but i guess that’s better than sitting around lonely during lockdown eh!


    Attached Files:

    LincolnSteve likes this.
  16. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire
    Was planning to crack on with the d1 but left the pillar bits at home!
    Instead, like a jigsaw, I rebuilt a rot free Cross member and tank cradle hanger. The hanger had rusted out right above the bolt holes so I carefully chopped out the flat and welded a 2mm block in the u. Also re did the front and cut some rot and patched on the main chassis itself where it joins the member. Turned out quite nice.
    An intimidating bit of work conquered :)
    A0FC17E2-2983-4B8E-A599-8B2AFAC62C54.jpeg E0D6E06D-E13A-4BA1-8D44-BD186CEA8005.jpeg

  17. RAW111111

    RAW111111 Well-Known Member

    Joined:
    Sep 8, 2016
    Posts:
    127
    Likes Received:
    114
    Location:
    Bristol
    Glad to see this is still plodding along and I bet that the move to the shed is a good motivation boost over the drive way now that it’s getting colder and darker early! How much do you recon you have left to do now? I keep telling myself I’m over half way and just have the one side left but I’m falling into the trap of adding more to the list as fast as I tick it off.

    Rich

    Hicap phill likes this.
  18. Europa486

    Europa486 Well-Known Member

    Joined:
    Sep 28, 2019
    Posts:
    457
    Likes Received:
    393
    Location:
    London
    There an old saying 95% done and 95% still to do ;)

  19. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    2,681
    Likes Received:
    1,656
    Location:
    Wiltshire
    Defender 110 has a fair amount but nice engine. Chassis has maybe 3 days on it. Disco chassis is complete, rear is complete, now on front foot wells, bulkhead, pillars, wings and front end mounts. There’s a few bits I don’t like on disco, floor mainly - I should’ve just gone factory floor but never mind. It works and is solid so.
    Rear axle is also all built up on disco. Haven’t checked swivels etc on front properly but likely! The mechanical stuff doesn’t bother me or take time. It’s all the bloody fab work! I wouldn’t do another d1 like this nor a defender chassis like the 110. Too much time. I could buy a really nice d1 for 5k and I’ll spend over that on mine!

    haza88, Europa486 and Hicap phill like this.
  20. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    730
    Likes Received:
    250
    Better the devil you no
