P38A SRS System Fault

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

JonmBG

New Member
Posts
3
Range Rover P38 late 1999 4.6 LHD. Interior very poor, so took up offer of a mid-98 interior for exactly same model. Only problem encountered is that replacement front seats do not have side impact air bags in SRS system, so SRS fault lights up. I understand that the complete SRS may be inoperable until fault rectified? I understand that system needs to see a specific resistance on the circuit leading to each bag on start up check; so, a suitable rated resistor must be installed at the SRS plug leading to each seat. Questions: Is my approach correct? What is a suitable rating for these resistors? I am advised NOT to test resistance of the air bag with a multimeter or risk setting them off – correct? If not correct, what is the method of testing?

Range Rover P38 late 1999 4.6 LHD. Interior very poor, so took up offer of a mid-98 interior for exactly same model. Only problem encountered is that replacement front seats do not have side impact air bags in SRS system, so SRS fault lights up. I understand that the complete SRS may be inoperable until fault rectified? I understand that system needs to see a specific resistance on the circuit leading to each bag on start up check; so, a suitable rated resistor must be installed at the SRS plug leading to each seat. Questions: Is my approach correct? What is a suitable rating for these resistors? I am advised NOT to test resistance of the air bag with a multimeter or risk setting them off – correct? If not correct, what is the method of testing?

2.2 Ohms is popular but you can get packs of different value resisters off Ebay for little money. Or this to do job properly. https://www.ebay.co.uk/itm/Garage-m...097924?hash=item3408de7c44:g:4wUAAOSwoMddLPS2

Range Rover P38 late 1999 4.6 LHD. Interior very poor, so took up offer of a mid-98 interior for exactly same model. Only problem encountered is that replacement front seats do not have side impact air bags in SRS system, so SRS fault lights up. I understand that the complete SRS may be inoperable until fault rectified? I understand that system needs to see a specific resistance on the circuit leading to each bag on start up check; so, a suitable rated resistor must be installed at the SRS plug leading to each seat. Questions: Is my approach correct? What is a suitable rating for these resistors? I am advised NOT to test resistance of the air bag with a multimeter or risk setting them off – correct? If not correct, what is the method of testing?
2.2 ohms did not work on my cars, I'll PM you with the value I use.

Ok point taken. Don't know how the machine i posted works but i would think you connect it to the feed and turn it until the lamp goes out. Then that gives you your resistance value.
If you have diagnostics, you can find the resistance with a multi turn potentiometer, reducing the resistance until you get to a value that works, disconnect the pot and measure the resistance. That's how I did it, not rocket science.

Handy tool to have

But know for a fact @Datatek and @wammers u saved me my sanity when u helped me with my airbag fault on my D3

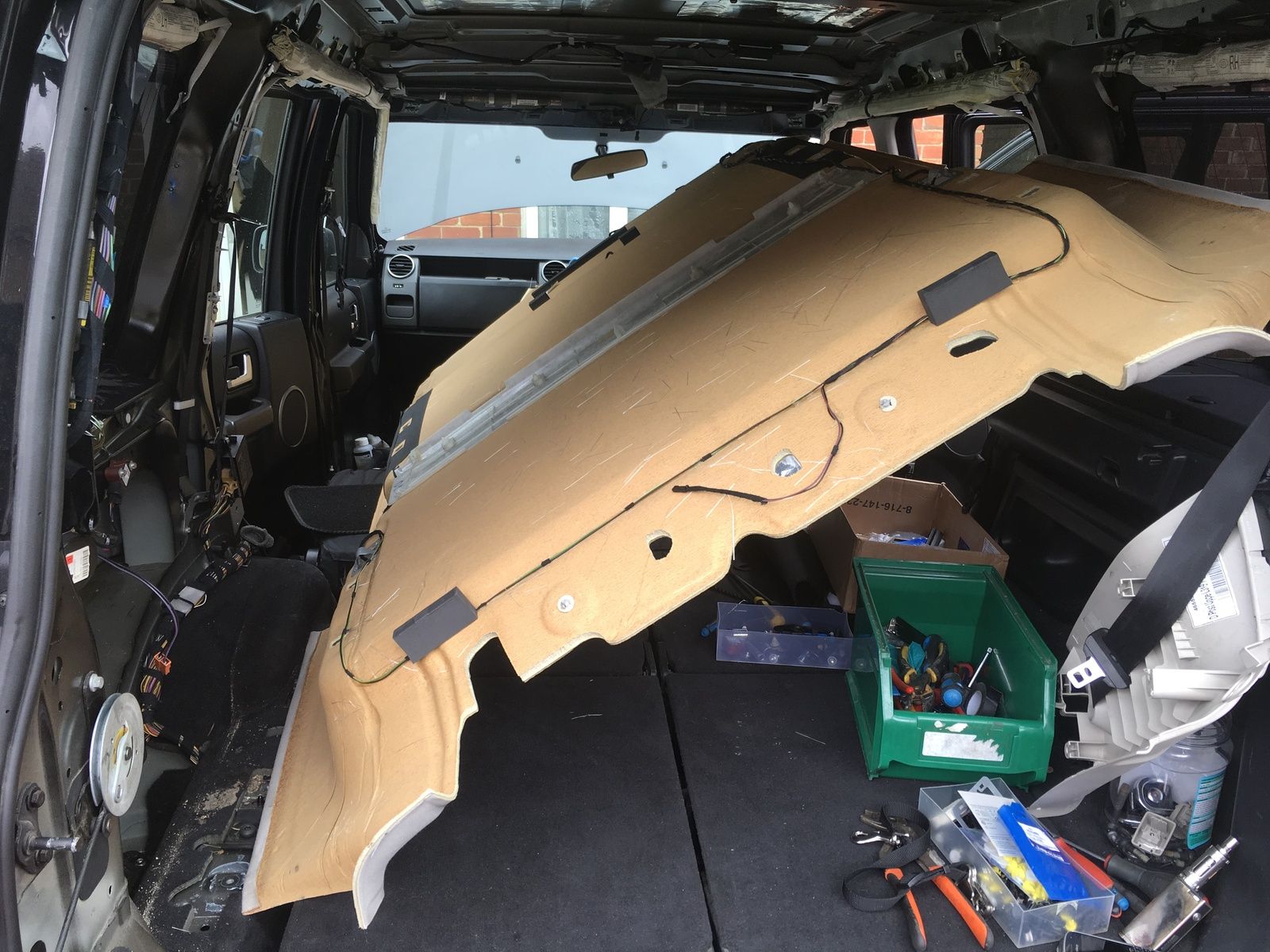

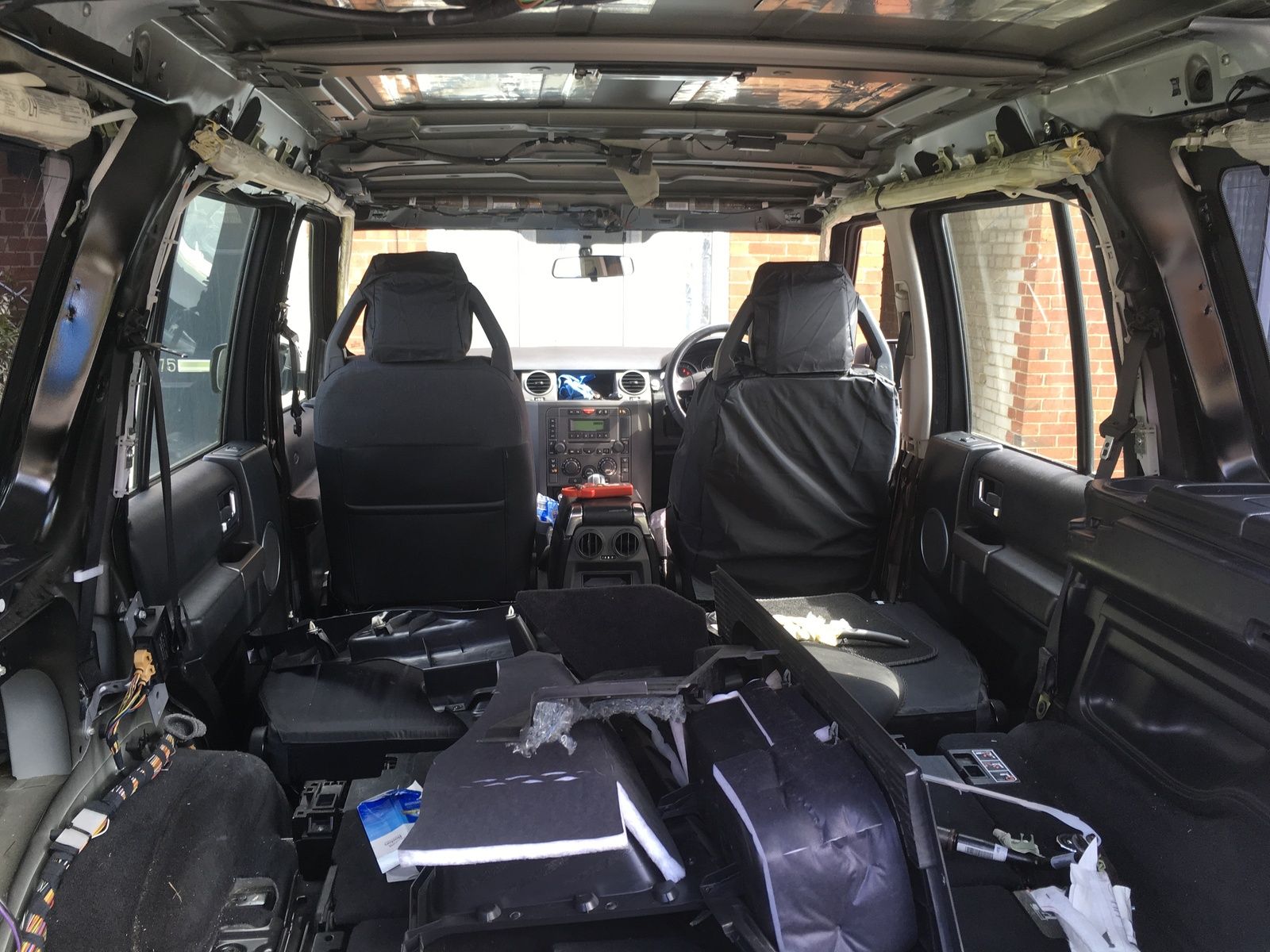

Remember this , lol

Then u taught me how to use diagnostics properly , happy days


Hiya

Indeed @Grrrrrr beat me to it , for my D3

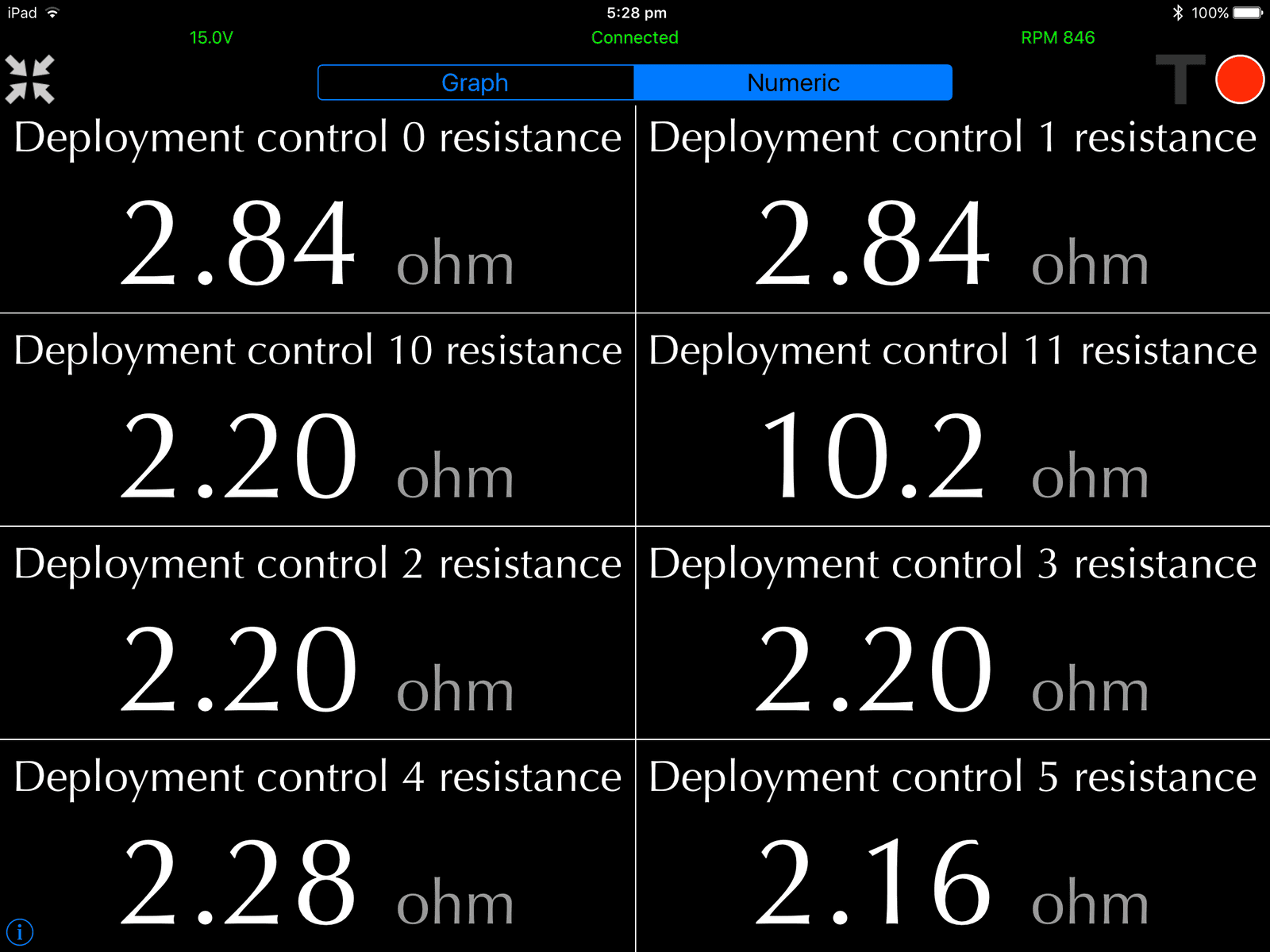

The 10. 2 ohms was one of the faulty airbags in my drivers seat

Is that what u meant or the others as well
No, I was interested in what the 2.2 ohms represents, which airbag, I presume it's the airbag igniter resistance?
The side airbags in the P38 are not 2.2 ohms, the front driver and passenger ones might be, I have not checked.
The side airbags in all P38's will be past their use by date, so IMO ought to be removed.

No, I was interested in what the 2.2 ohms represents, which airbag, I presume it's the airbag igniter resistance?
The side airbags in the P38 are not 2.2 ohms, the front driver and passenger ones might be, I have not checked.
The side airbags in all P38's will be past their use by date, so IMO ought to be removed.

Hi

after fitting a new seat air bag , the passengers / drivers seat , A to C curtain airbags are the 2.2 ohm

The 2.84 ohms are the passengers dashboard airbag and steering wheel airbag

Last figures are the rear curtain airbags

These are of course all readings from my D3

Hope that helps

Hi

after fitting a new seat air bag , the passengers / drivers seat , A to C curtain airbags are the 2.2 ohm

The 2.84 ohms are the passengers dashboard airbag and steering wheel airbag

Last figures are the rear curtain airbags

These are of course all readings from my D3

Hope that helps
Thanks for that Stuart. It just adds to the knowledge.
