Speedometer illumination

lightning · Jun 28, 2020

Can someone tell me the part number of the two bulbs fitted in the TD5 speedometer?
I’ve looked online and can only find LED replacements.
It’s a small blue twist-in holder with a bulb in it. I am not sure if it’s supplied complete, or if you can remove the bulb.
The bulb doesn’t want to come out of the little holder (l got it out of the recessed hole in the speedometer OK) even with pliers, any more pressure would shatter it.

bankz5152 · Jun 28, 2020

Twist then pull.

lightning · Jun 28, 2020

I’ve done that, and got the holder out of the speedometer with the bulb in it.
But the bulb won’t come out of the holder and l don’t know if it’s jammed, or comes complete with the holder.

mick 1986 · Jun 28, 2020

lightning said:
I’ve done that, and got the holder out of the speedometer with the bulb in it.
But the bulb won’t come out of the holder and l don’t know if it’s jammed, or comes complete with the holder.

Mine just pulled out, I replaced them with LEDs.

lightning · Jun 28, 2020

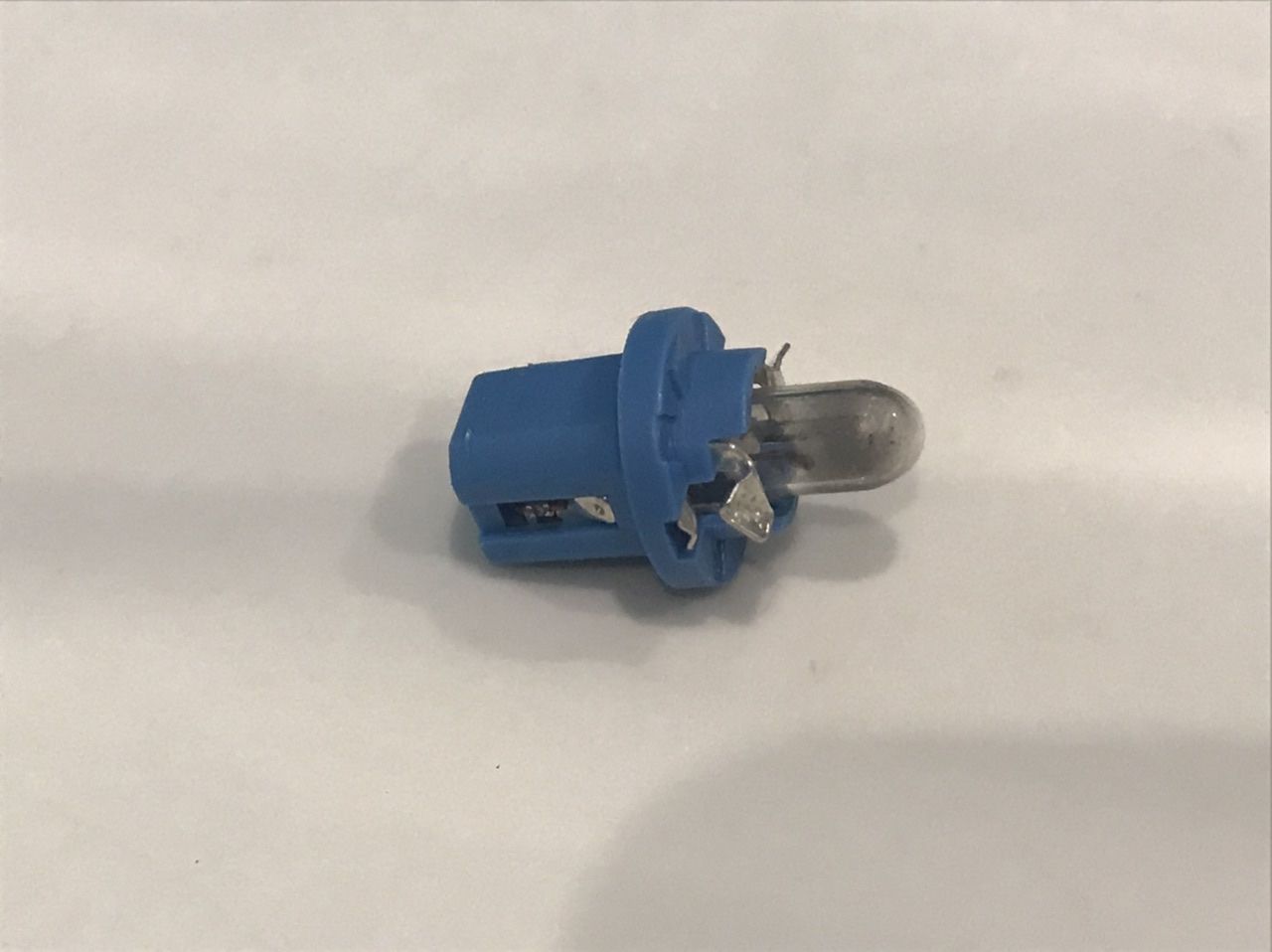

This is the part in question. The bulb doesn’t seem to want to come out of the holder, should it come out?

marjon · Jun 28, 2020

Should just pul out.

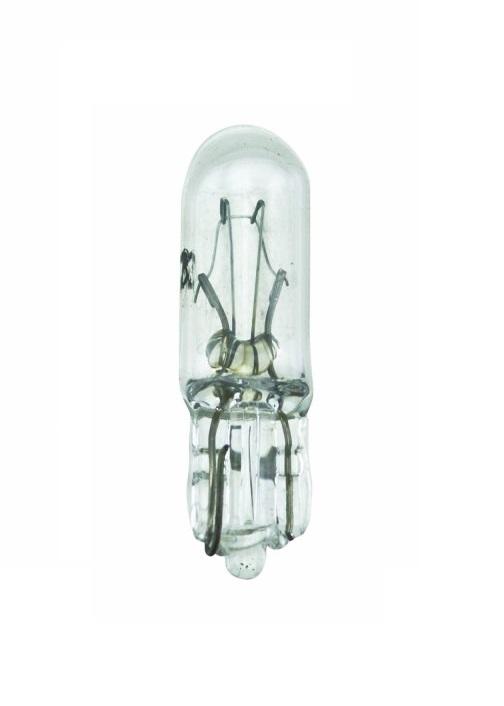

It’s one of these by the look of it.

can you get in at the bottom with a small elec screwdriver and lever it out.

J

mick 1986 · Jun 28, 2020

lightning said:
This is the part in question. The bulb doesn’t seem to want to come out of the holder, should it come out?

View attachment 213481

Yeah that looks like the ones in the back of my speedo too. I’m sure I just pulled them out. I can remember I had to modify the LEDs as they weren’t a direct replacement, but can’t remember doing anything special to the holder.

mick 1986 · Jun 28, 2020

lightning said:
This is the part in question. The bulb doesn’t seem to want to come out of the holder, should it come out?

View attachment 213481

Just went back through some old references I had from the TD5 dash. It seems I may have modified the bulb holder too as @Retroanaconda website says “new bulb” indicating a whole new holder too?

http://www.retroanaconda.com/landrover/2009/10/td5-gauges-bulb-information/

lightning · Jun 28, 2020

Thanks for the replies.
It’s as above.
Had a look on “Auto bulbs Direct” and it appears to be a 509T dashboard illumination bulb.
Comes in the holder.
There’s dozens of different types of holders and you have to select the bulb with the blue holder which is the Land Rover one.

marjon · Jun 28, 2020

lightning said:
Thanks for the replies.
It’s as above.
Had a look on “Auto bulbs Direct” and it appears to be a 509T dashboard illumination bulb.
Comes in the holder.
There’s dozens of different types of holders and you have to select the blue holder which is the Land Rover one.

WOW.
Still I am not to old to be teached new stuff

Even if I think it’s stupid

J

neilly · Jun 28, 2020

I just fitted the LED kit new bulbs for the 3 clocks, only one not supplied is the clock itself .

Surprising how much brighter they are.

Cheers

lightning · Jun 28, 2020

Sounds like a good idea, however mine are easily bright enough when they are all working.
