spare wheel security bolt

Discussion in 'Series Land Rovers' started by Seriesiiilandy, Sep 15, 2020.

< Previous Thread | Next Thread >
  1. Seriesiiilandy

    Seriesiiilandy New Member

    Joined:
    Sep 14, 2020
    Posts:
    1
    Likes Received:
    0
    Location:
    london
    hi there I have just bought a series III with a spare wheel on the front. I would like to swap the bolts over for security bolts but cant find any M12 long enough. Has anyone got any other inexpensive options for ensuring the spare doesn't disappear in the night..
    Many thanks!

  2. OxonHagar

    OxonHagar New Member

    Joined:
    Aug 10, 2020
    Posts:
    3
    Likes Received:
    0
    Location:
    Oxfordshire
    The standard bolts can (I think) run right through into the engine bay so you can R clip them, then put a padlock on the bonnet hasp...

  3. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,651
    Likes Received:
    442
    Location:
    Tyneside

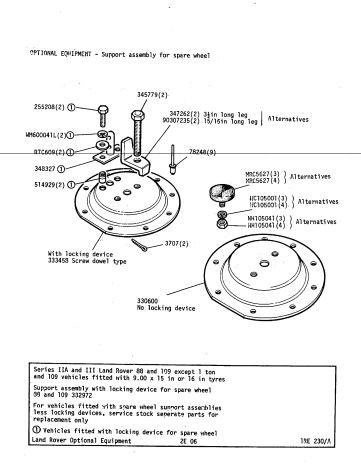

    Mine do not run right through the bonnet.But my wheel carrier has an extra post attached for a padlock to hold the wheel on. The post at about 11 oclock in attached parts list


    Attached Files:

  4. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    6,220
    Likes Received:
    5,641
    Location:
    Thatcham
    Them there wheels are bloody heavy, not likely to be pinched. I got fed up of carting mine about, it made the bonnet too heavy and it took up too much room in the back so it's leaning against the fence on my drive. Been there about three years, my missus wishes someone would pinch it.

    Col

    romanrob and tottot like this.
  5. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    3,094
    Likes Received:
    1,220
    Location:
    Warwick
    I do no think they are m12. I would have to dig out what I ordered to find the size but I had a special order from a local supplier when I needed longer ones after upgrading to wolf wheels. Mine is the same as @Blackburn has linked and I use the hasp with a padlock rather than locking the bolts. Some bonnets do have holes cut for the bolts to come through in which case and R clip through the end of the bolt will be an additional security measure on top of a padlock through the post but that is only of benefit if the bonnet also has a hasp and staple or some form of lock, otherwise you can just open the bonnet to remove the r clip.

  6. rynner

    rynner Member

    Joined:
    May 29, 2019
    Posts:
    68
    Likes Received:
    18
    Location:
    kernow
    Threaded bar with a hole drilled through for a.padlock,a hacksaw and 4 nuts,maybe a handful of washers,
    Stainless is best.
    Ryn

    Last edited: Sep 16, 2020
    Colthebrummie likes this.
  7. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,651
    Likes Received:
    442
    Location:
    Tyneside
    Bolts are 1/2" BSF My hold down arrangement is a flat alloy plate about 15mm thick [discovery 1 wheel ] so what I ordered where as below from Namrick ltd mind that was in 2012.
    They are still trading

    Shopping Basket (Prices in British Pounds)
    REF DESCRIPTION QUANTITY PRICE COST
    ------------------------------------------------------------------------------------------
    682 1/2" BSF x 3-1/2" HT Hex Head 2 £2.63 £5.26
    Bolt
    ==========================================================================================
    Subtotal: £5.26
    VAT: £1.05
    Total: £6.31

    rynner likes this.
  8. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    16,650
    Likes Received:
    18,148
    Location:
    Manchester
    ive hot a iece of copper pipe on mine coz they are too long and ive never got round to shortening them :oops:

    1/2inch BSF but 3 1/2inch long :(

    rynner likes this.
  9. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    2,668
    Likes Received:
    908
    Location:
    Slough and Bath
    Is there enough thread to put a lock nut and do it up tight? I modded mine (as above) with one long stud through the bonnet and a pin on the inside, bonnet has padlock (fitted by PO).

  10. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,651
    Likes Received:
    442
    Location:
    Tyneside

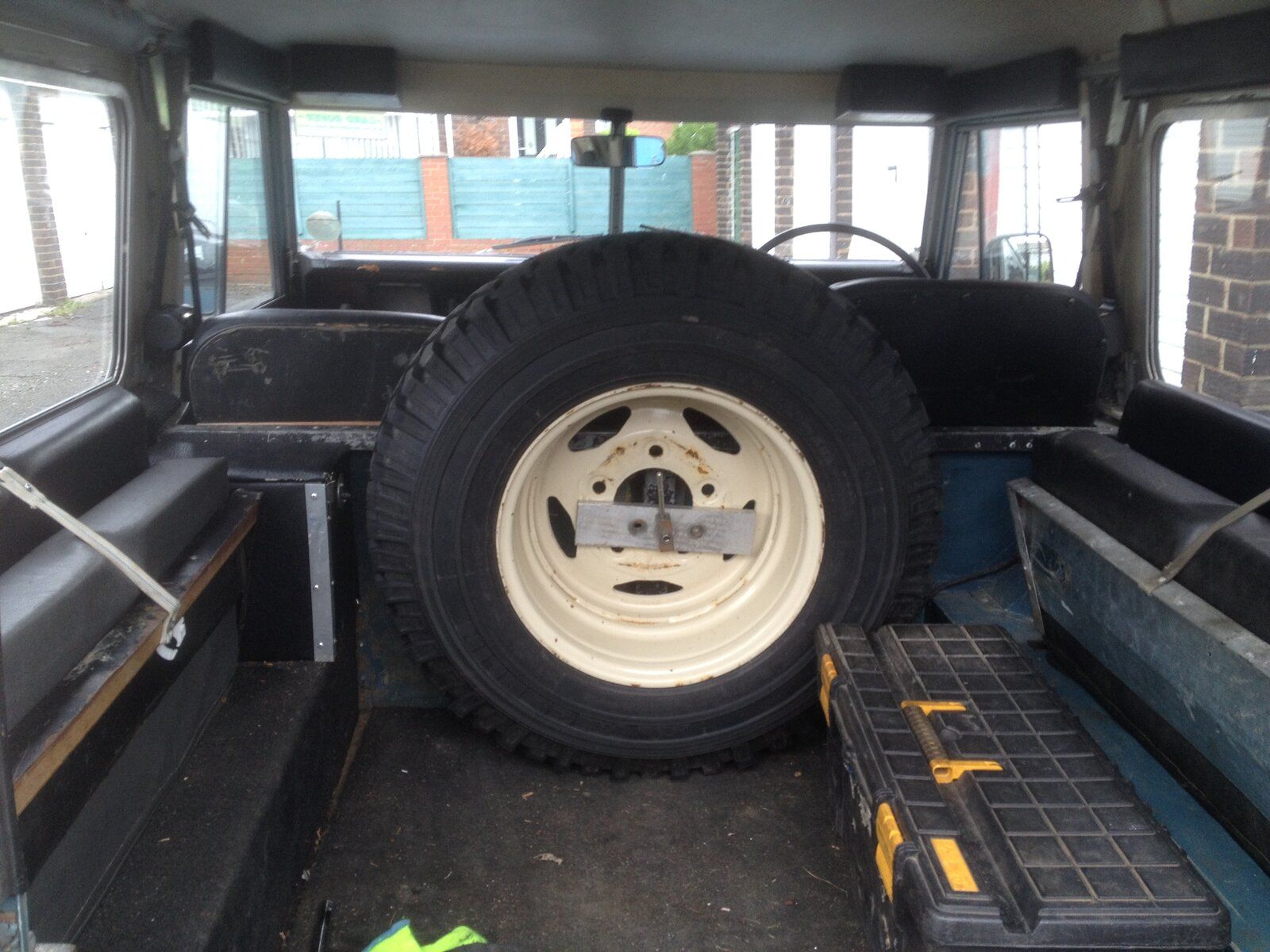

    THe 31/2" bolts on mine do not go through the bonnet just hold my clamp plate down.
    Do not have a pic of bonnet set up but use the same plate when I carry my spare wheel in the rear for off roading so I can see front nearside corner better.


    Attached Files:

  11. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    16,650
    Likes Received:
    18,148
    Location:
    Manchester
    If anyone would like to thieve a series wheel and tyre, I’ve got some in my back garden I can’t give away. Please help yourself. :oops:

    It would please Mrs Sticle no end. :(

    Hicap phill and Colthebrummie like this.
  12. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    6,220
    Likes Received:
    5,641
    Location:
    Thatcham
    Me too, I managed to take some to the council recycling centre but they've started charging £20 per wheel now so I'm hoping the rest will rust away behind my shed.

    Col

    Hicap phill and Bobsticle like this.
  13. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    2,668
    Likes Received:
    908
    Location:
    Slough and Bath
    It depends. I just sold 4 LWB wheels with old BFG A/Ts for £45 the set, but the replacment Wolfs (OEM 2nd hand) cost £40 each without tyres and the tyres came in a £105 so the spare cost me close on £150.

  14. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    16,650
    Likes Received:
    18,148
    Location:
    Manchester
    Yea but wolf wheels are a bit poofy. :p

  15. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    2,668
    Likes Received:
    908
    Location:
    Slough and Bath
    They're certainly heavy! I got them as I was planning for a Zues disc conversion and it wont fit with std wheels, also I wanted to go tubeless and 235/85. I like them, 235/85 tyres sit better, but I've got the brakes working so well now I probably won't get the discs. Spent weeks searchng e-bay, prices seemed silly - hence the lock, and now locking wheel nuts too. Don't tell me these won't go walkabout....
    https://www.ebay.co.uk/itm/NEW-Genu...819152?hash=item33f3cfe110:g:M4YAAOSwPDdfSjIh

  16. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    16,650
    Likes Received:
    18,148
    Location:
    Manchester
    I doubt it. Steels at a low down the scrappy.

    Make sure they won’t fit a Gaylander. o_O

  17. cornish rattler

    cornish rattler Well-Known Member

    Joined:
    Aug 15, 2010
    Posts:
    5,479
    Likes Received:
    504
    Location:
    Manc chester
    :D:D
    Zeus disc brake conversion, I just love mine :D
