Snorkel 2.5n/a Diesel

Discussion in 'Defender 90 / 110 / 130' started by 14platoon, Feb 9, 2019.

< Previous Thread | Next Thread >
  1. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    201
    Likes Received:
    52
    Location:
    Kent
    1992 ex mod Defender

    2.5 n/a DieseL

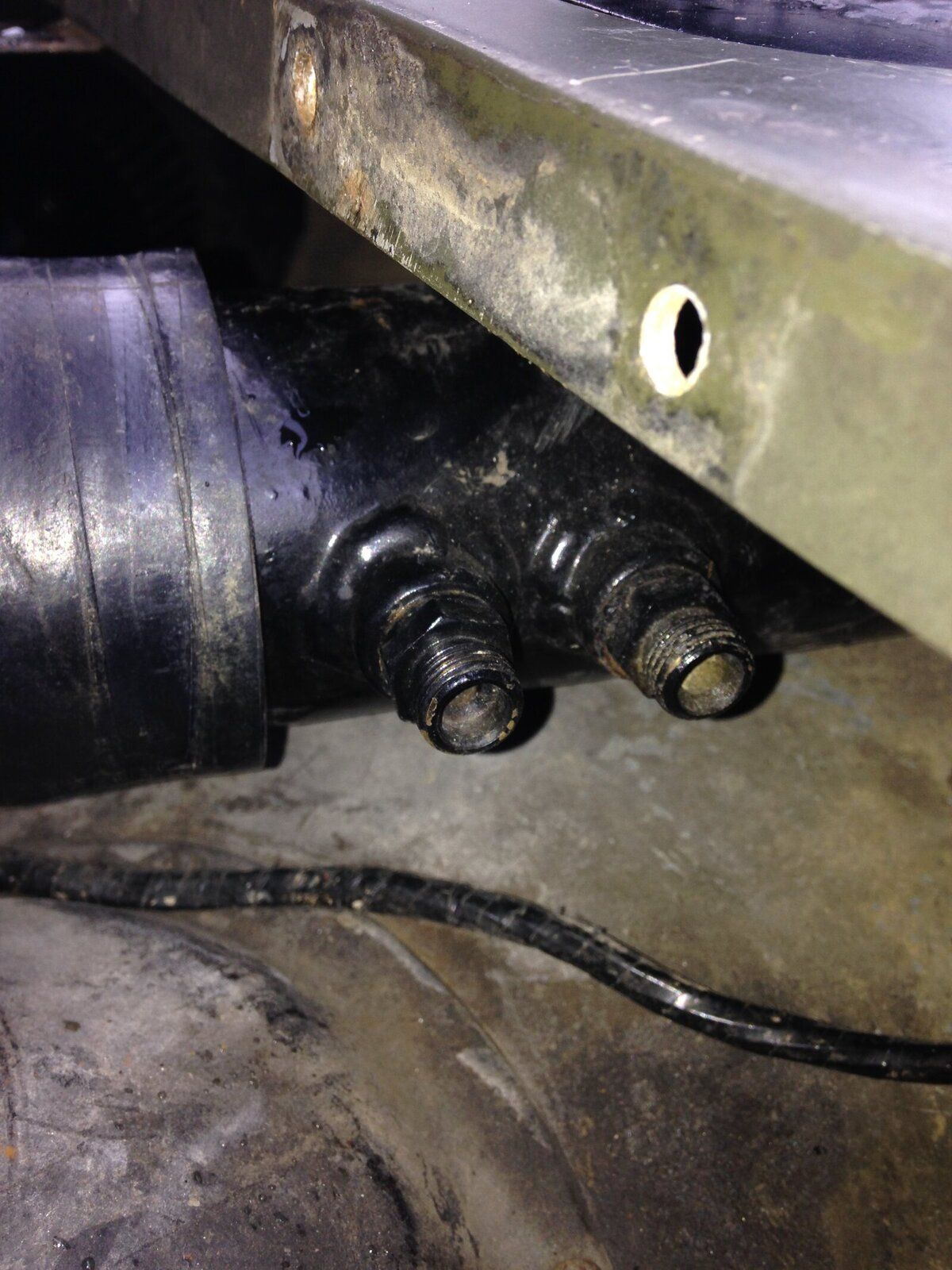

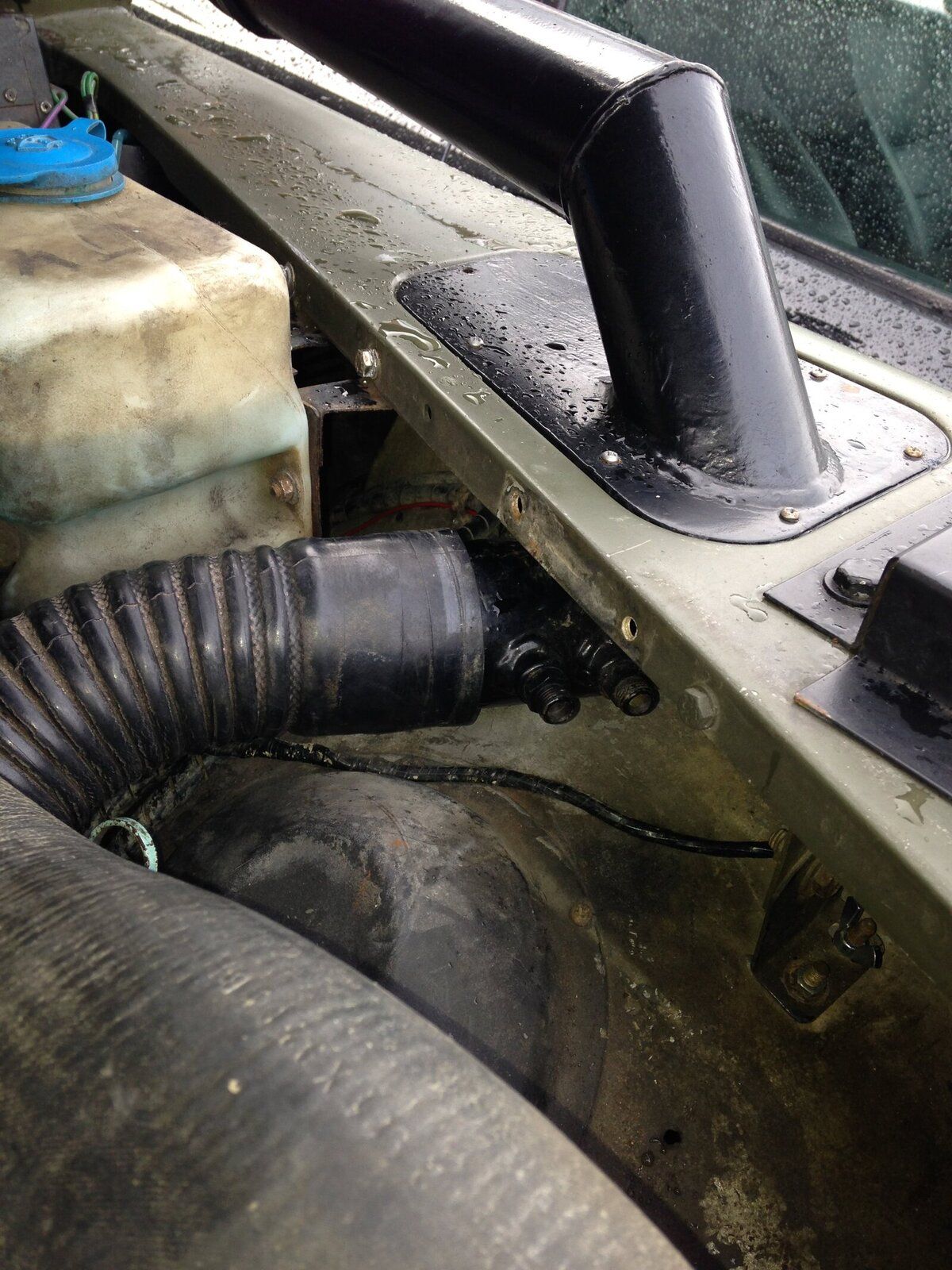

    Finally got around to connecting my snorkel up. Can anyone identify what these two lugs with threads are and what they’re for?

    Thanks


    Attached Files:

  2. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    8,131
    Likes Received:
    3,455
    Location:
    Arse!
    Breathers? Are they venting or sealed?

  3. owas

    owas Well-Known Member

    Joined:
    Jul 30, 2014
    Posts:
    514
    Likes Received:
    181
    Might be a stupid question but where's the heater intake?

  4. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    201
    Likes Received:
    52
    Location:
    Kent
    Not sure...How can I tell which they are? The axles have a kind of ball and socket nipple if that’s what you mean (I’m guessing that would mean vented).

  5. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    201
    Likes Received:
    52
    Location:
    Kent
    Disconnected at present. I’ll have to come up with a plan for this or some sort of filter.

  6. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    8,131
    Likes Received:
    3,455
    Location:
    Arse!
    No , I mean the two pipes on your snorkel, are they open or sealed?

  7. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    201
    Likes Received:
    52
    Location:
    Kent
    Open and leading into the main snorkel tube

  8. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    7,035
    Likes Received:
    1,893
    Location:
    Far away from you!!
    Those are the connections for extended axle breather.

    I screwed push fit connectors into mine then extended my axle breathers to them,

    Will take a photo later

    doriz likes this.
  9. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    7,035
    Likes Received:
    1,893
    Location:
    Far away from you!!
    And heater intake is extended forward and taken from a hole cut it the wing up near the headlight, using a series 3 grille and mount and a length of tube.

    The original plastic heater intake goes in the bin

  10. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    201
    Likes Received:
    52
    Location:
    Kent
    This all sounds great flat. Looking forward to the photos, in particular the push fit connections and breathers.
    I had the idea of using an oven hood filter over the blower to save extending and firxing a new vent, I realise this may sound a bit odd.

  11. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    7,035
    Likes Received:
    1,893
    Location:
    Far away from you!!
    I originally just let the heater draw air from under the bonnet, but when at low speeds/traffic or off roading it eventually draws fumey air into the cab.

    I extended the hose for the heater intake to behind the headlight and that was much much better. It was only wen I needed a new wing after a laning dent and it was in bits that I cut the hole for the air to be drawn in from outside.

    A hose to the headlight work well. Get on long enough and you can bend the end down right behind the headlight panel and it draws in pretty much fresh air from the wheel well

  12. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    7,035
    Likes Received:
    1,893
    Location:
    Far away from you!!

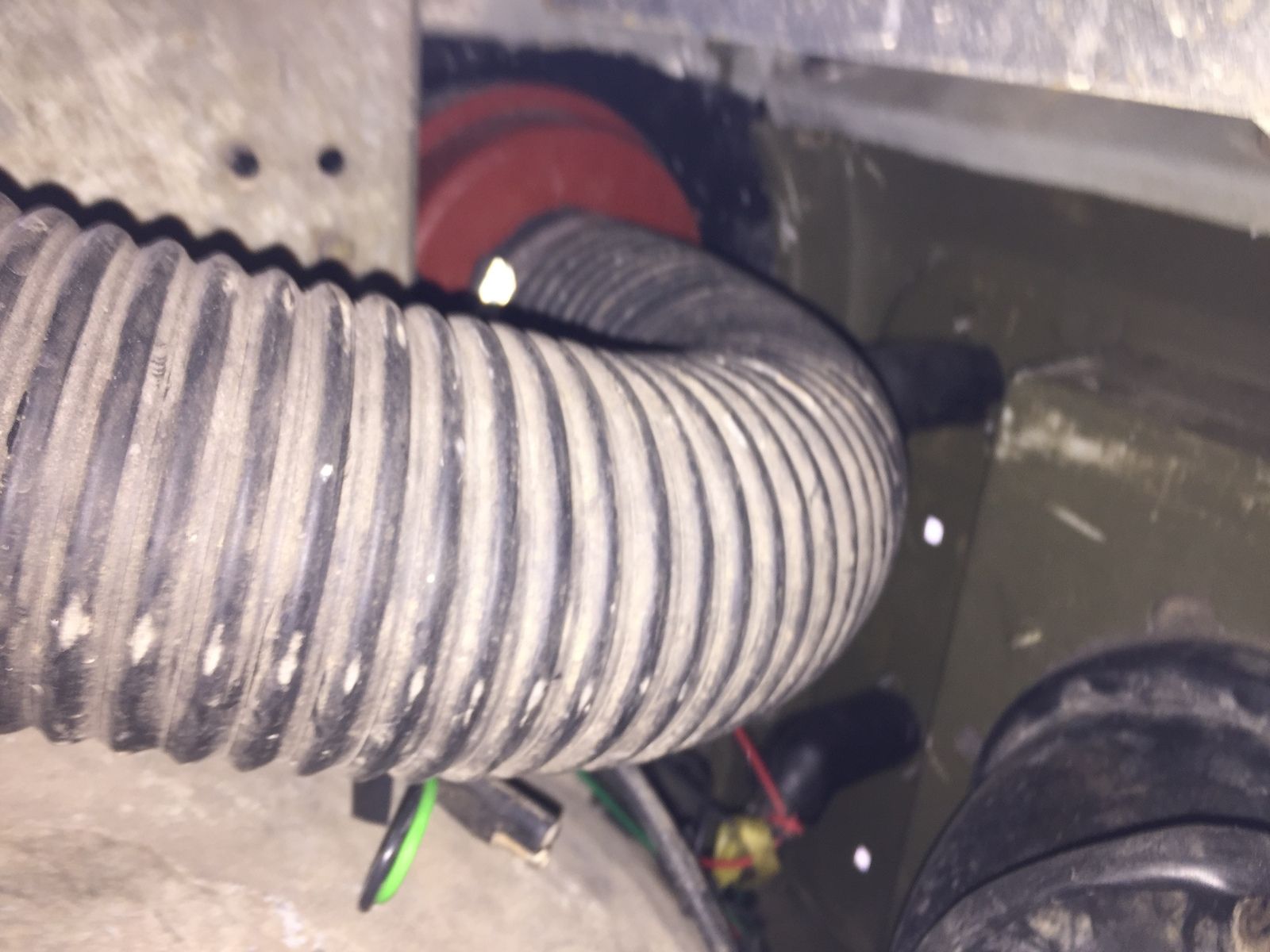

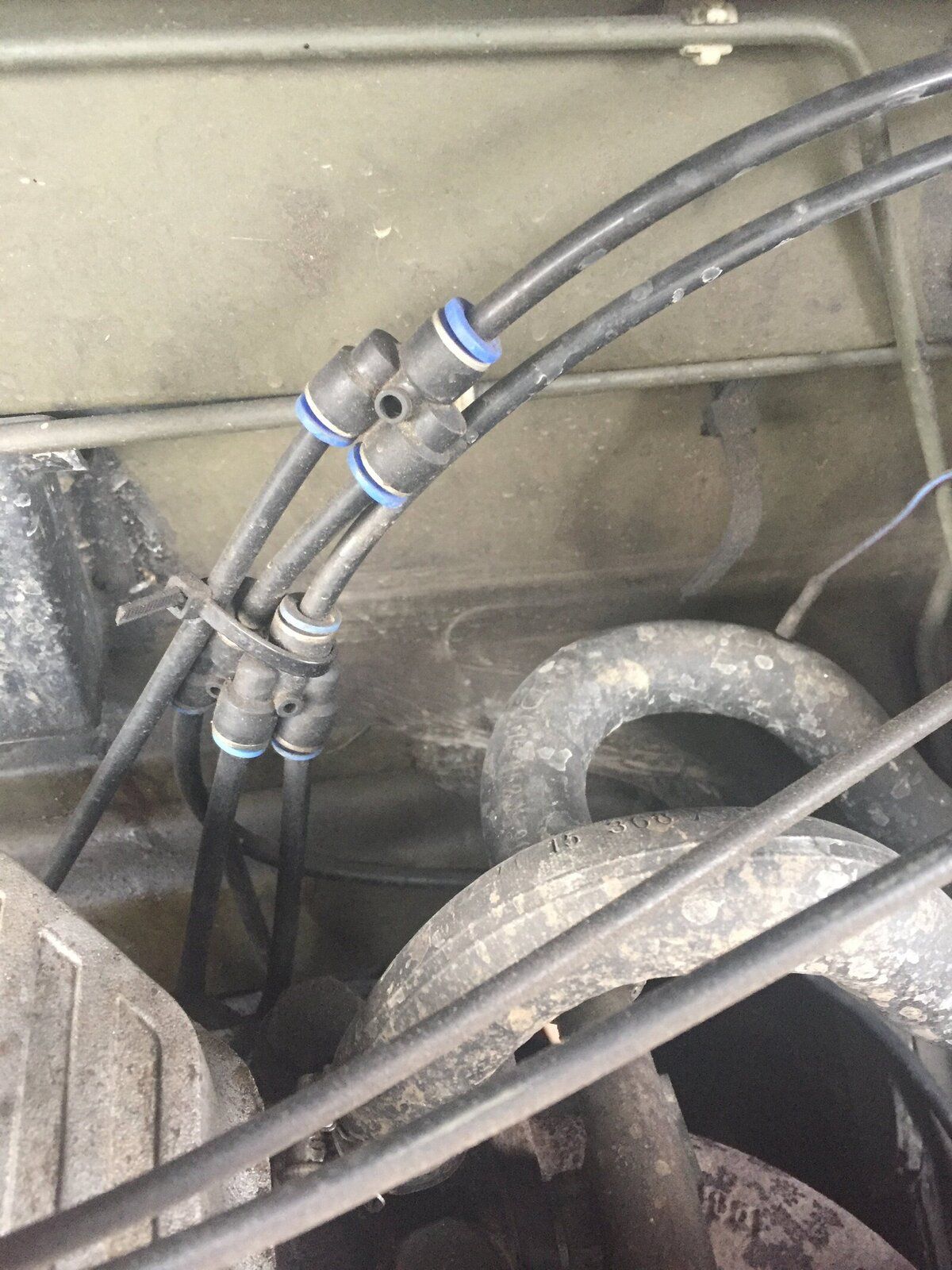

    BD827D6C-6E15-4640-9E21-C735DA5FF6B8.jpeg BCA91382-E48D-4402-A3B3-728EBCFBCC91.jpeg E3BE7280-60FD-4F63-9D68-03C60D448201.jpeg 1E72E622-49FC-4A7F-99DA-94CA88C60E9C.jpeg @14platoon

    Here you are - think the photo are self explanatory. I put the axle breather into a 2-1 manifold and that then went to one fitting on the snorkel, I then did the same for the timing chest and gearbox breathers

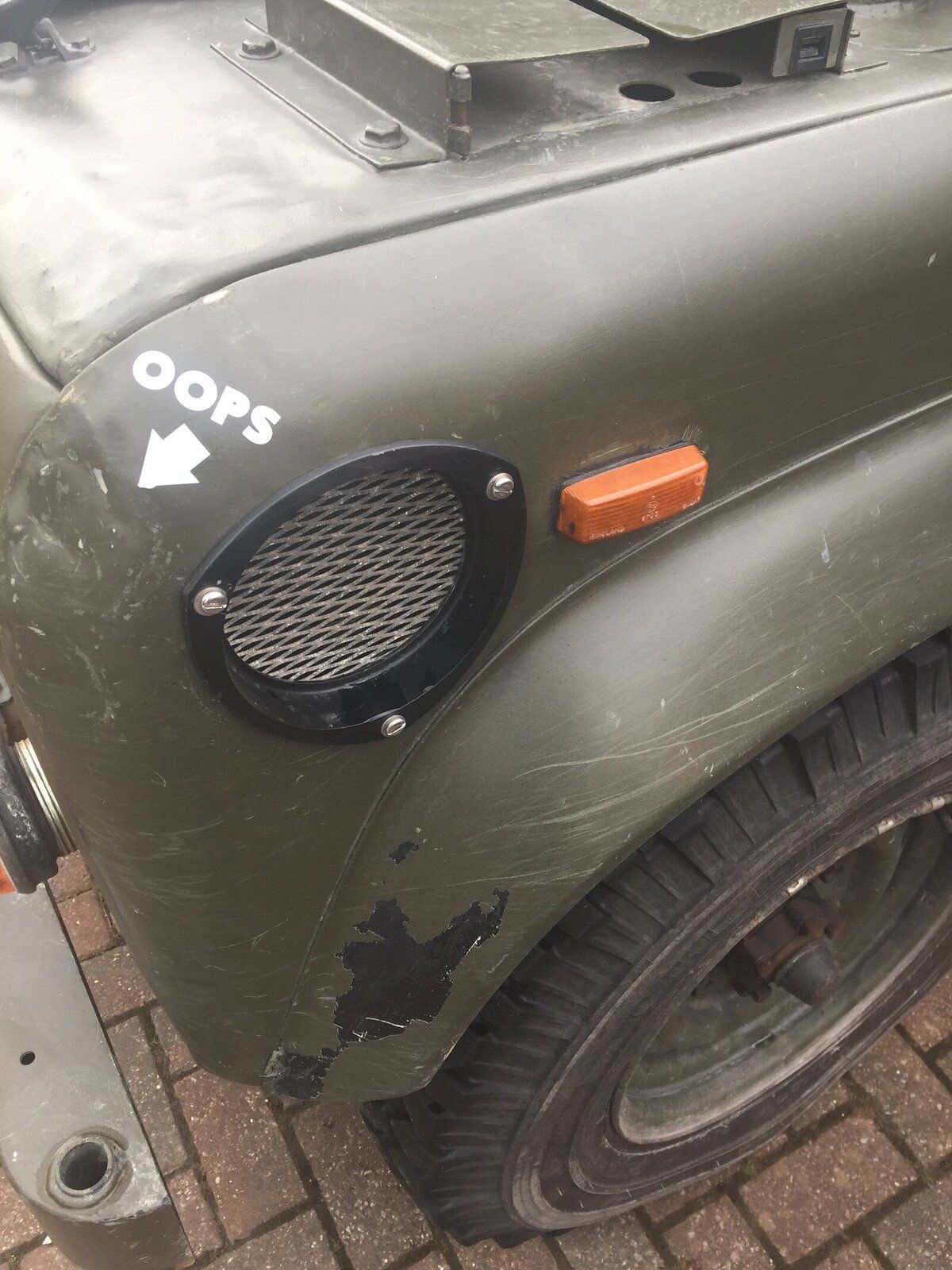

    The vent is the new heater intake, and the black corrugated pipe is the diving from the grille to the heater - I did originally have this loose down behind the headlight, and that worked fine

    Any more info just let me know

    Ed

  13. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    201
    Likes Received:
    52
    Location:
    Kent
    That’s Great flat thanks.
    Where did you get the 2 into 1 manifolds and the Push fit connecters from?
    I appear to have the exact same snorkel as yours so it’s a great reference.

  14. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    7,035
    Likes Received:
    1,893
    Location:
    Far away from you!!
    Gwynn Lewis 4x4 on eBay

    Just bung in ‘defender breather kit’ and ‘3 way push fit manifold’ or similar.

    The snorkel has threaded bits on those 2 attachments - I unthreaded mine and the new push fit connectors just threaded straight in, same thread.

  15. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    201
    Likes Received:
    52
    Location:
    Kent
    Thanks Flat.
    Did the two push fit connections into the two lugs on the base of the snorkel come with that kit?
    I showed Gwynn Lewis the photo but they don’t recognise it as such. I’m guessing you just bought a kit from them and used what you needed?
    Thanks

  16. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    7,035
    Likes Received:
    1,893
    Location:
    Far away from you!!
    Yep I think I brought their timing chest kit and then the rest of the bits seperate, I can’t remember the thread but it’s fairly standard.

    6mm pushfit connectors is what you want

    I might still have the packaging in my spares box in the garage - will look tomorrow after work, and I might have some spares I can send you

  17. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    201
    Likes Received:
    52
    Location:
    Kent
    Ah mate that sounds perfect. Cheers

    flat likes this.
  18. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    7,035
    Likes Received:
    1,893
    Location:
    Far away from you!!
    @14platoon

    I didn’t get a chance to look the other day and am working now until the weekend, will have a look for you Saturday is that’s okay?

    Ed

  19. 14platoon

    14platoon Active Member

    Joined:
    Nov 13, 2016
    Posts:
    201
    Likes Received:
    52
    Location:
    Kent
    Of course it is Ed, no problem
    Cheers

    flat likes this.
