Snapped Timing Belt?

Discussion in 'TDV6/8' started by Al2O3, Jul 4, 2018.

< Previous Thread | Next Thread >
  1. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,430
    Likes Received:
    2,581
    Location:
    North of the Wall
    My neighbour has a D3 and I hadn't seen it for a few days. Saw his mrs on the drive and asked her if it was in for a service. She said it had broken down and was in the local LR indie. In describing what happened happened she mentioned the timing belt. Having read the thread on here about bearings rotating It's made me wonder if she mentioned the crankshaft anorl, I think she might have.
    Anyway, this is just because I'm curious and he hasn't asked me to post. I'm just wondering, as it's a V6, if a belt goes does it cause the other to go? I'm presuming not, but thought I'd ask.
    Also, what's the symptoms when a bearing spins? What she described sounded like a belt snapping.

  2. freelance

    freelance Well-Known Member

    Joined:
    Mar 5, 2009
    Posts:
    6,985
    Likes Received:
    2,874
    Location:
    essex and beyond
    When the bearing spins it usually will just seize due to lack of lube, no warning, timing belt will also end in a stall, but with a bigger thump I imagine as he valves bend

    gstuart likes this.
  3. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,430
    Likes Received:
    2,581
    Location:
    North of the Wall
    Aye, just wondering if both belts tend to go at the same time.

  4. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,440
    Likes Received:
    6,996
    Location:
    Swanley , Kent

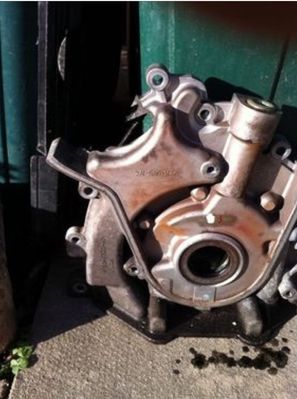

    There’s also the oil pump cover, mainly from 2007 it had a weak casting , corner would break off and take the engine out

    Rear belt is just the fuel pump, doesn’t damage the engine if it snaps

    But indeed as @freelance mentions ref the front belt and bearings

    F493B8AE-942F-443D-9716-5E2CB2AB3725.jpeg 7B0D7C87-FD63-49B1-A277-57105EC0CD39.jpeg 254AAD16-F5CE-4FBD-BAB9-AFA97C147F1E.jpeg 9C8D9799-09BB-4994-BB46-43862C91FC2D.jpeg

    8ha likes this.
  5. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,430
    Likes Received:
    2,581
    Location:
    North of the Wall

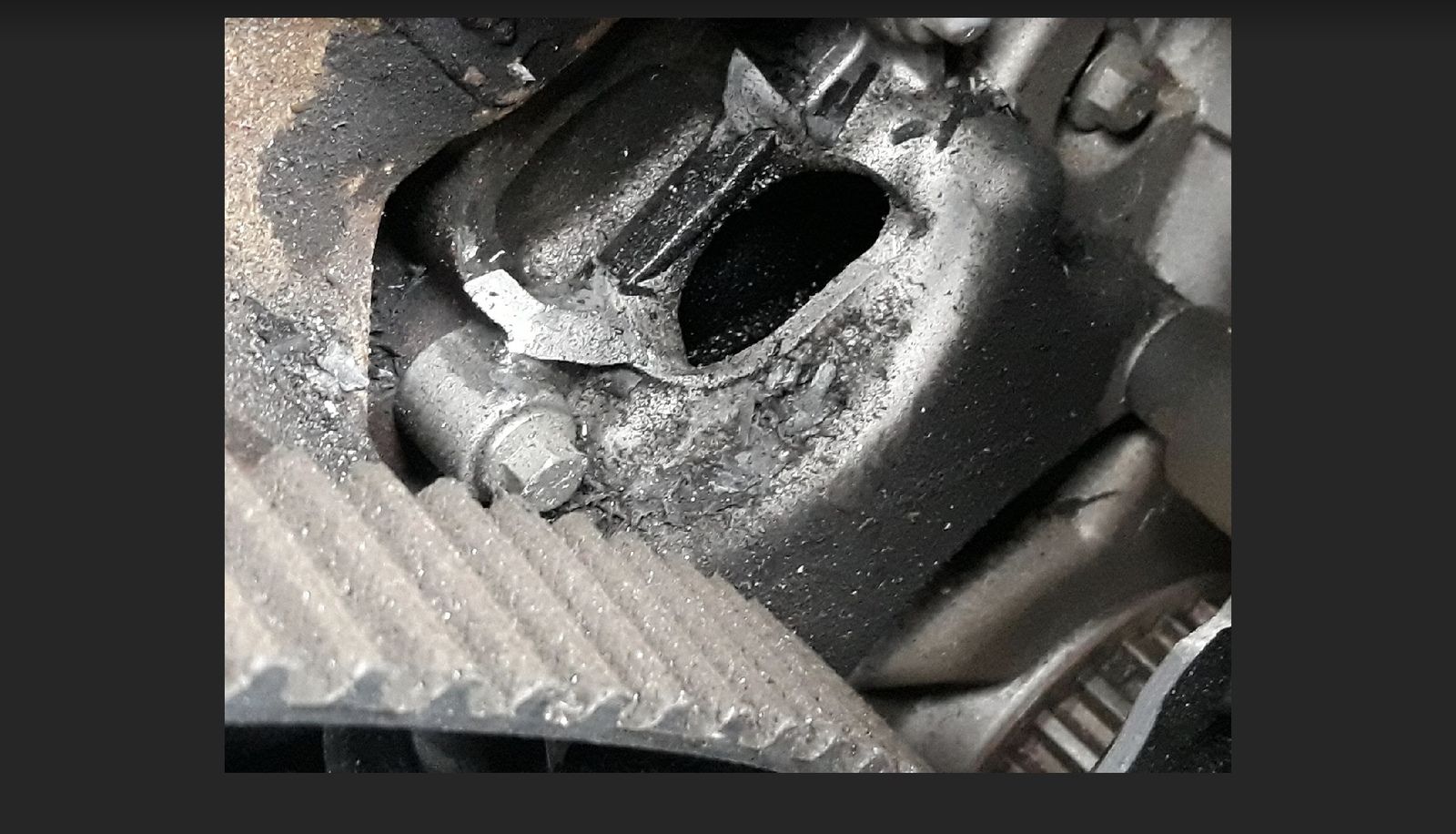

    Is that first picture showing the hole in the pump housing?
    Ahh, so both sides of the V are on the same timing belt! Makes sense now that I think about it properly :rolleyes:

  6. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,440
    Likes Received:
    6,996
    Location:
    Swanley , Kent

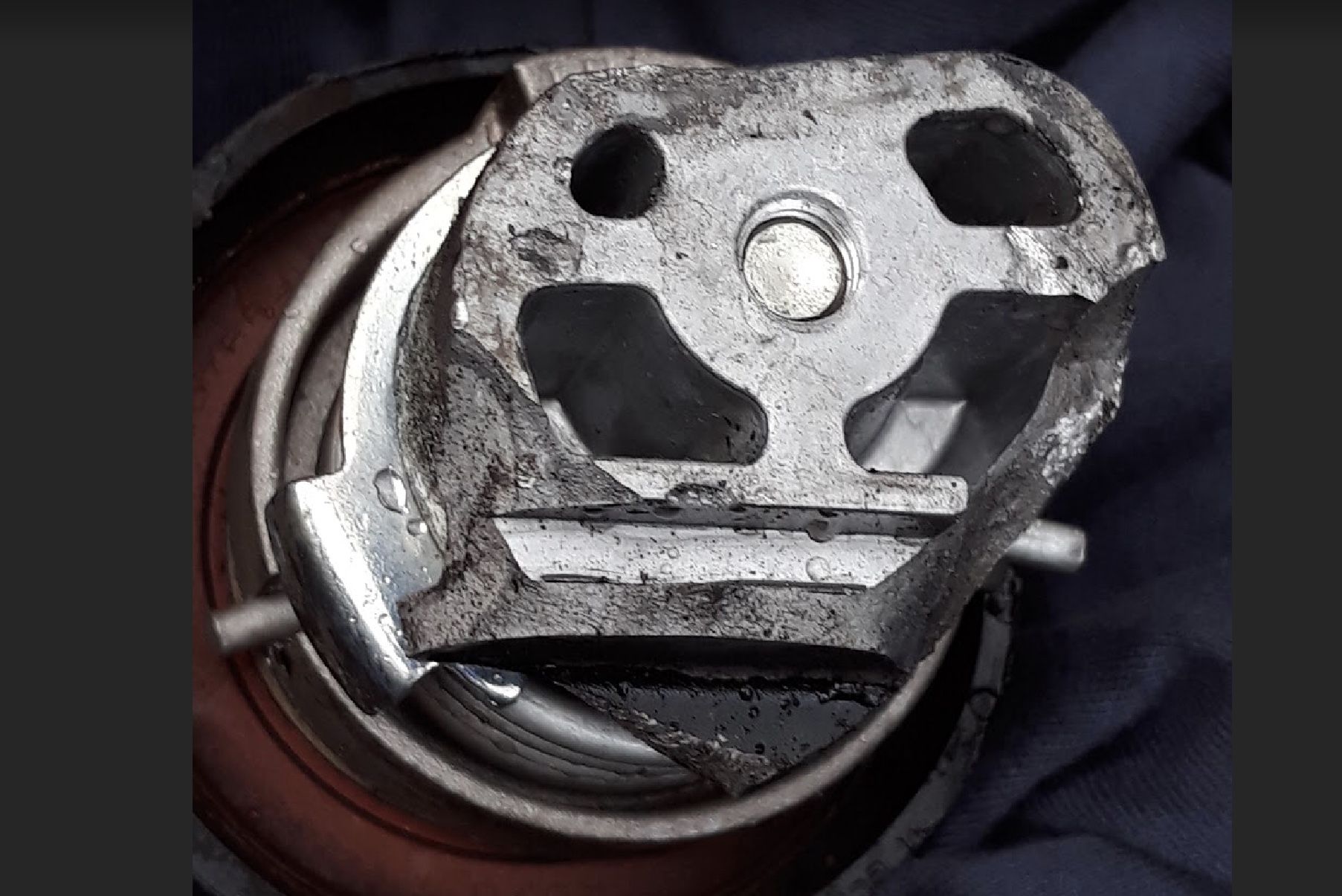

    Here’s a better picture of the belt layout , one of the belt tensioners are mounted top left hand side of the oil pump cover, this corner breaks off due to the weak casting and takes the timing belt with it, along with severe damage if not writing the engine off , depending on engine speed at time of breaking

    It’s the tensioner that has the red on it


  7. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,440
    Likes Received:
    6,996
    Location:
    Swanley , Kent

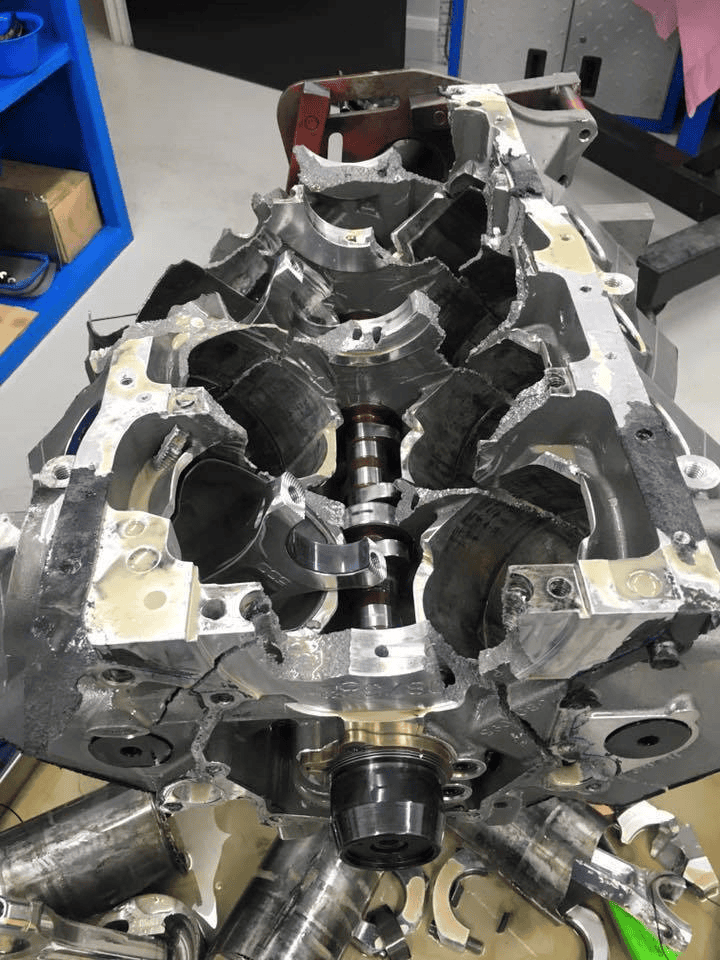

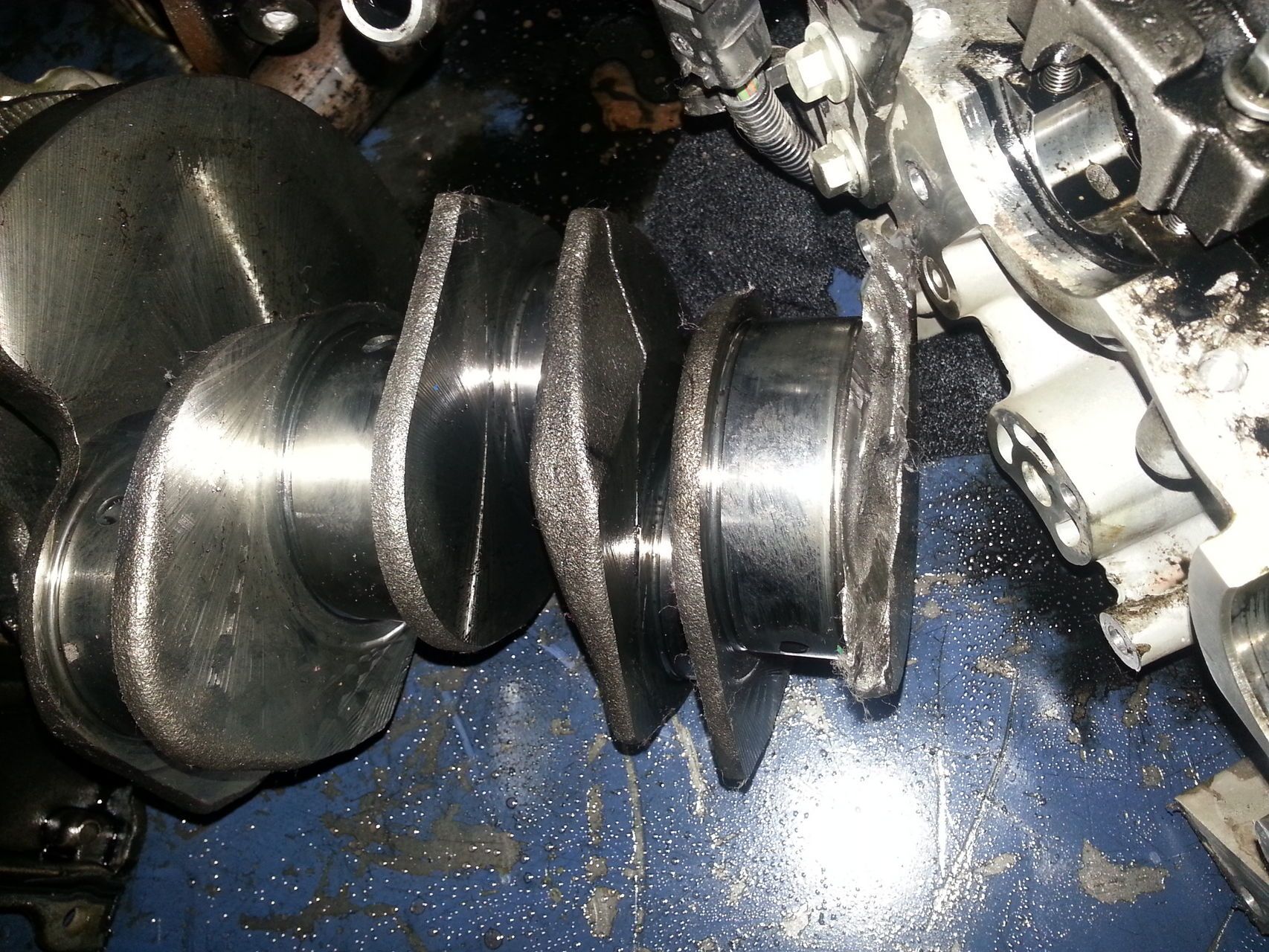

    This is what happens when the crankshaft snaps

    Ps, apologise , just released that’s a V8 , will try and find the V6 pic but indeed not much difference with the amount of damage that’s done


    Last edited: Jul 6, 2018
    8ha likes this.
  8. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,440
    Likes Received:
    6,996
    Location:
    Swanley , Kent

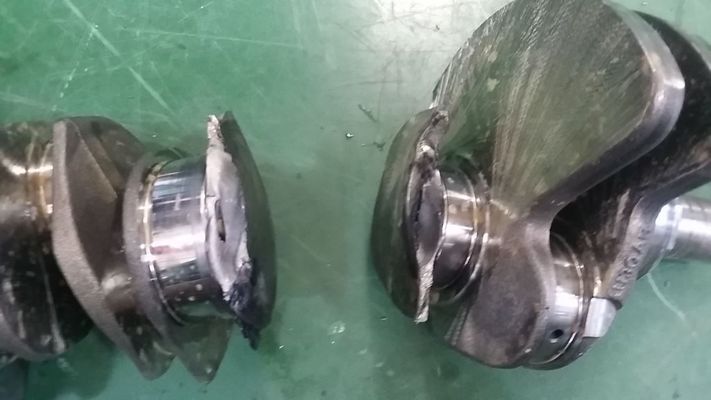

    This is what the crank looks when they fail

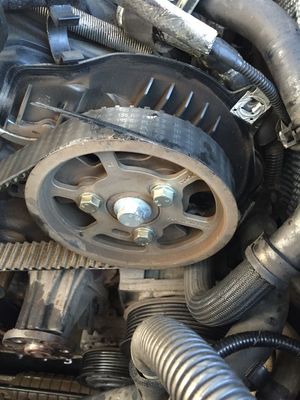

    Also other pic is one guy who just caught his timing belt before it snapped

    I’ve Already had the upgraded oil pump cover , front and rear belts, water pump replaced

    2967AAB7-9553-41DF-9767-5D62D3516339.jpeg 67DCCF3D-5ED1-4B51-A539-514E9F27E7B5.jpeg 1B5A5651-54A8-45FA-8B0B-31A41EA19C26.jpeg

    8ha likes this.
  9. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,440
    Likes Received:
    6,996
    Location:
    Swanley , Kent
  10. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,430
    Likes Received:
    2,581
    Location:
    North of the Wall
    Spoke to neighbour yesterday. He thinks it was the oil pump cover that went.
