Epicuser
Ex Freelander Owner
- Posts
- 2,393
- Location
- North East Surrey
My garage has said that the lumpy start and smoking is probably an injector on its way out, but that for 10 seconds of smoking, is not worth replacing them for the time being.
smoking is back
- Thread starter matt1295
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
matt1295
New Member
- Posts
- 1,734
- Location
- Scarborough
A friend of mine mentioned the injectors once but coukdnt see whythere was blue smoke
Going to take the inlet manifold off tomorrow if I get chance justto clean that out. Doubt will make any differance but doesnt cost out to try
Going to take the inlet manifold off tomorrow if I get chance justto clean that out. Doubt will make any differance but doesnt cost out to try
matt1295
New Member
- Posts
- 1,734
- Location
- Scarborough
where is the Air temp sensor located
matt1295
New Member
- Posts
- 1,734
- Location
- Scarborough
When you google it, it brings up the sensor but now idea of a location
john t
Active Member
- Posts
- 680
- Location
- basingstoke
an led light will only indicate power is getting to the glow plugs, you really need an ameter and monitor the current,
a quick / easy test is to unplug each glowplug , attach a wire on the positive side of the battery, and briefly touch the connection on each plug inturn , there will be agood spark/flash, if the plug is ok, if it is open circuit there will not be anything , if you have an ammeter, you could measure the curent usually about 8 amp per glowplug,
if you need to get a defective plug out , make sure you get a hexagonal long socket, if you try using a 12 point socket you are most likely to round the plug off if its tight ,
an led light will only indicate power is getting to the glow plugs, you really need an ameter and monitor the current,
I tested all the glowplugs and replaced them all I just wanted a true reflection of when the plugs were powered up
john t
Active Member
- Posts
- 680
- Location
- basingstoke
changing the forth plug will most prob solve your problem , as has already been said it hasnt been changed because its the difficult one to get at , either change it or live with the 30 seconde of smoke
john t
Active Member
- Posts
- 680
- Location
- basingstoke
kev , dont you already have an indication on the dash to tell you the glowplug relay is on ?
yes but I wasn't convinced it was working properly so I just wanted to confirm that the power was actually getting to the plugs everytime and for the right amount of time so I thought it was probably the easiest way to get the information I wanted
matt1295
New Member
- Posts
- 1,734
- Location
- Scarborough
Can this 1 plug cause this tho not exactky cheap to replace this last plug but sort of doesnt explain the blue smoke
Was going to order a pcv but is there a way to tell if my one is faulty
Would rather spend the £20 on something more useful if mine turns out to be ok
Thanx again for the help & advice it is all greatly received and looked into as much as I can
john t
Active Member
- Posts
- 680
- Location
- basingstoke
mat the very least you can do is test to see if the glow plug is ok, very easy to do using a lenght of wire , and yes a single cylinder not firing for a few seconds is going to give you some smoke,
if it is running ok when up to temp , i dont think you should be to concerned , although a full set of healthy glow plugs will certainly make starting easier when it really gets cold,
if it is running ok when up to temp , i dont think you should be to concerned , although a full set of healthy glow plugs will certainly make starting easier when it really gets cold,
matt1295
New Member
- Posts
- 1,734
- Location
- Scarborough
It's had 3 new plugs fitted the 4th is in my toolbox lol
Will get the multimeter out today
Will get the multimeter out today
matt1295
New Member
- Posts
- 1,734
- Location
- Scarborough
after using Autodata to find the Air intake temp sensor i took it out and cleaned the end it was a bit black and horrid like the manifold used to be before i removed the EGR
fitted back and started car had a little puff of smoke then nothing not even on first revs

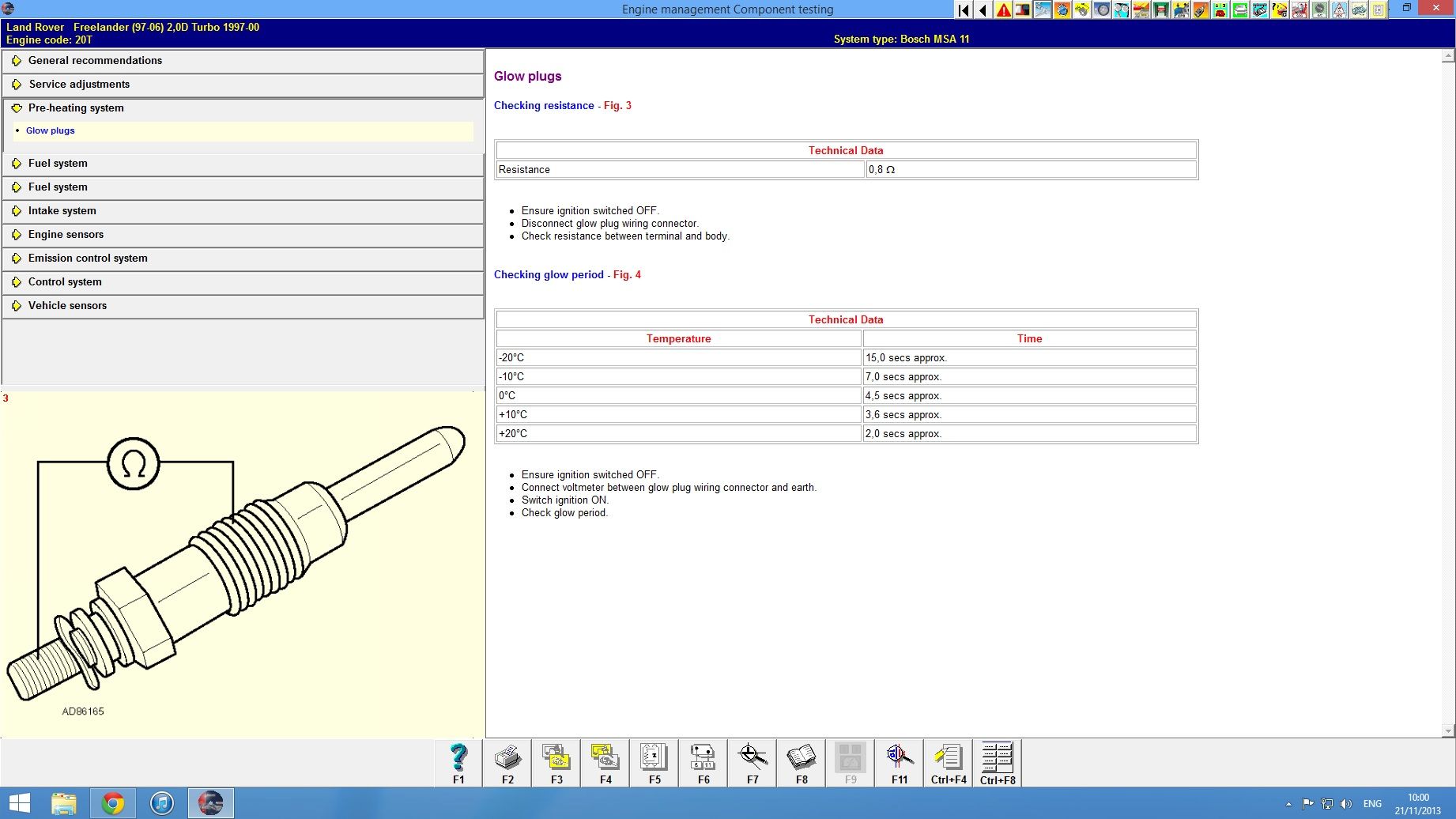

anyhow i also come across this on Autodata and wanted to see what you thought
fitted back and started car had a little puff of smoke then nothing not even on first revs
anyhow i also come across this on Autodata and wanted to see what you thought
Attachments
john t
Active Member
- Posts
- 680
- Location
- basingstoke
according to the data for the glow plug ,R= 0.8 ohm each glow plug should be drawing 15 amps
matt1295
New Member
- Posts
- 1,734
- Location
- Scarborough
what i have is i came across this in the autodata i have and i testes 3 plugs i removed they all came up no resistance but when i used jump leads they were all glowing.... maybe my meter is playing up
matt1295
New Member
- Posts
- 1,734
- Location
- Scarborough
Took the bumper off today to clear out the oil pics below
Inlet manifold
Air filter to turbo pipe
Intercooler
Turbo inlet
Turbo outlet
Inlet manifold
Air filter to turbo pipe
Intercooler
Turbo inlet
Turbo outlet
Last edited:
matt1295
New Member
- Posts
- 1,734
- Location
- Scarborough
A video and pic of the smoke... today isn't as bad tho.. just an update on work timing is ok full service
Datatek
Well-Known Member
- Posts
- 44,040
- Location
- Near Poitiers SW France
Looks like normal water vapour with a bit of diesel fumes mixed in, normal in cold weather until the exhaust has warmed up.
matt1295
New Member
- Posts
- 1,734
- Location
- Scarborough
Some days it can fill the street to extent ofiwnt to turn the thing off...
My td4 when I had It didnt do this and neither have my tdci's alsoa blokei no with same engine in a freelander doesnt do this
My td4 when I had It didnt do this and neither have my tdci's alsoa blokei no with same engine in a freelander doesnt do this
