Shrader valve
- Thread starter Mich4el
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
1988smithy
Well-Known Member
- Posts
- 4,048
- Location
- West midlands

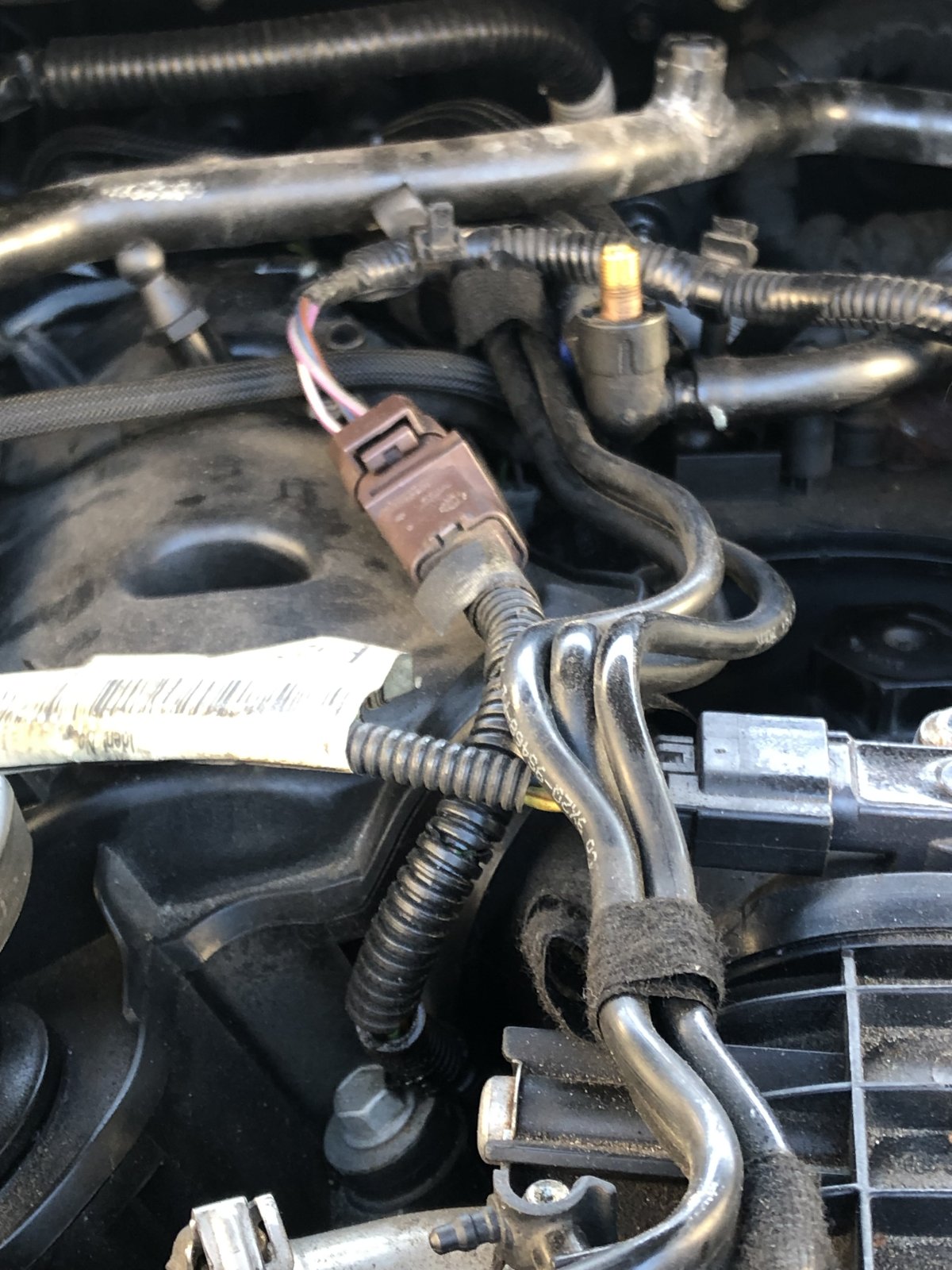

Low pressure fuel line bleeding/test point? Might be wrong
Hi. As much as your badge says Range Rover its really closer to the Discovery.
Maybe @gstuart would know as he runs a V6 (and likes a challenge
) .But to show where the other pipe ends go would really help.
J
Plus 1 what @1988smithy has mentioned

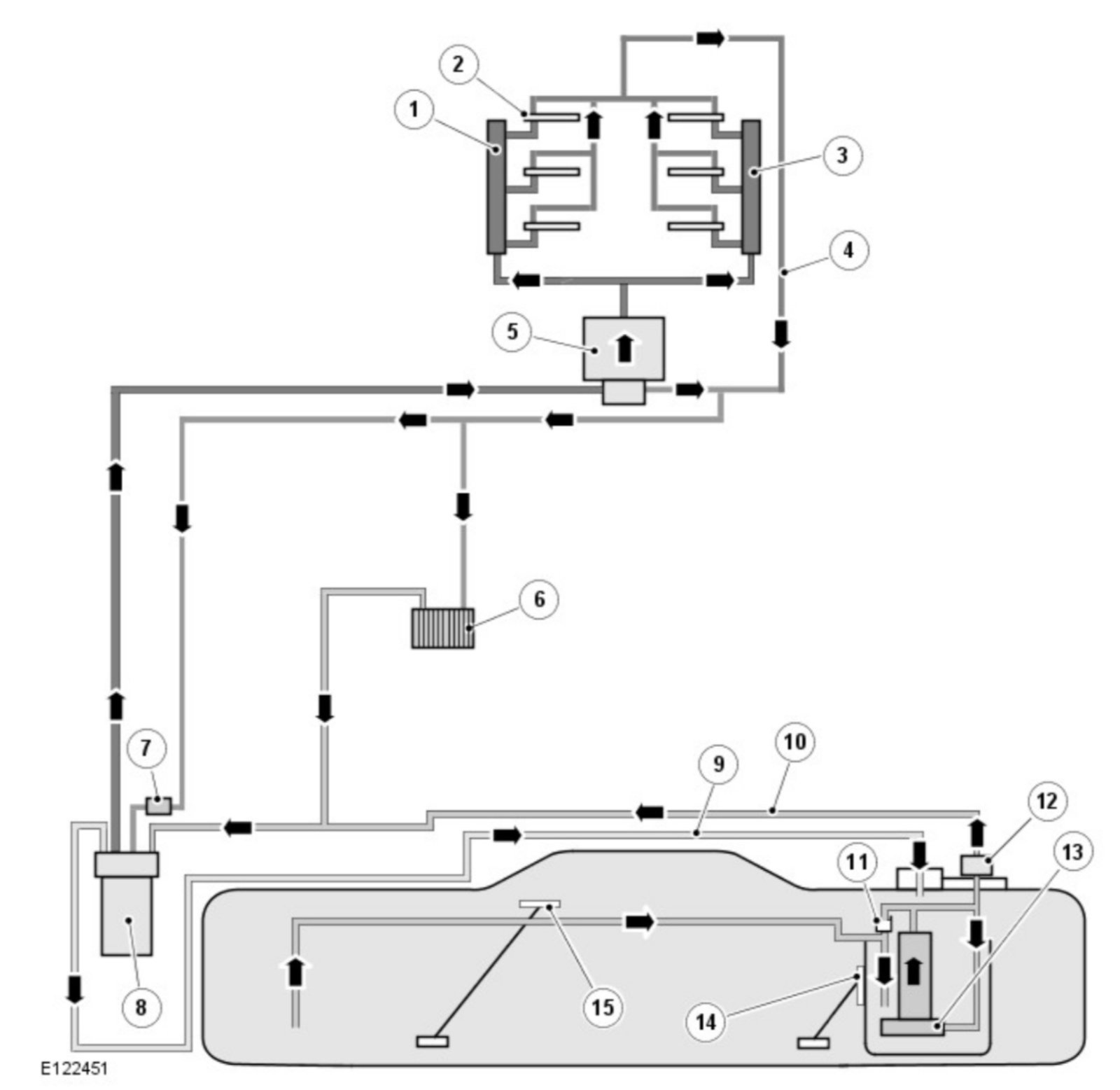

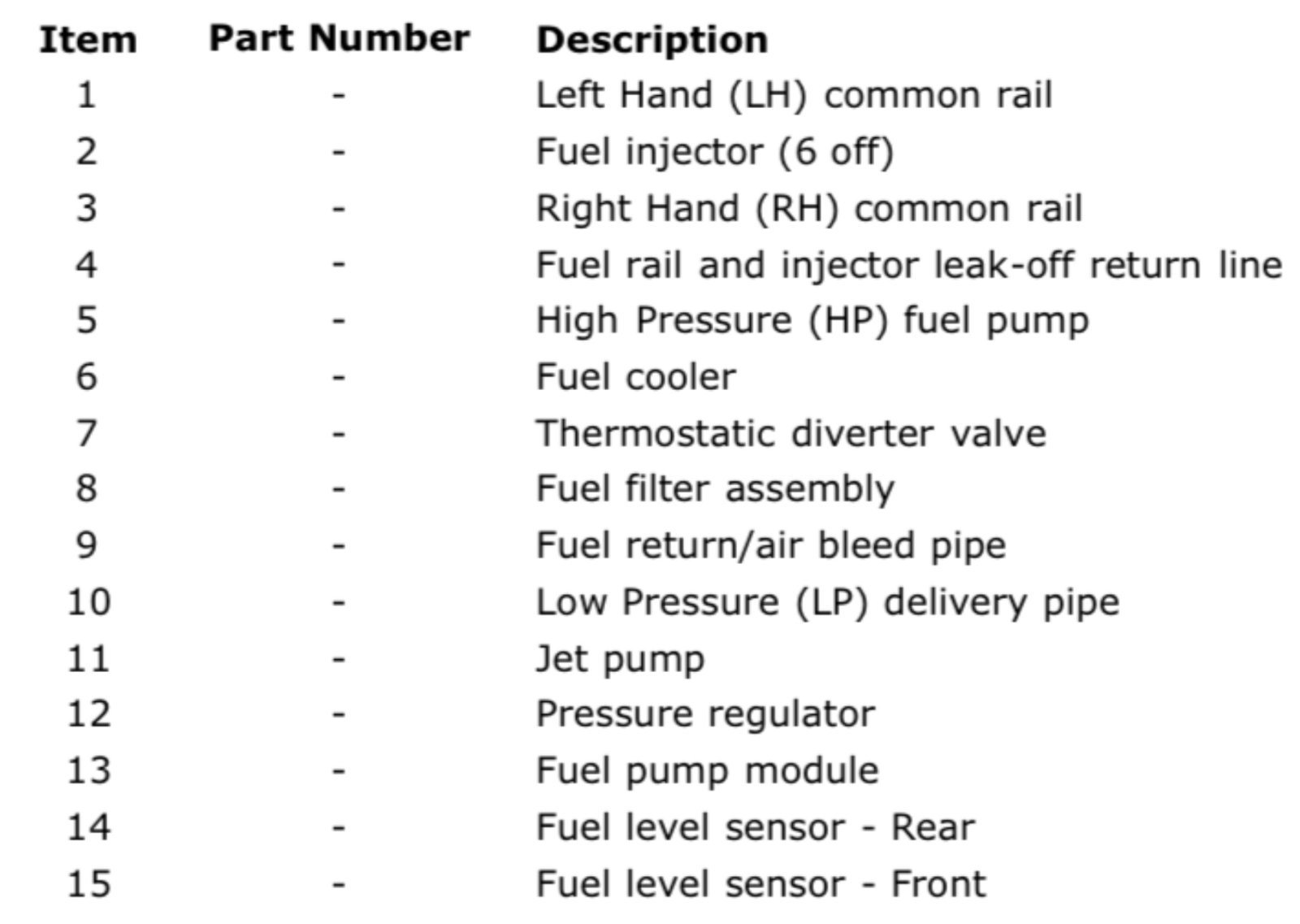

here u go, is tee’d into the LP pump / circuit , No. 9 - ref- Fuel return/air bleed pipe
when Testing gauge should read 0.5 Bar or 7 Psi
hope that helps
here u go, is tee’d into the LP pump / circuit , No. 9 - ref- Fuel return/air bleed pipe
when Testing gauge should read 0.5 Bar or 7 Psi
hope that helps
Last edited:
Hi. As much as your badge says Range Rover its really closer to the Discovery.
Maybe @gstuart would know as he runs a V6 (and likes a challenge
But to show where the other pipe ends go would really help.
J
yeh I know , I need to get out more, lol
It keeps the gray cells alive mate
. The challenge that is, going out drinking kills em.J
It keeps the gray cells alive mate
J
good point my friend and and saddest part is I enjoy fault finding and looking up wiring / schematics etc
but of course only if they say please or thk u
