P38A Shocks & roll bar

Discussion in 'Range Rover' started by pete12345, Mar 28, 2020.

< Previous Thread | Next Thread >
  1. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,246
    Likes Received:
    204
    Location:
    Isle Sheppy
    can somebody put me right about removing all the shocks and the front roll bars steering damper can I putt it up on axel stands and remove them all together because the cars off the rd for a few months or do I need to replace one item at a time because I want to replace all the bushes

  2. dubbleRR

    dubbleRR Well-Known Member

    Joined:
    Mar 13, 2011
    Posts:
    485
    Likes Received:
    130
    Location:
    highlands of Scotland
    You can do all 4 at once and the steering damper.....But axle stand the chassis ,not the axles ,that will stop the body coming down on you .....:eek:;)......RR

  3. kds

    kds Well-Known Member

    Joined:
    Nov 10, 2008
    Posts:
    1,724
    Likes Received:
    574
    Location:
    old ugly wornout tired unloved unwanted but still
    You still need to support the axle when taking the shock off.

  4. romanrob

    romanrob Well-Known Member

    Joined:
    Jan 19, 2020
    Posts:
    381
    Likes Received:
    160
    Location:
    SW London
    +1 dubble RR. Put it to High ride height, axle stands on the chassis. Leave the wheels on and on the ground, unless you need ground clearance to get an impact gun on the bottom nuts(recommended, and if the shocks are really stuck you may some kind of chain wrench on the shocks to stop them turning (rubber strap wrench can work, but more likely on recent installs). Front roll bar links are not too hard - high ride height, wheels on, support the chassis.

  5. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,246
    Likes Received:
    204
    Location:
    Isle Sheppy
    Thanks for advice

  6. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,246
    Likes Received:
    204
    Location:
    Isle Sheppy
    Don't have to worry about clearance for air gun it will be all done with spanners air gun is in quarantine at caravan

  7. Rubberknees

    Rubberknees Well-Known Member

    Joined:
    Mar 25, 2019
    Posts:
    806
    Likes Received:
    609
    Location:
    Rotherham
    When replacing shocks have always cut through with angle grinder, saves messing with that bottom nut as can be a pitta

    Medway likes this.
  8. pete12345

    pete12345 Well-Known Member

    Joined:
    Jun 15, 2012
    Posts:
    1,246
    Likes Received:
    204
    Location:
    Isle Sheppy
    That sounds a bit easier

  9. Rubberknees

    Rubberknees Well-Known Member

    Joined:
    Mar 25, 2019
    Posts:
    806
    Likes Received:
    609
    Location:
    Rotherham
    Sure is My philosophy if you don't need it chop it off. Going in bin anyway

  10. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd

    Joined:
    Jul 8, 2012
    Posts:
    14,068
    Likes Received:
    3,860
    Location:
    Buckinghamshire, UK. ('95 DT)
    Island sent me nuts with the wrong thread so I needed the old ones!

  11. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    6,425
    Likes Received:
    2,655
    Location:
    sud ouest France
    Just a little tip.
    For the shocks put the rubber bush cups in so that they don't cup around the bush.
    Errr... I'll find a photo...

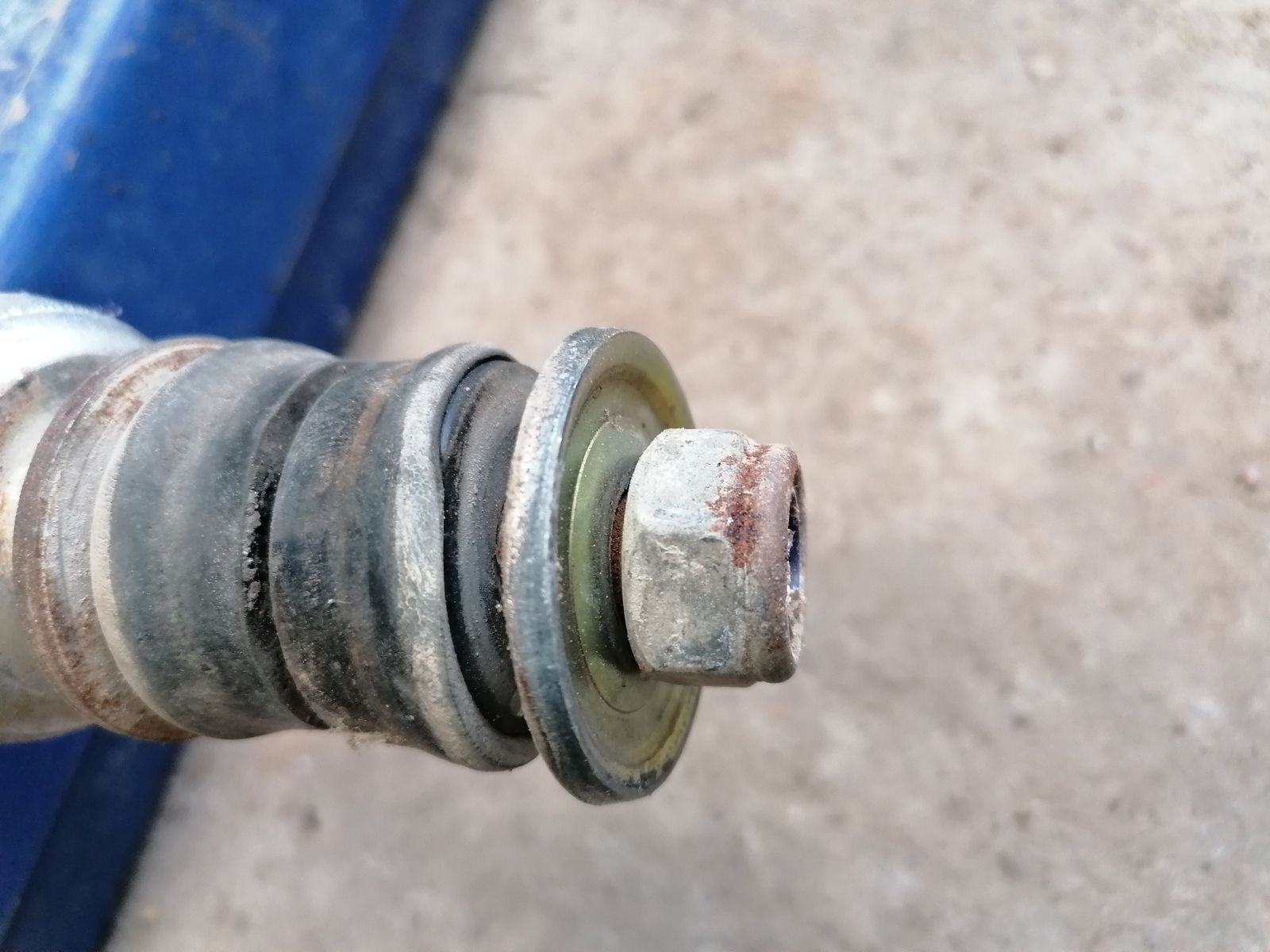

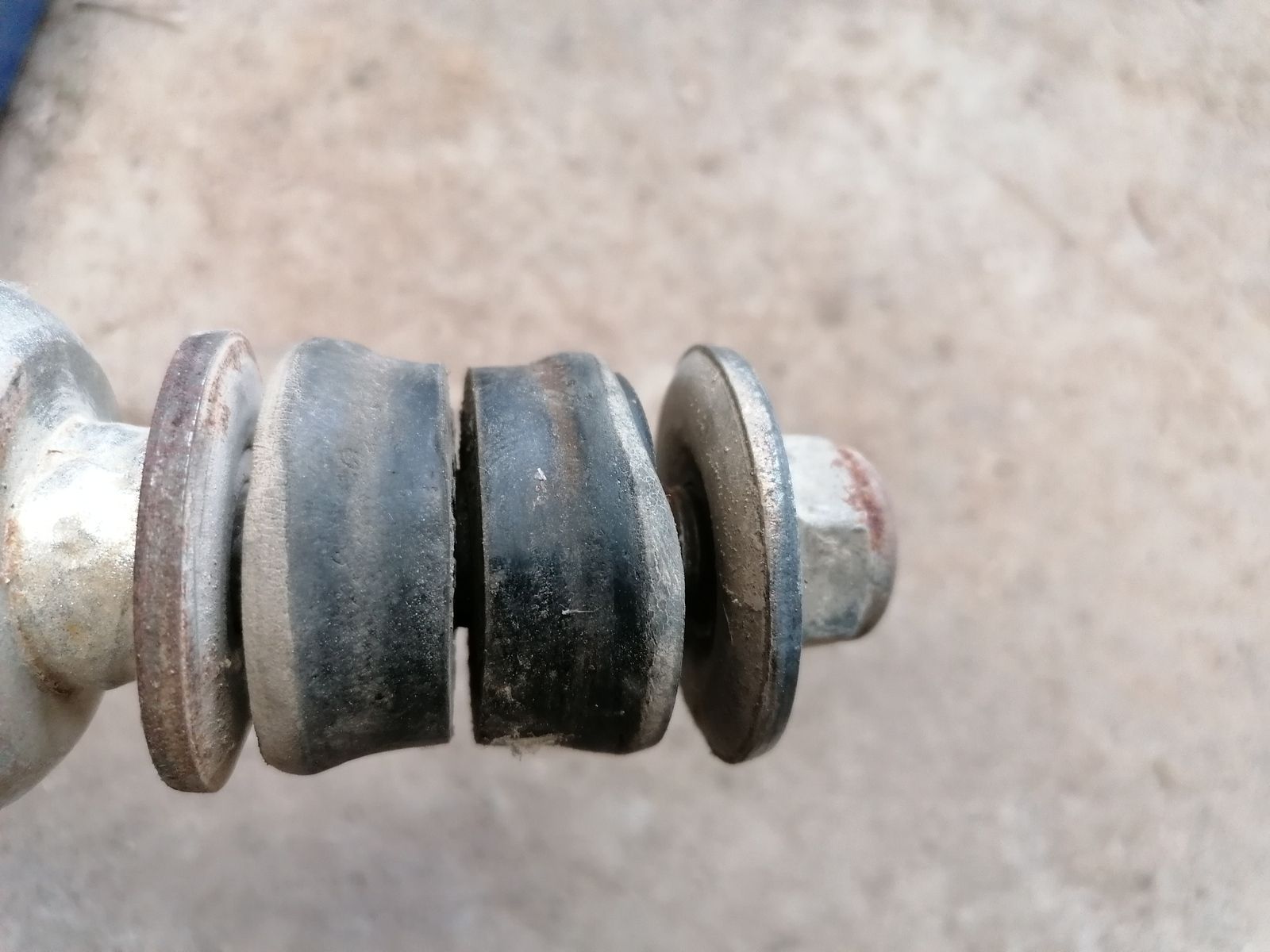

    IMG_20200330_103718.jpg IMG_20200330_103723.jpg
    The washers are fitted so that they don't cup the rubber.
    For road use it doesn't matter so much due to very little articulation but off roading needs a little more room to articulate.
    Whichever suits your driver needs. ;)
    Depending on the shock instruction for mounting, don't squeeze the life out of the rubbers when tightening.
    @pete12345 678...

    Last edited: Mar 30, 2020
