There are two browns, large brown and small brown.. The only large spades are from STARTER and to COIL..

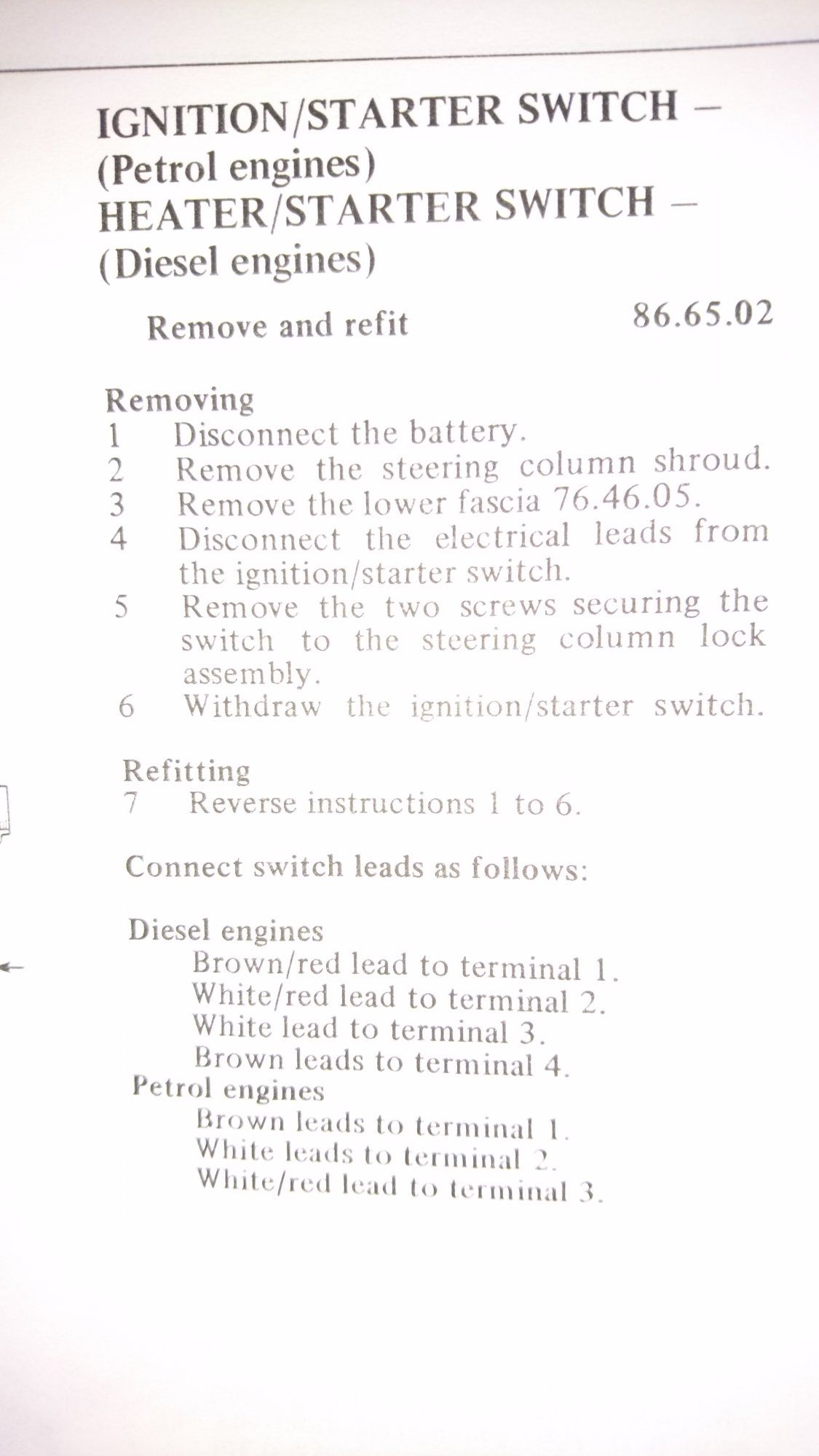

Please could someone help me work out this little problem I'm having. On the back of the ignition switch iv got a double spade connecter number 4 with which one is large the other smaller this is located top left a single large connecter number 1top right and two small connecters bottom right 2 and left 3 could you tell me which colour wires go where many thanks

this any help
