series 2-3 footwell repair..

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
S

Shabs

New Member
Posts
156
Hi guys,

I need to repair (replace actually) the pass side footwell on my LR. There is nothing left of the old steel, it completely rotted away. I know you can buy replacement ones everywhere, but im in the Canaries & i'm not coming home anytime soon, & getting parts here or sent here is a nightmare!

I have the facility & ability to make my own, but i need a template to work from. I've tried google-ing it but couldnt find anything.

So my question is, has anyone done this recently & by any chance to you have drawing for the footwell panel?

Thanks guys, any help is appreciated!
Shabs

i have a repair section in the workshop.
next time i'm in, i'll photo an measure it.

edit- or make it up as you go. other side can be copied roughly.

that would be very helpfull if you could do that! Id like to get the panels cut & bent etc first so i have them ready to be tacked it. I think it will probabily save me time & it means i wont need to borrow a friends welder for so long...lol

Thanks again!
Shabs

hehe, no worries mate! just greatful that your taking the time to do it at all!

Shabs

LOL your as forgetful as me then?! the only reason i remember is because of the 2 ton lump of metal on my drive.... :p

it's a bent bit of metal - not exactly rocket science ...
NRG's repair section is gonna be exactly the same shape as the footwell you already have.
Can't you just measure you own footwell?

did i suggest using the drivers side as a template?

anyway, i have measured an photo'd it.

now i need to download the phonecam and translate the grotty piece of paper with measurements on into something you might be able to read......

watch this space!

smithy....
thanks for your input.

nrgserv...
You're a legend!...lol thanks so much, i appreciate it!
i will await photos... :p

Shabs

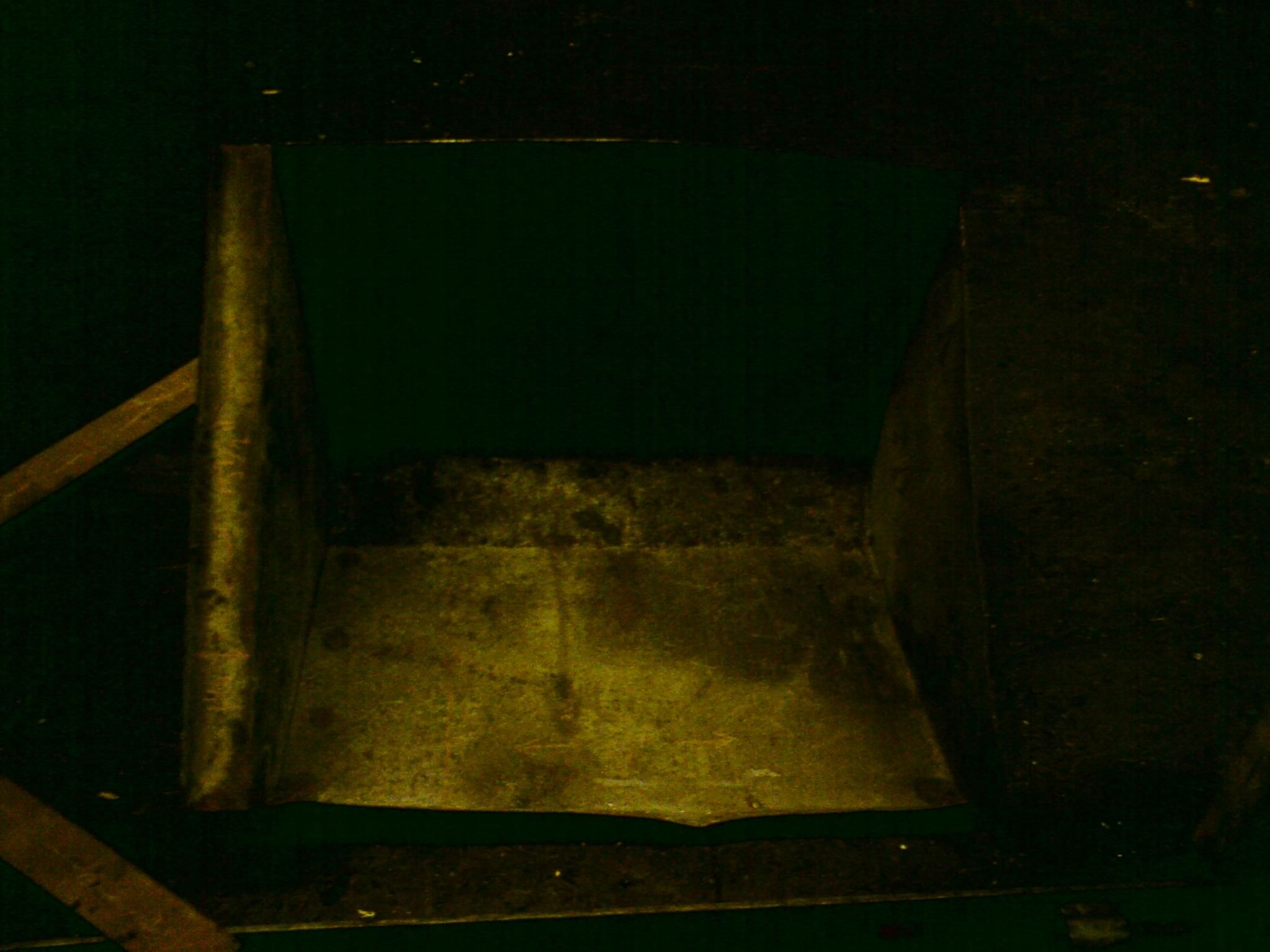

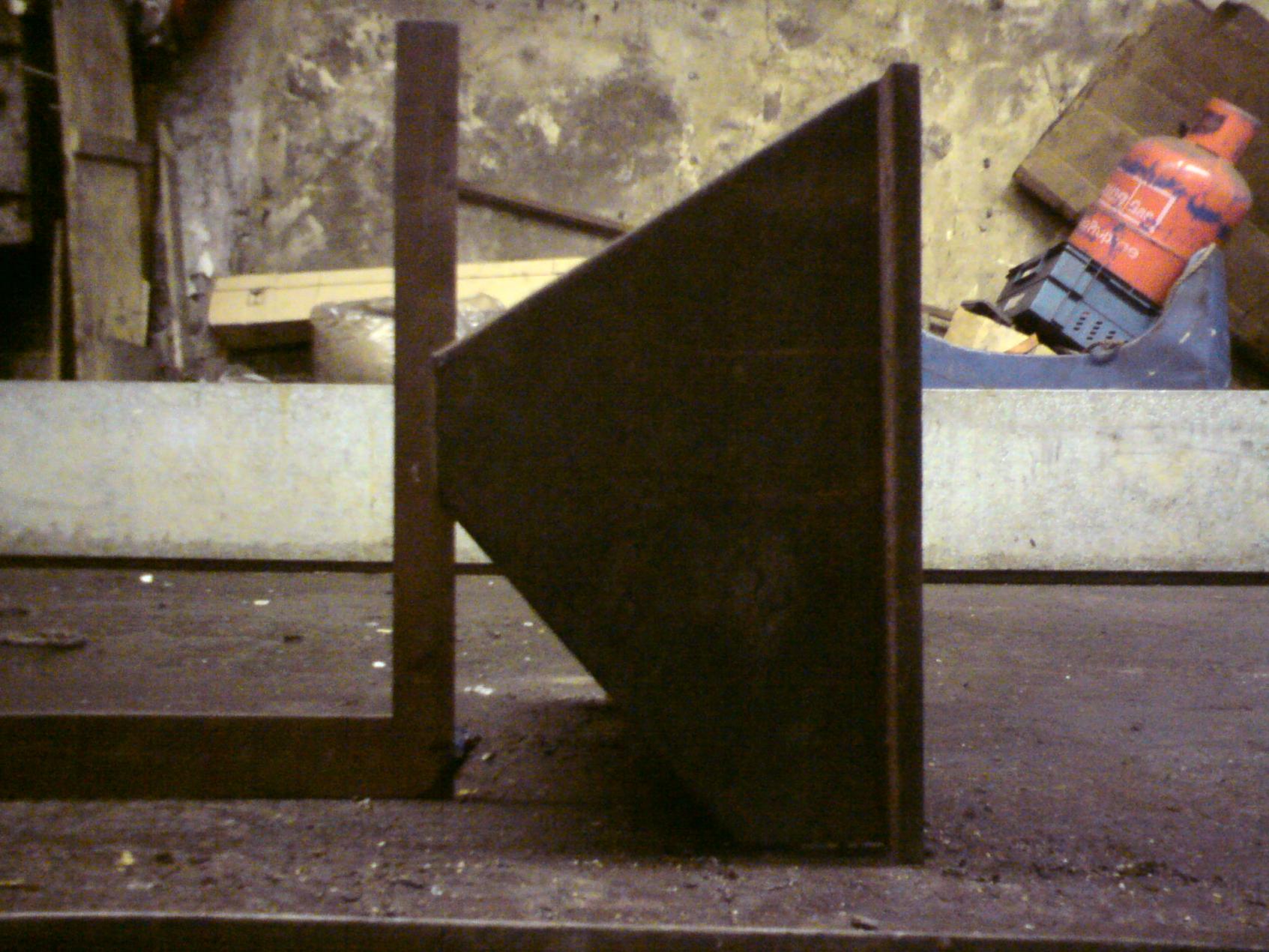

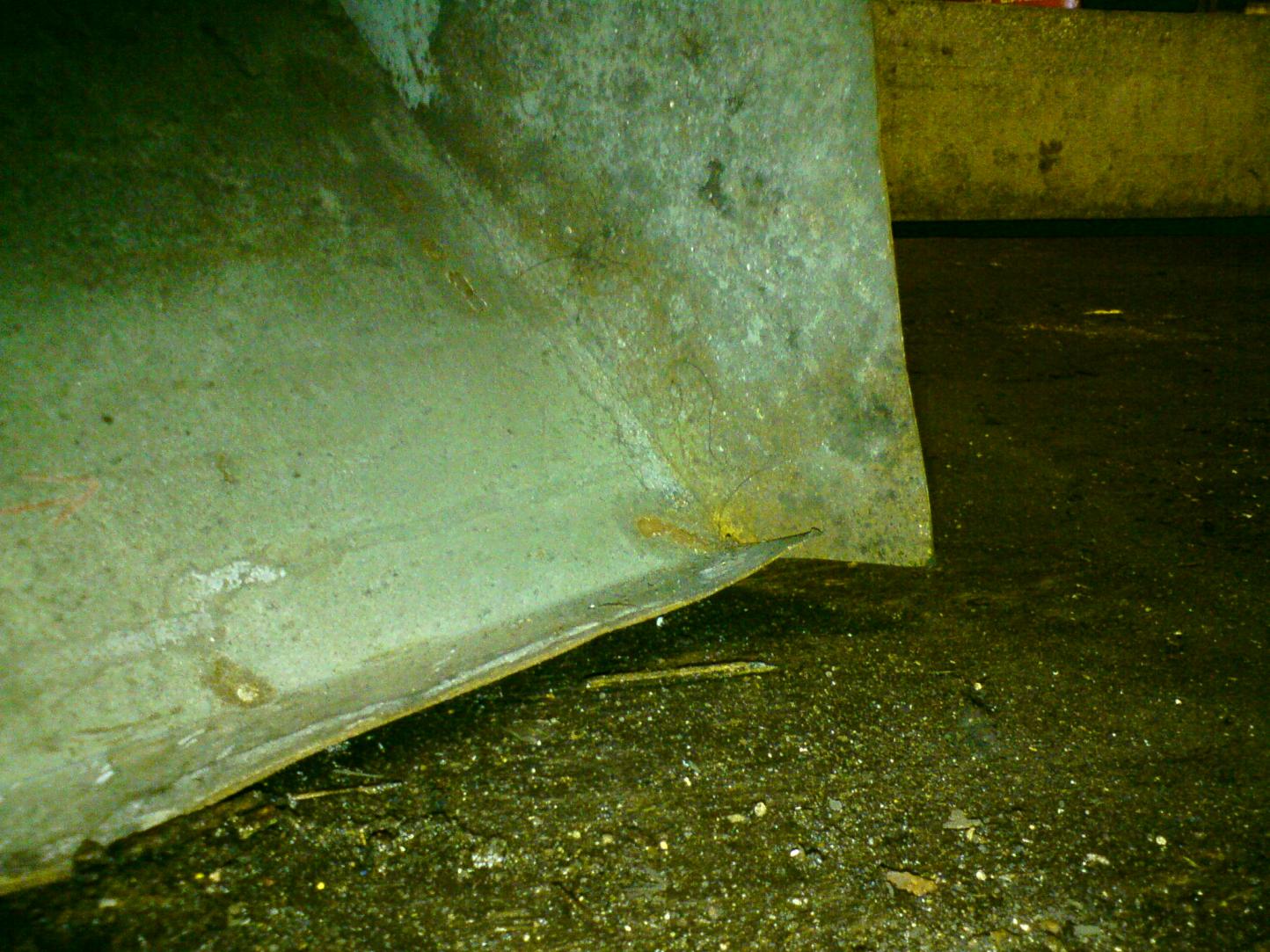

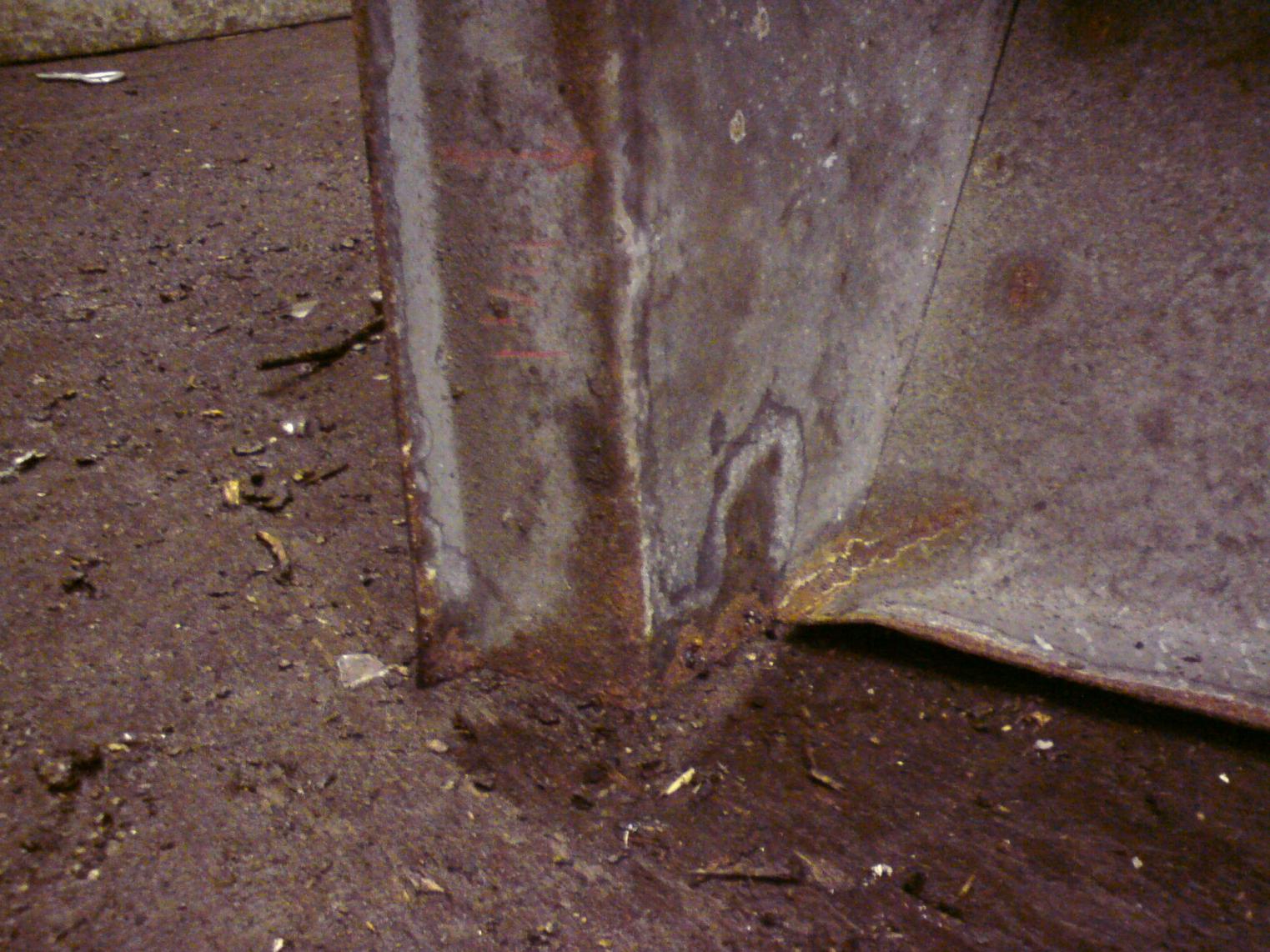

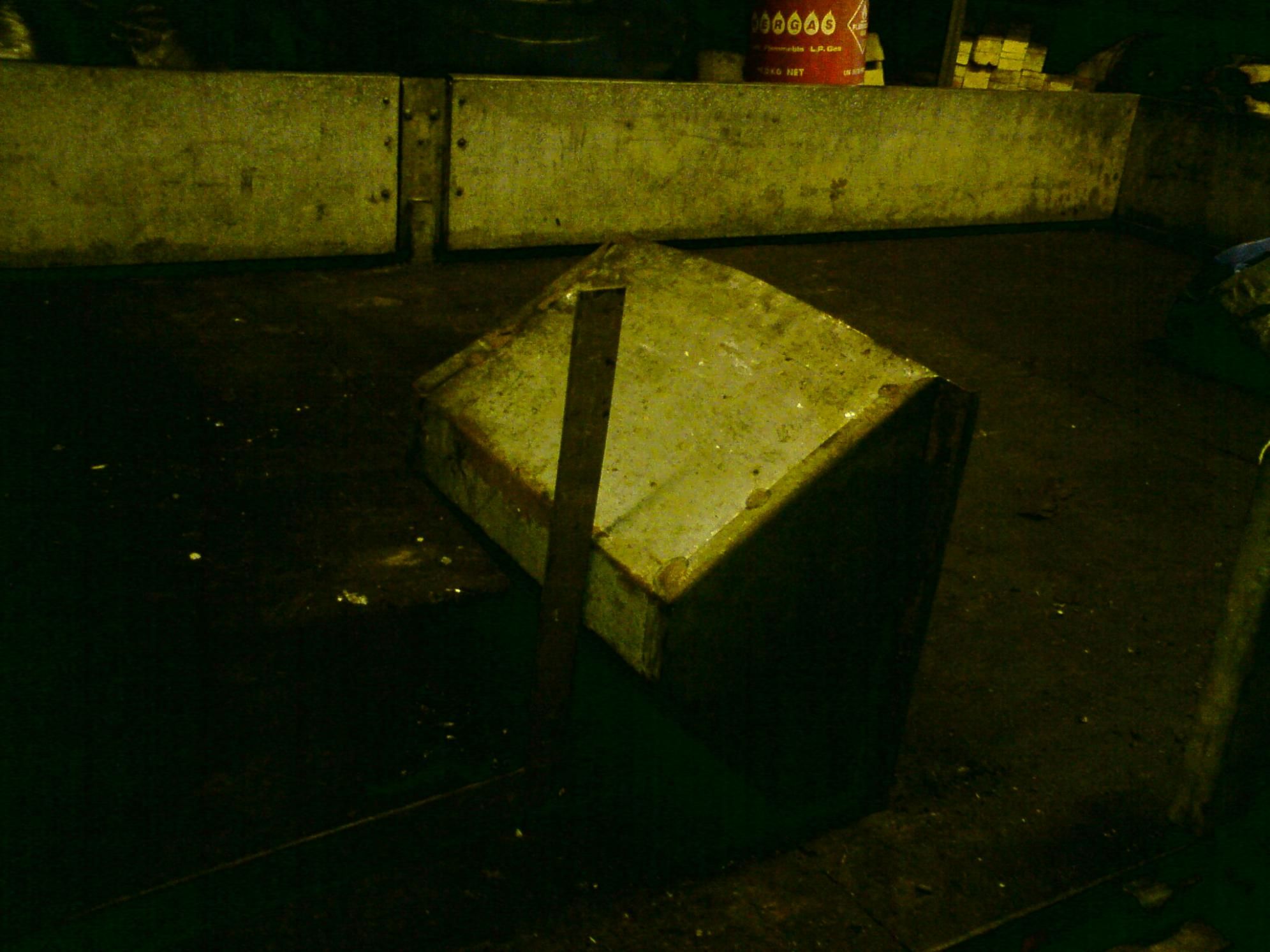

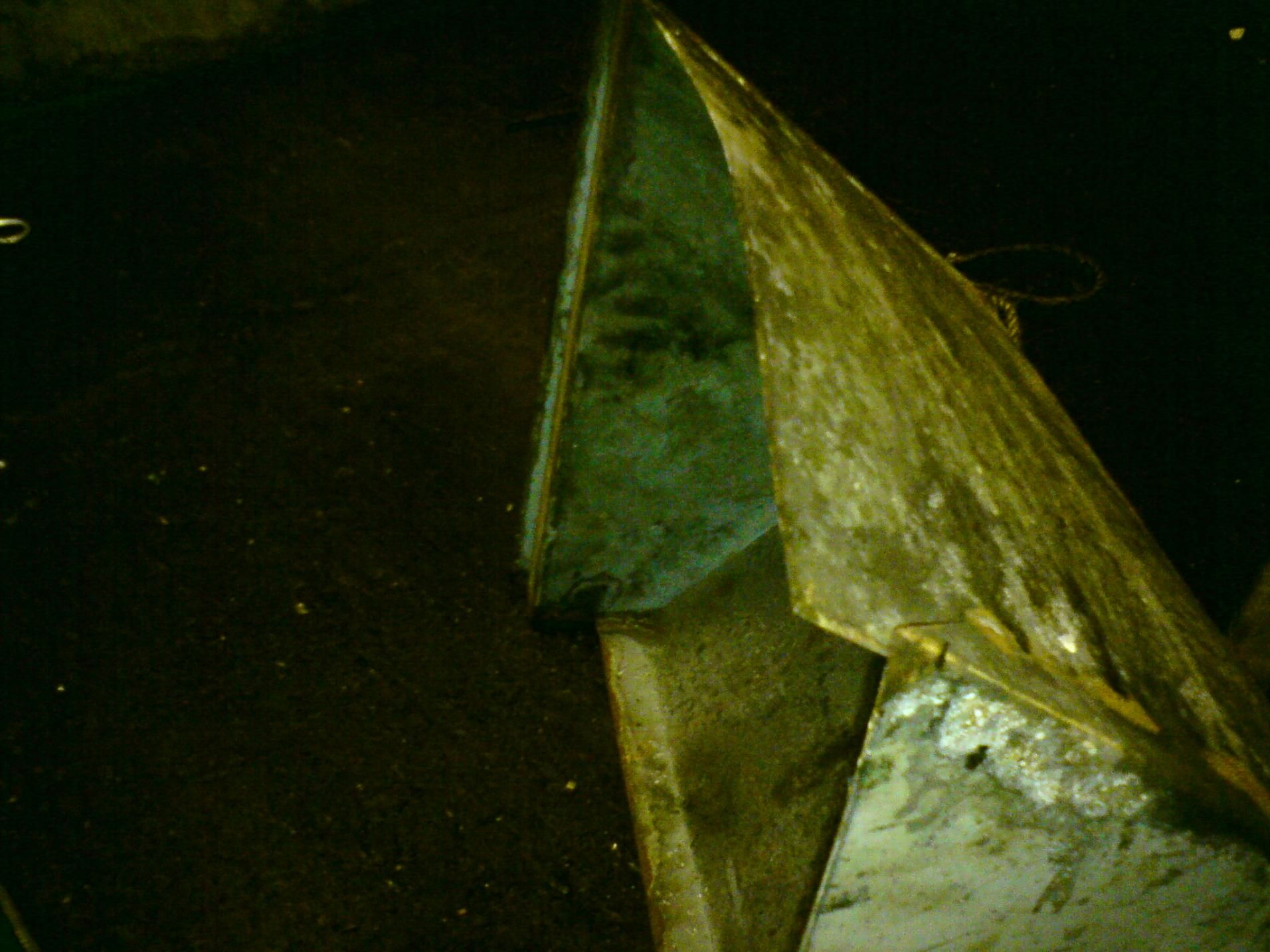

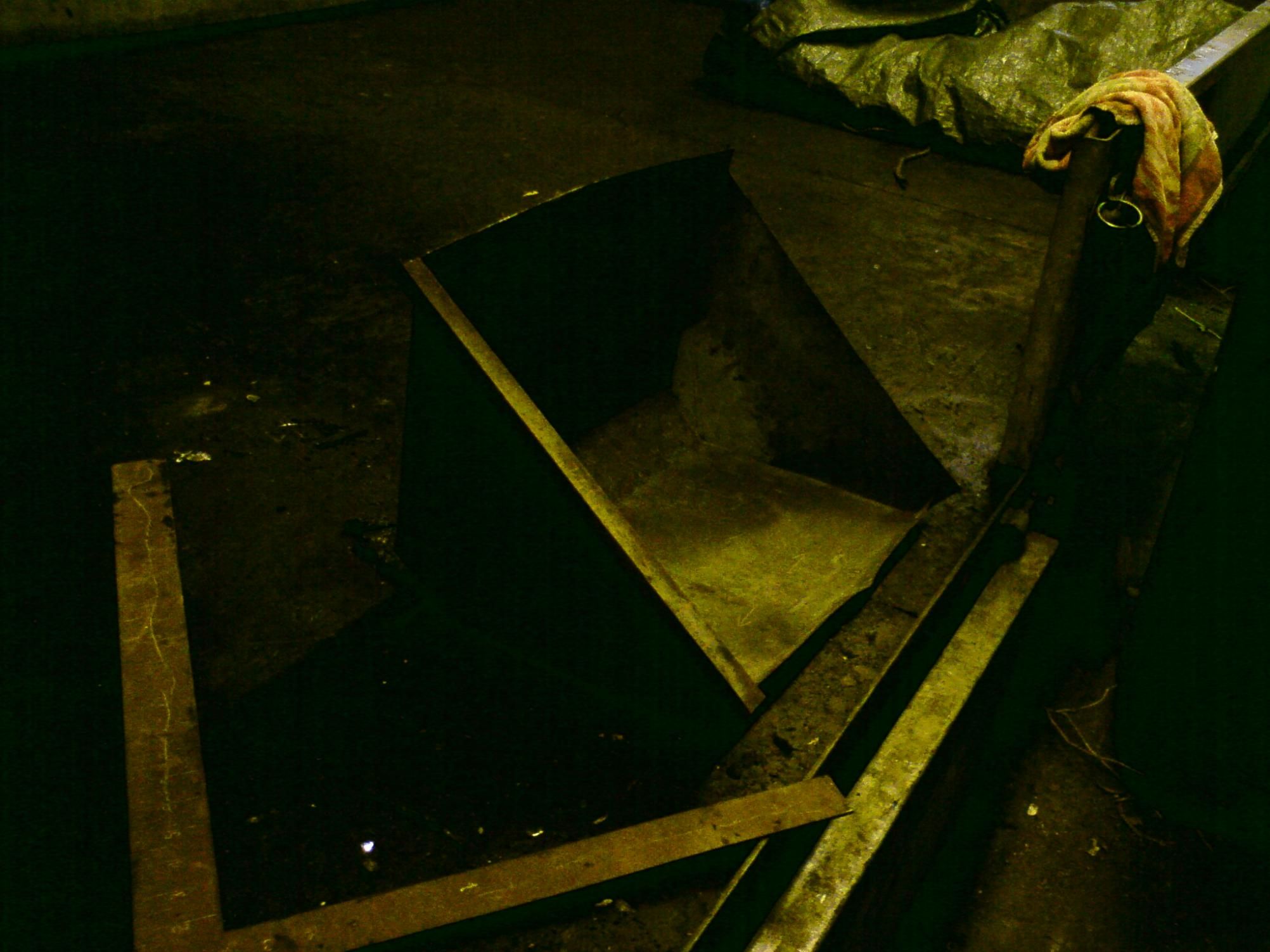

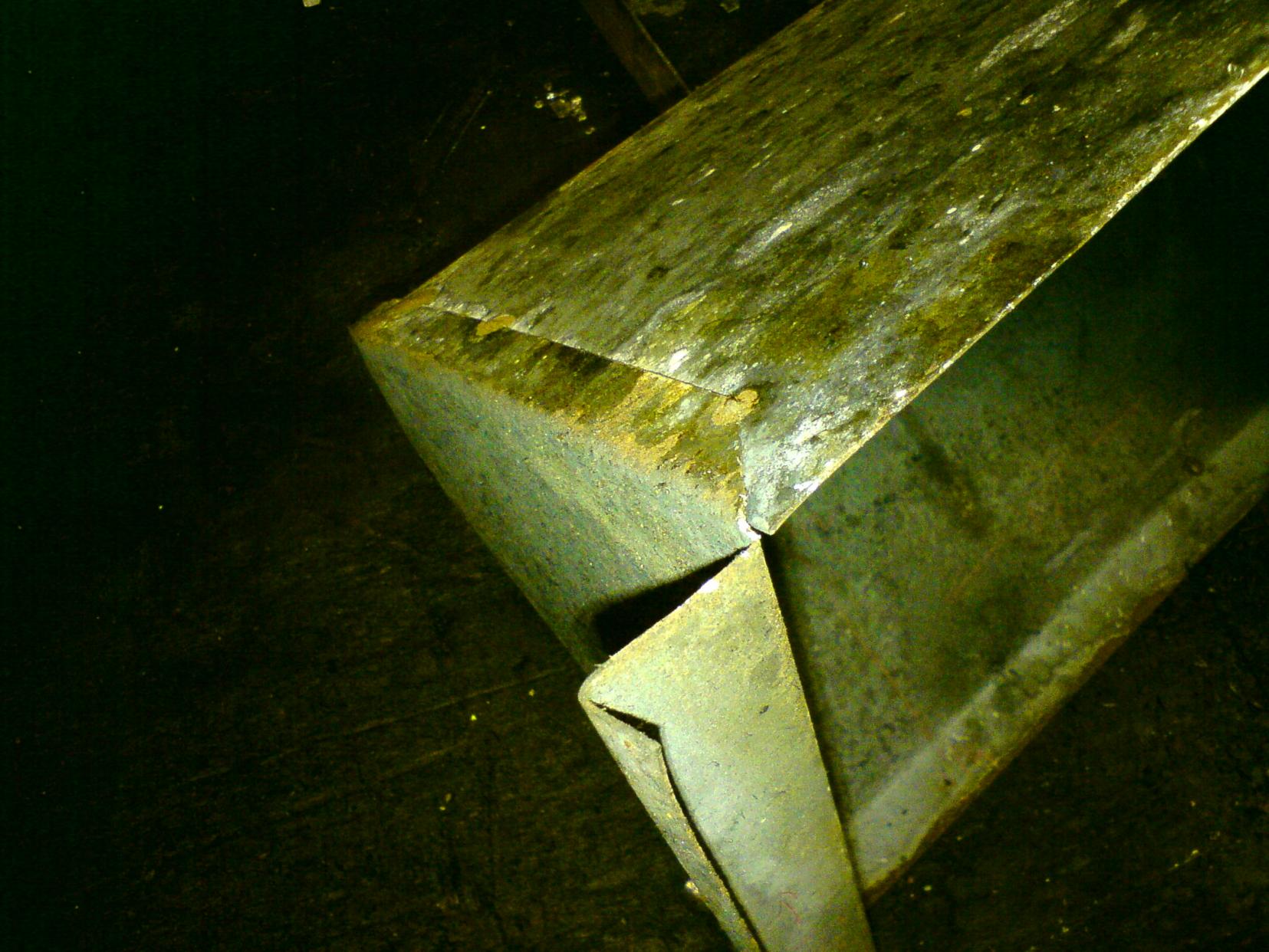

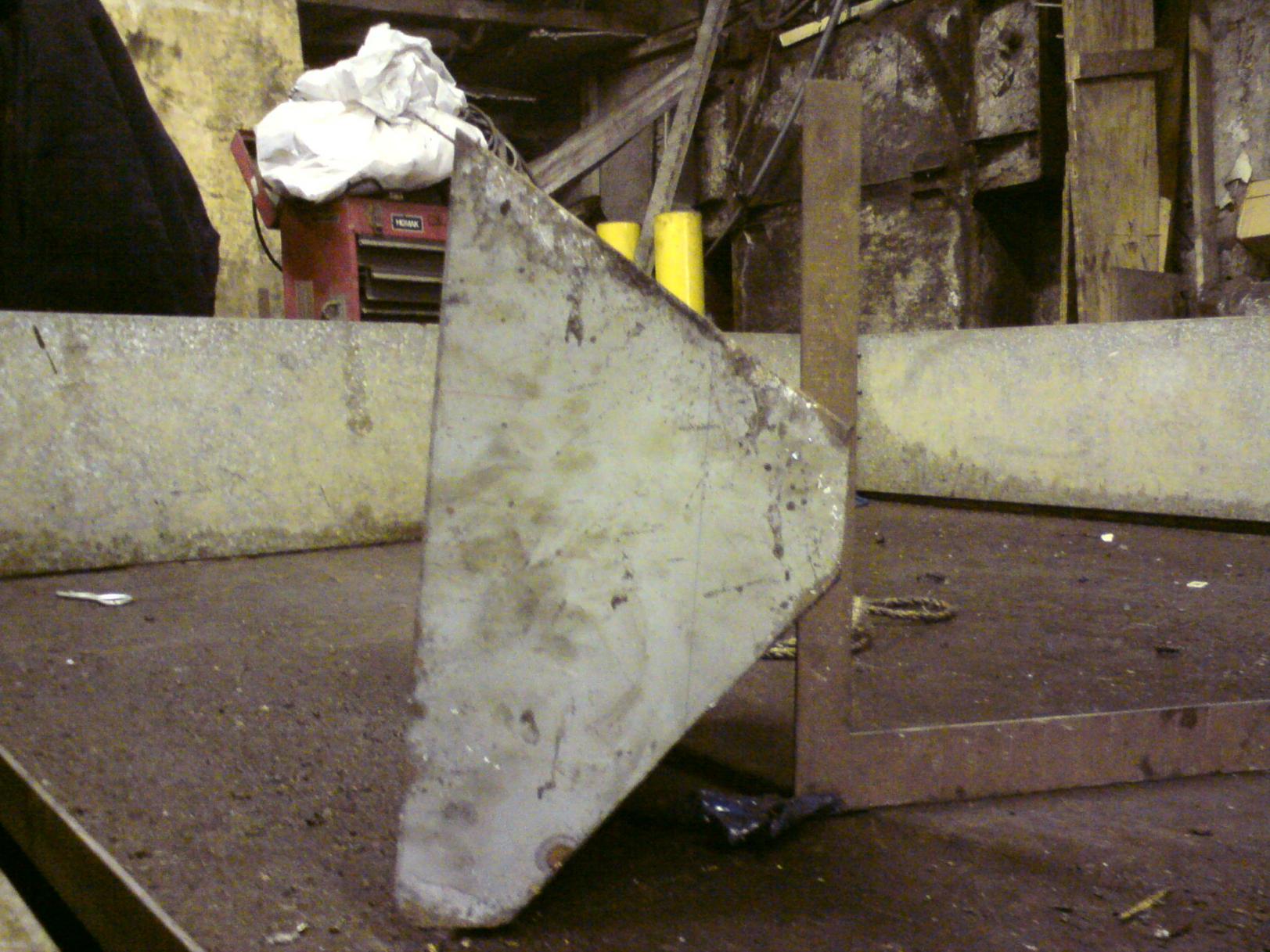

ok, so theres some pics below, apologies for the bad light.

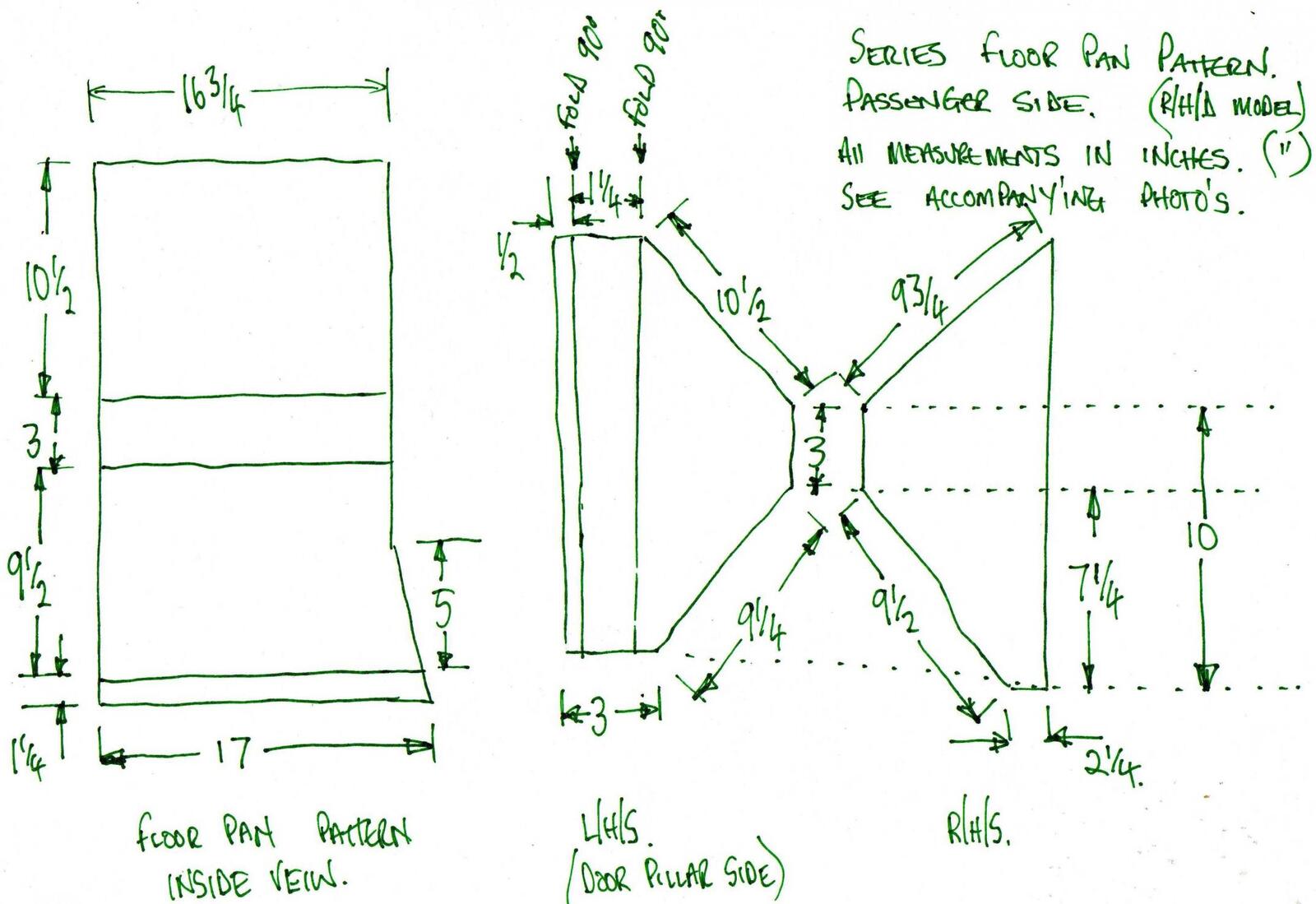

lastly, theres some measurements that have been drunkenly translated.
i have not allowed on the drawings for folding and overlapping of the edge panels to the footwell panel. this can be seen on the pics.
again apologies for the rushed pics!
hope it helps, shout back if you need further stuff!
DSC00492.jpg DSC00493.jpg DSC00495.jpg DSC00496.jpg DSC00498.jpg DSC00499.jpg DSC00500.jpg DSC00501.jpg DSC00502.jpg series footwell dimensions near side.jpg

edit
should note that the drawing is flat and requires folding.
also just realised that i missed the depth measurement from the door piller fold line to the 3" fold
lines. should be possibe to work these out on a curved line, but will endevour to get them for tomorrow

Last edited:
