Seat Belts

border · Jun 25, 2020

Something Ive just thought about, I have no Front Seat Belts . I do have the bits that bolt on to bottom where belts clip in to, but don't have the belts themselves.
Stupid Question but would belts from Disco 1 fit ?

bluedog333 · Jun 25, 2020

Depends who the manufacturer is, there are a couple of OEM seatbelts and they don’t necessarily work together. Better off buying matching pairs when it comes to that level of safety.

nobber · Jun 26, 2020

Whats it for? If it has the brackets down between seatbox and door throw them away and buy the belts with the belt fixing point on the inertia reel bracket.

border · Jun 26, 2020

nobber said:
Whats it for? If it has the brackets down between seatbox and door throw them away and buy the belts with the belt fixing point on the inertia reel bracket.

For Defender 110 , will send pics of the bits I have later.

mick 1986 · Jun 26, 2020

border said:
For Defender 110 , will send pics of the bits I have later.

I think with yours being the 110 Van, it shares the same seatbelts as the 90. I’m quite sure they are the same. From memory, it needs the type where the inertia reel has the other end of the belt attached to it, not like my 110 that the inertia reel and the end are bolted separately.

mick 1986 · Jun 26, 2020

Just checked the parts book. I’m not sure which one it’s supposed to have now?

this is the type I have in my 110CSW, but I don’t think you have the mounting points for this as the rear bulkhead is in the way.

I think this is the type you need, but check your VIN and see if it matches up.

border · Jun 26, 2020

mick 1986 said:
Just checked the parts book. I’m not sure which one it’s supposed to have now?

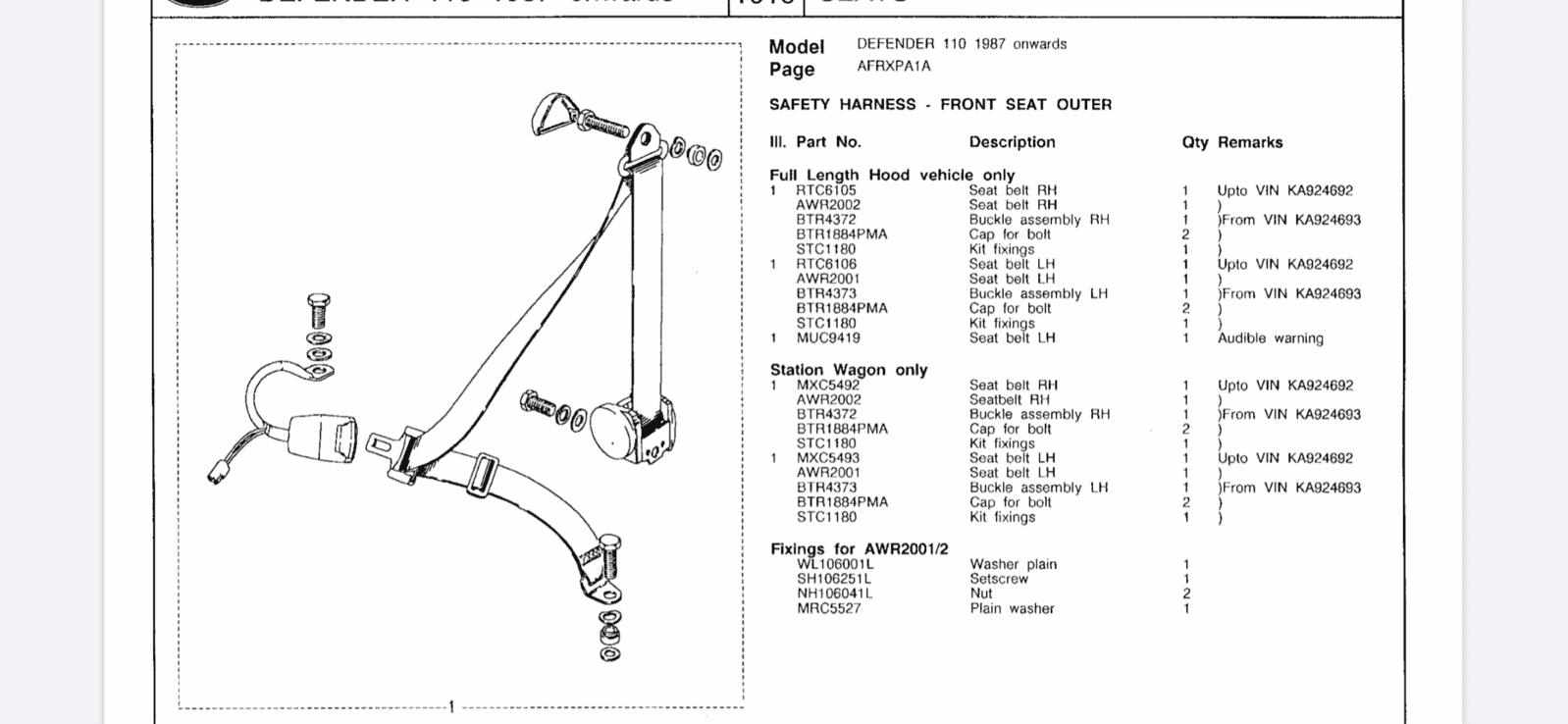

this is the type I have in my 110CSW, but I don’t think you have the mounting points for this as the rear bulkhead is in the way.
View attachment 213292

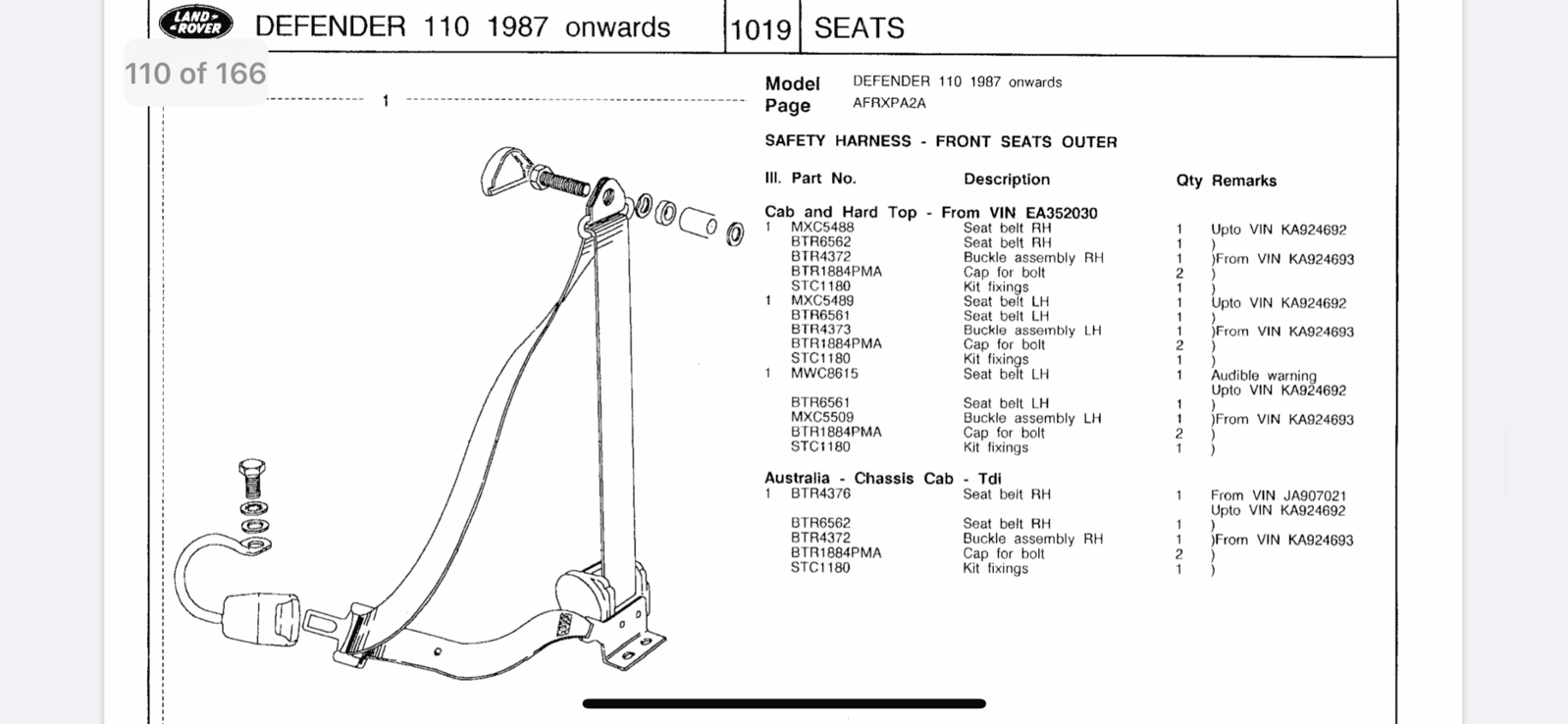

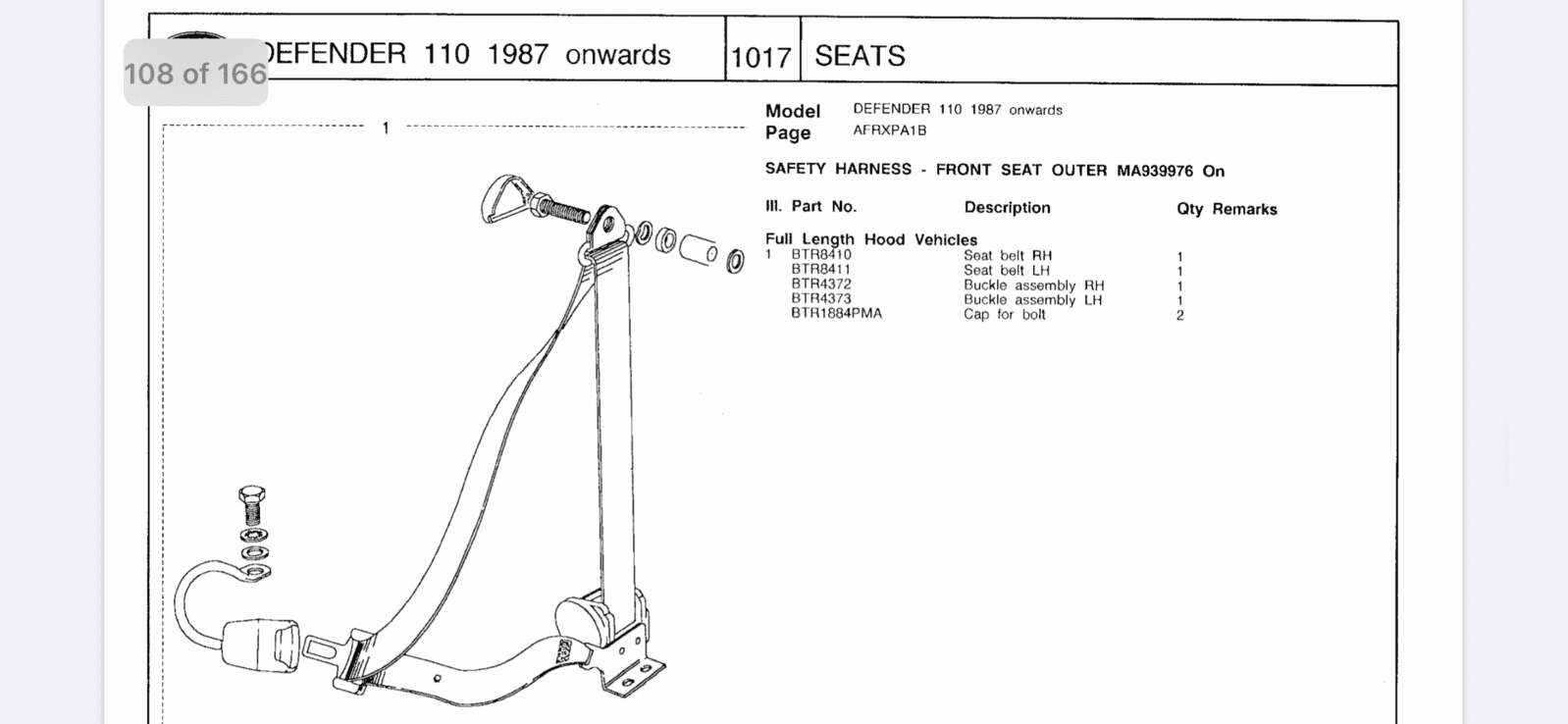

I think this is the type you need, but check your VIN and see if it matches up.
View attachment 213293

View attachment 213294

Thanks Bloody forgot to take pics , all I have is the bits that bolt to floor where belt clips in to, will get a better look tomorrow. This one should be straight forward once I know which bits I need.
Isn't it funny, you solve one big problem then think your flying now, Then more crop up straight after Found another couple of problems along the way which I didnt notice before.
Will post them up in a bit, well One at a Time anyway

border · Jul 3, 2020

Has anyone got Photos of how seat belts are Mounted in 110 Van ?
Think I've found mounting points for the bottom, in Micks diagram, but not sure which Bracket I need for above.

Hicap phill · Jul 3, 2020

Should be a diagonal bracket Bolts to the roof & side
Truck cabs have different top mounts

border · Jul 3, 2020

Hicap phill said:
Should be a diagonal bracket Bolts to the roof & side
Truck cabs have different top mounts

I think its These ones Mate ? But aint got a clue exactly where they bolt to.
https://www.exmoortrim.co.uk/our-mo...-onwards/seat-belts/top-mounting-bracket.html

Jam1 · Jul 3, 2020

border said:
I think its These ones Mate ? But aint got a clue exactly where they bolt to.
https://www.exmoortrim.co.uk/our-mo...-onwards/seat-belts/top-mounting-bracket.html

Roof and back of b pillar/door frame

border · Jul 3, 2020

Jam1 said:
Roof and back of b pillar/door frame

Should there be pre drilled holes for them, dont suppose you have a pic.
Cant find one anywhere

Hicap phill · Jul 3, 2020

It uses 2 roof bolts.
Unsure if you drill holes to suit

border · Jul 3, 2020

Hicap phill said:
It uses 2 roof bolts.
Unsure if you drill holes to suit
I try and find pic coz knowing me Ill pit them in the wrong holes.

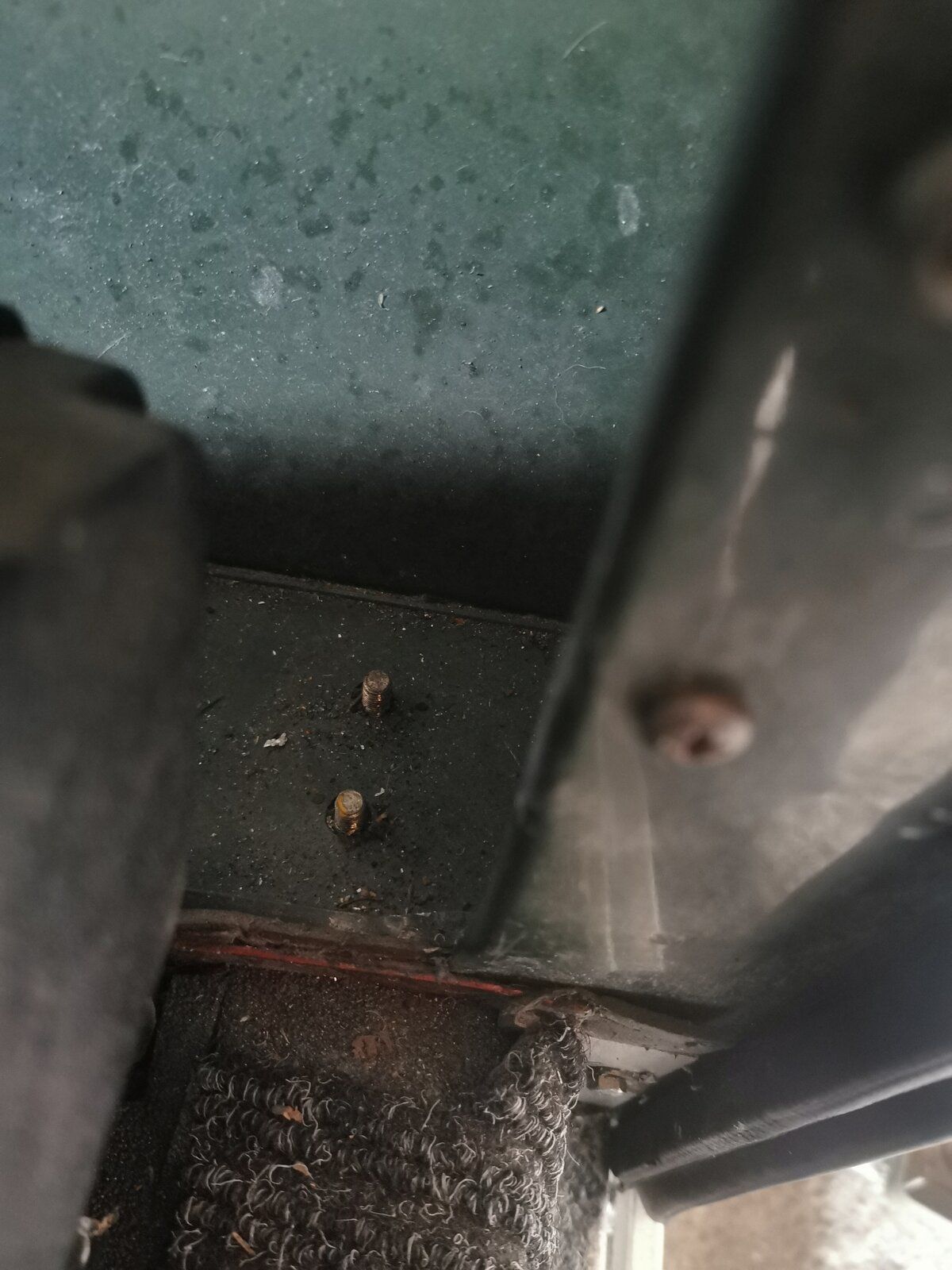

Think I know which Seat Belts to get now for these, Im sure these are mounting points for the bottoms on mine.

mick 1986 · Jul 3, 2020

border said:
Should there be pre drilled holes for them, dont suppose you have a pic.
Cant find one anywhere

Hicap phill said:
It uses 2 roof bolts.
Unsure if you drill holes to suit

According to the last of them drawings I posted, it’s for “full length hood” vehicles. Isn’t that a 110 van? If so, it bolts to the B pillar, the same as mine. Am I missing something?

mick 1986 · Jul 3, 2020

border said:
I think its These ones Mate ? But aint got a clue exactly where they bolt to.
https://www.exmoortrim.co.uk/our-mo...-onwards/seat-belts/top-mounting-bracket.html

Just seen this. It seems to say it’s the correct one for the job, but I have never dealt with these seatbelts, so I don’t know.

border · Jul 3, 2020

mick 1986 said:
Just seen this. It seems to say it’s the correct one for the job, but I have never dealt with these seatbelts, so I don’t know.

Think its those Brackets that bolt to roof and these Belts, for Hardtop https://www.lrparts.net/vehicle/lan...ts-and-front-seat-belts/front-seat-belts.html BTR6561 and BTR6562
