rpm signal wire

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

jakeelwood

New Member
Posts
4
hi all,
can anyone help me find the rpm feed from the engine, i need a rpm signal for my lpg.
the car is a 1995 4.6 p38 rr
many thanks

RPM signal is fed to the Rev Counter from the BeCM which recieves the tacho signal from the Engine ECU - 4 pulses per revolution....

The Classics used a 'W' wire from the alternator for the Rev Signal and the ECU used a pulse from the LT side of the Coil, each time it fired it sent a pulse to the Engine ECU to tell it it was still running!! - I haven't seen such a reference on the P38....

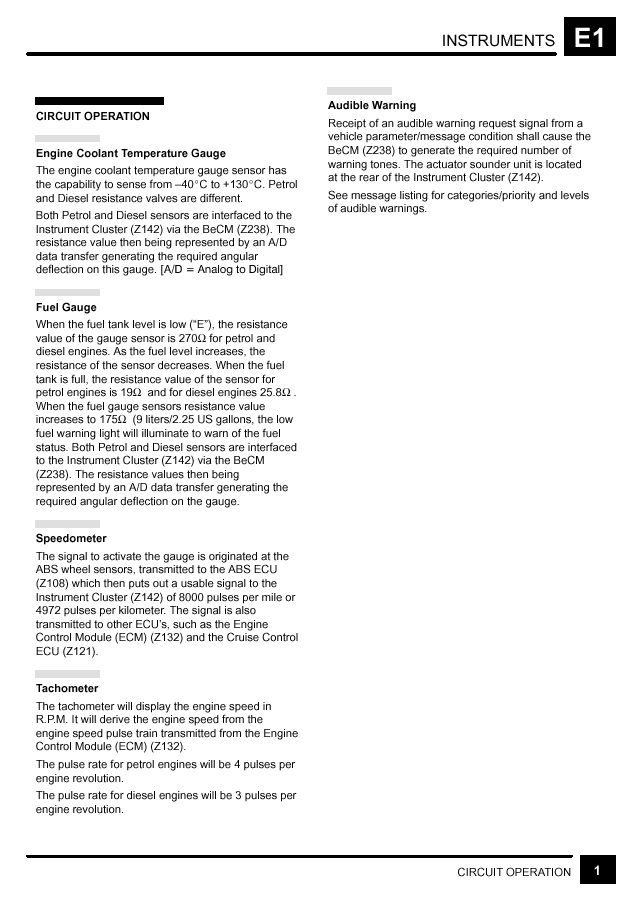

As attached from RAVE...


Attachments

  • P38_REV_COUNTER_1.jpg
    92.6 KB · Views: 467
  • P38_REV_COUNTER_2.jpg
    65.7 KB · Views: 791
