Rewiring

border said:

Just hope I will be able to match up to correct wires in bulkhead. then still not sure about a fuse box ect.

Ive gotten one through a defender once, was not to bad actually, cant see the series been much different.

Click to expand...

Patience and a decent 'fish' helps ...

Dippypud said:

Patience and a decent 'fish' helps ...

Click to expand...

Think I used a lengh of fencing wire or something, took a few attempts but got it through in the end.

Dippypud said:

Getting it through the chassis isn't a joy, it's a fecking pain in the arris ...

Click to expand...

Put a flexible fish through first then make a rod with a circle on the end from a piece of wire to hook it up and grab with long nose pliars through the chassis hole then attach a cord and pull through...fuse box go modern blade...are you ok with doing electrics just asking cause some of your other threads were a bit scratching my head here what am I missing here...electrics are not the same as nuts and bolts...

@v8250
Did you have info on fuse boxes and cable ends?

Hicap phill said:

@v8250
Did you have info on fuse boxes and cable ends?

Click to expand...

I use carbuilders solutions they send down here and have everything...sometimes you have to go out of the 4x4 suppliers... @Stanlysteamers you kit car builders know that though...

This site lets you buy correct colour coded wire by the meter
Basket (autoelectricsupplies.co.uk)
This type of fuse holder is good one common input.
Blade Fuse (autoelectricsupplies.co.uk)

Blackburn said:

This site lets you buy correct colour coded wire by the meter
Basket (autoelectricsupplies.co.uk)
This type of fuse holder is good one common input.
Blade Fuse (autoelectricsupplies.co.uk)

Click to expand...

Carbuilder solutions are cheaper I think and they have fuse boxes that light up blown fuse it's been a while since I bought from.them though..

Blackburn said:

This site lets you buy correct colour coded wire by the meter
Basket (autoelectricsupplies.co.uk)
This type of fuse holder is good one common input.
Blade Fuse (autoelectricsupplies.co.uk)

Click to expand...

Thanks Doug, now what size / thickness wire do I need to get ? and which fuse box or boxes, is ther anything else I may need ?

Shippers said:

Carbuilder solutions are cheaper I think and they have fuse boxes that light up blown fuse it's been a while since I bought from.them though..

Click to expand...

Thanks Mate Had a look at there site too very similar, will compare prices.

border said:

Thanks Doug, now what size / thickness wire do I need to get ? and which fuse box or boxes, is ther anything else I may need ?


Thanks Mate Had a look at there site too very similar, will compare prices.

Click to expand...

Ask for carbuilders free catalogue it is a mine of info regarding wire\fuse and relays etc...

What size Amp wires do I ned for lights , will one size do all the lights as in the multicore cables they are mostley just 16.5 amp and 1 at 25 amp. 10 Core Cable - Per Metre | Car Builder - Kit & Classic Car Parts Specialist
also will I need more ampage for the likes of wiper motor ect

border said:

What size Amp wires do I ned for lights , will one size do all the lights as in the multicore cables they are mostley just 16.5 amp and 1 at 25 amp. 10 Core Cable - Per Metre | Car Builder - Kit & Classic Car Parts Specialist
also will I need more ampage for the likes of wiper motor ect

Click to expand...

My post above ^^^ it will give you all and more info that you need AND you can order from them...or just go to Craddocks and buy a complete new loom for under £200...

https://www.autosparks.co.uk/land-rover-series-3-long-wheelbase-chassis-wiring-harness. This is made for 109 with tank at rear,. Mine has tank under drivers seat, what's the difference, is there any reason it wont fit mine ??

border said:

https://www.autosparks.co.uk/land-rover-series-3-long-wheelbase-chassis-wiring-harness. This is made for 109 with tank at rear,. Mine has tank under drivers seat, what's the difference, is there any reason it wont fit mine ??

Click to expand...

Fuel sender wiring might need some 'adjustment' ...

border said:

https://www.autosparks.co.uk/land-rover-series-3-long-wheelbase-chassis-wiring-harness. This is made for 109 with tank at rear,. Mine has tank under drivers seat, what's the difference, is there any reason it wont fit mine ??

Click to expand...

The series 3 has a multi pin plug by steering column series 2A does not.
So wires will not reach your dash connections and you will end up cutting the plugs off.
By the steering column is not a good location for lots of joints without proper connector.

Blackburn said:

The series 3 has a multi pin plug by steering column series 2A does not.
So wires will not reach your dash connections and you will end up cutting the plugs off.
By the steering column is not a good location for lots of joints without proper connector.

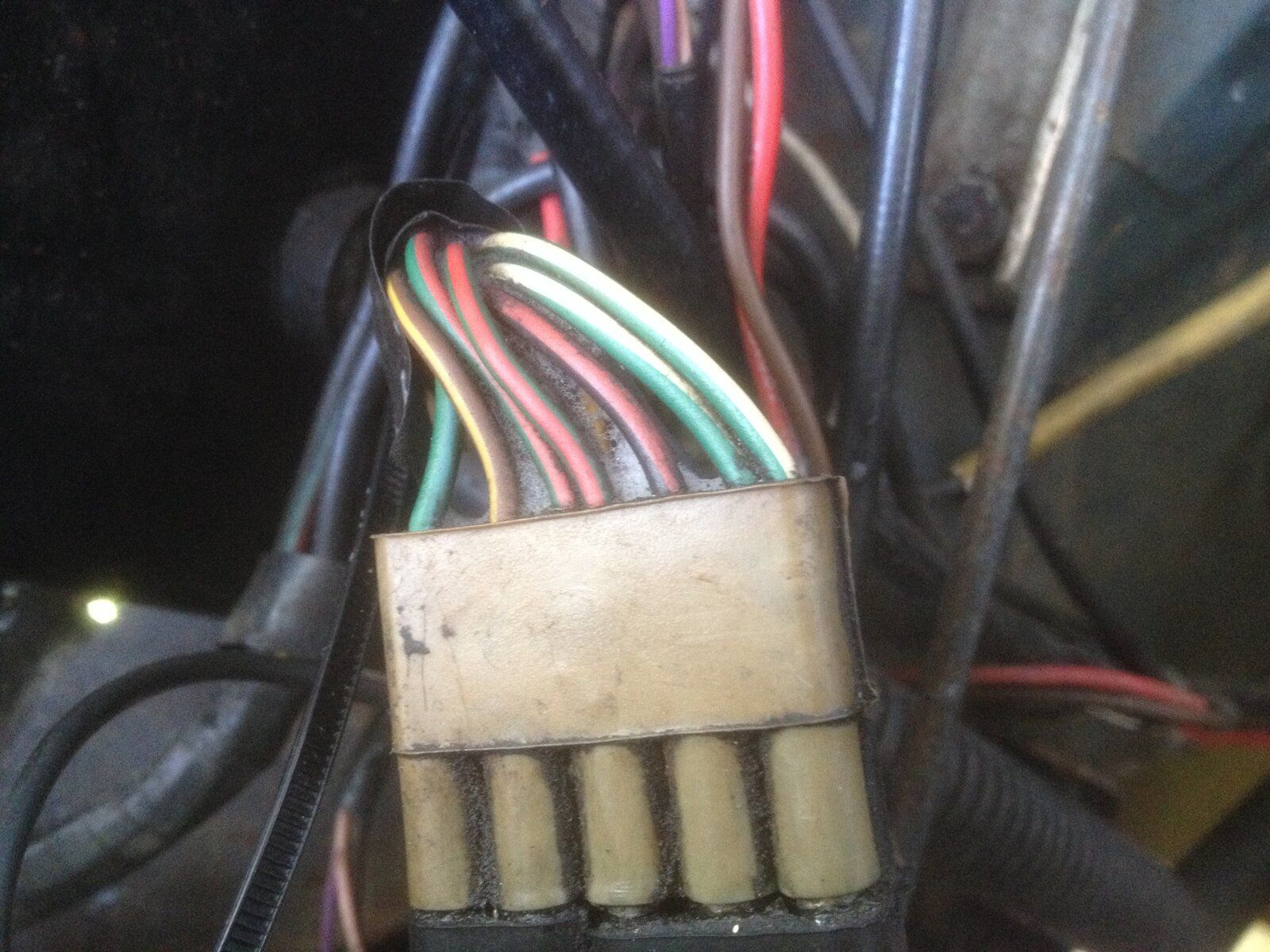

View attachment 255857

Click to expand...

Well I cant bloody win with this, have emailed Autosparks to see if they can do one for 2a.
What does the 2 A have instead of the multiplug ?

border said:

Well I cant bloody win with this, have emailed Autosparks to see if they can do one for 2a.
What does the 2 A have instead of the multiplug ?

Click to expand...

If you can get a plug, (both sides), you could make up a short fly leads for the dash ...

Dippypud said:

If you can get a plug, (both sides), you could make up a short fly leads for the dash ...

Click to expand...

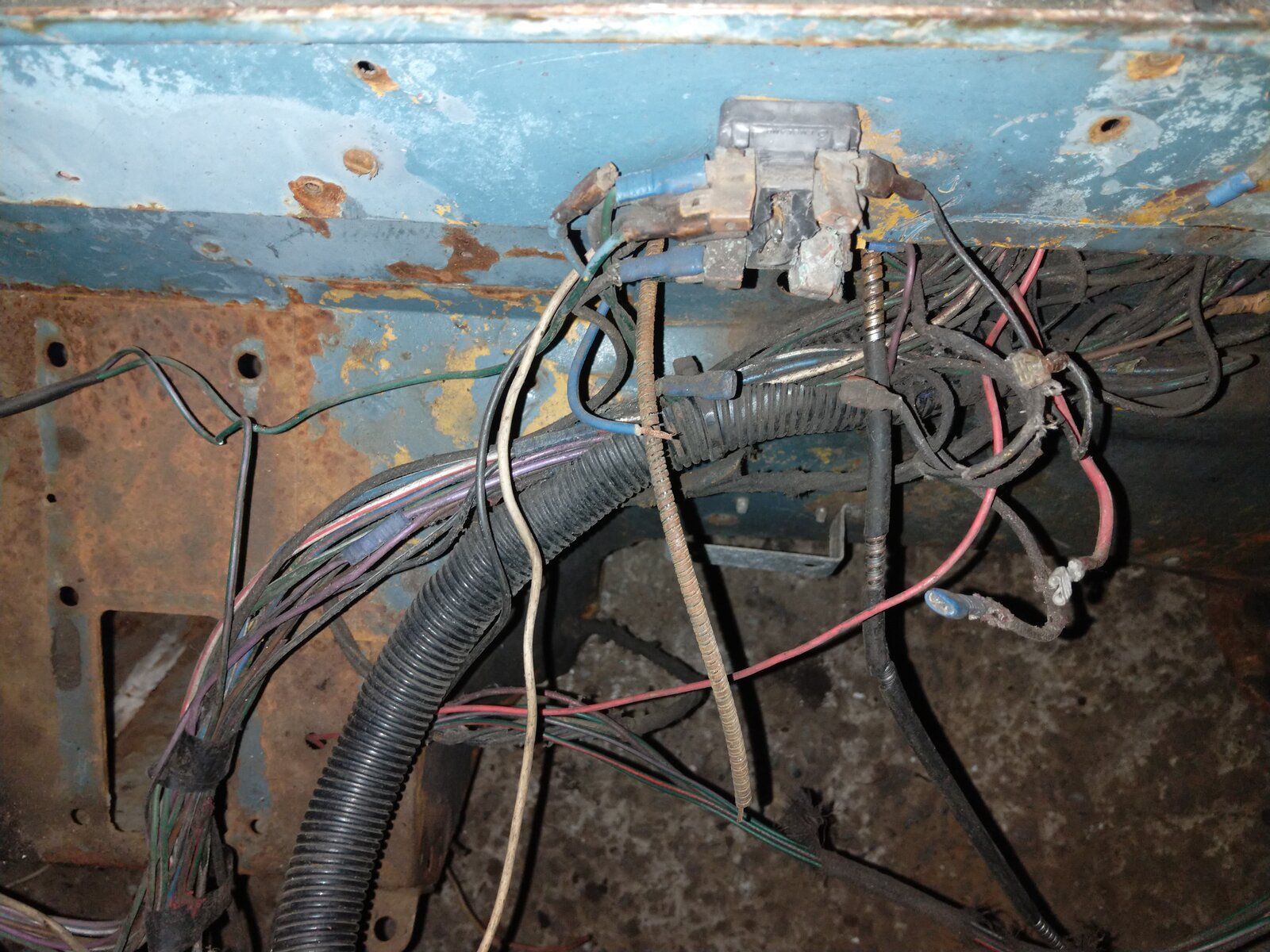

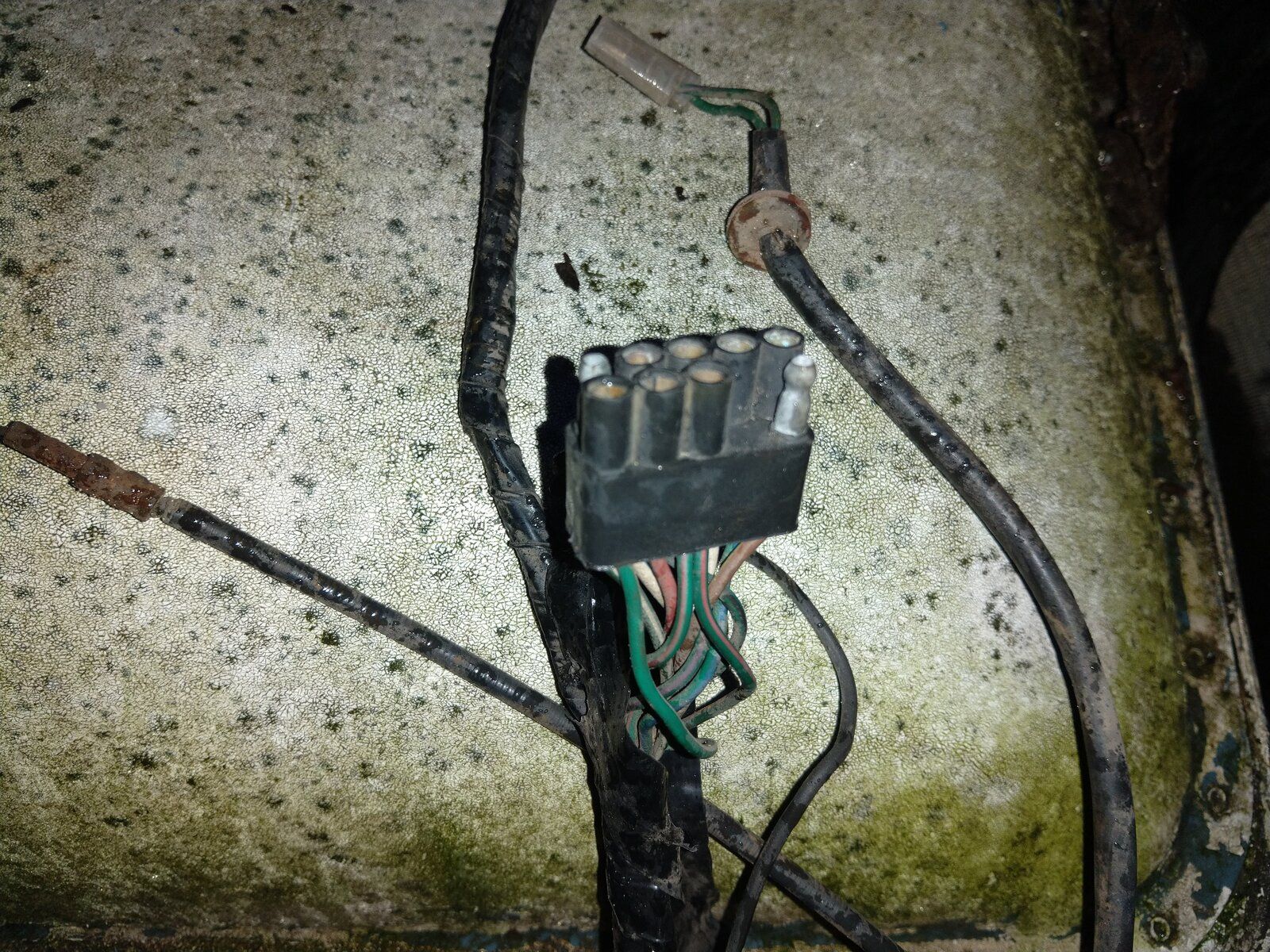

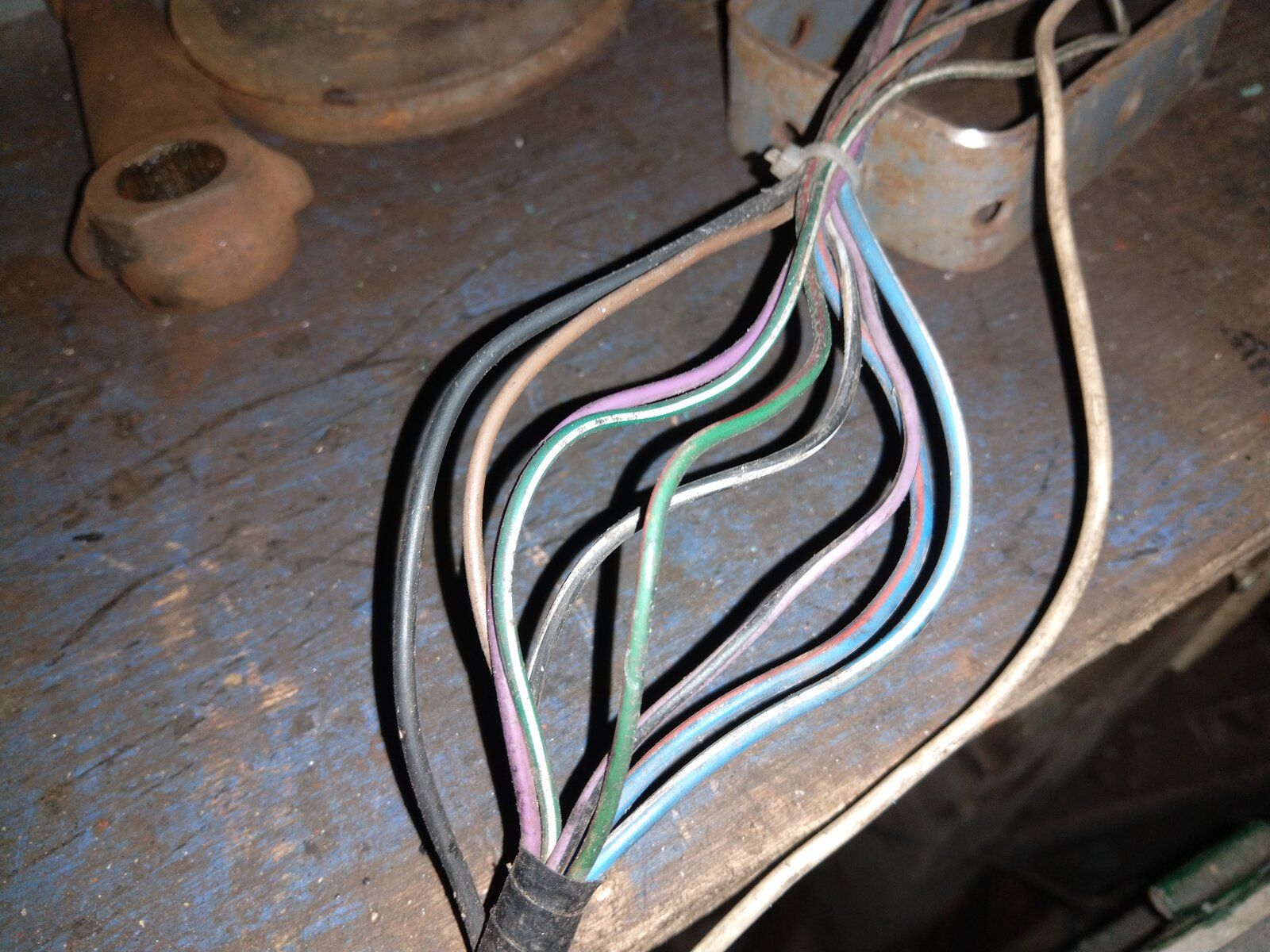

I can soon chop this plug off in first pic, it is on a series 3 bulkhead, 2nd and third pics are whats on my series 2a bulkhead, Im sure they are the original ones, someone had cable tied a plastic sheath thingy on to it.

border said:

I can soon chop this plug off in first pic, it is on a series 3 bulkhead, 2nd and third pics are whats on my series 2a bulkhead, Im sure they are the original ones, someone had cable tied a plastic sheath thingy on to it.

Click to expand...

Better off salvaging the whole of the Series bulkhead wires circuits are very similiar.

Blackburn said:

Better off salvaging the whole of the Series bulkhead wires circuits are very similiar.

Click to expand...

Dont think my Mate would be very happy if I took the whole wiring, he wont part with anything. could have got away with chopping the plug off I would of blamed my Grandson
