Reversing Light Switch Replacement

Discussion in 'Technical Archive' started by xw302, Nov 16, 2013.

< Previous Thread | Next Thread >
  1. xw302

    xw302 New Member

    Joined:
    Aug 26, 2012
    Posts:
    8
    Likes Received:
    2
    Location:
    Lincolnshire
    Freelander 1, 2004, 82000miles.

    Wife complained that the reversing sensors were not working. Checked them and she was right, not for the first time I might add.
    Found that the reversing lights wern't working either, checked the wiring diagram on the RAVE disk and worked out they share the same supply coming from the reversing light switch.

    Checked this by shorting the two wires at the connection break point six inches from the actual switch just under the air filter, when shorted every thing worked ok, checked continuity on the switch itself and nothing.

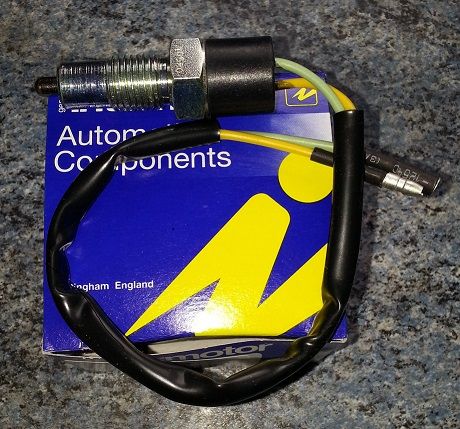

    So went to Rimmer Brothers and bought one of these for £12:

    [​IMG]


    First off I removed the air filter thinking I could get to the switch that way, my arms were not bendy enough and the 19mm spanner I have was two long anyway, so plan B.....

    [​IMG]

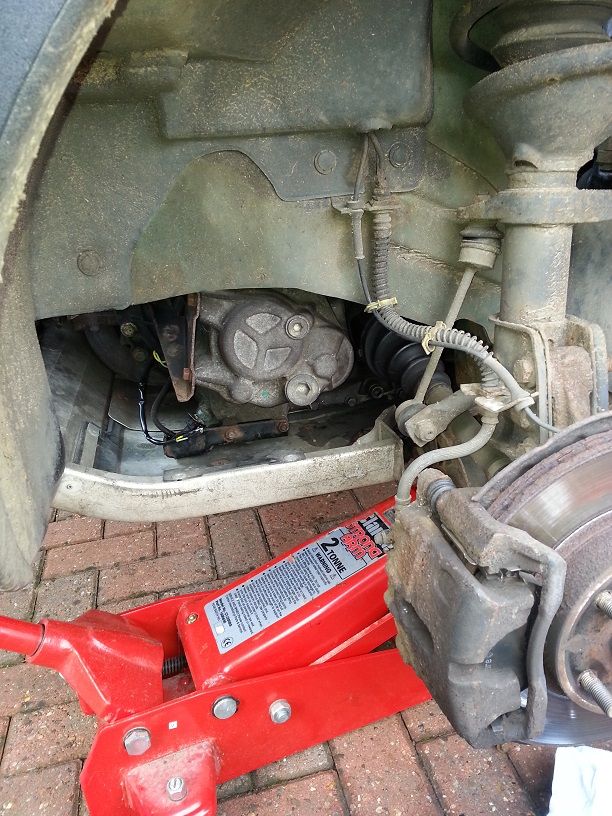

    Off came the near side front wheel, removed the lower panel, only held in with 3 12mm bolts and hay presto loads of room.

    [​IMG]

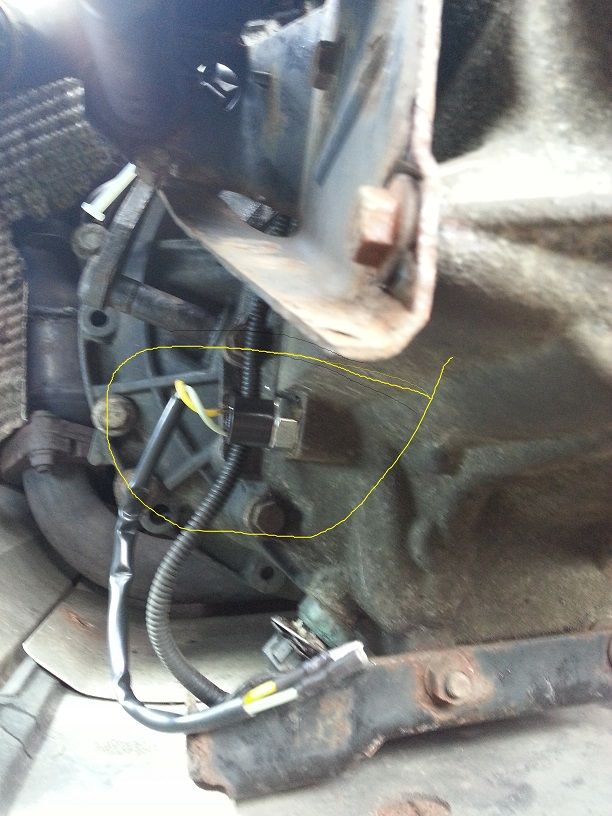

    Easy access form here, 19mm spanner fitted ok, It took two minutes to get the old one out and the new one in.


    [​IMG]

    Reconnected the wires, tested it and then stuck the bits and bobs back on.

    Only problem I had, was shortly after I went to the local Tescos and while reversing out of a space, noticed the reversing sensors and lights were sticking on. Ended up having to put a second washer on the switch to space it out from the actuator in the gearbox.

    Other than that an easy job, I'm sure there are other ways but this saved having to remove the cursed tray from underneath.

    Hope this helps someone as I have been helped in the past.

    Cheers Dave.

    Hippo and I L like this.
  2. lushman

    lushman New Member

    Joined:
    Dec 10, 2015
    Posts:
    8
    Likes Received:
    0
    Location:
    cambs
    Excellent post I will using this soon to fix an issue on my freelander

  3. Madmustang

    Madmustang Well-Known Member

    Joined:
    Feb 24, 2014
    Posts:
    1,189
    Likes Received:
    392
    Location:
    Castleford
    Same here just bought a switch

  4. Briseventy9

    Briseventy9 Member

    Joined:
    May 1, 2018
    Posts:
    28
    Likes Received:
    1
    Location:
    Wirral
    Excellent post!!! Used this changed the switch BUT the lights STAY on with ignition on (engine not running) very confused!! Any suggestions please??

  5. Madmustang

    Madmustang Well-Known Member

    Joined:
    Feb 24, 2014
    Posts:
    1,189
    Likes Received:
    392
    Location:
    Castleford
    Put a washer on it as it will be too close to casting and therefore will be on all the time

  6. Briseventy9

    Briseventy9 Member

    Joined:
    May 1, 2018
    Posts:
    28
    Likes Received:
    1
    Location:
    Wirral
    Bloody genius!!!! Thanks mate... all sorted!!!

    Madmustang likes this.
  7. Briseventy9

    Briseventy9 Member

    Joined:
    May 1, 2018
    Posts:
    28
    Likes Received:
    1
    Location:
    Wirral
    Genius thanks mate all sorted!! Phew!!
