Hi All

some little ****e bricked my rear window!!!!
Have ordered a new one but how does it fit on the rear door?
Why I ask is because my old window had sealant holding it in!
Is there a rubber seal? I have a metal retainer that was in my 90 but not fitted?

any helpwould be great

thanks

:)

life2short said:
Hi All

some little ****e bricked my rear window!!!!
Have ordered a new one but how does it fit on the rear door?
Why I ask is because my old window had sealant holding it in!
Is there a rubber seal? I have a metal retainer that was in my 90 but not fitted?

any helpwould be great

thanks

:)
Click to expand...

The glass is held in by sealant (not builders silicone please) use RTV silicone or non setting panel sealant. there are then 4 Alloy angle beads. Top bottom Left & Right that are held in place by self tapping screws.

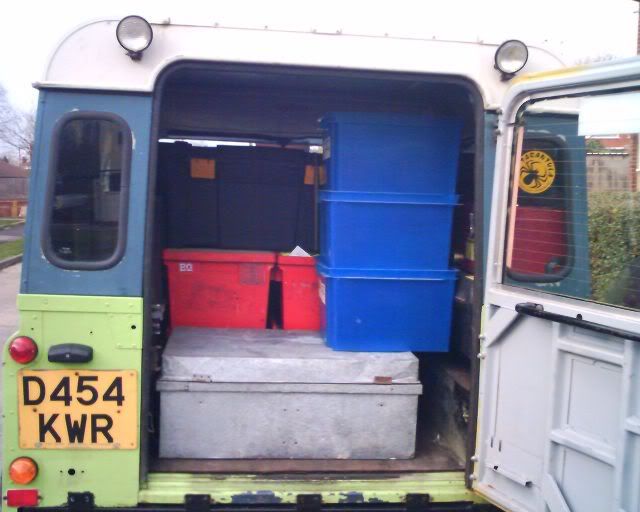

Yu can just about make out what I meant in this picture
