Repainting a 110 fuel tank.

Discussion in 'Defender 90 / 110 / 130' started by ogb, Dec 8, 2017.

< Previous Thread | Next Thread >
  1. ogb

    ogb Active Member

    Joined:
    Jun 2, 2015
    Posts:
    288
    Likes Received:
    81
    Location:
    Moray, NE Scotland
    Just dropped the tank from my 110 (1995) to fix a leak and decided to repaint it. Having jetwashed all the crud- and most of the black paint - from it, I find that having scraped the rest off that:
    1. the original metal is still bright and
    2. the metal was never primed but
    2. there's no sign of rust at all.

    I'd guess that the tank has been replaced during the PO's rebuild since the hoses and connections aren't, shall we say, adequate. That makes the tank about 8 years old. Obviously whatever was used to "colour" - I wouldn't say "paint" as it was just resting on the surface - has done a pretty good job. Anyone any idea what it was? Failing that, any recommendations for the repaint?

  2. Gmacz

    Gmacz Well-Known Member

    Joined:
    Feb 12, 2016
    Posts:
    895
    Likes Received:
    304
    Location:
    Forfar/Dundee
    Red oxide and then black paint should keep the rust at bay.

  3. ogb

    ogb Active Member

    Joined:
    Jun 2, 2015
    Posts:
    288
    Likes Received:
    81
    Location:
    Moray, NE Scotland
    Thanks, but that'd be my normal approach. In this case there was no red oxide or anything else used and despite this the metal is "as new".
    I want to find out, if I can, what was used on the tank to produce this miracle. Every other bit of steel I've painted using the Redox or galv primer/topcoat method has shown rust problems within a year or so irrespective of which primer or finish coat I've used, including Hammerite. Whatever coating was used on my tank is way better than that.

  4. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    8,929
    Likes Received:
    3,038
    Location:
    North of the Wall
    I doubt the PO bought a new tank in shiny mild steel finish. They usually come with a basic, black, primer type finish. The PO might have just put a coating of Dinitrol or similar over that. A pressure washer could well take that initial primer coating, including whatever was sat on top of it, straight off.

  5. Disco1BFG

    Disco1BFG Well-Known Member

    Joined:
    Mar 18, 2015
    Posts:
    4,927
    Likes Received:
    2,434
    Location:
    Buxton
    There are single coat paints which can do as you have found - Besaval is one such automotive product - available from www.froggatts.co.uk

  6. payydg

    payydg Well-Known Member

    Joined:
    Jul 29, 2012
    Posts:
    3,132
    Likes Received:
    1,482
    Location:
    Aberdeenshire
    Red oxide doesn’t stop rust. If there’s any corrosion use a rust stabilising primer.

  7. Gmacz

    Gmacz Well-Known Member

    Joined:
    Feb 12, 2016
    Posts:
    895
    Likes Received:
    304
    Location:
    Forfar/Dundee
    There was no rust. Non at all. Zero rust. That is why he is here, asking for the stuff on the tank that stopped it.

  8. Oldseadog

    Oldseadog Well-Known Member

    Joined:
    May 27, 2011
    Posts:
    9,270
    Likes Received:
    1,051
    Location:
    Tynemouth
    What caused the leak, and was there any sign of tin worm around it?
    I'd be inclined to clean it up as much as poossible and then cold galv it, using a couple of coats of Galvafroid or similar.

  9. saxavordian

    saxavordian Well-Known Member

    Joined:
    Jun 8, 2015
    Posts:
    2,458
    Likes Received:
    1,233
    Location:
    outside london influence in manchester
    If the leak at the seam then you will have endless fun if a pin hole then easy repair job.

  10. ogb

    ogb Active Member

    Joined:
    Jun 2, 2015
    Posts:
    288
    Likes Received:
    81
    Location:
    Moray, NE Scotland
    Thanks for the replies. Under pressure to get the job done now,so I'm just off into town to see what I can find that'll match some of the suggestions. I like the idea, offered on another forum, of some kind of colour tell-tale to show any damage - red oxide under a topcoat of black, for instance.

    As Gmacz repeated, the fact that the original finish has prevented any rust - not a speck - I really want to replicate it. Having cleaned the old paint off the tank is so bright you'd think it was polished ally. The leak was from the pipe union on top of the tank to the fuel return line. The PO had bodged this with a bit of what looks like Camping Gaz hose. It pulled straight off, and only had one Jubilee anyway. One of the screws that hold the pipe plate on was stripped too, so the seal wasn't correctly seated on one side. I guess in a normal fuel setup this wouldn't matter too much, but I have an extra long range tank which sits quite a bit above the standard tank so pressurizes it, forcing fuel out of anywhere that's a bit loose.

    Last edited: Dec 9, 2017
  11. aaronmorris

    aaronmorris Head's a shed

    Joined:
    Aug 22, 2010
    Posts:
    6,369
    Likes Received:
    304
    Location:
    Doncaster
    I tend to use Corroless S as a primer on my stuff and have had good results, for a top coat the choice is yours, but I have used Rustoleum combi-colour a lot on my projects, again with good results and at a reasonable cost.

  12. ogb

    ogb Active Member

    Joined:
    Jun 2, 2015
    Posts:
    288
    Likes Received:
    81
    Location:
    Moray, NE Scotland
    Just back from the stores - had to rush as they all close at 12. Anyway, got cold galvanising spray as a primer and Tetraseal as a final coat. That's the best I could find other than Hammerite or the equivalent. Thinking about what to put in between.

  13. Oldseadog

    Oldseadog Well-Known Member

    Joined:
    May 27, 2011
    Posts:
    9,270
    Likes Received:
    1,051
    Location:
    Tynemouth
    You can seal the leak by forming PetroPatch around it, as long as here is no leverage against the pipe.

  14. ogb

    ogb Active Member

    Joined:
    Jun 2, 2015
    Posts:
    288
    Likes Received:
    81
    Location:
    Moray, NE Scotland
    Since the leak was impossible to reach with the tank in place, it all had to come out before I could sort it. Having done that, there wasn't any point patching it. I'd bought a replacement pipe and seal just in case so might as well use it, and replaced the stripped screw.

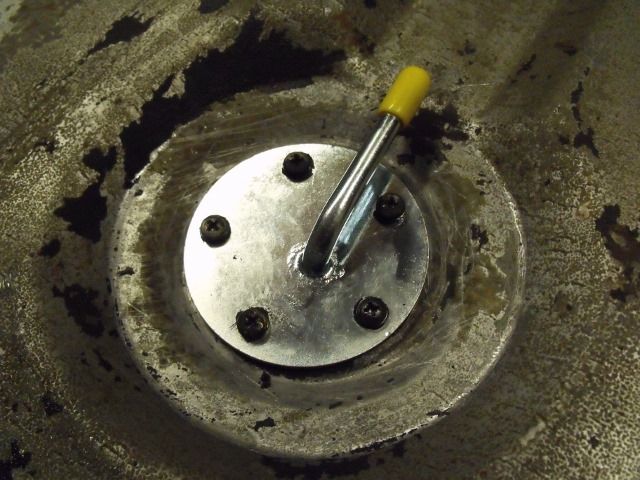

    DSCF7811 (640x480).jpg

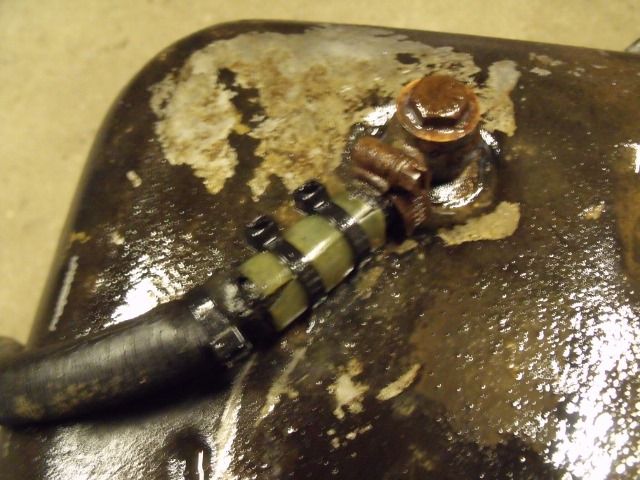

    Unfortunately, that wasn't the only thing that needed sorting out: DSCF7812 (640x480).jpg
    The hose was 6mm, the fitting barb is 8mm. Something had to give. Must've been more of a faff to bodge it like this than get a bit of proper diameter hose.

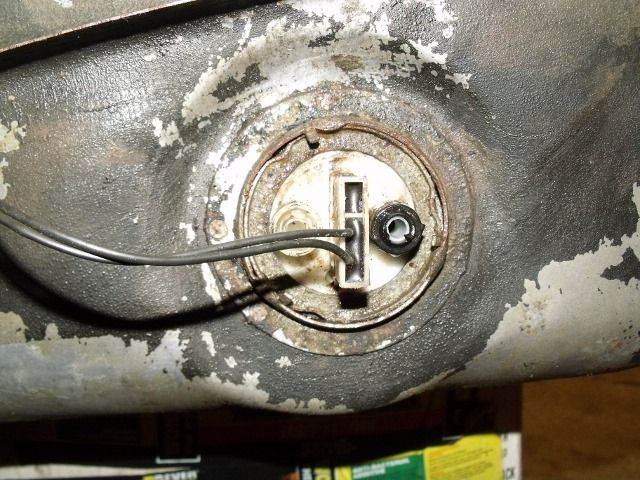

    and this broke as the pipe was removed.. DSCF7808 (640x480).jpg
    The black bit is what remains of the formed end of the fuel feed line. Very brittle, that pipe, and I guess this was inevitable.

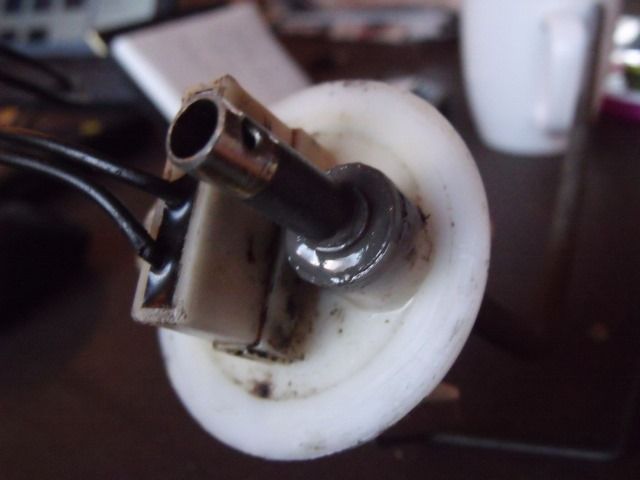

    so had to use a bit of ingenuity to get around it.. DSCF7818 (640x480).jpg
    ...the mount has been drilled out so the pickup pipe can pass through it, and I'll have to join the pipes with rubber hose. Not ideal, I know, but is there a better way other than replacing the whole fuel line?
