Rear Wiper motor wiring issues

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

tobysi

Member
Posts
16
Location
Kent
Hi all,

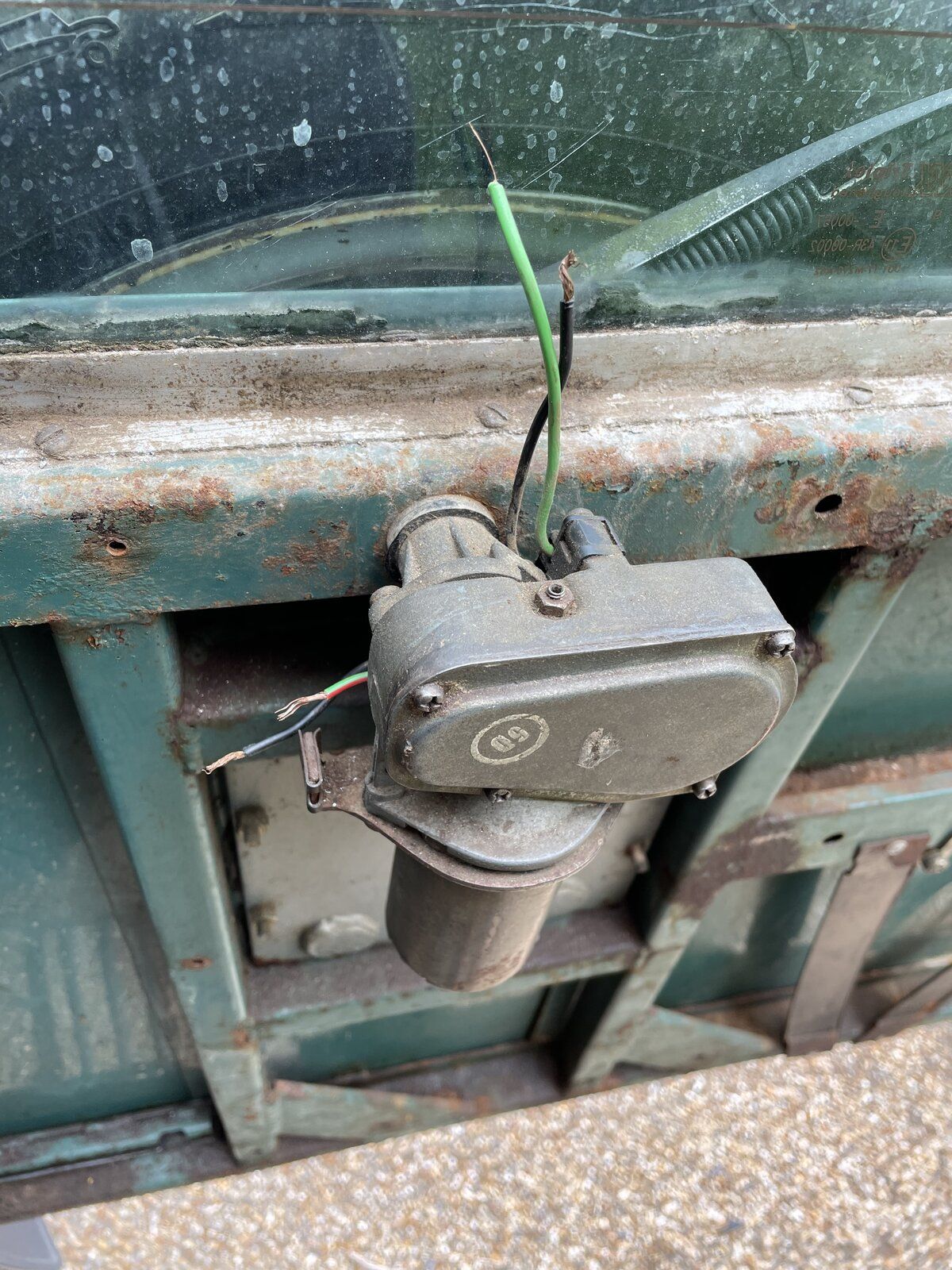

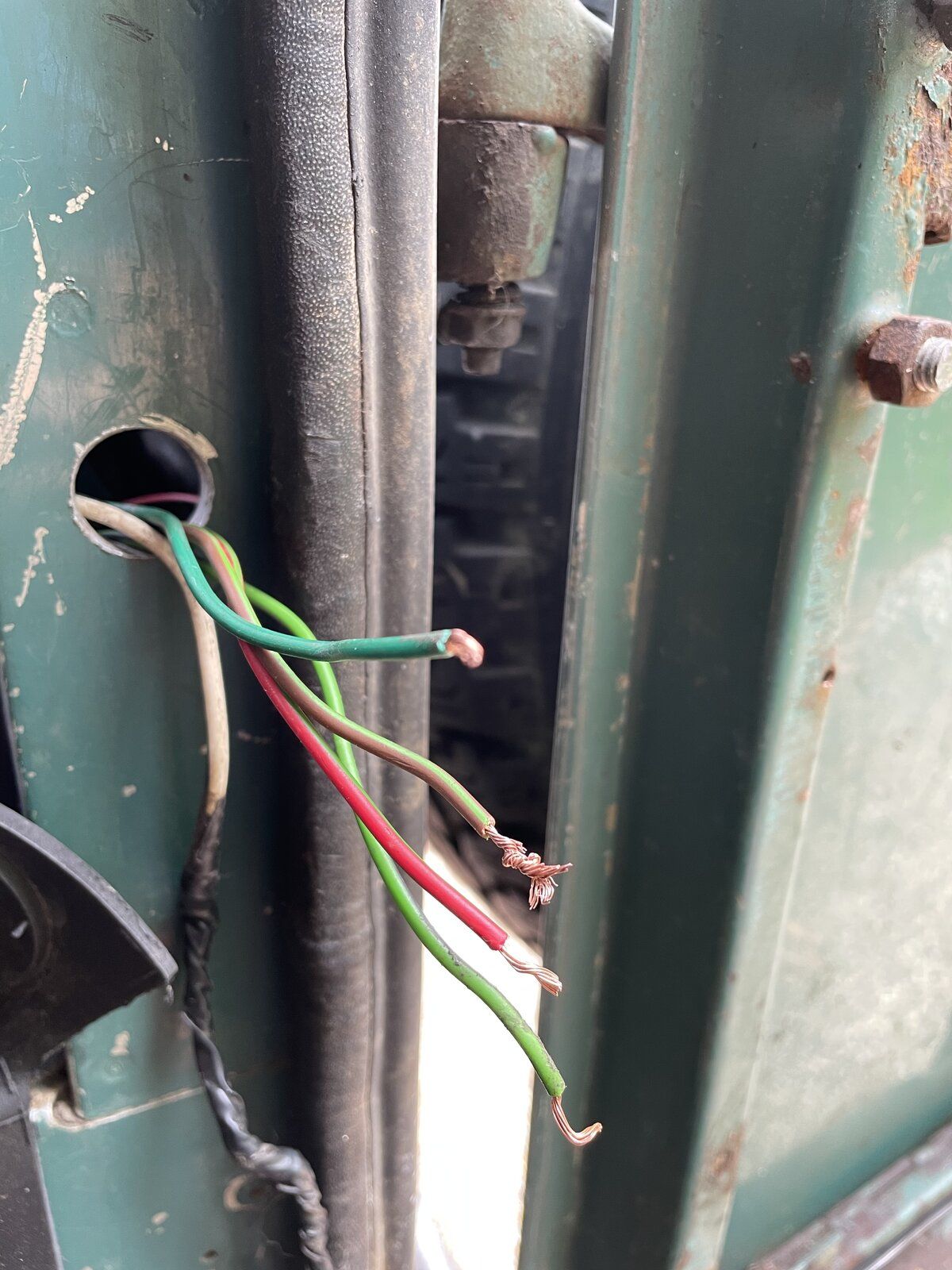

I seem to have the original 4 pin rear wiper motor in my 90. Previous owner left it disconnected with only one of the connectors remaining. I went to connect the wires and am a bit confused. Here are some pictures, any help would be much appreciated.


Attachments

  • 3D4DF8CB-97E4-4E46-8026-B2B8F1F3217C.jpeg
    236.2 KB · Views: 141
  • 9E3B5366-1A7D-4DC8-B67C-A85D8BA4EBBA.jpeg
    381 KB · Views: 142

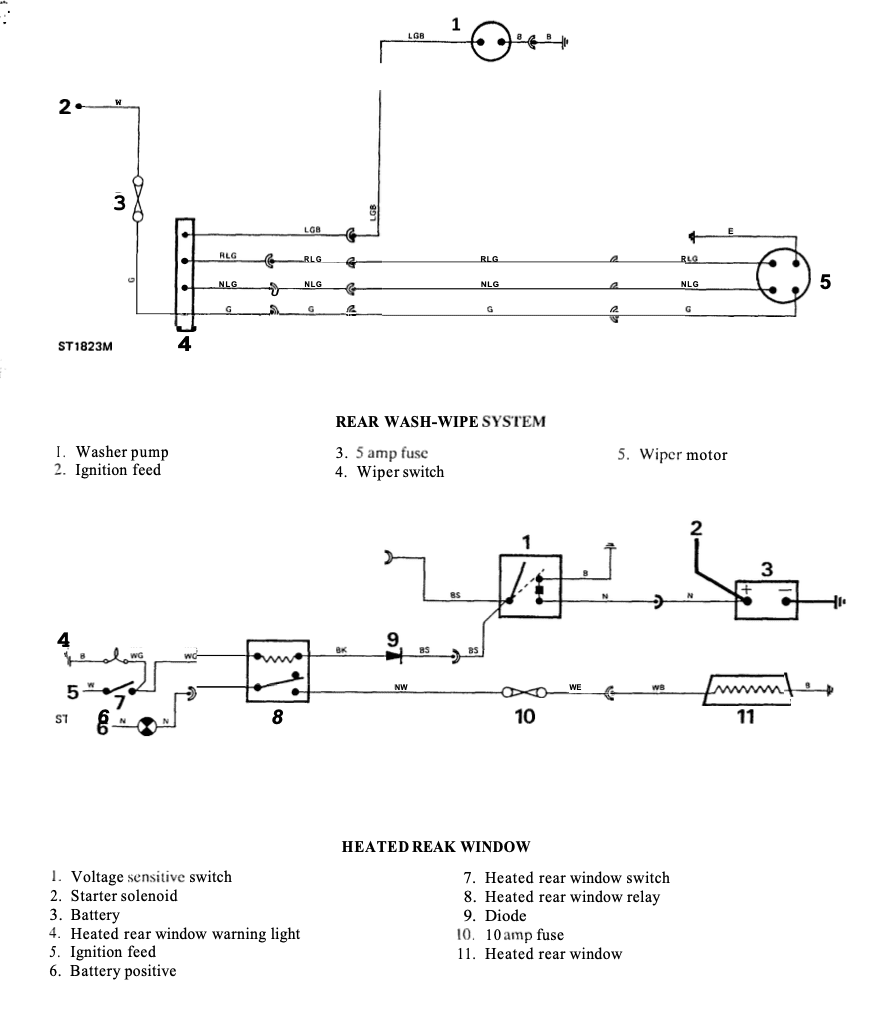

Wiring diagram below.
Wiring colours on the motor look odd.
Use a multimeter to check which feed is which.
rear wash-wipe, heated screen.png
