Rear prop position series 3

Discussion in 'Series Land Rovers' started by Chockster, Apr 11, 2021.

< Previous Thread | Next Thread >
  1. Chockster

    Chockster Member

    Joined:
    Jul 21, 2009
    Posts:
    87
    Likes Received:
    8
    Location:
    The Lake District
    Hello Land Rover afficianadoes.

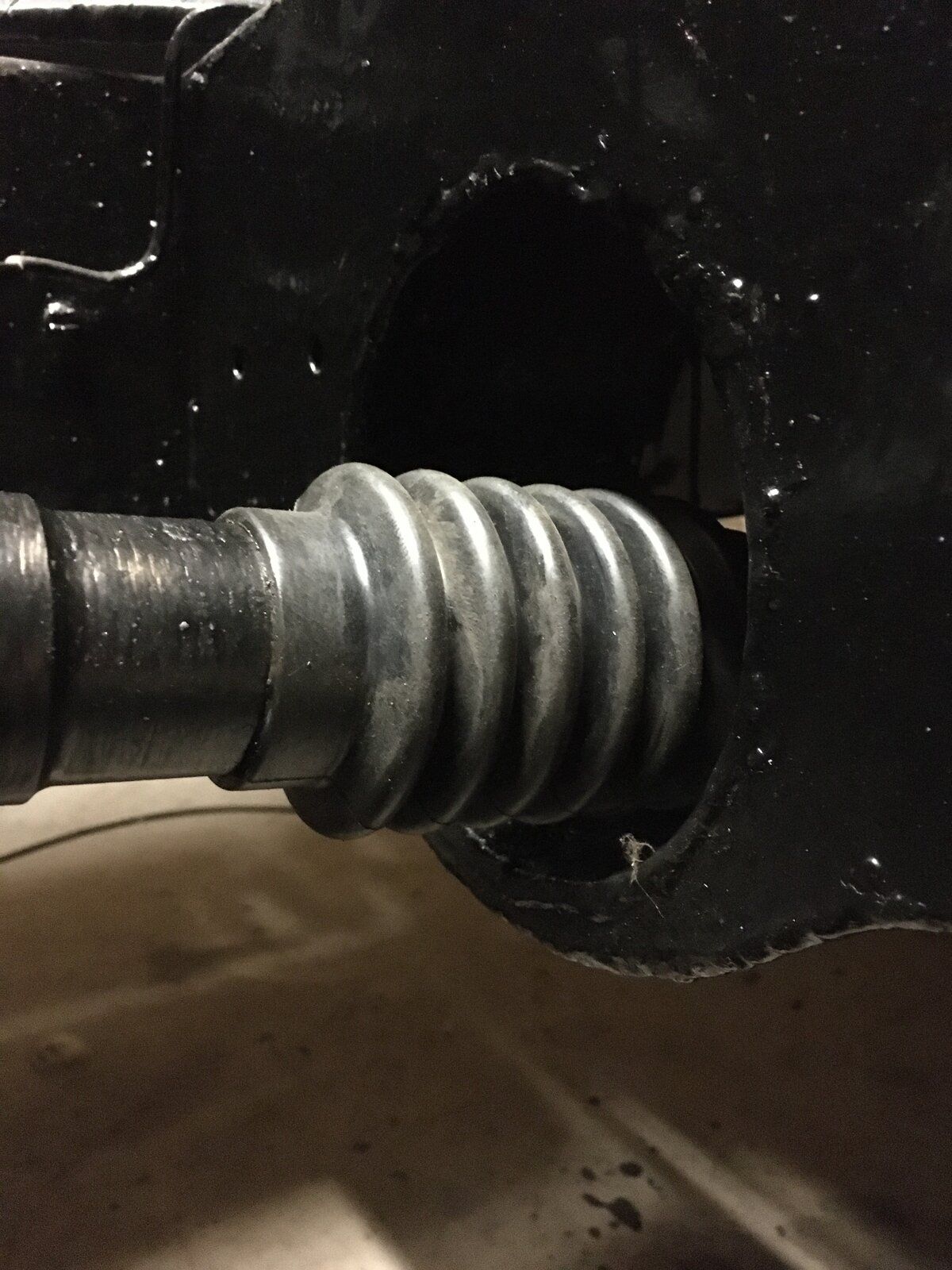

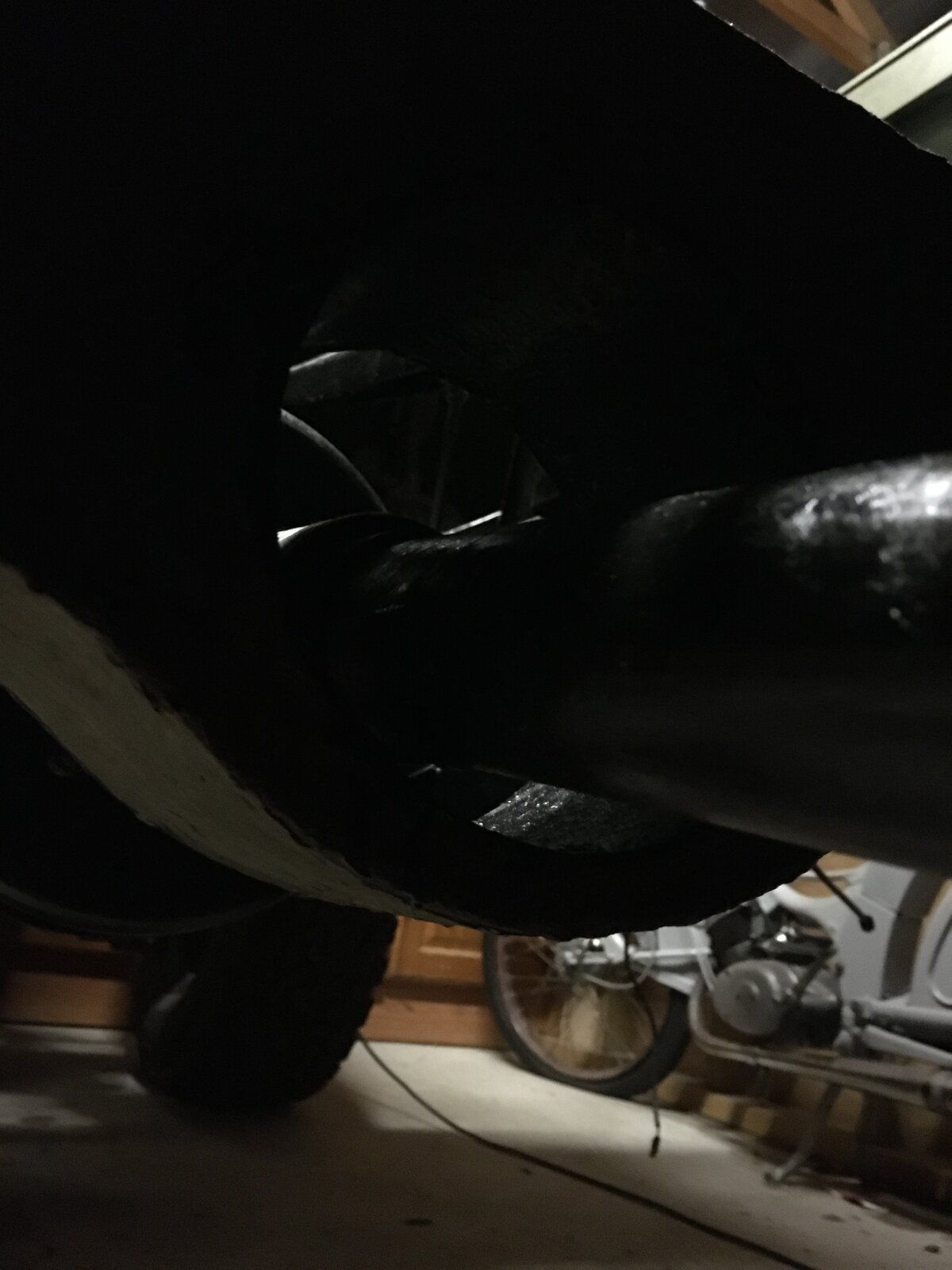

    I’ve just been rebuilding my series 3 and after fitting the gearbox I have put in the rear prop but it just looks quite close to the bottom of the cut out from the chassis.(see pictures) is this normal or should it sit in the center of the cut out hole? I can just get my fingers underneath so it isn’t touching.
    Let me know. Thanks I’m advance


    Attached Files:

  2. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    49,345
    Likes Received:
    48,340
    Location:
    Continuously Cruising
    Has it had time to settle on the springs? And did you lower it to the ground before tightening the nuts on the springs and shackle plates?

  3. Chockster

    Chockster Member

    Joined:
    Jul 21, 2009
    Posts:
    87
    Likes Received:
    8
    Location:
    The Lake District
    Yeah springs and shackle plates haven’t been messed with as they were in great shape

  4. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    49,345
    Likes Received:
    48,340
    Location:
    Continuously Cruising
    You mean you didn't disturb the springs, or loosen the bolts holding them to the chassis?

  5. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    5,200
    Likes Received:
    1,446
    Location:
    west wales coast
    Not usual for rear prop to have the rubber boot. Any body on top?

    Turboman likes this.
  6. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,881
    Likes Received:
    10,616
    Location:
    Current
    Engine gearbox mounts all good?
    Gearbox mount wegdes fitted to correct side?

    Turboman likes this.
  7. Chockster

    Chockster Member

    Joined:
    Jul 21, 2009
    Posts:
    87
    Likes Received:
    8
    Location:
    The Lake District
    Nope not messed with them at all

  8. Chockster

    Chockster Member

    Joined:
    Jul 21, 2009
    Posts:
    87
    Likes Received:
    8
    Location:
    The Lake District
    As far as I know they will only go on one way??? Or am I wrong with that? Looked the same as the Hanes manual... which way do they go?

  9. Chockster

    Chockster Member

    Joined:
    Jul 21, 2009
    Posts:
    87
    Likes Received:
    8
    Location:
    The Lake District
    it had a split one on so just replaced like for like

  10. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    49,345
    Likes Received:
    48,340
    Location:
    Continuously Cruising
    Haynes are not that good, try and get a reprint genuine manual.
    Your issue is pretty simple. Either the back of the vehicle is too high, or the back of the transfer box is too low.
    There are only so many things that can cause this, most of which have been suggested already.

    tottot likes this.
  11. cornish rattler

    cornish rattler Well-Known Member

    Joined:
    Aug 15, 2010
    Posts:
    5,692
    Likes Received:
    628
    Location:
    Manc chester
    The Hand brake lever isn't lifting the gearbox up is it if applied to much.

  12. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,881
    Likes Received:
    10,616
    Location:
    Current

    Tbh I cant remember! just remember people have fitted them to wrong side causing the box or engine to sit funny, but if its central then you are most likely okay.
    How old are the mounts, ie have they sagged?

  13. Chockster

    Chockster Member

    Joined:
    Jul 21, 2009
    Posts:
    87
    Likes Received:
    8
    Location:
    The Lake District
    No it’s not lifting at all solid as a rock.

  14. Chockster

    Chockster Member

    Joined:
    Jul 21, 2009
    Posts:
    87
    Likes Received:
    8
    Location:
    The Lake District
    Mounts are not new but are in great shape. No squashing or cracking.

  15. Chockster

    Chockster Member

    Joined:
    Jul 21, 2009
    Posts:
    87
    Likes Received:
    8
    Location:
    The Lake District
    Would it be a bad idea to pack the gearbox mounting wedges up with some large washers? I’m not sure wether to be to worried I can still fit my hand under the prop but just wondering should it sit centred in that hole?

  16. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    5,200
    Likes Received:
    1,446
    Location:
    west wales coast
    Recon you are overthinking this, the shaft will move in the hole as suspension moves. Movement of the shaft so close to the box is not much. As you can fit your hand beneath I would say it is fine. As noted before no rubber boot is normal and with out it the gap would be bigger looking.

    lynall, Turboman and Chockster like this.
  17. cornish rattler

    cornish rattler Well-Known Member

    Joined:
    Aug 15, 2010
    Posts:
    5,692
    Likes Received:
    628
    Location:
    Manc chester
    Just a thought but when fitting the gearbox the mount holes are quite big something like 10mm / 3/8" holes but should be 8mm / 5/16" bolts to allow for gearbox to sit properly so if 10mm / 3/8" bolts have been fitted they could be forcing the gearbox over enough to caurse your problem :)

  18. Chockster

    Chockster Member

    Joined:
    Jul 21, 2009
    Posts:
    87
    Likes Received:
    8
    Location:
    The Lake District
    Sage advice there thanks very much.
    Just wanted to make sure I wasn’t making a big boo-boo

    tottot likes this.
  19. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    49,345
    Likes Received:
    48,340
    Location:
    Continuously Cruising
    Just try driving it for a bit, and listen for nasty noises. You can check after each outing for wear marks on the paint on the chassis, and on the propshaft.

    Chockster likes this.
  20. lynall

    lynall Well-Known Member Full Member

    Joined:
    Feb 28, 2011
    Posts:
    15,881
    Likes Received:
    10,616
    Location:
    Current
    I would bet tha rear axle is going to have to move quite some way for the prop to make contact with the chassis.

    Chockster and Turboman like this.
