dave7494

Member
Posts
80
Location
falkirk
Hi folks. I'm looking for a part that land rover say is no longer available. Part number is WYX100050 it's the white plastic retaining collar that sits over the fuel tank (at fuel pump) then the metal locking ring tightens to this . This is for a 2000 4.6 V8 as it changed at 1999

Anyone have any ideas. I destroyed mine taking the pump out


Attachments

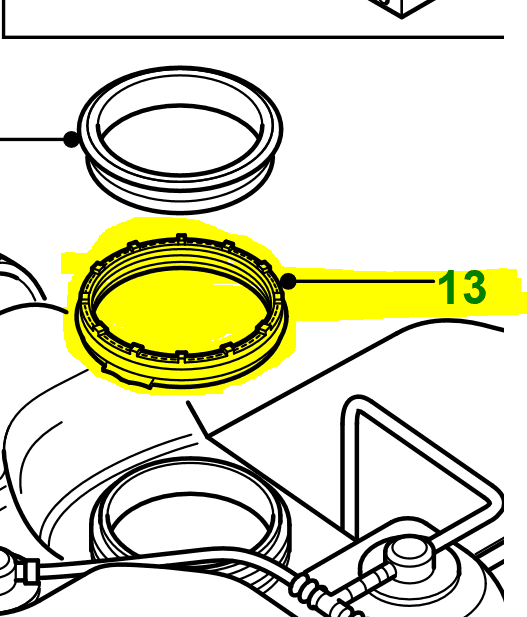

  • 2.PNG
    24.3 KB · Views: 126
There’s a change over on the petrol locking rings. Your one is Part number ESR3808 (‘99 on)
Earlier models part number NTC5858 - locking ring

They are available even as a genuine LR part, is this what you mean or the seal?
The metal locking ring is correct however it's the white plastic ring that this metal one tightens onto bud.

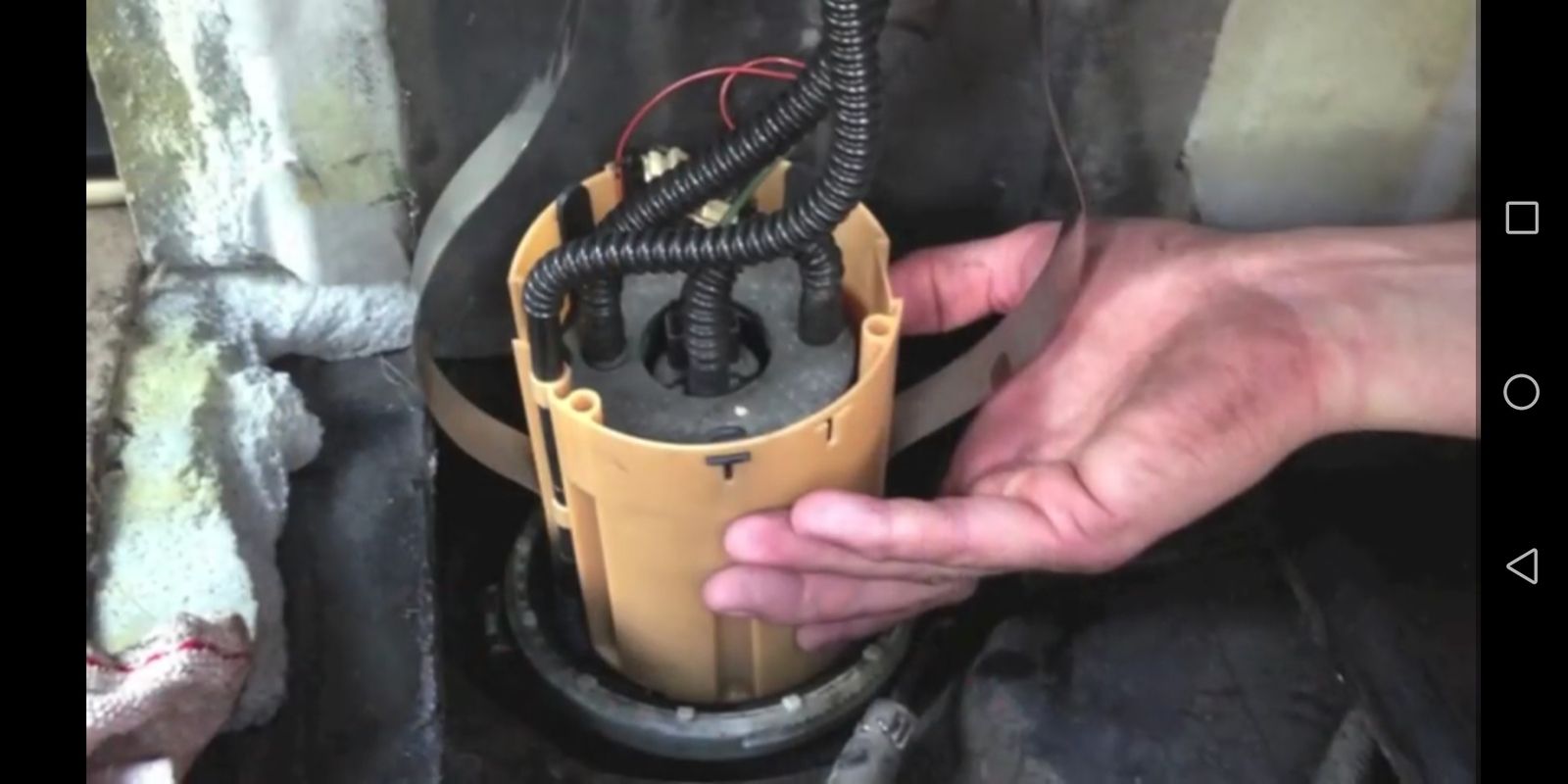

White ring seen in pic below


Attachments

  • Screenshot_20190915-190908.jpg
    92.1 KB · Views: 113
That looks like the part bud. It's listed for the rr 2003 onwards and disco ect but looks like the right one just with a new part number. I've called my local LR dealer and they will have one in tomorrow for me. Hoping and praying it's exactly what I need
