P38 2.5 AC tentioning

Discussion in 'Range Rover' started by Blobthebuilder, Sep 20, 2020.

< Previous Thread | Next Thread >
  1. Blobthebuilder

    Blobthebuilder Active Member

    Joined:
    Dec 23, 2019
    Posts:
    165
    Likes Received:
    34
    Location:
    Scotland
    OK I've noticed bracket has 2 mounting holes whichever hole its in whether clockwise or anti clockwise its either touching crank pulley or AC pulley

  2. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    11,008
    Likes Received:
    5,038
    Location:
    Trapped inside my head @ LZ asylum

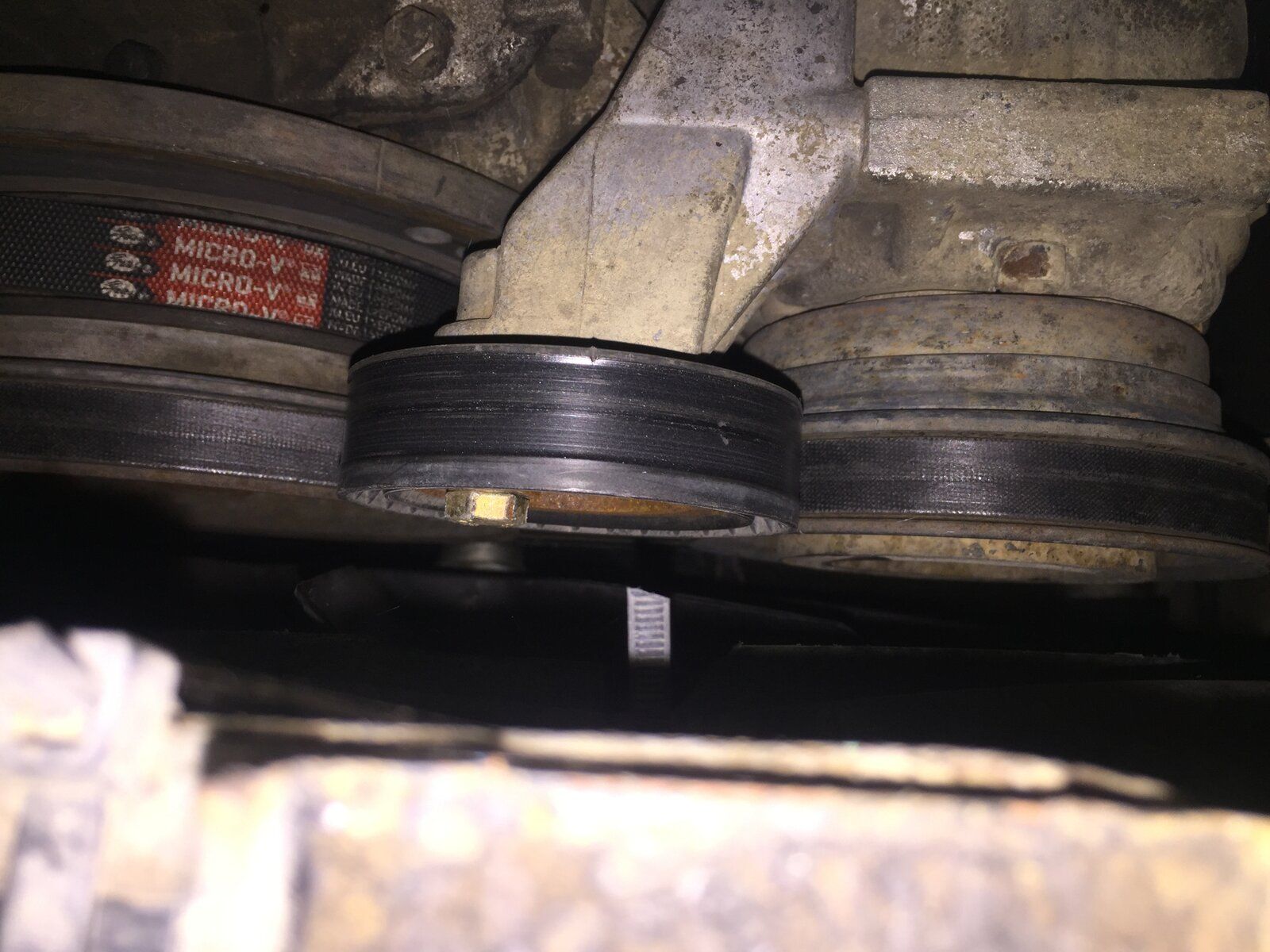

    Can’t even fit my phone in there properly to take pic for you
    This is lying underneath with your legs hanging out front of vehicle

    1EAEEB1F-D29F-452A-82BE-390484F4AF26.jpeg You can see the belt is above the tensioner not around it

  3. Blobthebuilder

    Blobthebuilder Active Member

    Joined:
    Dec 23, 2019
    Posts:
    165
    Likes Received:
    34
    Location:
    Scotland
    That's how I have it but I don't think tensioner is ment to touch pulleys

  4. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    11,008
    Likes Received:
    5,038
    Location:
    Trapped inside my head @ LZ asylum
    It’s not touching on mine don’t think it will adjust that far but you can see the position of lock nut. I’ve always snugged it up by hand no exact torque

  5. Blobthebuilder

    Blobthebuilder Active Member

    Joined:
    Dec 23, 2019
    Posts:
    165
    Likes Received:
    34
    Location:
    Scotland
    I've tried both holes on bracket with tensioner in top hole was very hard to get belt on, in bottom hole it was a doddle but whichever hole when tensioner is turned in either direction it touches 1 or the other there is a bit of play in AC pulley but wouldn't have thought it would make it touch pulleys

  6. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    6,425
    Likes Received:
    2,656
    Location:
    sud ouest France
    IMG_20200921_153225.jpg à shorter belt would pull it away from the others. Are you 100% of the belt size..

    RangeRoller dt likes this.
  7. Blobthebuilder

    Blobthebuilder Active Member

    Joined:
    Dec 23, 2019
    Posts:
    165
    Likes Received:
    34
    Location:
    Scotland
    I marked a start on belt and measured it back to mark and it was 841mm

  8. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    6,425
    Likes Received:
    2,656
    Location:
    sud ouest France
    It can only be too long.. Or the pulley is wrong??
    So what has changed and was it fine before the last intervention?

  9. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    10,797
    Likes Received:
    4,617
    Location:
    heathrow
    I had trouble with mine if I remember right I put a 4pk830 belt on, I will have a look when I get home packet should still be in the boot.

  10. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    11,008
    Likes Received:
    5,038
    Location:
    Trapped inside my head @ LZ asylum
    Can you show us exactly what belt you had with link/make & part number?

  11. Blobthebuilder

    Blobthebuilder Active Member

    Joined:
    Dec 23, 2019
    Posts:
    165
    Likes Received:
    34
    Location:
    Scotland
    Its sorted now thanks peeps, the pictures helped, I had pushed tensioner up by hand and thought it was touching AC pulley but I tried again, refitted pushed it up and put in Allen key and noticed it had a bit of spring so I gave it a little push tightened up bolt and noticed the 2pulkeys were not actually touching but about 1-2mm apart so tried AC and it works fine with not a sound, I cycled it on and off about 12-15 times and it works perfectly with no noise at all

  12. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    10,797
    Likes Received:
    4,617
    Location:
    heathrow
    I wont bother looking in the boot then:p
    An easy fix:) just wish access was better.

  13. Blobthebuilder

    Blobthebuilder Active Member

    Joined:
    Dec 23, 2019
    Posts:
    165
    Likes Received:
    34
    Location:
    Scotland
    Yeah I was lying on back looking up and I thought it was tight to AC pulley then took a closer look and thought maybe the gap wasnt big because pictures posted looked very close aswell

  14. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    11,008
    Likes Received:
    5,038
    Location:
    Trapped inside my head @ LZ asylum
    I remember trying to find what size Allen key fitted was nightmare, not difficult as such just bloody frustrating :D

  15. Blobthebuilder

    Blobthebuilder Active Member

    Joined:
    Dec 23, 2019
    Posts:
    165
    Likes Received:
    34
    Location:
    Scotland
    I'm happy its working, its been a slog lol

  16. Blobthebuilder

    Blobthebuilder Active Member

    Joined:
    Dec 23, 2019
    Posts:
    165
    Likes Received:
    34
    Location:
    Scotland
    Next job brake accumulator lol

  17. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    11,008
    Likes Received:
    5,038
    Location:
    Trapped inside my head @ LZ asylum
    :eek::oops:

    See you in the next thread ;):D

  18. Blobthebuilder

    Blobthebuilder Active Member

    Joined:
    Dec 23, 2019
    Posts:
    165
    Likes Received:
    34
    Location:
    Scotland
    Lol I'm sure its accumulator should be easy fix lol

  19. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    11,008
    Likes Received:
    5,038
    Location:
    Trapped inside my head @ LZ asylum
    Hope you like bleeding
    Figuratively and on the knuckles :D

  20. Blobthebuilder

    Blobthebuilder Active Member

    Joined:
    Dec 23, 2019
    Posts:
    165
    Likes Received:
    34
    Location:
    Scotland
    I read it was depressurize remove sphere and fit new 1 job done lol
