Overheating and wiring!

S

Steve the novice

New Member

Posts

7

• Jul 25, 2023

• #1

So......I'm having terrible overheating problems with my old Defender 90! Decidedthat I'd best sort it out before it goes bang! The radiator needs to be replaced as it's properly knackered but also!

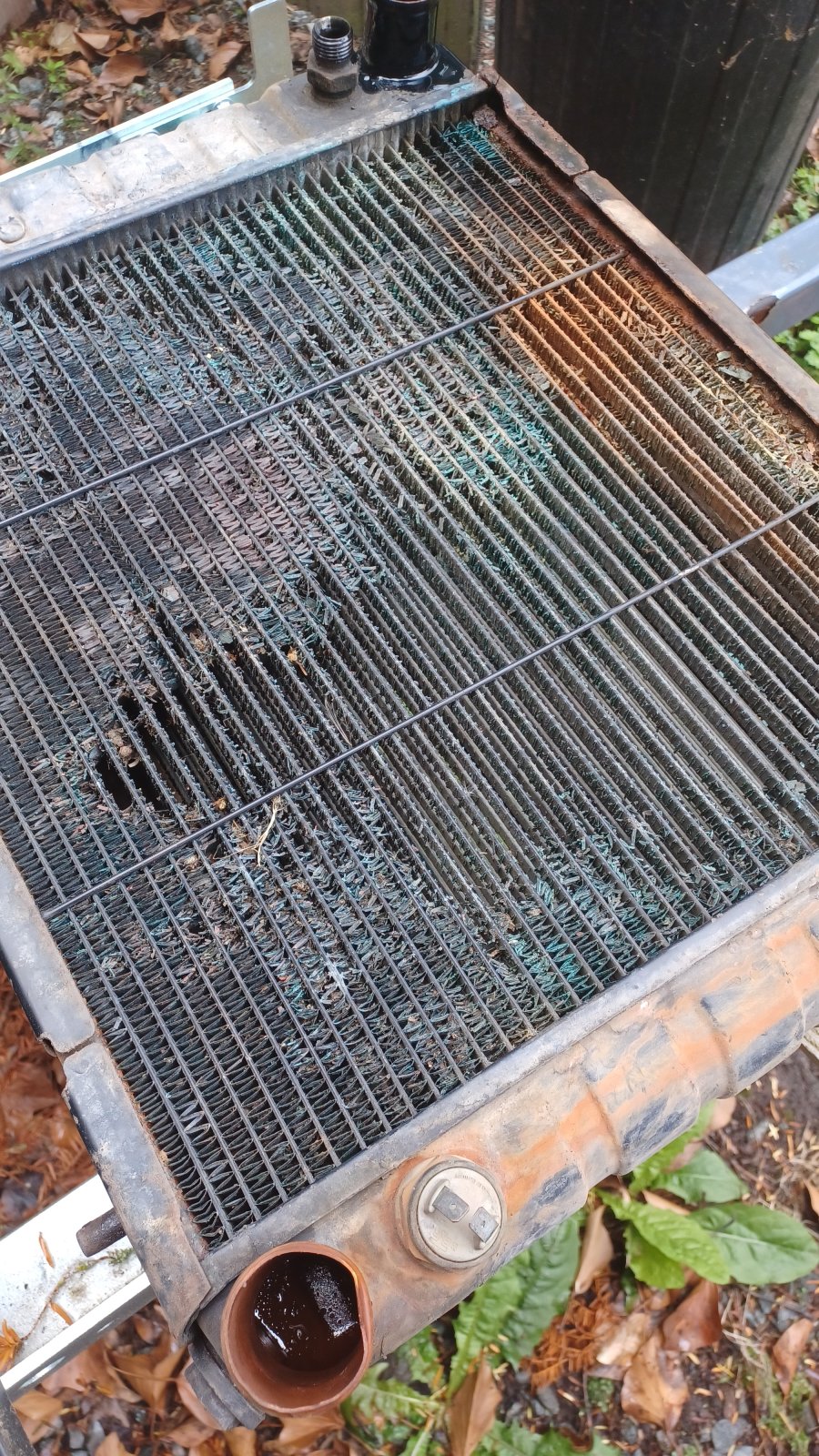

It has two fans mounted on the grill! They're not connected in any way shape or form to the electrics and they are also both knackered! The first question is...Where should they connect to their power supply? The second, this shows why I'm a novice, how do they know when to run and stop? The third question is.... one the radiator, which also also has an oil cooler, there is an electronic something that is also not connected! Does this goto the fans somehow to make them run when it's get too hot? If so.....how!



Attachments

•

  538.3 KB · Views: 143
•

  246 KB · Views: 115
•

  269.3 KB · Views: 144

marjon

Well-Known Member

Full Member

Posts

16,860

Location

Bulgaria

• Jul 25, 2023

• #2

And the main question to help us answer yours.
What engine, year .

Why has the engine fan been removed? (sorry I know thats another question)

J



S

Steve the novice

New Member

Posts

7

• Jul 25, 2023

• #3

As far as I'm aware she's a 1988 with a 2.25l diesel engine. That's what it says when I've search the DVLA using the reg number! She may be two landies cobbled together to make one but I'm really not sure!



S

Steve the novice

New Member

Posts

7

• Jul 25, 2023

• #4

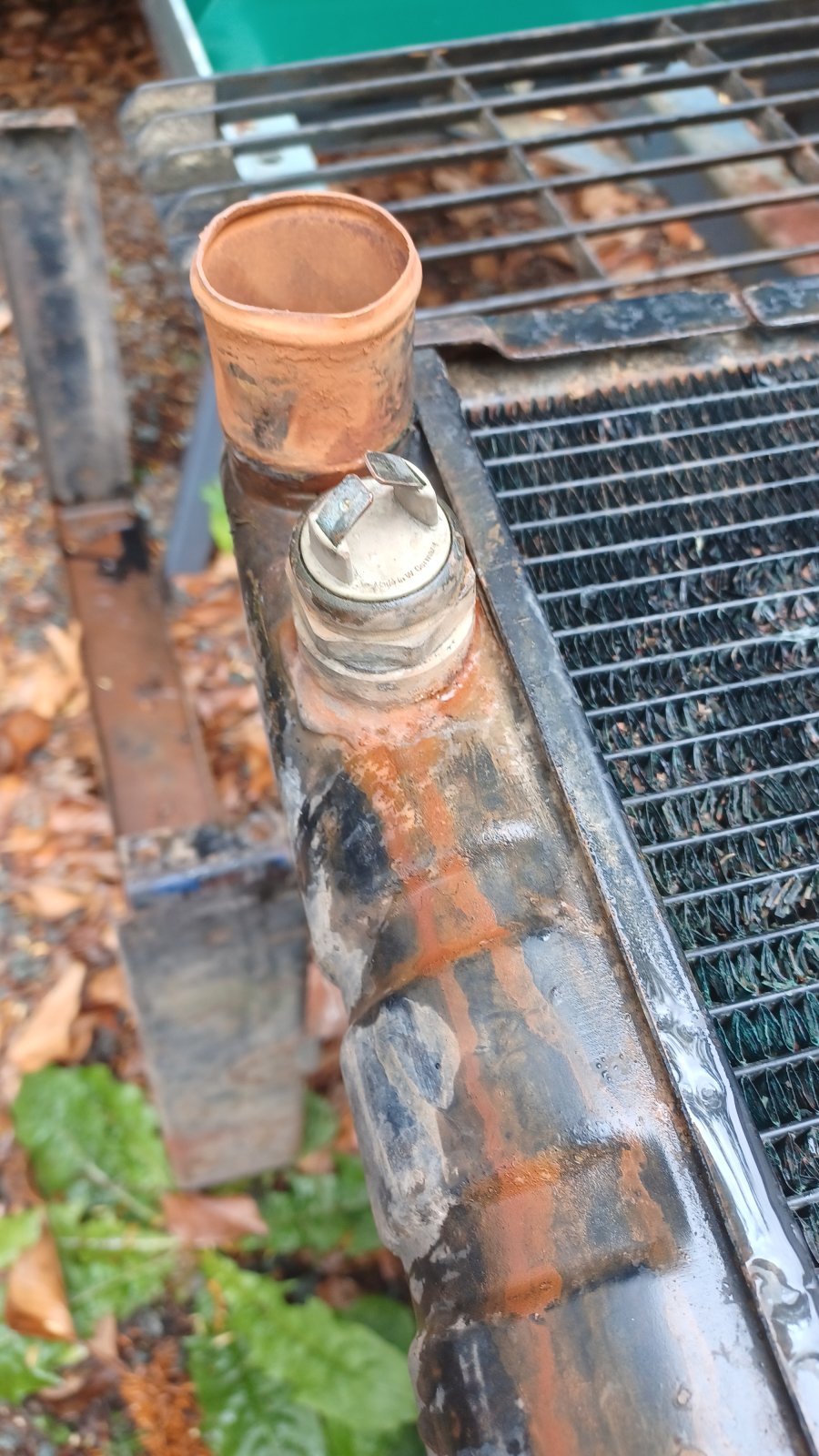

The fans are out because neither of them work but there is what I think is a temperature 'thing' in the radiator. At least I think is a temperature thing!



Attachments

•

  269.3 KB · Views: 132

A

Anaconda

Well-Known Member

Posts

3,716

Location

Thames Valley

• Jul 25, 2023

• #5

I presume you haven't had it long then?
Post a picture of the engine and by the looks of that rad it's been running on water, never a good sign.



A

Anaconda

Well-Known Member

Posts

3,716

Location

Thames Valley

• Jul 25, 2023

• #6

Should have mechanical or viscous fan.



marjon

Well-Known Member

Full Member

Posts

16,860

Location

Bulgaria

• Jul 25, 2023

• #7

Looks like a temp thing, but don’t look standard.
and that engine would have had a spinning fan on the front .

J



S

Steve the novice

New Member

Posts

7

• Jul 25, 2023

• #8

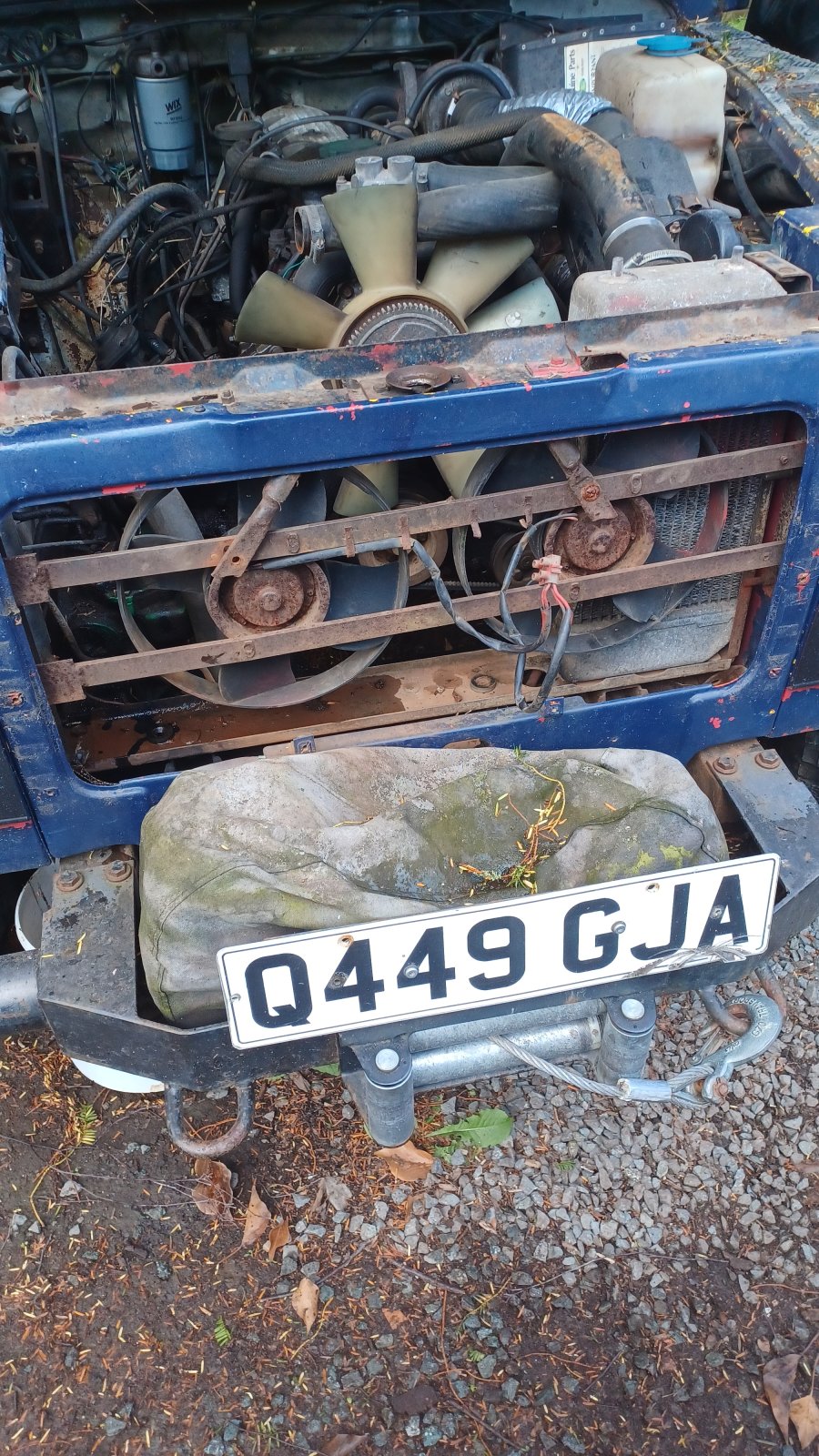

Here's the engine! I know.... iys a bit rope looking but does run really well even though its gets way too hot!



Attachments

•

  386.6 KB · Views: 127

S

Steve the novice

New Member

Posts

7

• Jul 25, 2023

• #9

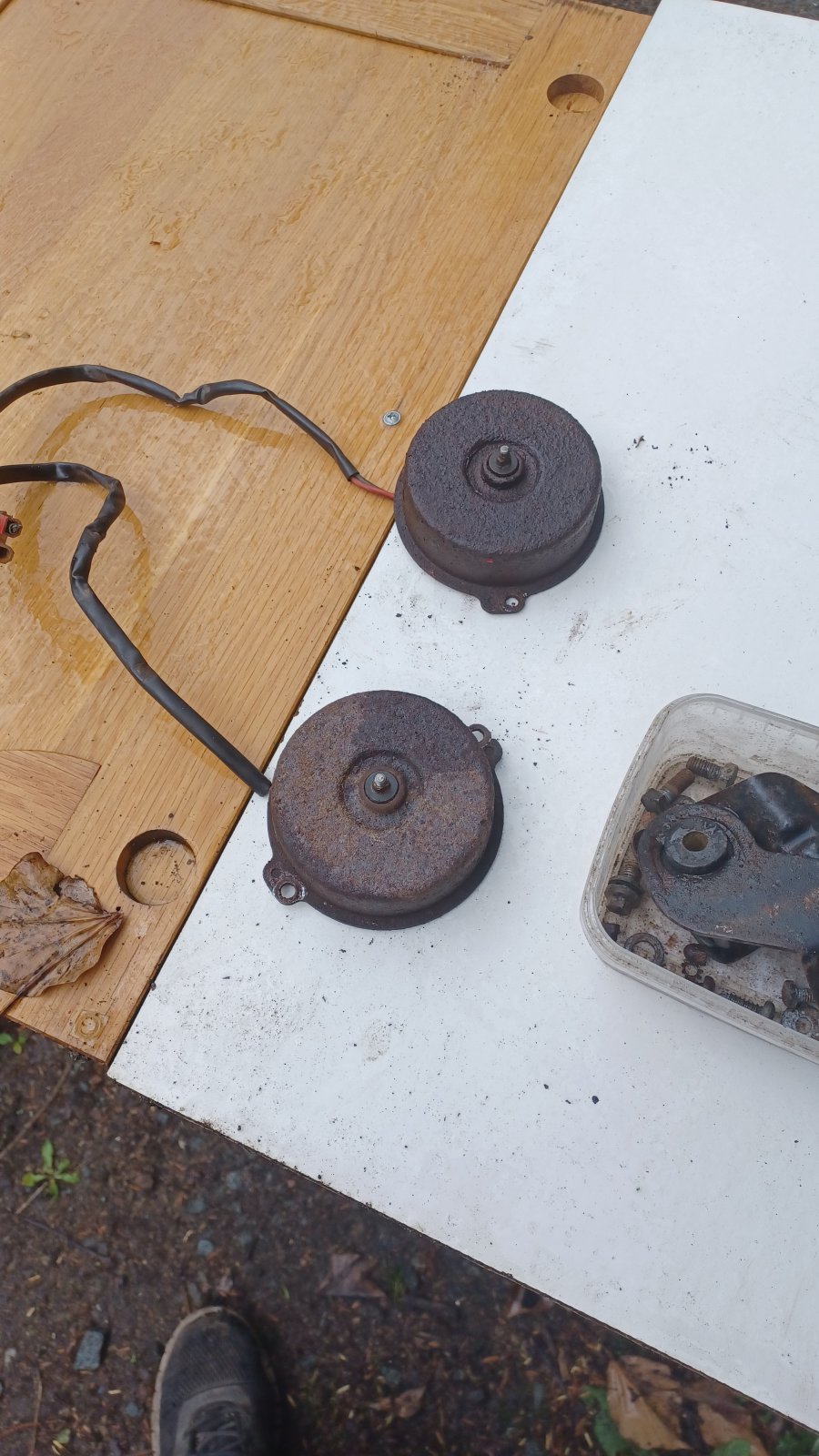

It has these two fans in the front! Neither working weren't even wired in!



Attachments

•

  435.4 KB · Views: 138

A

Anaconda

Well-Known Member

Posts

3,716

Location

Thames Valley

• Jul 25, 2023

• #10

Looks like a 200tdi Defender engine to me.



S

Steve the novice

New Member

Posts

7

• Jul 25, 2023

• #11

The plot thickens!



A

Anaconda

Well-Known Member

Posts

3,716

Location

Thames Valley

• Jul 25, 2023

• #12

Junk the electric fans.
Flush the coolant system, replace rad, thermostat, water pump, heater core, viscous fan, new coolant and start from there.
Oh yes get the correct fan shroud.



S

Steve the novice

New Member

Posts

7

• Jul 25, 2023

• #13

Sounds like a plan! Thanks for you're help cause it's much appreciated.



marjon

Well-Known Member

Full Member

Posts

16,860

Location

Bulgaria

• Jul 25, 2023

• #14

And try and make some sort of cowl from rad to fan, that too far away to work well by the looks of it.
