Overheating 300TDI

Dodgy Den said:

No point in skimming my head due to the holes in it. See the hole in the pic of the head between the top two cylinders to the left of the valves. My head was beyond repair or use hence the new one.

Click to expand...

That's true but I have never herd of land rover saying don't skim a head as they warp only resin I can think them saying not to skim is to sell you a new one

tonylandy123 said:

And did you ever get them presser tested and did the ones you done get hot as when they get hot they deform done 100s in my time and never had one come back for head gasket again

Click to expand...

Nope never pressure tested any of them.
Reused the head bolts as well.
Still have two of them sat on my driveway, cars that is not the engines!

I always found the 300 to be a bit fragile compared to the 200.

lynall said:

Nope never pressure tested any of them.
Reused the head bolts as well.
Still have two of them sat on my driveway, cars that is not the engines!

I always found the 300 to be a bit fragile compared to the 200.

Click to expand...

Best off look all I can say 300 crack heads and warp them all ways pressure test and if they pass skim them back flat and ues 3 hole head gasket

tonylandy123 said:

Best off look all I can say 300 crack heads and warp them all ways pressure test and if they pass skim them back flat and ues 3 hole head gasket

Click to expand...

And yes head bolts can be re used

tonylandy123 said:

And yes head bolts can be re used

Click to expand...

Why would you want reuse a TTY bolt, go to all the bother to do all that nice work & use the old cr@p bolts.
Yup people do I dont id rather spend the few extra quid as id probably snap the fookers putting them back in lol.

kevstar said:

Why would you want reuse a TTY bolt, go to all the bother to do all that nice work & use the old cr@p bolts.
Yup people do I dont id rather spend the few extra quid as id probably snap the fookers putting them back in lol.

Click to expand...

You can re use them twice if that's if there ok when cleaned up

tonylandy123 said:

You can re use them twice if that's if there ok when cleaned up

Click to expand...

Ok.

Hi All,

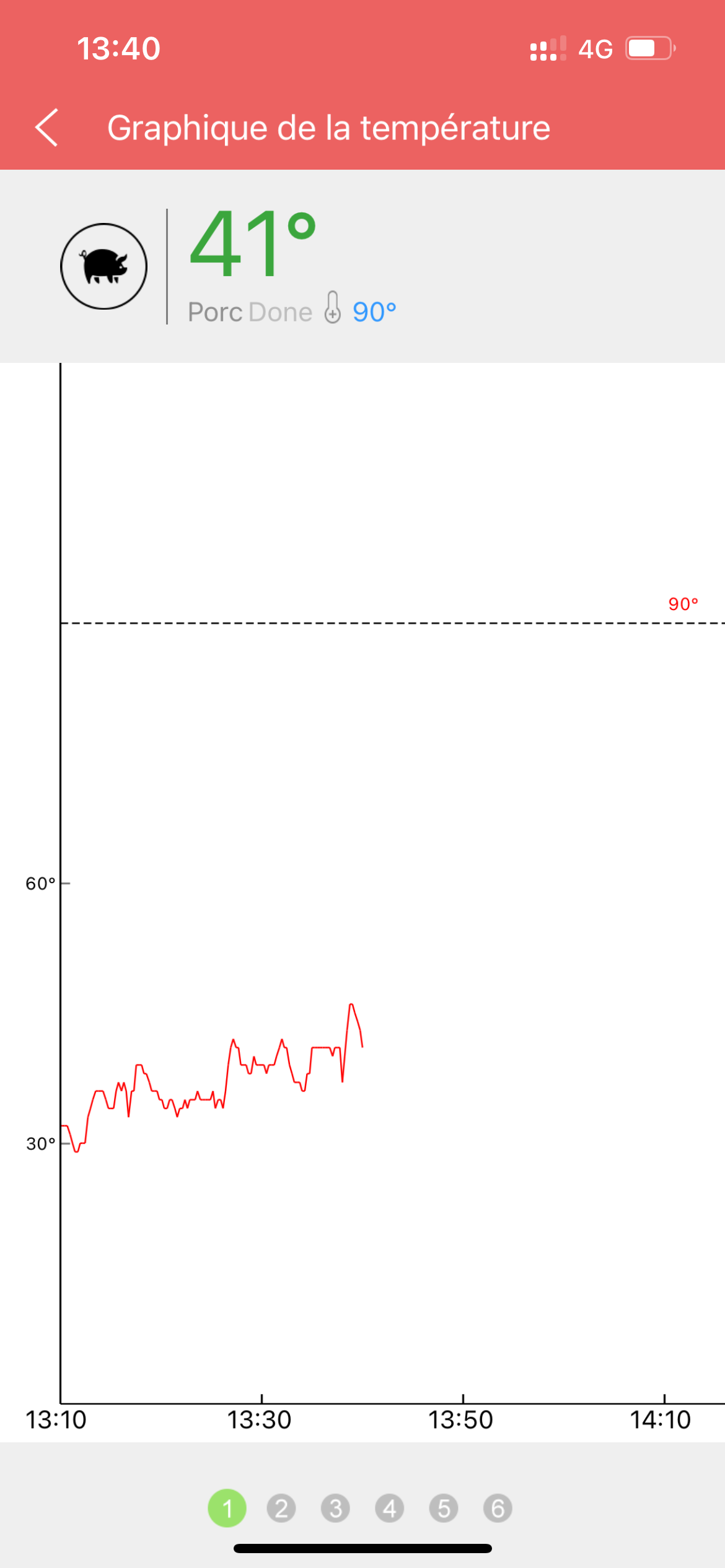

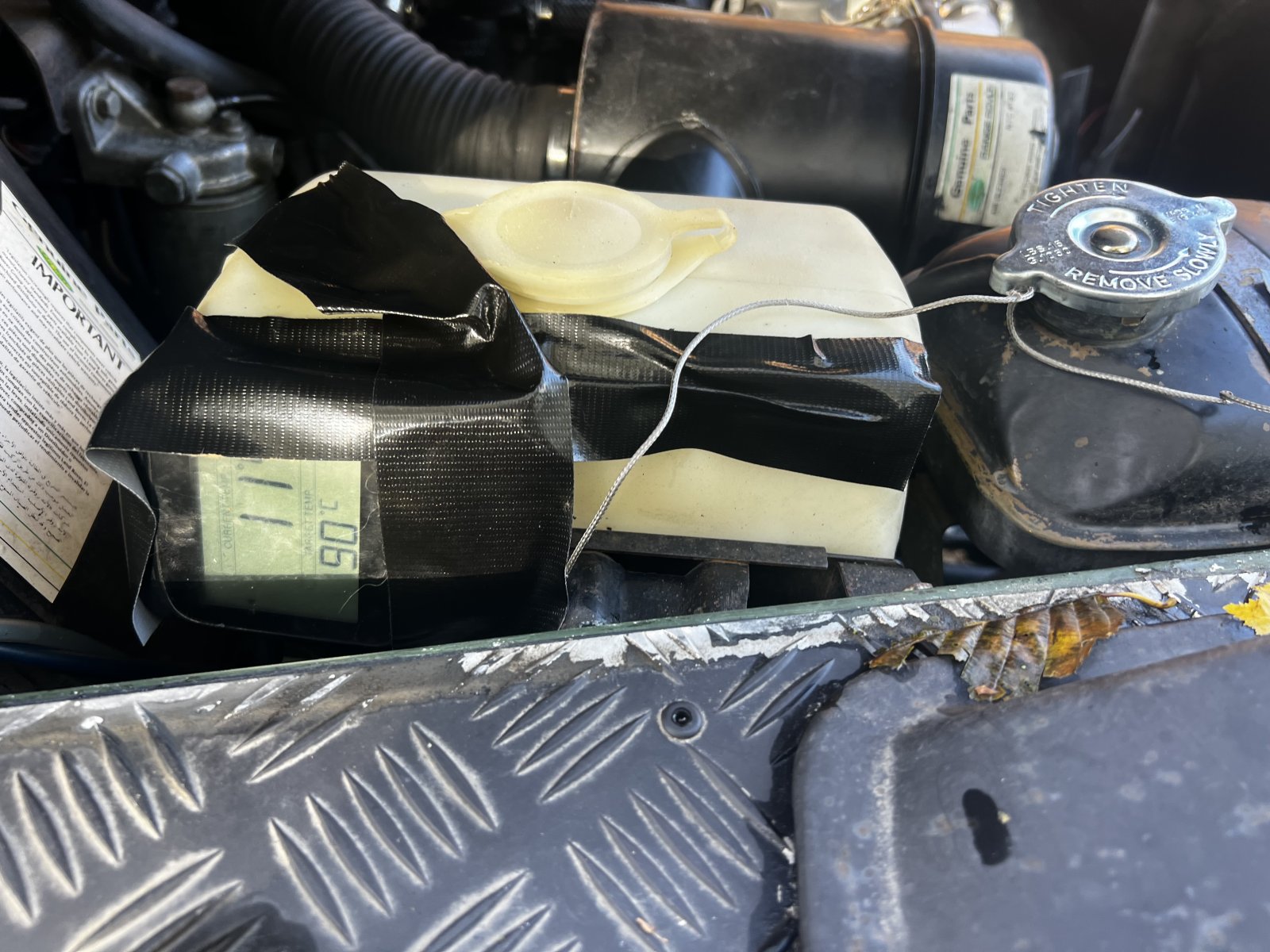

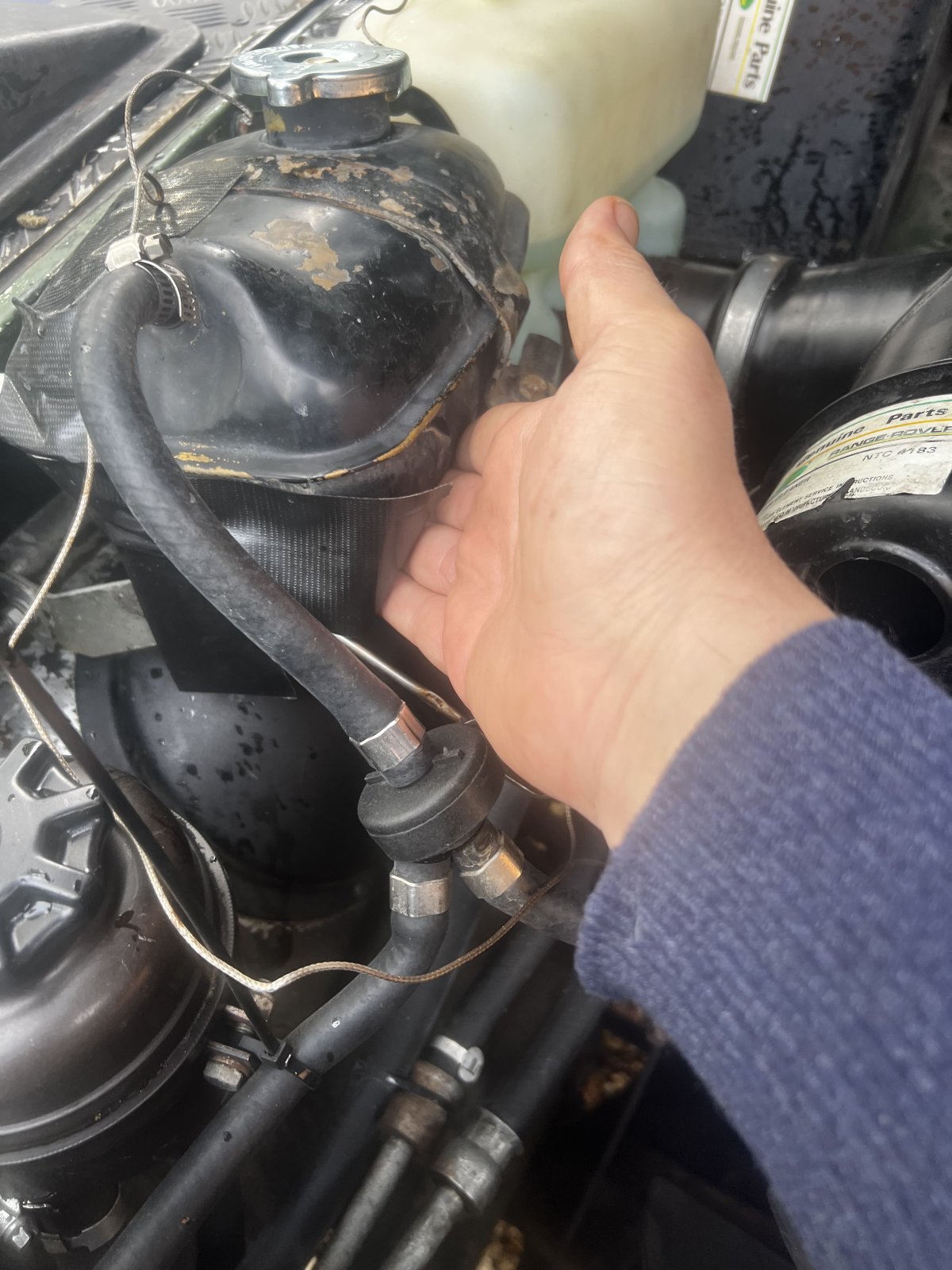

New discovery for me today (not the car), I wanted to do a quick test, I took my wireless barbecue temperature sensor and stick it on the expansion tank. Cool gadget as I can read the temperature wirelessly on my phone. See photos.

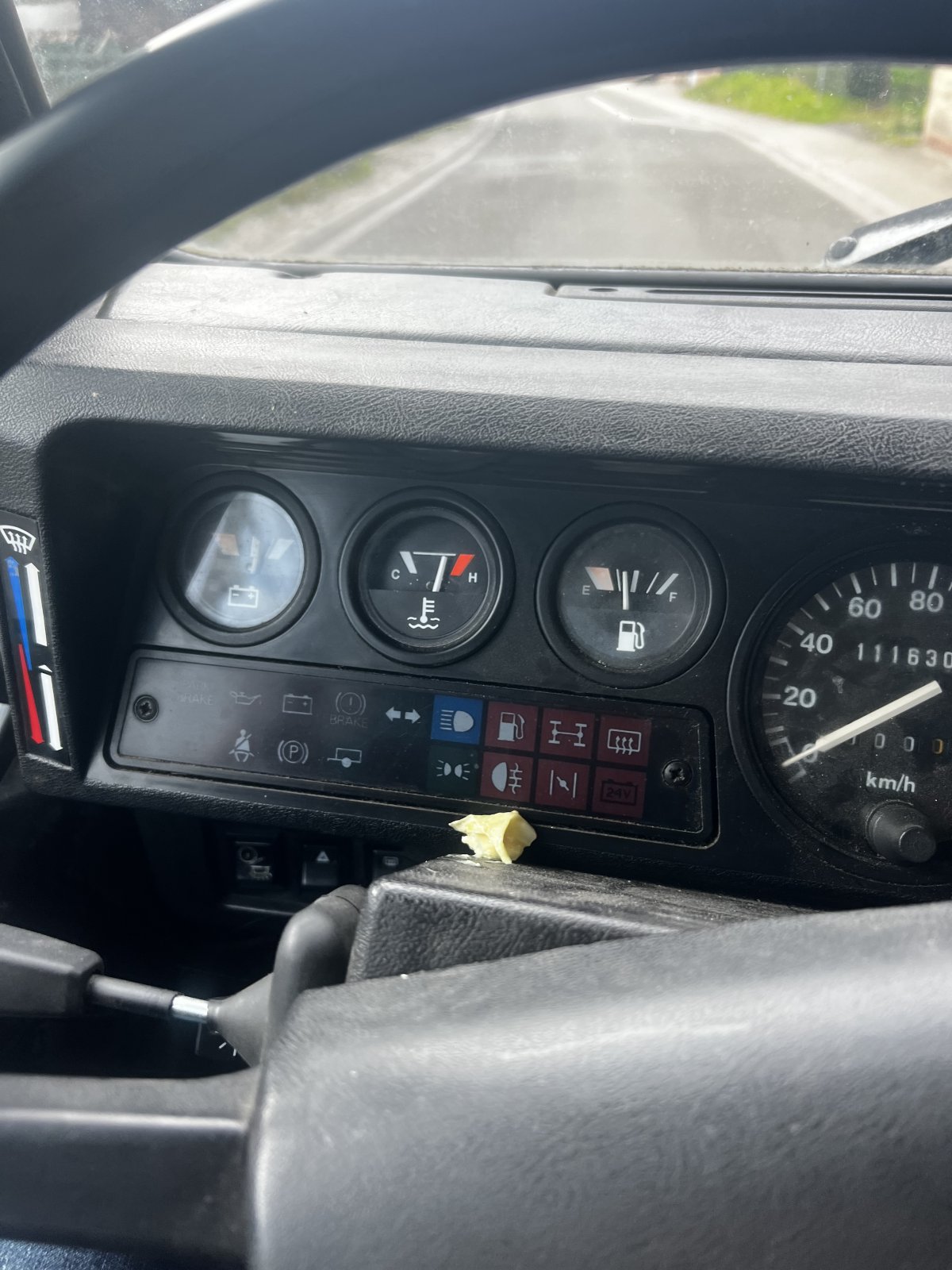

Guess what the engine does not seems to warm up even if the gauge says otherwise.

What do you think? Except that I am crazy

Does the expansion tank have a flow? Could you try it on the hose from the thermostat housing?

Dr Strangeglove said:

Does the expansion tank have a flow? Could you try it on the hose from the thermostat housing?

Click to expand...

I don’t think that header is piped in correctly.
(And it’s also not the correct tank for the engine)

It's not the correct expansion tank for sure.
Is it perhaps not the correct sensor ?
There are two, a black one and a green one, the wrong one tells you your engoine is overheating when it's not.
Black is for the Defender & green is for the Discovery.

Also check the gauge is not earthed by removing the earth for the lamp, the gauge will only read correctly if the earth is via the sensor.
You also need a good engine earth.

Bet its a mismatch of the sensor, that's where my son's tdi conversion in his Ninety sirs on the temp gauge It isn't running hot. Would have been a good idea to check actuall temp earlier on.

good evening, another test today and I think I loosing coolant but I cannot find from where, I had to add about a liter of coolant today after driving 30´ and letting the car sit for 24h.

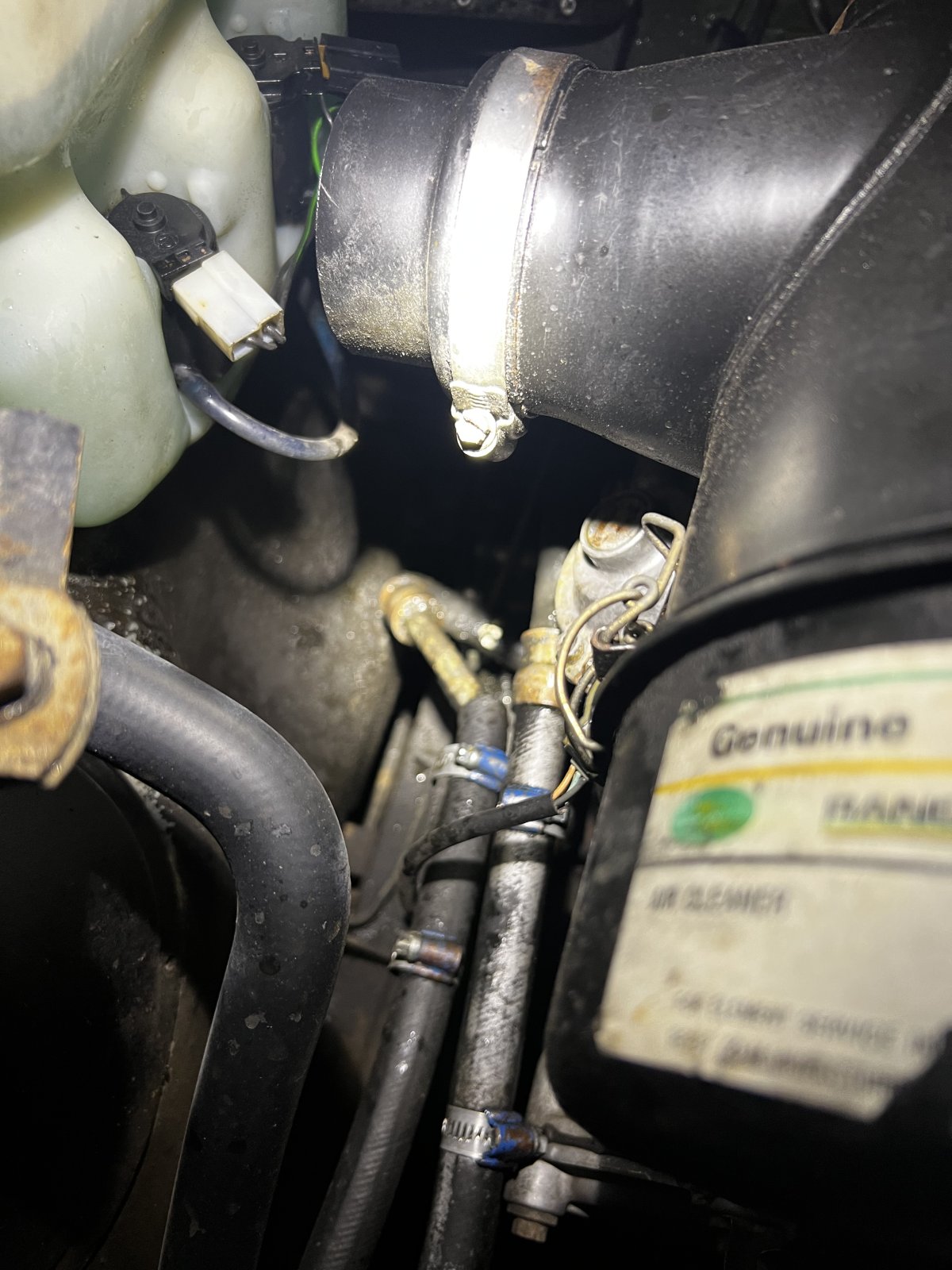

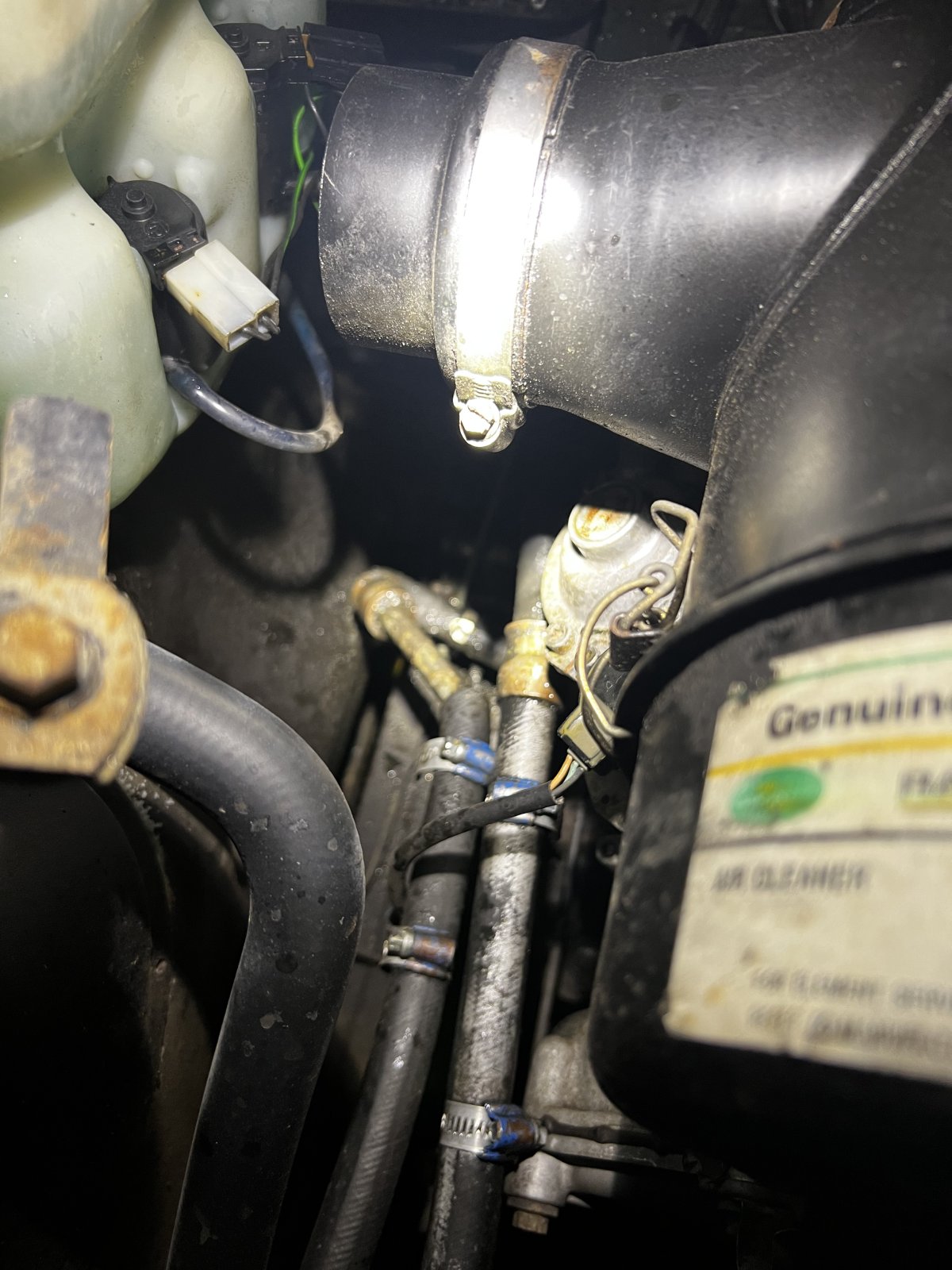

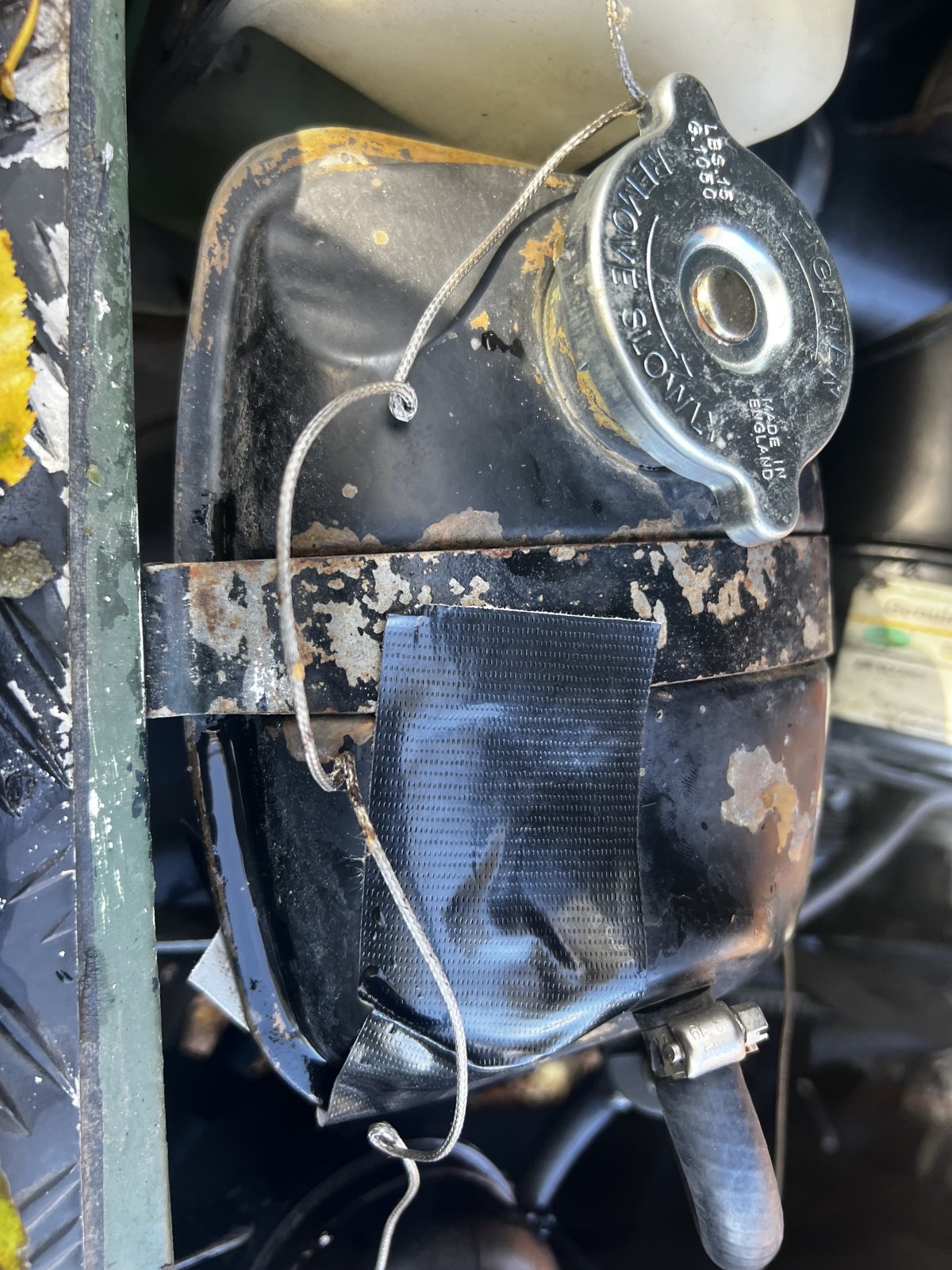

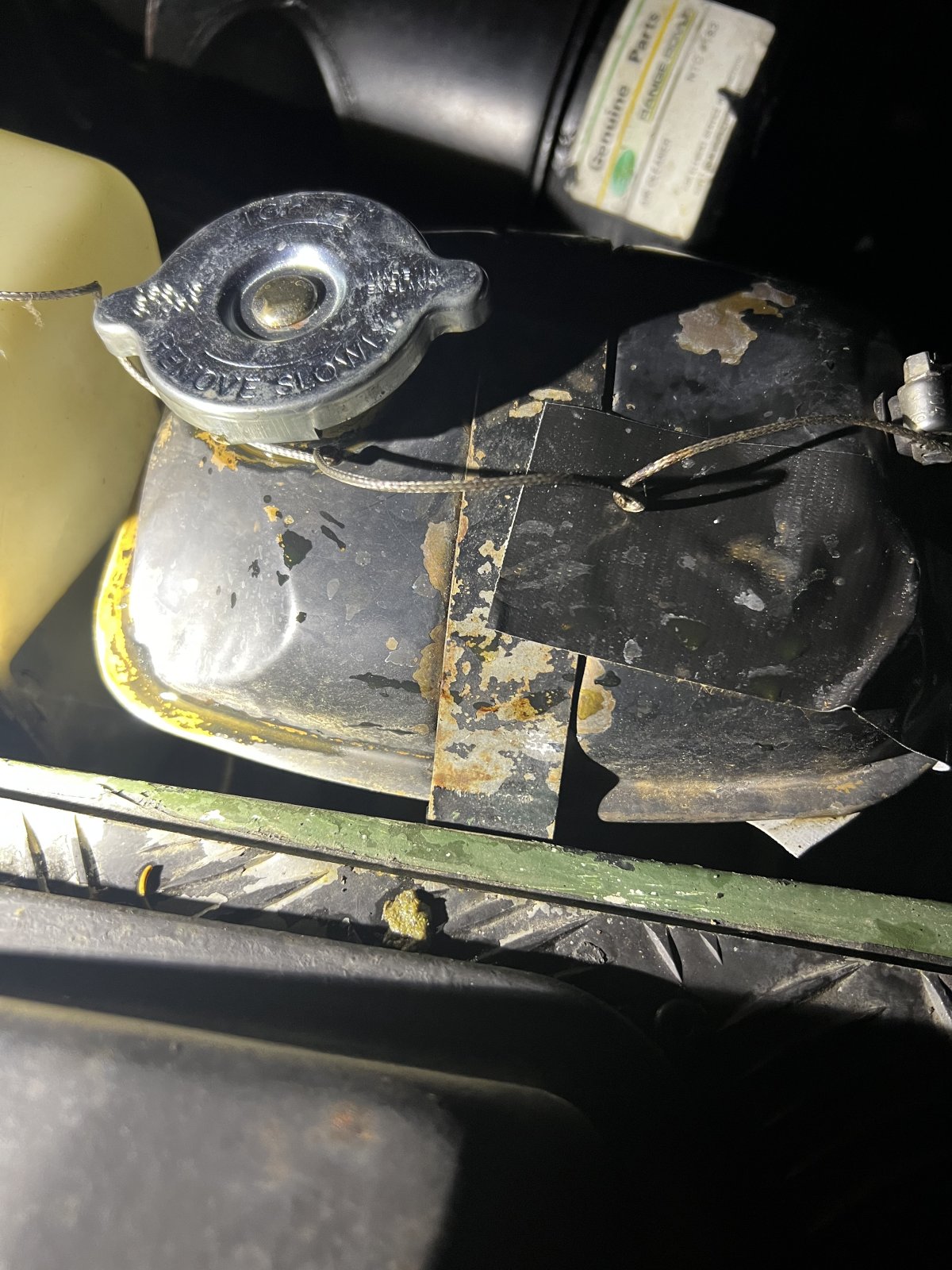

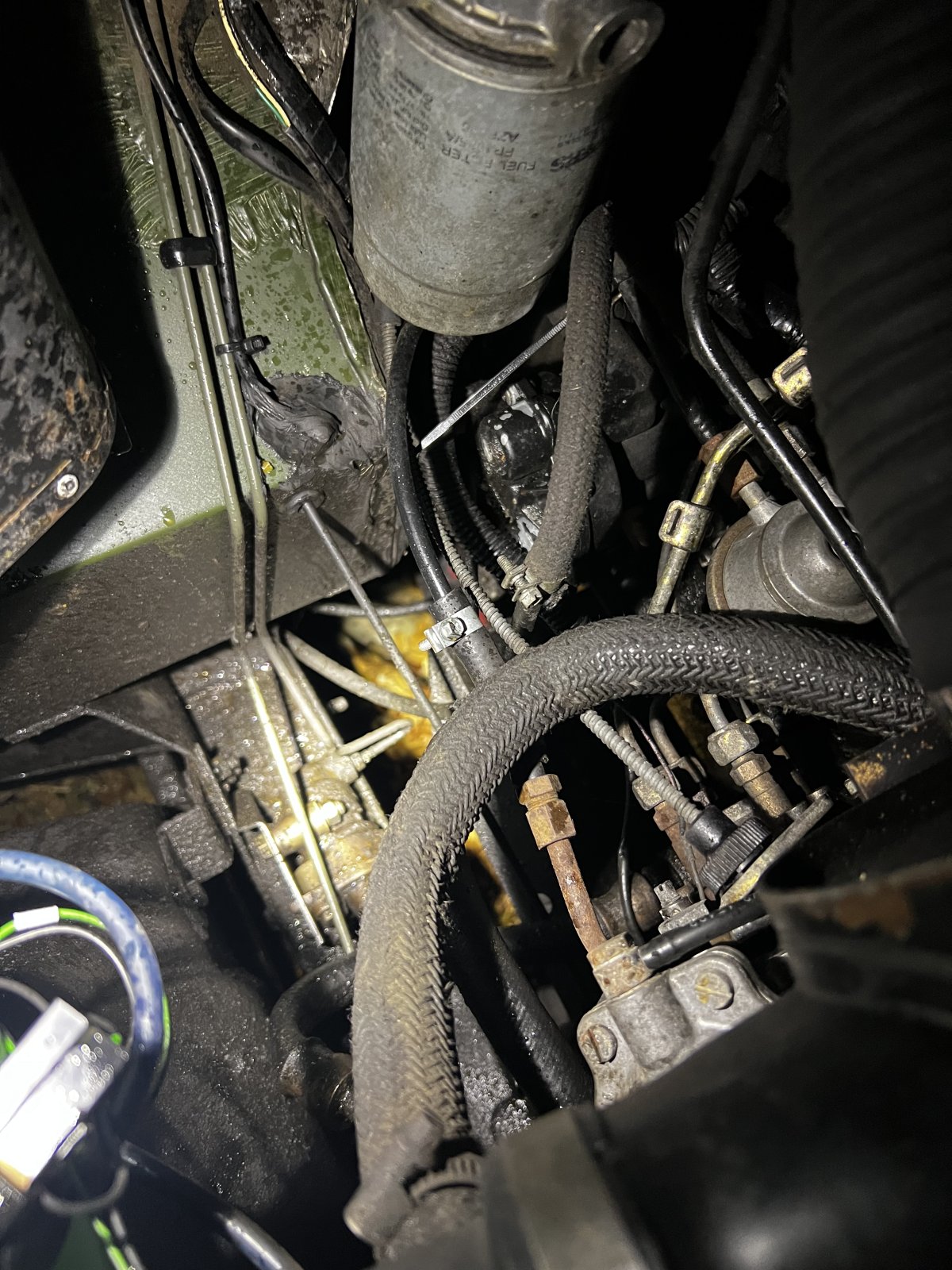

I know the expansion tank need to be changed but what about the piping down there. See photos.

Ziva said:

good evening, another test today and I think I loosing coolant but I cannot find from where, I had to add about a liter of coolant today after driving 30´ and letting the car sit for 24h.

I know the expansion tank need to be changed but what about the piping down there. See photos.

Click to expand...

Take a phot of the pipe going into the bottom of the header tank.

Pipes look like power steering pipes

That is a header tank from a NA or 19j truck.
If you want to know the actual running temperature fit an aftermarket gauge that reads in numbers/degrees.

Dear All,

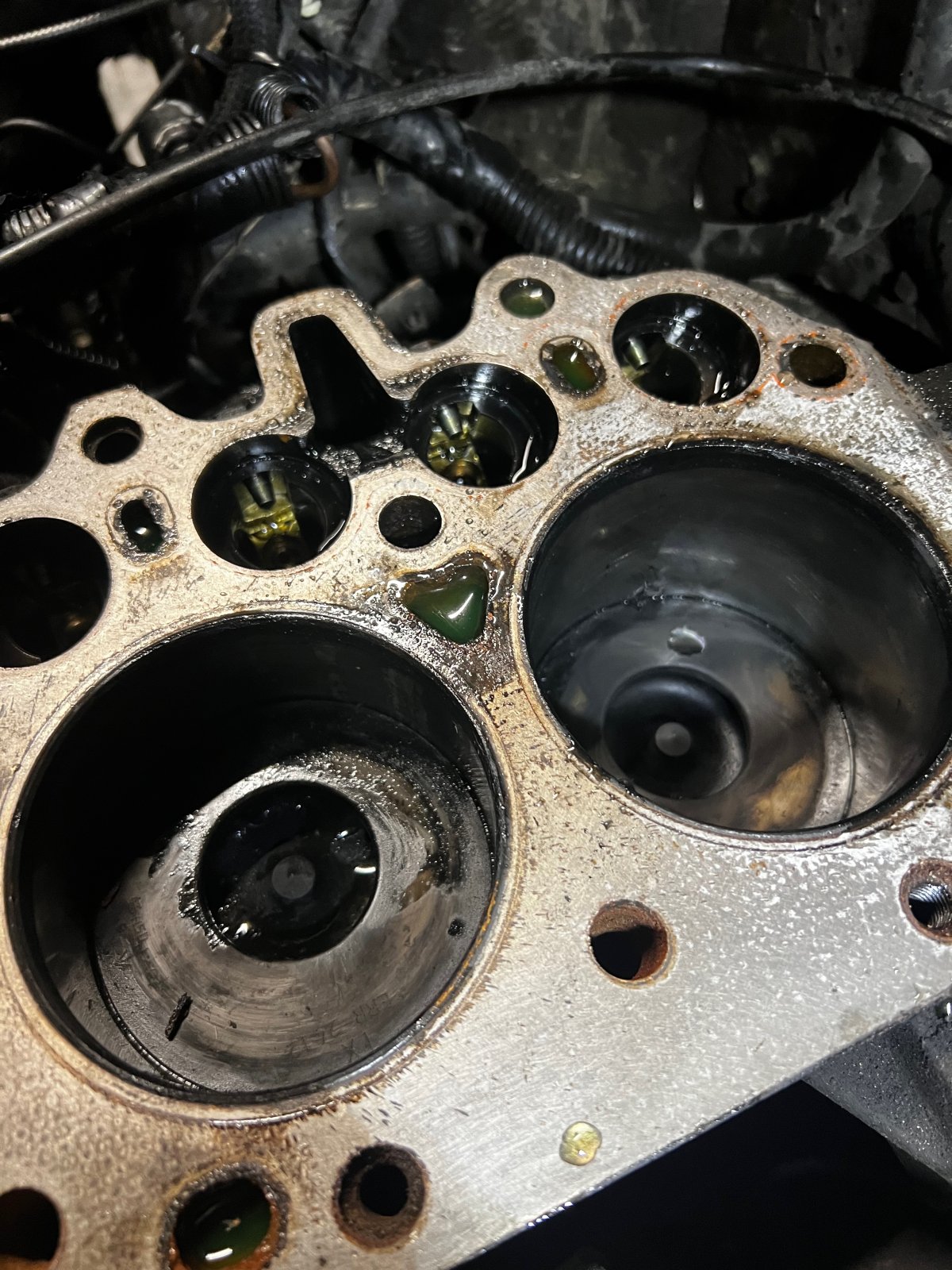

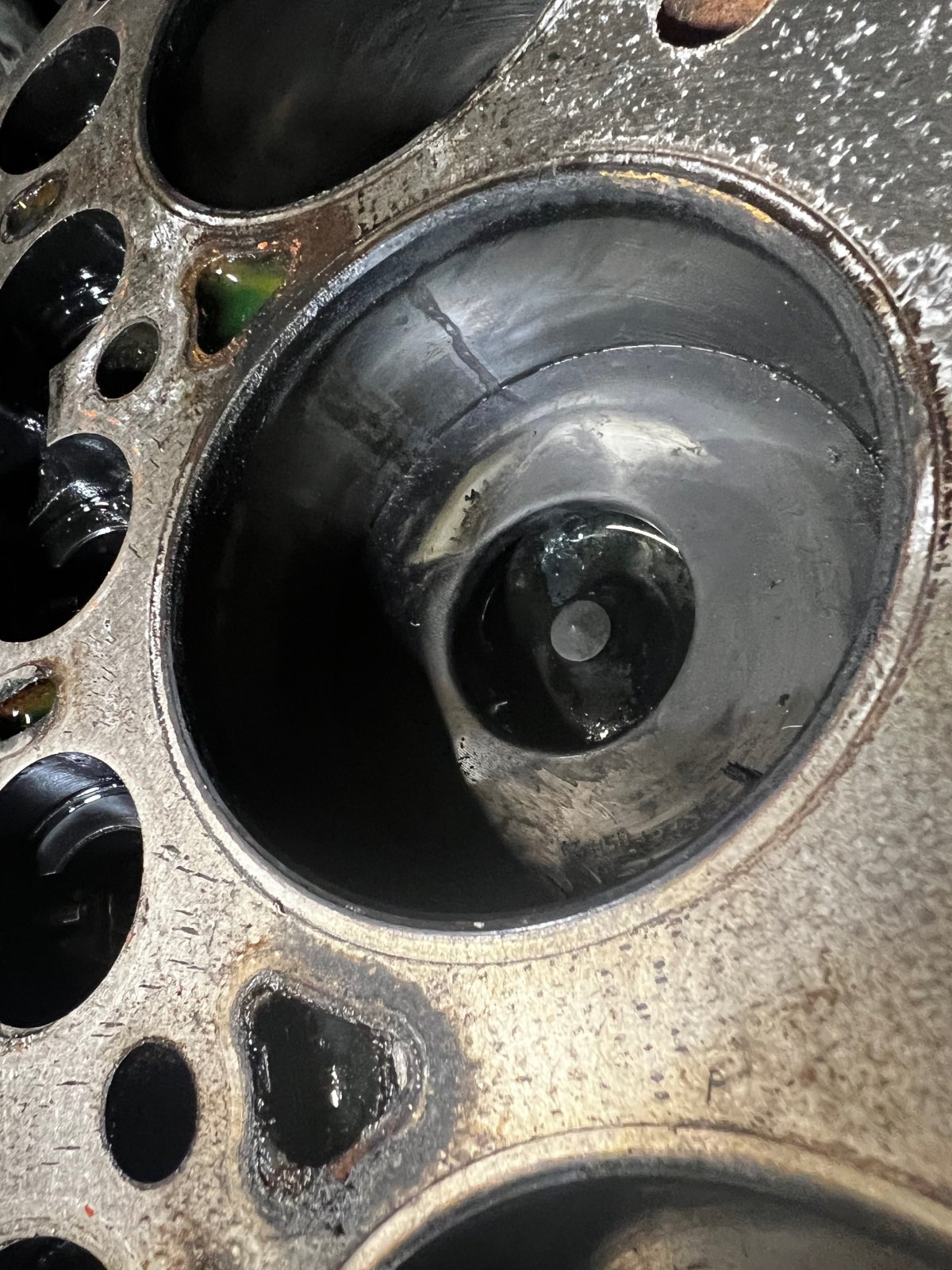

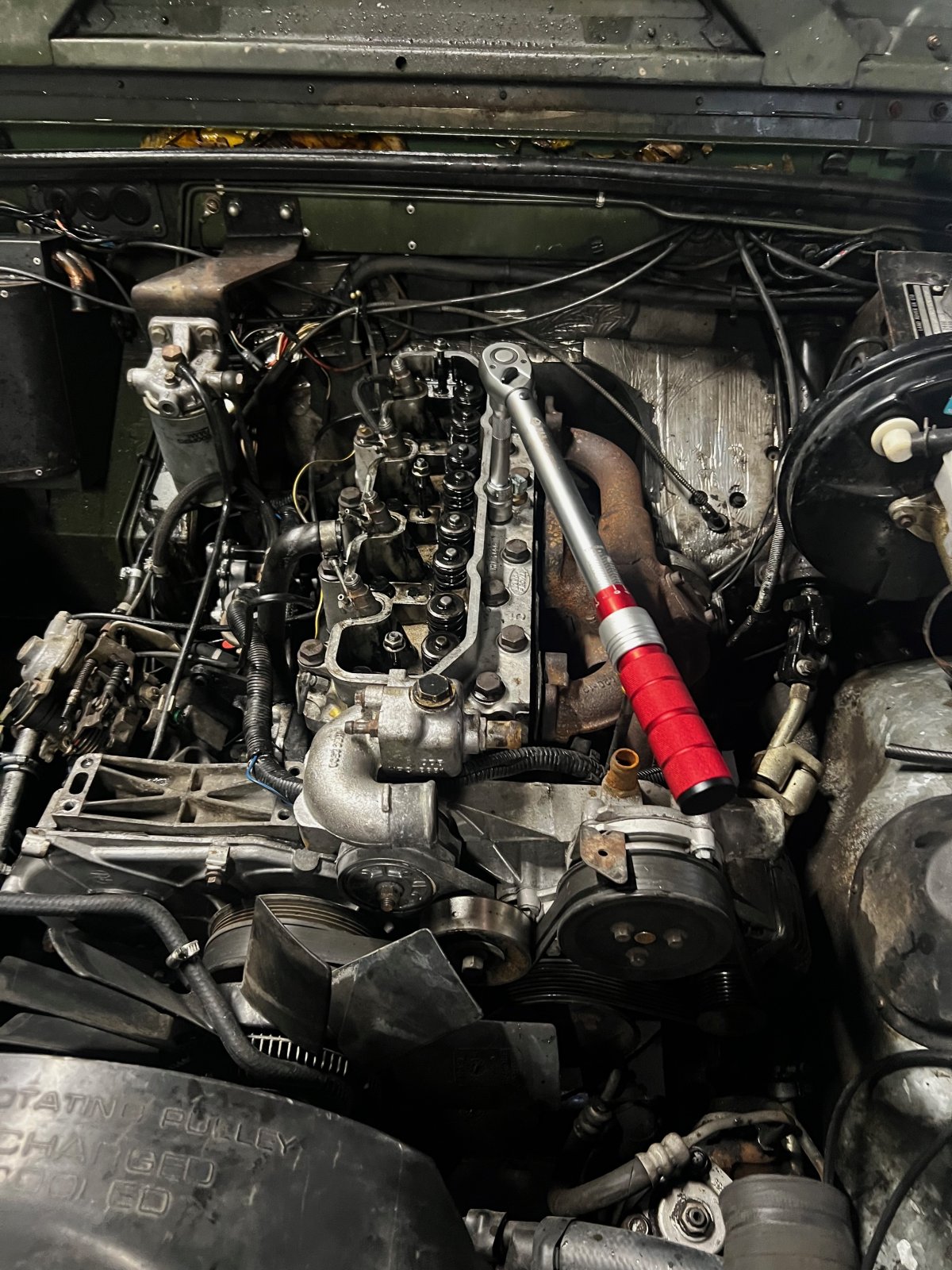

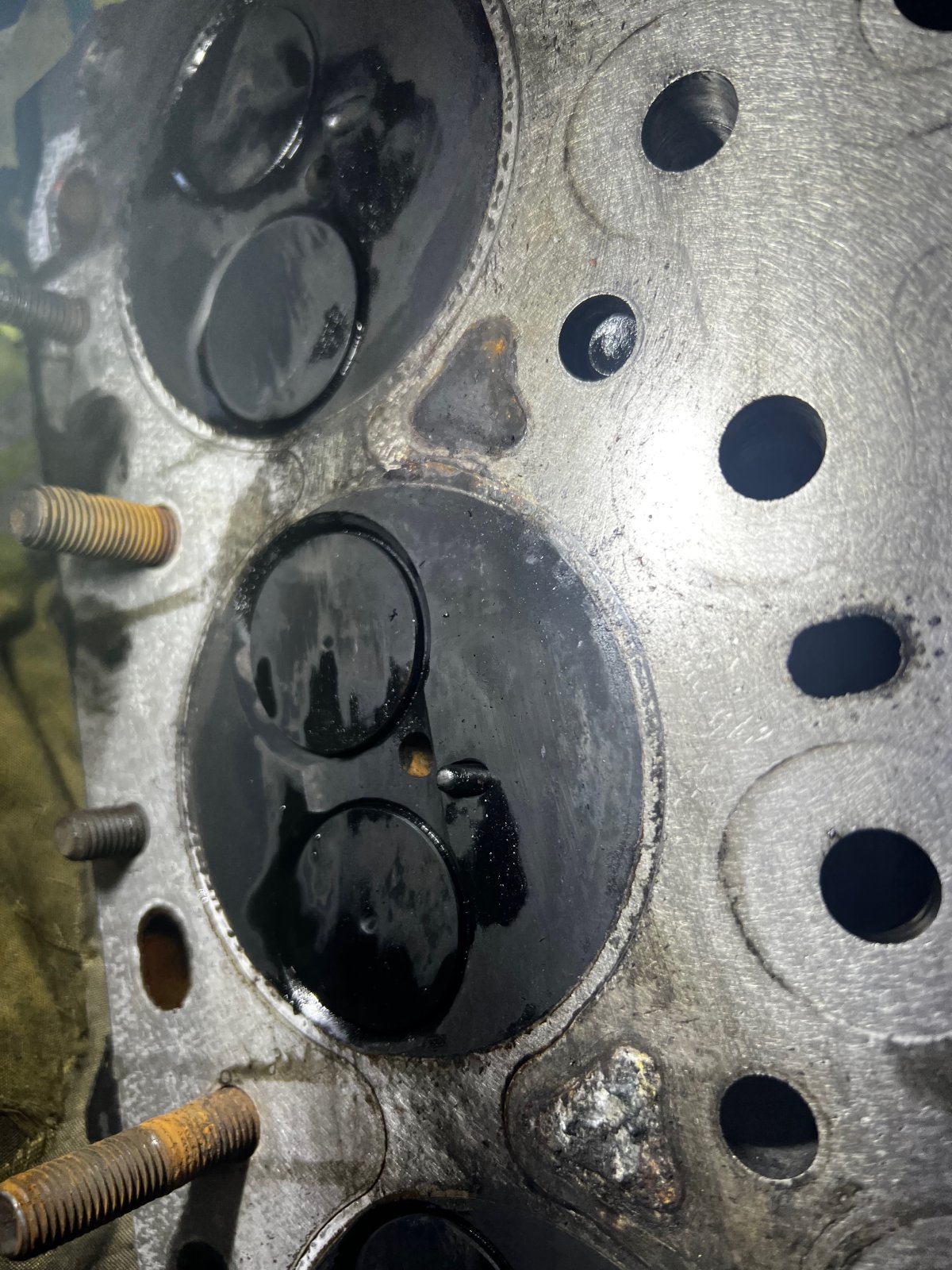

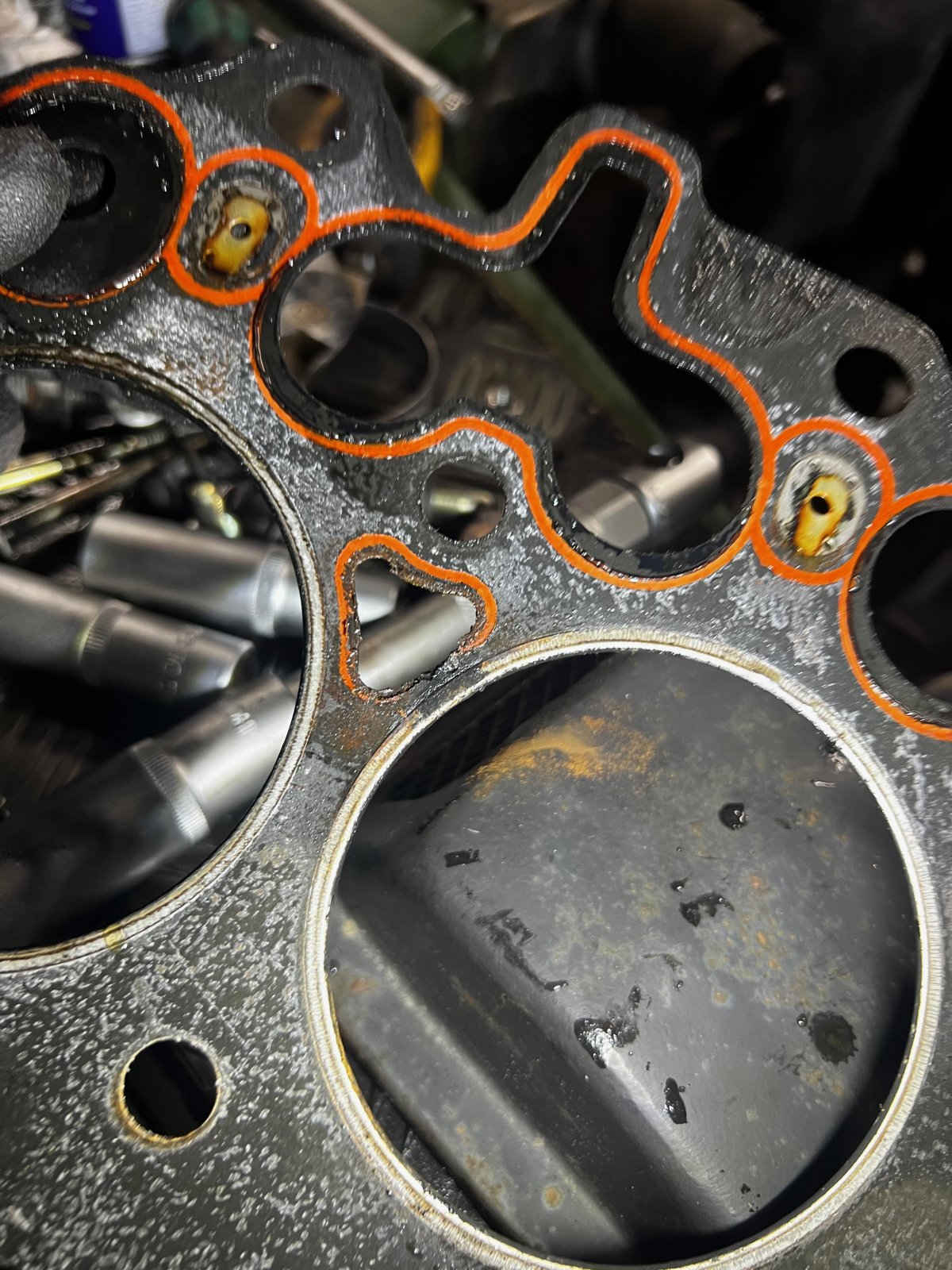

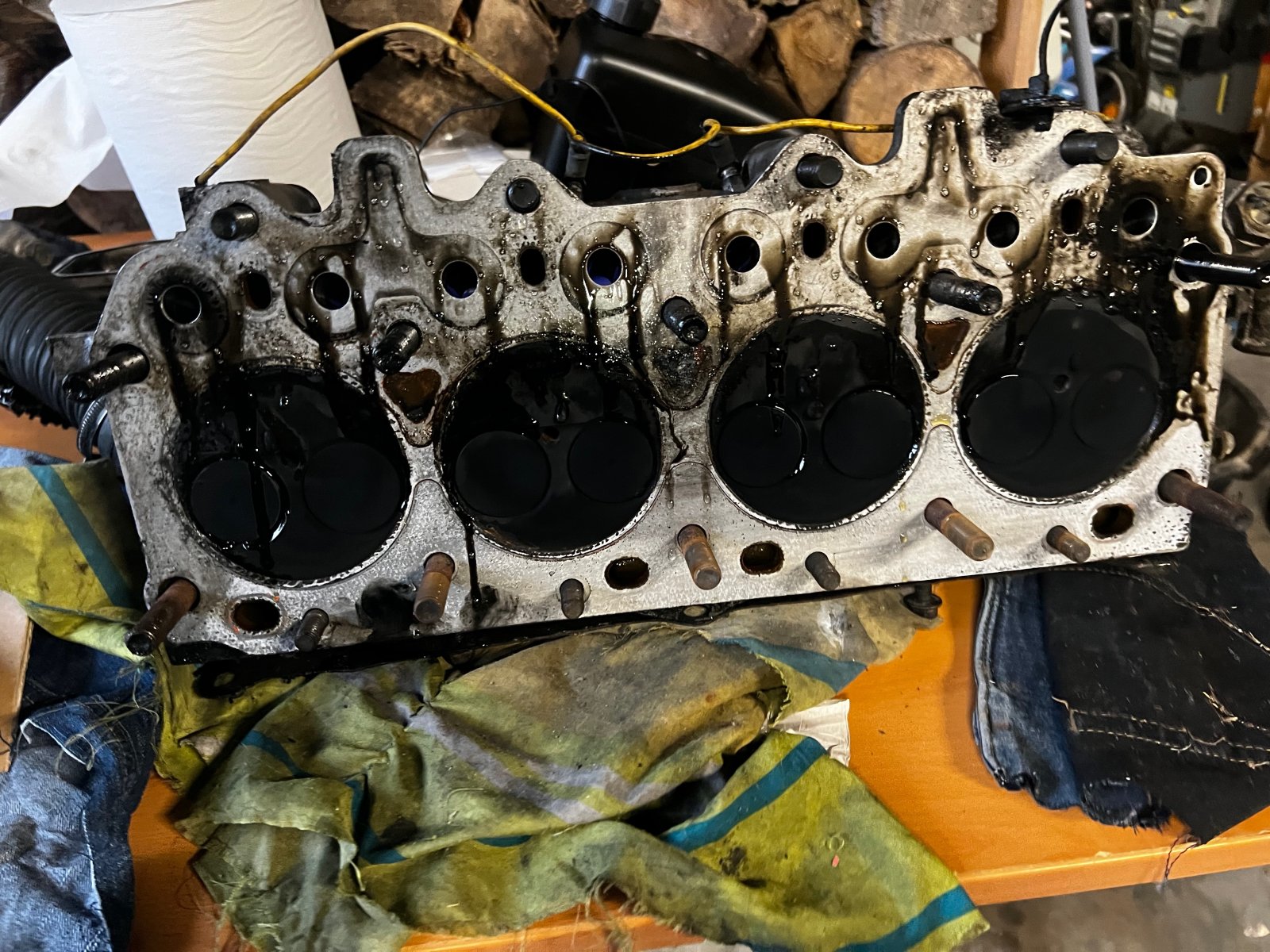

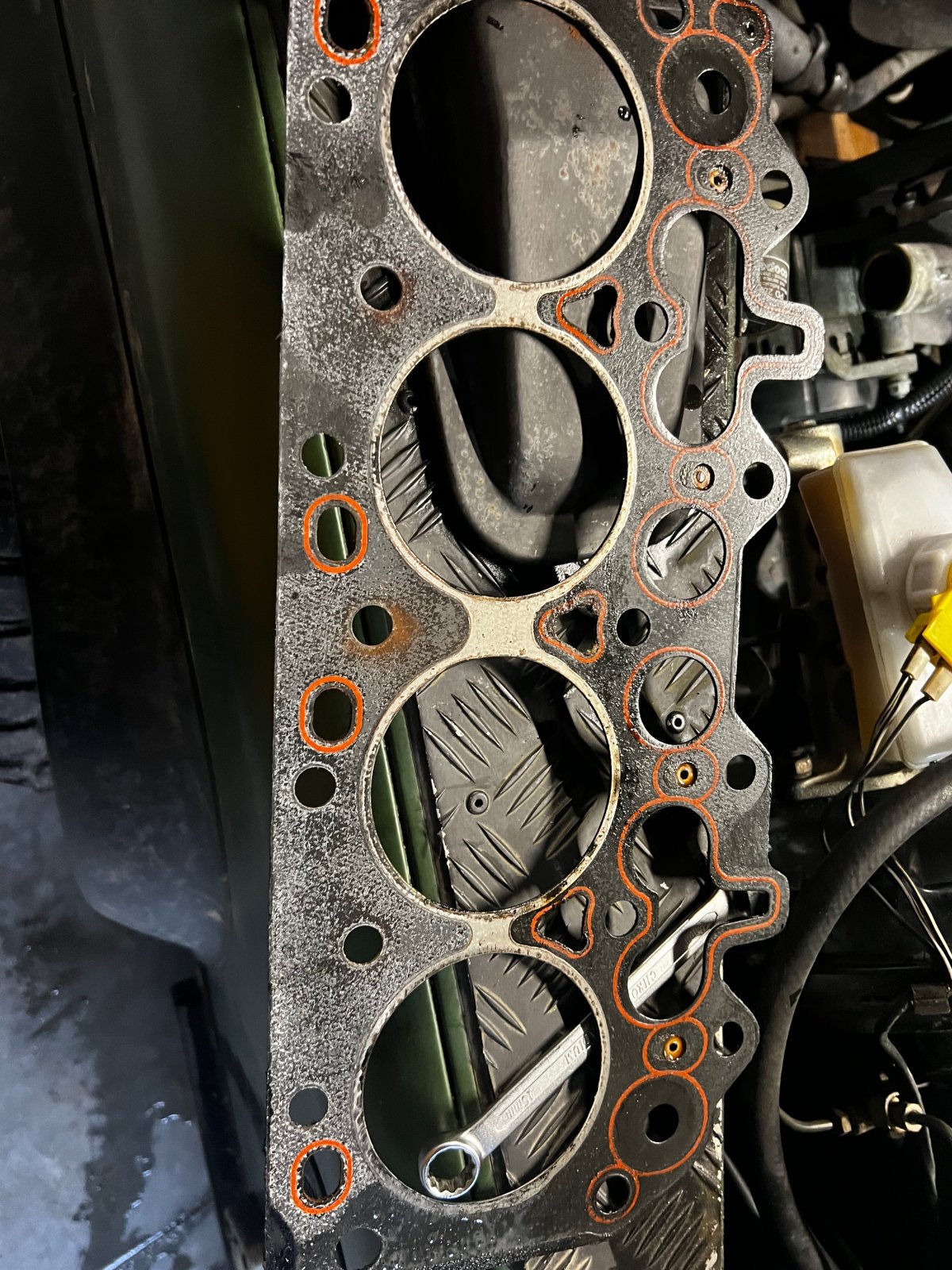

Finally the head is out no major struggles and all the bolts were easy to remove, that's a good point. I only found one point of "possible exchange" between the coolant and the oil, but I do not know if this will be enough to loose that much coolant.

Please let me know if you see anything else suspicious.

Furthermore, if you have the reference of a good head gasket kit I will be grateful.

I will poste further photo once the head is back from the workshop.

Have a nice sunday

the presence of rust shows in areas it shouldn't be in tells me that either it was a dud head gasket or a warped head from a previous overheating event

our brit in canada seems happy with the all steel gaskets

new bolts and you good to go again

the bores look good from the pictures as well

hope all works out well

tonylandy123 said:

You can re use them twice if that's if there ok when cleaned up

Click to expand...

Think 200tdi was up to 5 times reuse, if they met the length specs.

Ziva said:

Dear All,

Finally the head is out no major struggles and all the bolts were easy to remove, that's a good point. I only found one point of "possible exchange" between the coolant and the oil, but I do not know if this will be enough to loose that much coolant.

Please let me know if you see anything else suspicious.

Furthermore, if you have the reference of a good head gasket kit I will be grateful.

I will poste further photo once the head is back from the workshop.

Have a nice sunday
View attachment 302971View attachment 302972View attachment 302973View attachment 302974View attachment 302975View attachment 302976View attachment 302977

Click to expand...

Sometimes you cannot see where the issue was, but a new gasket fixes it, slightly annoying as I like to see a failure point.

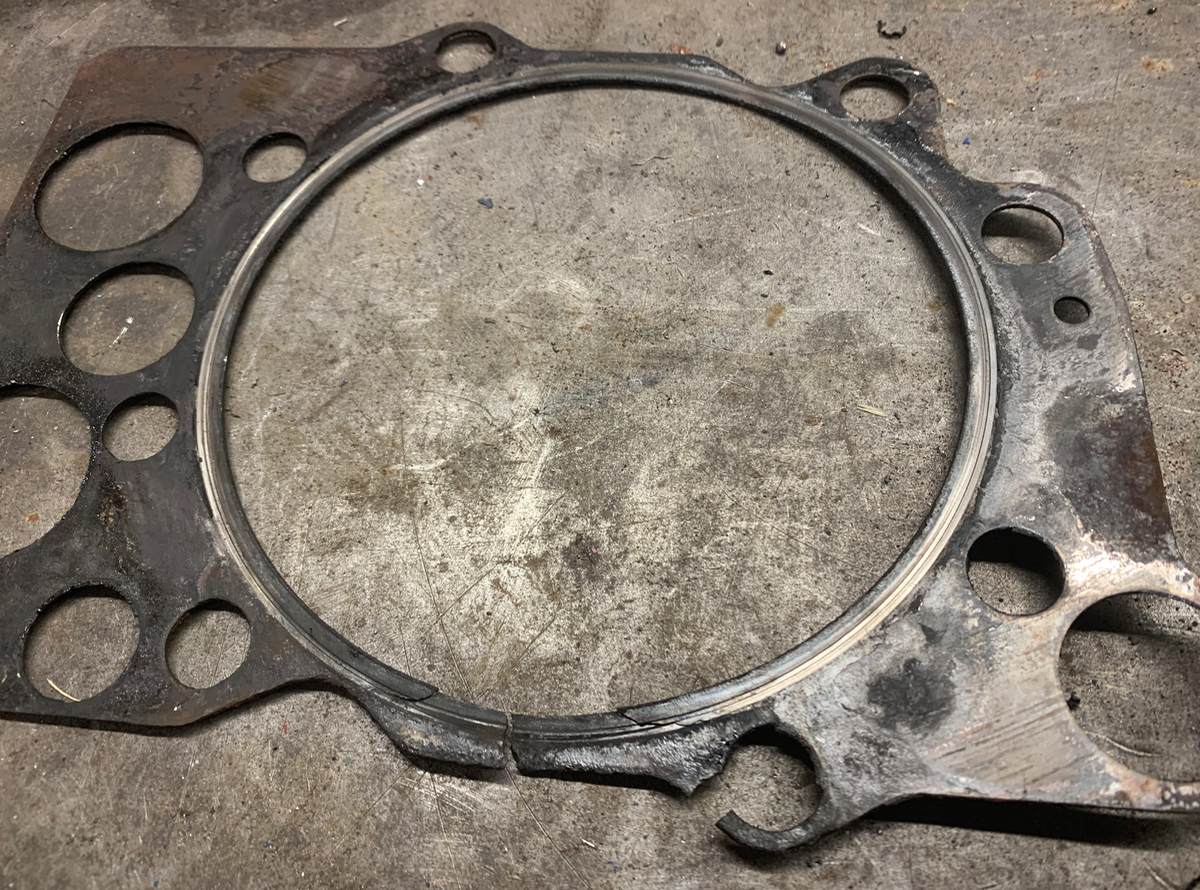

Head gasket I changed the other day, reused head bolts and took a guess at the torque figures @370nm.

lynall said:

Sometimes you cannot see where the issue was, but a new gasket fixes it, slightly annoying as I like to see a failure point.

Head gasket I changed the other day, reused head bolts and took a guess at the torque figures @370nm.
View attachment 302990

Click to expand...

as least on yours you see the problem. not so easy on mine.

I am taking the head to a workshop to plan it.

so I will be hopefully good with it.
