Evan farmer
Active Member
- Posts
- 782
Ive wired up a volt meter and oil temp and pressure all vdo volt works fine however my oil pressure and temp move up to 0 with ignition but then wont move at all
Oil temp and pressure not working
- Thread starter Evan farmer
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
steve2286w
Well-Known Member
- Posts
- 4,573
- Location
- monkeyangerland
https://www.vdo-gauges.com/media/instructions/0 515 012 123 -- Electric Gauges.pdf
Are the gauges used with VDO senders and have you wired correctly according to the instructions
Are the gauges used with VDO senders and have you wired correctly according to the instructions
Evan farmer
Active Member
- Posts
- 782
Yes my pressure sender has g and wk on it i take g for gauge no idea what wk means though
Evan farmer
Active Member
- Posts
- 782
How do i test my pressure sender to see if its working
steve2286w
Well-Known Member
- Posts
- 4,573
- Location
- monkeyangerland
For an electrical sender unit I would think the resistance would change with pressure .
So use a multimeter set on resistance and measure ohms with engine off and then start engine and the resistance should change , probably drop which would equate to a full scale reading
So use a multimeter set on resistance and measure ohms with engine off and then start engine and the resistance should change , probably drop which would equate to a full scale reading
steve2286w
Well-Known Member
- Posts
- 4,573
- Location
- monkeyangerland

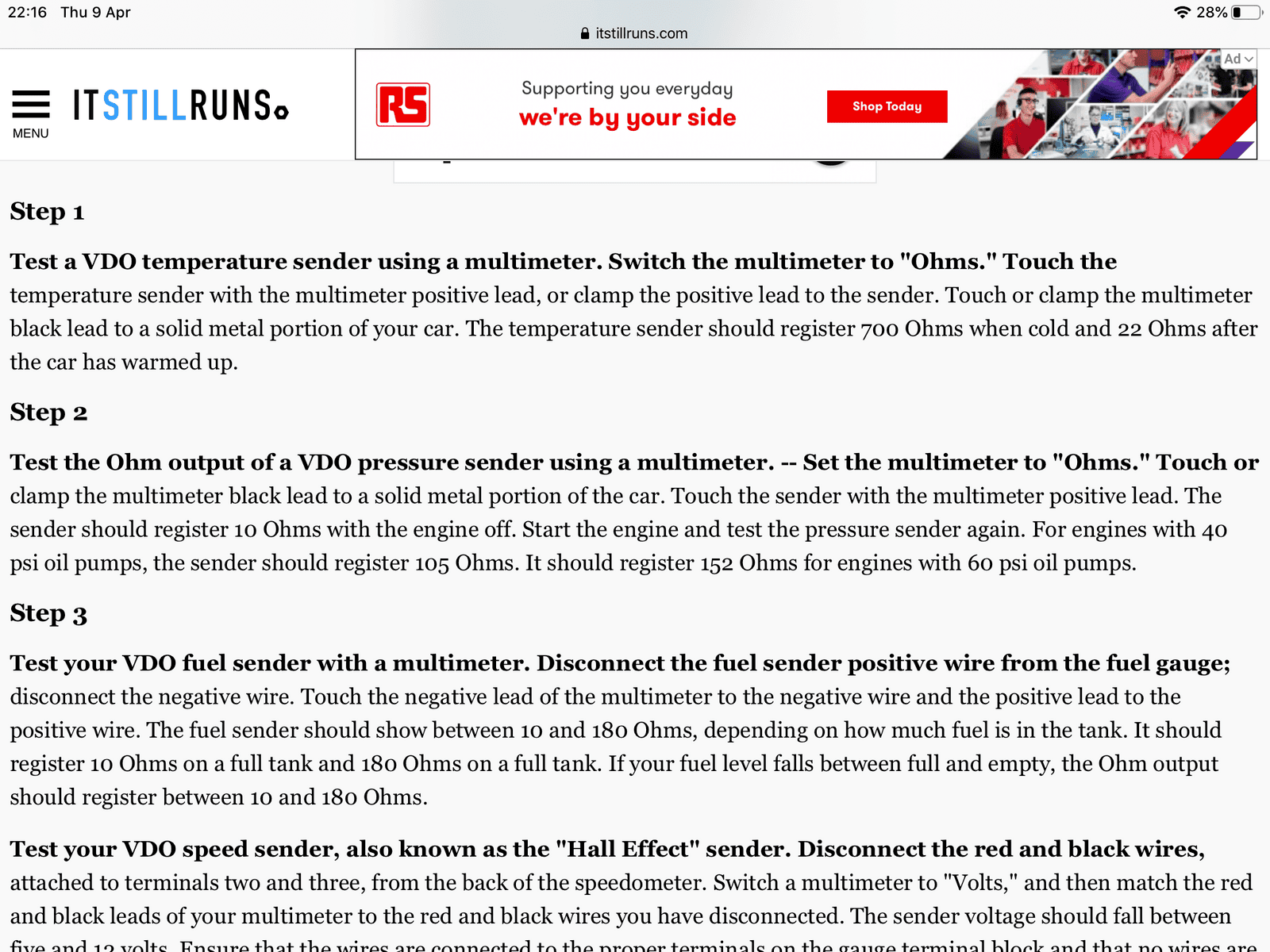

Just found this ohms go higher
