Series 2 Oil Pressure Switch

S

ShoxX1993

New Member

Posts

6

• Yesterday at 16:14

• #1

Hello everybody

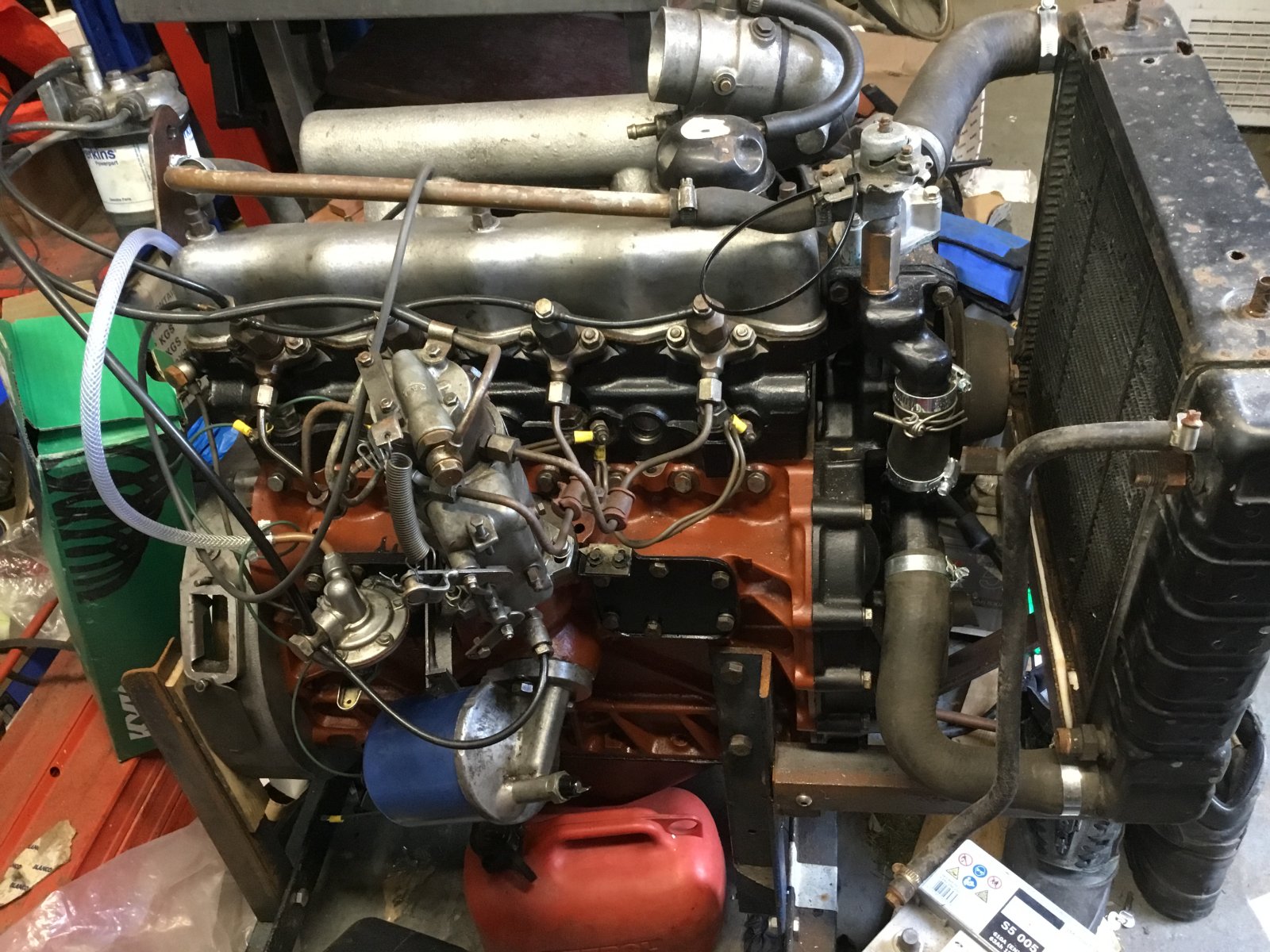

Which oil pressure sender do I need for a Series 2 diesel engine? I bought this sender, but unfortunately the thread is too small. Mine has a larger screw. Or do I need an adapter?

Thank you very much!



Attachments

•

  560.8 KB · Views: 8

kermit_rr

Very

Full Member

Posts

37,834

Location

North Shropshire

• Yesterday at 18:10

• #2

The parts book lists 519863 for diesel

This listing has the same part number
https://ebay.us/m/5fz2Uz



S

ShoxX1993

New Member

Posts

6

• Yesterday at 21:18

• #3

Thank you, but then I seem to have the right one.

In the eBay description the OEM Reference number is 90519864. Mine has the same number.

Where do I install the Switch? My Land Rover is missing the Switch.



steve2286w

Well-Known Member

Posts

5,197

Location

monkeyangerland

• Yesterday at 21:27

• #4

Usually on the oil filter housing



S

ShoxX1993

New Member

Posts

6

• Yesterday at 22:16

• #5

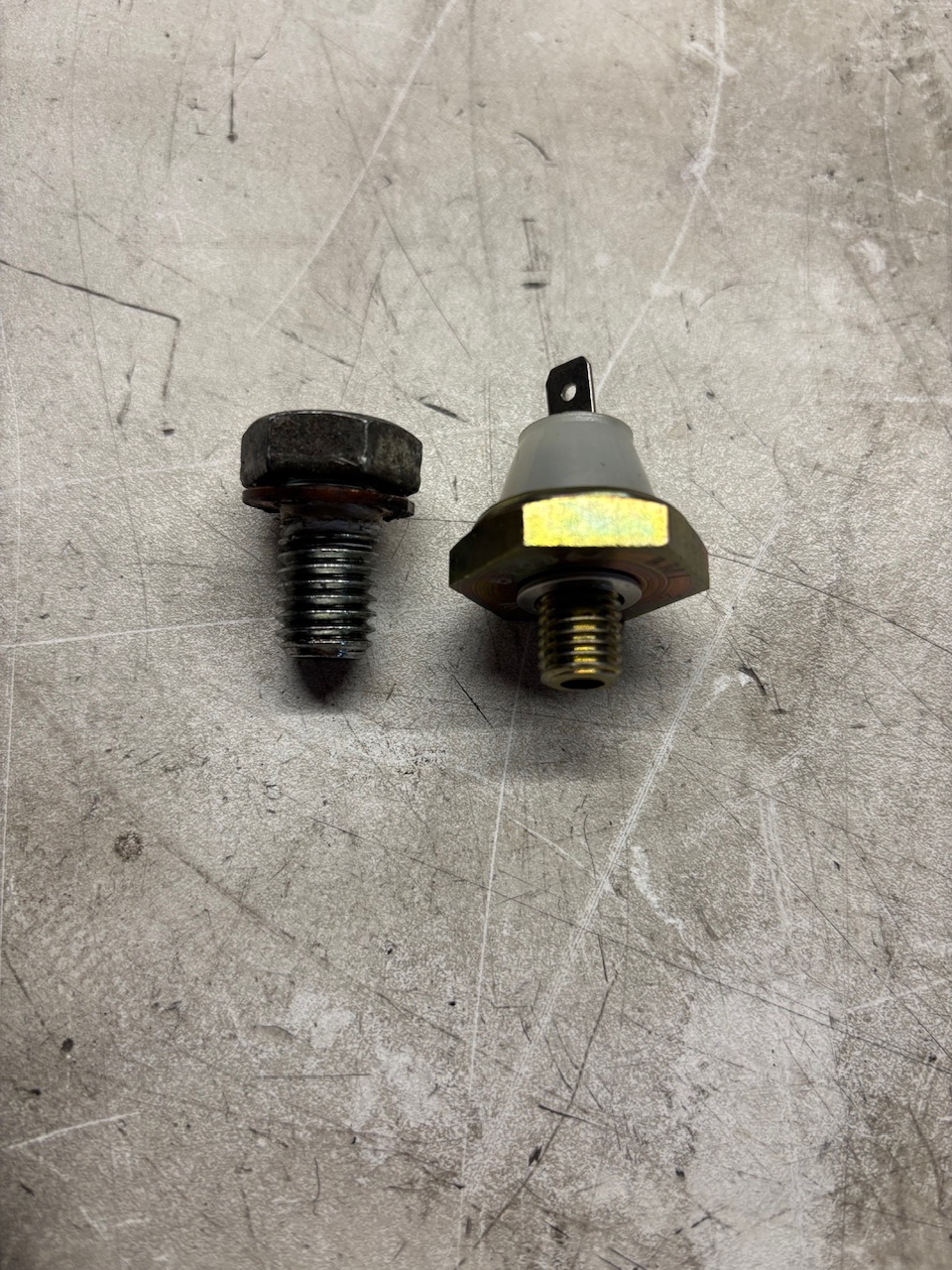

Ok then I searched in the right place. But why is the screw in my picture bigger than the pressure switch thread?
