Oil pressure light is on but gage is high

Discussion in 'Series Land Rovers' started by Kevin-s3, Jan 14, 2020.

< Previous Thread | Next Thread >
  1. Kevin-s3

    Kevin-s3 New Member

    Joined:
    Mar 4, 2018
    Posts:
    9
    Likes Received:
    0
    Location:
    St. Louis Mo USA
    Hello

    As the title says I have an oil gage and it is reading a 6 where the highest number is a 7. I recently change the sensor and now after my series 3 runs for 15 minutes or so the light comes on.

    My dip stick is showing the middle between low and high. I have change my oil to see if the filter has a problem. Is use filter from Land Rover. Not after market.

    The 50 dollar question is “who do I trust”? Gage or light.

  2. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,672
    Likes Received:
    366
    Location:
    monkeyhangerland
    ....

    Last edited: Jan 14, 2020
  3. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,672
    Likes Received:
    366
    Location:
    monkeyhangerland
    It’s good to have a gauge but you need confidence in it
    The sensors could be duff even when new
    I always change filter when changing oil
    You could get a pressure tester and measure the oil pressure

  4. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    5,600
    Likes Received:
    2,875
    Location:
    North Shropshire
    You need a gauge that tells you pressure in a standard unit of measurement, 0-7 isn't much use unless you have a conversion table
    An oil pressure gauge is always better than a light, often by the time the light comes on, when it's working properly, it can be too late

  5. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    5,740
    Likes Received:
    4,921
    Location:
    Thatcham
    Is your guage driven by an oil capillary pipe or an electric wire? Mine is a psi guage powered electrically from the sensor and has started playing up, I either have 45-50psi or nothing. If I give the sensor a sharp tap with the handle of a screwdriver, it comes back to life for a few days. Series 3 oil pumps are very reliable so your issue is probably the sensor, you should consider getting a new one or doing away with the guage and just get a sensor for the oil light.

    Col

  6. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    2,477
    Likes Received:
    840
    Location:
    Slough and Bath
    Sometimes the diapram in the sensor fails, the swich and gauge are sometimes on separate sensors even when its a single unit.

  7. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    15,829
    Likes Received:
    16,892
    Location:
    Manchester
    Britpart sensor?

  8. Kevin-s3

    Kevin-s3 New Member

    Joined:
    Mar 4, 2018
    Posts:
    9
    Likes Received:
    0
    Location:
    St. Louis Mo USA
    Thanks for all your replies. Here is some additional info and responses.

    I think that the light sensor and gage are different since the gage was working while the light was not. I had the sensor replace during other work and the first did not work. This is the second. BTY I had the frame replace.

    As for the gage sensor I’m not sure if it is electric. I will need to crawl underneath the rover to look for it. It is reassuring to know that the oil pump is reliable.

    I went out and took a photo and enlarge the gage. In the bottom in very small print is kg/cm2. The conversion to PSI is 85. I’m not certain but it may have been lower when I first purchased the car and before I did the first oil change.

    I’m not certain the sensor manufacturer since the mechanic purchased it online.

    thanks again

  9. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,672
    Likes Received:
    366
    Location:
    monkeyhangerland
    85psi is too high
    I’m not sure if the oil pressure is measured direct from pump or after it’s been through oil filter

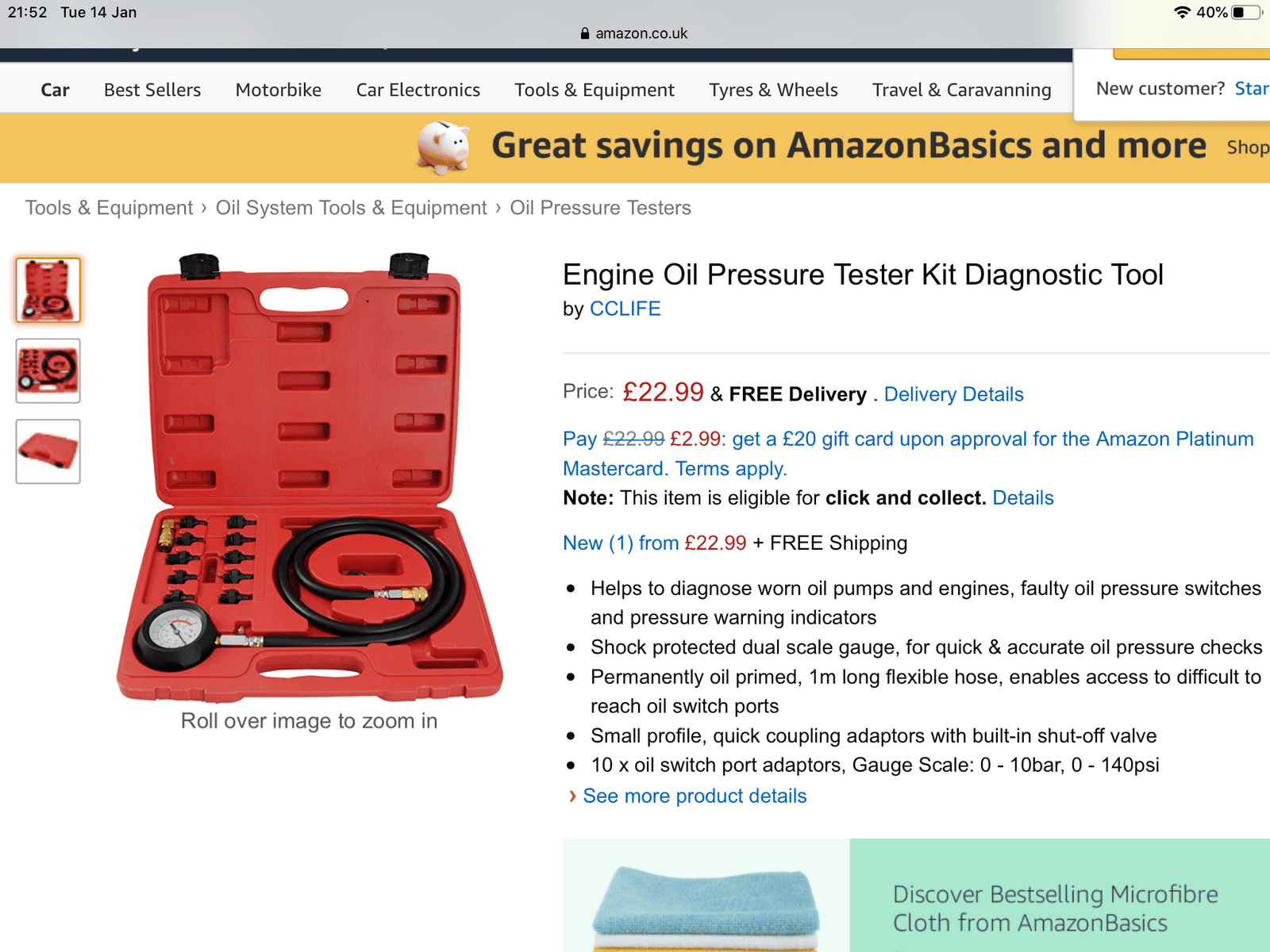

    I meant to put this on earlier , but it looks like pic upload back on , these are good DC1C8302-C510-47CE-A8D5-3F5C50156B38.png

  10. Webley1991

    Webley1991 Well-Known Member

    Joined:
    Feb 4, 2012
    Posts:
    1,612
    Likes Received:
    150
    Location:
    London
    What year is your Land Rover, and what engine do you have fitted?

    I just checked the listing for that test kit on amazon. If the engine has the original paper element type filter holder fitted, that kit does not have the correct adaptor to connect it in place of the oil pressure switch.

    The original Series engines had British Standard threaded oil pressure switches. Unfortunately I cannot recall exactly what thread dimension they used.

    Most of these threads are now obsolete here in the UK, so a correct adaptor may be difficult to find in the USA.

  11. Moorhouse2

    Moorhouse2 New Member

    Joined:
    May 13, 2019
    Posts:
    8
    Likes Received:
    3
    Location:
    Northumberland
    On my 1982 S3 Diesel the filter is spin off type - the thread for the sender is 3/8 BSF as far as I know. I have a similar kit to the one above bought from Machine Mart and there is one adaptor that fits. I am just in the process of fitting a gauge which I had sitting around and have had to get a local machine shop to knock up a suitable adaptor from hex bar as impossible to find anything with a mix of old and newer threads. Reason for fitting gauge is intermittent green light showing when hot but not always, replaced sender at least once and still similar. Tested pressure with the gauge kit when stationary in the workshop and all seems OK even when hot so wanted to have a working gauge installed so I could check reading on the move on odd occasion that the green light comes on to see if it really is low pressure. Had wondered about a sticking pressure relief valve as the issue so this is just part of the investigation process as no issues with smoke, high oil usage etc otherwise.

  12. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,672
    Likes Received:
    366
    Location:
    monkeyhangerland
  13. Kevin-s3

    Kevin-s3 New Member

    Joined:
    Mar 4, 2018
    Posts:
    9
    Likes Received:
    0
    Location:
    St. Louis Mo USA
    The engine is a 2.25.. I’m pretty sure. 1973.

    If the kit does not have one that fits I will go from there.

    I’m going to buy the pressure kit since it cost is worth the gamble.

    thanks for all your help
    Kevin

  14. Kevin-s3

    Kevin-s3 New Member

    Joined:
    Mar 4, 2018
    Posts:
    9
    Likes Received:
    0
    Location:
    St. Louis Mo USA

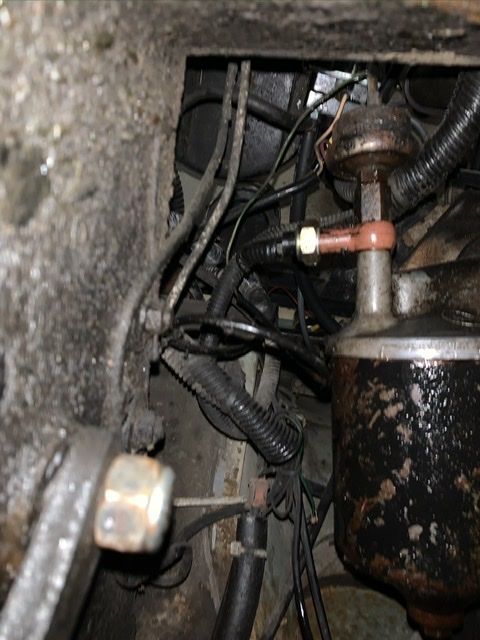

    I was not certain as to the couple of the response and thought it would be easier to just provide a picture of the filter with both sensors. In fact both are electrical, but I’m not certain as to age or if it is the original. I’m thinking it’s not.

    I tied a thought if I decrees the oil weight from 20w50 to 10w40 it would change the psi. It did lower it and addition proof was the green light came on sooner. The psi decrees to 78 cold to 71 warm.

    Know-matter what I’m going to need to test the pressure, but I do have one other question. Does it matter which sensor I use for the test? 0CD6EC29-45E1-4B72-9A47-4256B5CF0A5C.jpeg View attachment 199162

  15. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,672
    Likes Received:
    366
    Location:
    monkeyhangerland
    I would just unscrew the adaptors and go straight into oil pump and check threads , if the other sensor has different thread ie metric that may suit better
