Newish Bulkhead old Dash

Oy123 · Feb 2, 2010

Hi

I have just changed over the bulkhead on my Defender. Its all in place and secure but I have noticed a few differences between this one and my old one. I have got a newer bulkhead which obviously had the newer type (td5) dash where as mine was the 200tdi dash.
The bulk head seems to be the same except for a few added bits, such as over the air vents (at the top) on the passenger side on the old bulkhead is a riveted plate where as on the new bulkhead there seems to be a special vent. If that makes sense?

What I need to know is can i modify my original dashboard to fit this new bulkhead/need a new dashboard/modify the bulkhead to accept old dash/buy different brackets and fixings that will fit new bulkhead and old dash.

Hopefully some one has hit this same problem and knows where to go since we have ground to a halt at the moment.

If you need any more information just let me know.

Cheers

Richie

bluehaze · Feb 2, 2010

oy, have a look at the old threads.

busterbus has done an article which is the dog's bollocks.

discomania · Feb 2, 2010

I fitted a 300tdi bulkead with 1990 dash, only problems I had were there was no hole for the loom, drill soon fixed that. There were then some other big holes which were probably for the later type loom which I just plated.

Oy123 · Feb 3, 2010

Cheers bluehaze for the reply, did just that and found the thread you suggested!
(here it is if anyone is interested! http://www.landyzone.co.uk/lz/f37/td5-bulkhead-51102.html)
Answered alot of my questions thanks!
Discomania I had to do the same thing! Made me very nervous about doing it though! Didnt feel right drilling into such a nice bulkhead! lol

bustersbus · Feb 3, 2010

'Ere Oy, is it a brand new bulkhead yer usin' or a second hand one?

Oy123 · Feb 5, 2010

Busterbus its a new...ish

Ner its a second hand one! Not too old and nice condition! Is there a easy way to add a photo on this forum?? So I can show you wat i mean!

bustersbus · Feb 5, 2010

Oy123 said:
Busterbus its a new...ish Ner its a second hand one! Not too old and nice condition! Is there a easy way to add a photo on this forum?? So I can show you wat i mean!

Try stickin' yer photies in Botophucket and then stick the link on here

Oy123 · Feb 5, 2010

Ok 2 photos then! U can tell which is the new/old bulkhead! These are the vent cover bits, I presume u just have to swap umm over??

new

http://s923.photobucket.com/albums/ad73/oy123/

Cant seem to get the pics up so here is the albumn! Doh

Sean · Feb 5, 2010

bustersbus · Feb 5, 2010

Oy123 said:
Ok 2 photos then! U can tell which is the new/old bulkhead! These are the vent cover bits, I presume u just have to swap umm over??

new

Pictures by oy123 - Photobucket

Cant seem to get the pics up so here is the albumn! Doh

Ah cut that plate off in the second photie, then drilled out the rivets holdin' the one on in the furst photie (along with the old vent grilles) and stuck them on the new one.

As fur yer photies, try left click on IMG code below yer photie then right click, copy and paste it in yer post

Oy123 · Feb 7, 2010

Cheers Sean for puttin the pictures up!

Ok Bustersbus Sorted the stuff u said! Got to the puttin the bottom bit on (rubber bottom half of dash) Is it me or are there some bolt holes missing for the top part! If that makes sense? If not will put some pics up!

bustersbus · Feb 7, 2010

Oy123 said:
Cheers Sean for puttin the pictures up!

Ok Bustersbus Sorted the stuff u said! Got to the puttin the bottom bit on (rubber bottom half of dash) Is it me or are there some bolt holes missing for the top part! If that makes sense? If not will put some pics up!

Stick some photies up mate to give us an idea what stage ye're at and ah'll see what photies ah've got

Oy123 · Feb 12, 2010

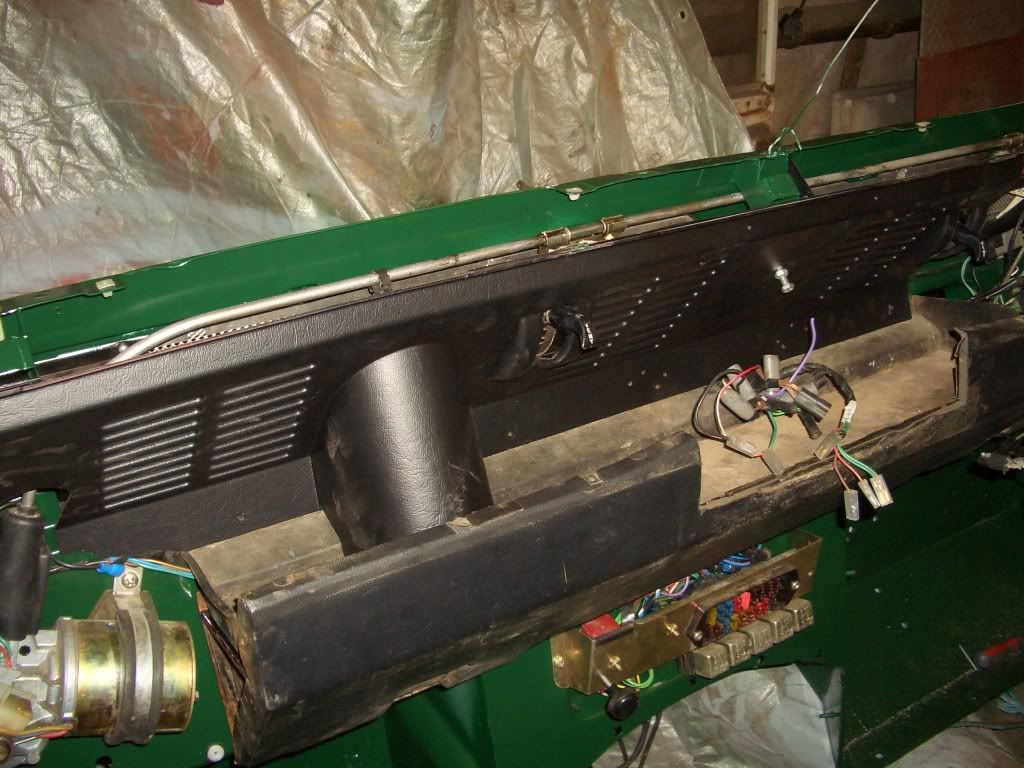

Busters bus here are the photos of the places I was on about.

There are 2 holes that dont have one on the new bulkhead? Is it a case of adding some or are they for something else??

Oh and woop got the photos up!

bustersbus · Feb 12, 2010

Oy123 said:
Busters bus here are the photos of the places I was on about.

There are 2 holes that dont have one on the new bulkhead? Is it a case of adding some or are they for something else??

Oh and woop got the photos up!

Ah don't think ah used them for anything Oy. Ah think they are summit to do wi' the Td5 dash. Ah did have to drill another couple of holes near them tho' (think it was for the plastic cover thingy)

Ah just used stainless screws instead of the plastic rivet things.

bluehaze · Feb 12, 2010

You could always put some rivnuts in.

Cheap as chips on fleabay and a doddle to fit using a spanner and ratchet.

bustersbus · Feb 12, 2010

bluehaze said:
You could always put some rivnuts in.

Cheap as chips on fleabay and a doddle to fit using a spanner and ratchet.

It's a bit much usin' rivnuts tae hold a pice of plastic in.... although, he'll need thum fur other things like the wiper motor, fuel filter holder and maybe a couple of other things

bluehaze · Feb 12, 2010

Ye, agreed mate - I've probably gone a bit ott
