Hi all,

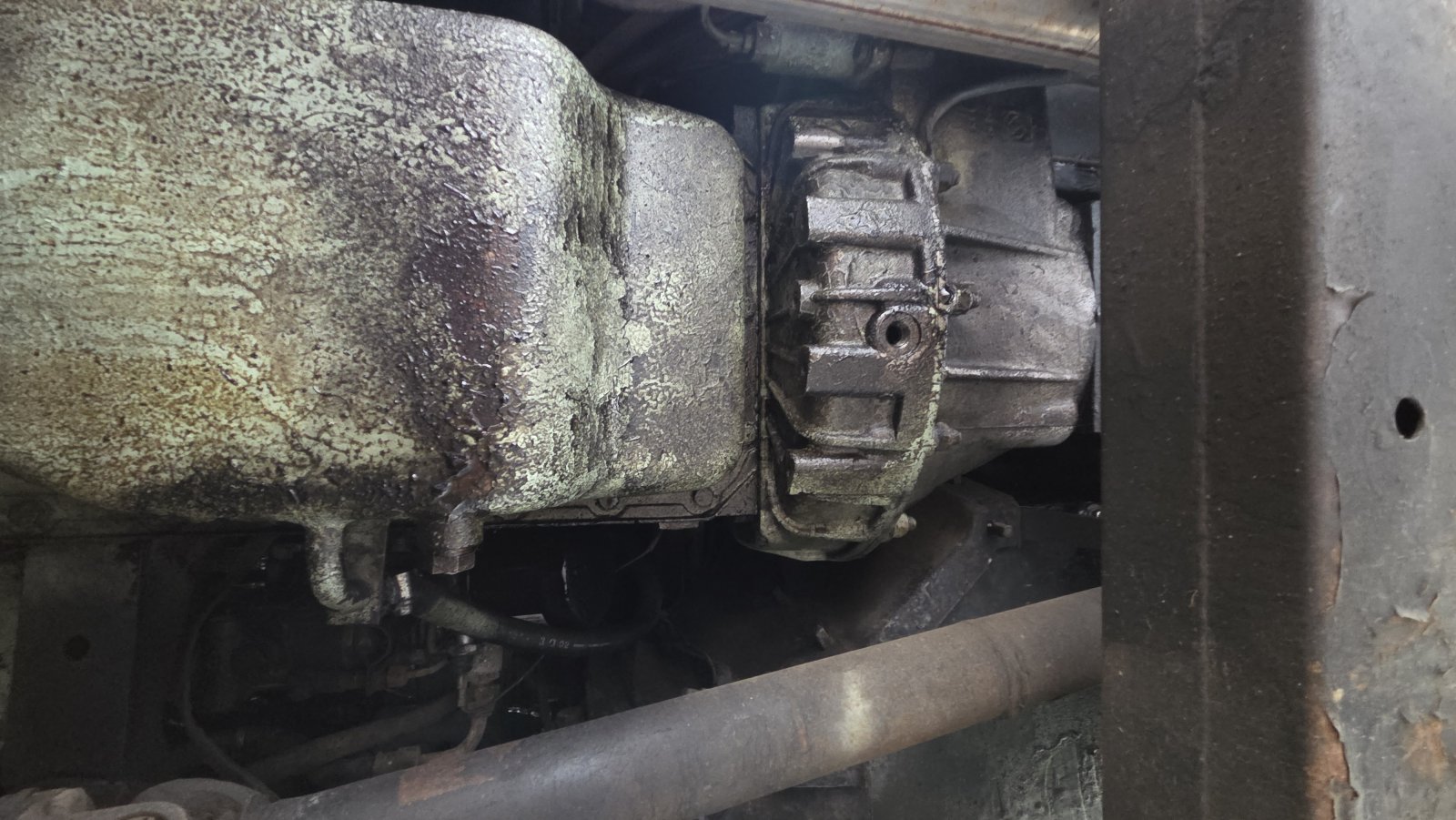

I'm very new to this, just took delivery of an Ex-MOD 110 a couple of weeks ago. I was going to perform an oil change today and noticed on the underside of the flywheel housing (?) that I seem to be missing a plug/bolt that goes into it? I have, as of yet, been unable to locate this in my manuals and wondered if someone could help me out. Thanks ahead of time!



tottot

Well-Known Member

Posts

8,587

Location

west wales coast

• Today at 16:37

• #2

That is the clutch housing and the hole should be open in normal use. Any oil coming out here will be the result of a crankshaft rear seal leak. A plug is fitted if deep water wading is expected. If truck still has tool kit plug may be in it.



3

303 British

New Member

Posts

2

• Today at 19:20

• #3

Great, I came across wader plugs but I wasn't entirely sure, thanks for the help!



tottot

Well-Known Member

Posts

8,587

Location

west wales coast

• A moment ago

• #4

As an ex mod 110 engine likely a 12j 2.5 non turbo diesel. There is a second plug hole in the base of timing belt housing for the same reason.
