New found wheel nut problem.

Discussion in 'Series Land Rovers' started by Maverick2518, May 18, 2019.

< Previous Thread | Next Thread >
  1. Maverick2518

    Maverick2518 Member

    Joined:
    Aug 6, 2008
    Posts:
    81
    Likes Received:
    16
    Location:
    East Sussex
    Hi all!

    It’s the weekend so of course that means, let’s all work on our land rovers!

    I’m so close to getting mine on the road now but, in true series fashion, I’ve hit a snag!

    I’ve come to learn that when you have parts from 3 different landys, you end up with a bit of a mongrel.

    My 2a currently has s3 axels and wella 8 spokes on it. However, one corner has been replaced, probably by myself (due to lack of knowledge), with a s2 hub. Unbeknown to me, until the 11th hour, I didn’t pay much attention, and now I have come to note the difference in wheel nut thicknesses, and how the wheel doesn’t seat properly.

    My question is... does anybody know, before I go and buy the wrong bits, if I can change s2 threads to s3, or do I need to source a s3 hub?

    Many thanks

  2. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    4,641
    Likes Received:
    3,515
    Location:
    Thatcham
    I think the wheel studs just knock out don't they? Although that sounds easier than it really is. I'd measure the hub and studs in your 2a hub and compare with the 3 hub. I doubt if LR made many changes between the two models. In fact I'm surprised the studs are a different length between the two models. Is the axle in question a Salisbury or Rover?

    Col

  3. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    3,671
    Likes Received:
    641
    Location:
    west wales coast
    There was a change in wheel stud size somewhere in the middle of 2a production from screw in studs and smaller wheel nuts [ my 63 has the small] to press in studs and larger wheel nuts [ same as series 3 ] . Swap the hub is simplest.

  4. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    700
    Likes Received:
    234
    Location:
    norfolk
    Why doesn't the wheel seat properly, I thought wheels were interchangeable up to the 1990's?

  5. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    3,671
    Likes Received:
    641
    Location:
    west wales coast
    Wheels are the same stud pattern.

  6. Maverick2518

    Maverick2518 Member

    Joined:
    Aug 6, 2008
    Posts:
    81
    Likes Received:
    16
    Location:
    East Sussex
    Thanks for your replies guys, I hadn’t got the notifications that anyone had answered :(.

    So I should’ve clarified, if the stud diameter, not the length. I’ll get some pics.

    Mav.

  7. Maverick2518

    Maverick2518 Member

    Joined:
    Aug 6, 2008
    Posts:
    81
    Likes Received:
    16
    Location:
    East Sussex

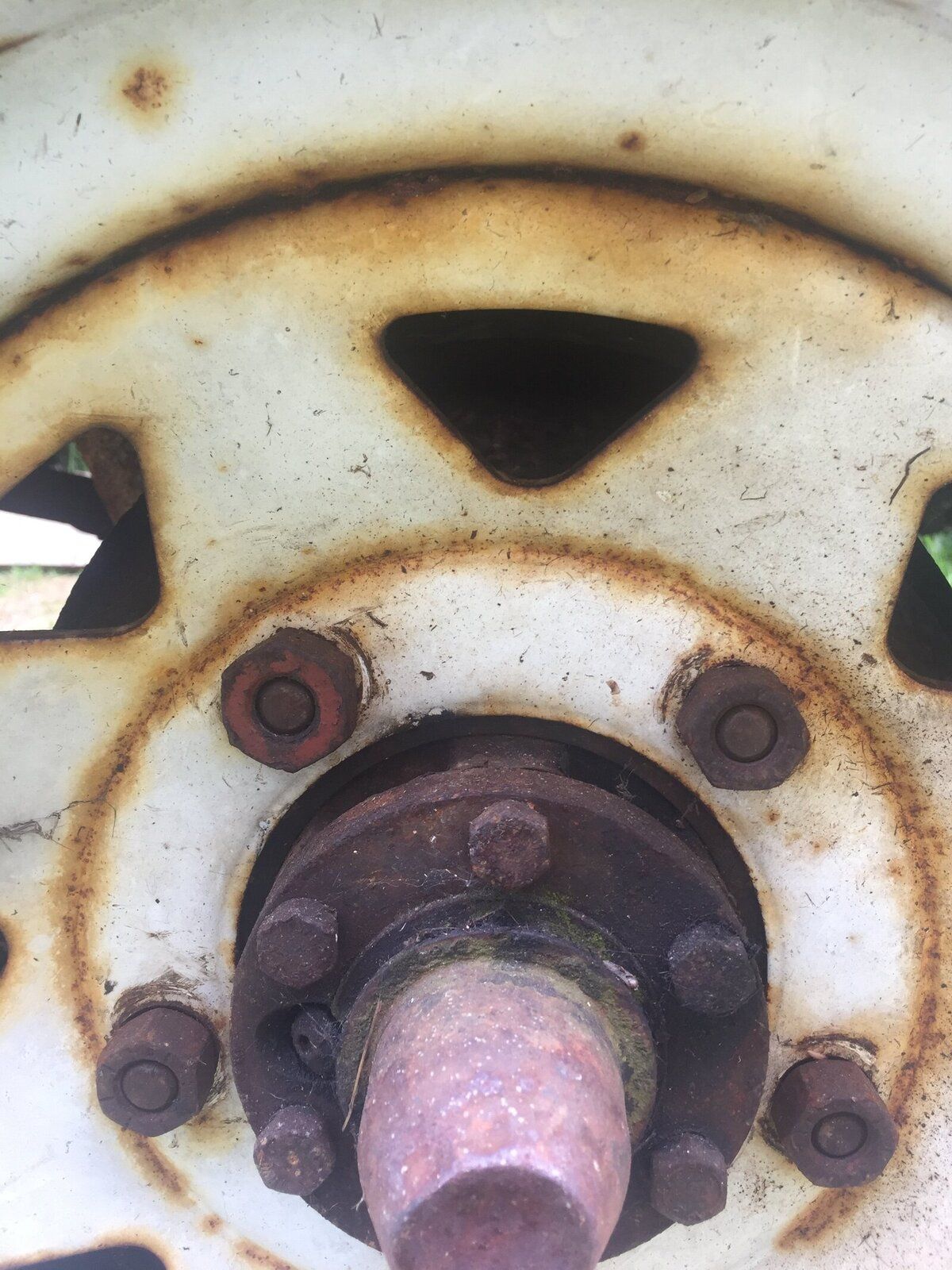

    These are, what I’m lead to believe, the series 3 studs


    Attached Files:

  8. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    1,660
    Likes Received:
    509
    Location:
    Slough and Bath
    2A are BSF with double ended nuts, S3 are M16 with bigger single ended nuts. Same wheels and (now) brake drums fit both as the cone on the nut plus the axlel centre are what holds the wheel. Yes you can get a set of S3 studs and fit them (I have done this as I had 3xS2a and one x S3. Now I run S3 rear and S2 front and will change the front next time its apart. Don't underestimate it. You have to unthread the old studs which takes a lot of force as thaey are stracked over on the back, then drill the flange 16 mm (the s3 studs have a raised knurl that locks them) then you must drill the flange 19 mm x 3 mm deep on the back to take the s3 stud heads, if you don't do this the studs are 3 mm too short and the stud doesn't clear the wheel nut. In your situation I've be inclined to get a used S3 hub and get a set the same that way.

  9. Maverick2518

    Maverick2518 Member

    Joined:
    Aug 6, 2008
    Posts:
    81
    Likes Received:
    16
    Location:
    East Sussex
    And these are the series 2.

    The pictures aren’t great, so I do apologise for that, but I think you can make out the notable difference.

    Mav.


    Attached Files:

  10. Maverick2518

    Maverick2518 Member

    Joined:
    Aug 6, 2008
    Posts:
    81
    Likes Received:
    16
    Location:
    East Sussex
    Cheers rob. Sounds like a pain of a job indeed!

    I’ll have to keep an eye out for a s3 hub then I guess...sounds easier!

    Anybody have one laying about? Haha

  11. Maverick2518

    Maverick2518 Member

    Joined:
    Aug 6, 2008
    Posts:
    81
    Likes Received:
    16
    Location:
    East Sussex
    Is there any variations in the s3 hubs? Bearing sizes etc? Or is it just a one size fits all job?

    Mav

  12. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    700
    Likes Received:
    234
    Location:
    norfolk
    Yes got one in the shed you can have if you pick it up......

  13. Maverick2518

    Maverick2518 Member

    Joined:
    Aug 6, 2008
    Posts:
    81
    Likes Received:
    16
    Location:
    East Sussex
    Now what’s the betting you’re not that local to me... hahaha

  14. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    3,671
    Likes Received:
    641
    Location:
    west wales coast
    Late 2a hubs will also suit.

  15. Maverick2518

    Maverick2518 Member

    Joined:
    Aug 6, 2008
    Posts:
    81
    Likes Received:
    16
    Location:
    East Sussex
    All of which I have thrown away in the past few years to ‘de-clutter’ ( kicks himself repeatedly)

  16. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    1,660
    Likes Received:
    509
    Location:
    Slough and Bath
    If its 2A axles you need ealry 3 hubs with different bearings. Since it has a 2A hub I'd guess its ealry S3 you are after. You can run it as it is for now, the wheels should pull up ok as they all fit both hubs, the only problem are the orginal Wolf wheels as they are thicker.
