Series 3 MY HEATER WORKS!

Discussion in 'Series Land Rovers' started by ciderman, Aug 10, 2017.

< Previous Thread | Next Thread >
  1. mistericeman

    mistericeman Active Member

    Joined:
    Feb 22, 2007
    Posts:
    977
    Likes Received:
    92
    Location:
    peoples republic of ashton-under-lyne ,lancashire
    piggybacking two series heaters together .......

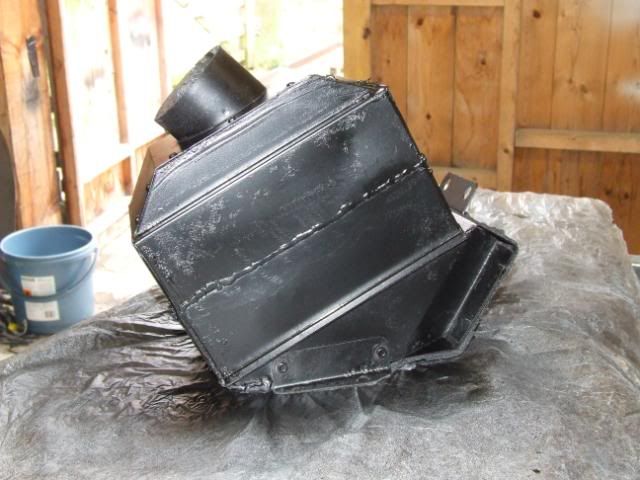

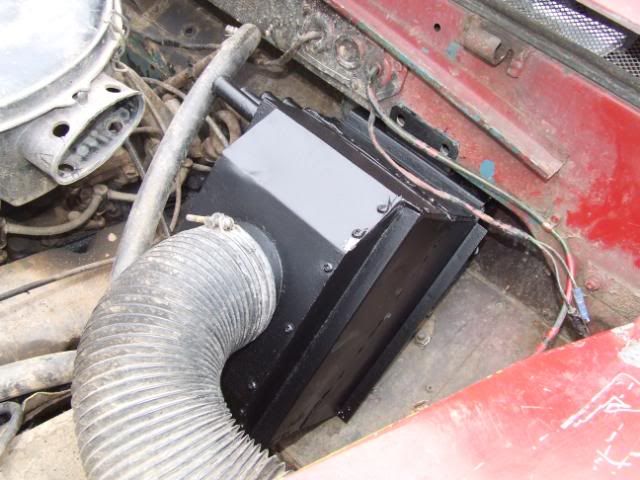

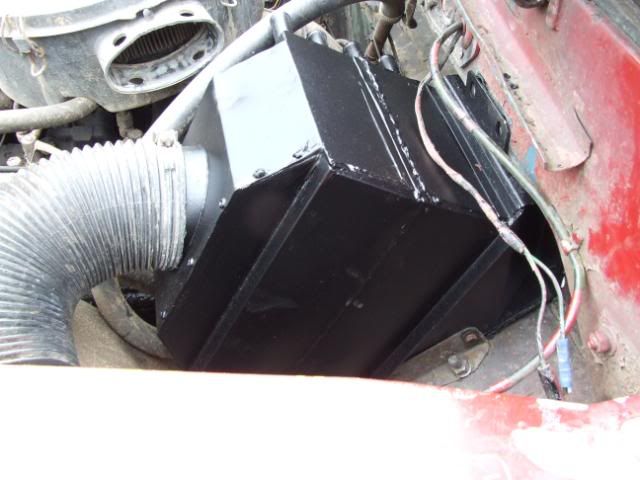

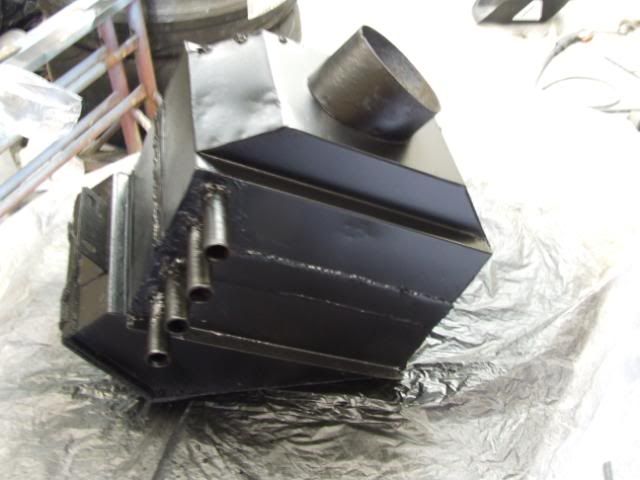

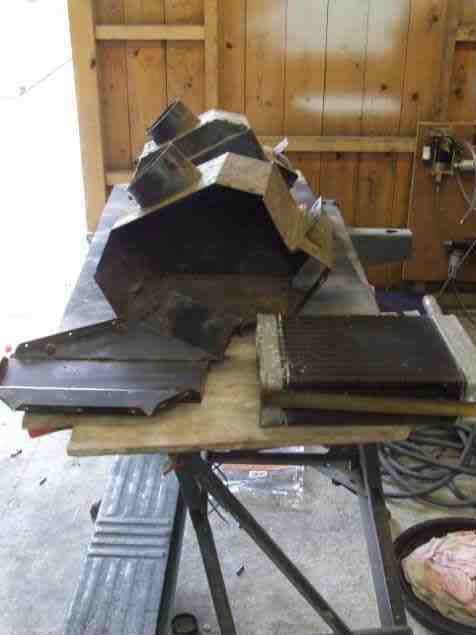

    Progress so far ....
    [​IMG]


    [​IMG]


    [​IMG]

    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    First test run = toasty


    Mind i need to sort out a "manifold in 15mm copper ,so that both matrixes ,and the round heater in the cab can all run in parallel rather than in series as they are at the moment .
    And i also need to replace the fan motor housing ,as there is no bottom in it at the moment :shock: ,so i am loosing a goodly amount of air,Or even better replace it with a bilge blower (Ebay) and draw air through the radiator to increase the ambient air temperature .




    first test results are promising though ,a few hours well spent i reckon

  2. nickjaxe

    nickjaxe Active Member

    Joined:
    Apr 11, 2007
    Posts:
    685
    Likes Received:
    58
    Location:
    North Cheshire/Merseyside
    Looks neat...but still needs a good flow of air through it to work when underway...bet its stonking hot when your stopped at the lights.

  3. Land Raver

    Land Raver Well-Known Member

    Joined:
    Nov 24, 2011
    Posts:
    2,010
    Likes Received:
    457
    Location:
    In the dog house
    Nice idea. Should hopefully bring it up to almost modern standards of heat with a good working blower motor. I'd imagine a more powerful blower might be needed to get the air past the twin matrix effectively perhaps?

  4. mistericeman

    mistericeman Active Member

    Joined:
    Feb 22, 2007
    Posts:
    977
    Likes Received:
    92
    Location:
    peoples republic of ashton-under-lyne ,lancashire
    Too much airflow isn't good as the air doesn't have chance to collect the heat from the matrix effectively....
    The side vent on a series struggles with starvation at speeds...
    A bilge blower fed from the rear of the rad would be optimum IMHO.

  5. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    7,426
    Likes Received:
    7,462
    Location:
    Thatcham
    Wouldn't having the air intake at the front cause a lot of crap to be collected and build up in the fan box? I like the thought of redirecting the air intake hose to behind the rad but unless the rad fan is removed I don't think there would be any room.

    Col

  6. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,810
    Likes Received:
    513
    Location:
    Tyneside
    Piped my twin matrix so the water goes to the inner most 1st thus the cooler water pre warms the air which is then further heated by the inner one. works good .
    Made a new 3 speed fan from an LDV Van fan three years ago but still have not fitted it.


    Attached Files:

  7. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    7,426
    Likes Received:
    7,462
    Location:
    Thatcham
    I'm dying to get out and have a play with my heater and some other bits but I'm looking after my 8 year old grandson. Bloody school holidays.

    Col

  8. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    18,317
    Likes Received:
    20,893
    Location:
    Manchester
    Biggest issue I found was the air passage once out of the matrix. The series 3 dash is just awful at directing air to its outlets. Far to much turbulence and direction changing.
    It's hardly surprising the blower struggles.
    I thought of fitting a snorkel to the side inlet and pointing the top into the wind in the winter.

  9. RobertP

    RobertP Active Member

    Joined:
    Nov 6, 2009
    Posts:
    320
    Likes Received:
    60
    Location:
    Crewe, Cheshire, opposite the Bentley factory.
    "I'm looking after my 8 year old grandson." - well small hands can be very useful for some of those fiddly jobs. Look on the positive side!

  10. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    7,426
    Likes Received:
    7,462
    Location:
    Thatcham
    Never thought of that.

    Col

  11. Riggwelter

    Riggwelter Active Member

    Joined:
    Jul 21, 2016
    Posts:
    173
    Likes Received:
    28
    Location:
    Sweden
    This article in Land Rover Monthly covers one way of upgrading the cab heater on an S3.

  12. blue beasty

    blue beasty Leaks an prone to bits dropping off

    Joined:
    Jun 10, 2007
    Posts:
    54,864
    Likes Received:
    20,272
    Location:
    Gloucestercotshirewolds
    Boat bilge blowers are a popular route, there's a vast choice and available far cheaper.

  13. Jake P

    Jake P Member

    Joined:
    Jan 1, 2020
    Posts:
    25
    Likes Received:
    6
    Location:
    Malta
    Anyone knows where I can find a good priced ducting pipe coming out of the heater unit please?

  14. nickjaxe

    nickjaxe Active Member

    Joined:
    Apr 11, 2007
    Posts:
    685
    Likes Received:
    58
    Location:
    North Cheshire/Merseyside
    Honest guys...no need to mod the heater box....it just needs more air flowing thought it to carry the heat thats already there into the cab...the cooling sys need to be working ok and the engine getting upto temp of course.

    Nick.

  15. Wildefalcon

    Wildefalcon Active Member

    Joined:
    May 28, 2015
    Posts:
    197
    Likes Received:
    61
    Agreed, mine heats the cab faster than the euro box. New matrix, old fan.

  16. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    3,289
    Likes Received:
    1,274
    Location:
    Slough and Bath
    I have the square Smiths heater, cleaning it out made a huge difference, as did cleaning all the electrical connections as it draws quite a current. The one mod I'm considering is replacing the old motor and bladed fan (very noisy) with a modern motor and scroll impeller. It looks do-able.

  17. nickjaxe

    nickjaxe Active Member

    Joined:
    Apr 11, 2007
    Posts:
    685
    Likes Received:
    58
    Location:
    North Cheshire/Merseyside
    The p[rob with the S3...is the air intake on the side of the wing...once your going faster than 10mph...the wind rushes past that the fan struggles to draw air is....think its caused by a low pressure area close to the body.

    My mod really does work....blasts air through that matrix.

    Nick.

  18. TheMegaMan

    TheMegaMan Well-Known Member

    Joined:
    Oct 15, 2019
    Posts:
    428
    Likes Received:
    101
    Location:
    Cambridge
    Hmmm. Maybe need to fit a NACA duct... :D

    Regarding @Jake P 's question about the ducting, the stuff you probably should use is https://www.carbuilder.com/uk/classic-style-paper-covered-aluminium-ducting-100mm-id . However, I've bought 1.5m of 100mm https://www.ebay.co.uk/itm/283043084691 . Seems to fit my fan and heater correctly, although I've not actually fitted it properly yet.
