Military 110 converted to 300tdi , glow plug wiring

Discussion in 'Defender 90 / 110 / 130' started by RicardoRich, Feb 6, 2019.

< Previous Thread | Next Thread >
  1. RicardoRich

    RicardoRich Member

    Joined:
    Oct 13, 2018
    Posts:
    18
    Likes Received:
    0
    Location:
    somerset
    Has anybody possibly got a simplified wiring diagram so I can operate the 300tdi glow plugs direct from my NA standard ign switch , unfortunately I have to rewire from scratch. As only have wiring from bulkhead left from original.
    I have traced a heavy brown , yellow from ign switch to bulkhead which I suspect maybe carries the heavy amps to the glowplugs ?
    Also any ideas on how the alternator connects up please ?
    I have a Haynes manual but it only shows the 300 tdi set up with relay's and timers which I don't have also the wiring colours are all different to my military loom .
    Any help most appreciated as its twisting my melon .
    Cheers

    Last edited: Feb 6, 2019
  2. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    3,228
    Likes Received:
    460
    Location:
    west wales
    I still run my TDi's glow plugs direct from the ign switch,holding the key to activate in the old way.

  3. RicardoRich

    RicardoRich Member

    Joined:
    Oct 13, 2018
    Posts:
    18
    Likes Received:
    0
    Location:
    somerset
    Yes that's what I'm trying to do , but need a wiring diagram
    ?

  4. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    5,280
    Likes Received:
    2,585
    Location:
    Shropshire
    The yellow brown goes from ign switch direct to number 4 plug.
    Ballist resister on 2.5nad is not needed( that weird curly spring thing mounted on the bulkhead rear of engine).

    RicardoRich likes this.
  5. RicardoRich

    RicardoRich Member

    Joined:
    Oct 13, 2018
    Posts:
    18
    Likes Received:
    0
    Location:
    somerset
    Ok cheers, seems amazingly simple .
    And any idea on Altenator wireing please? I have one thick brown ?
    Ta

  6. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    5,280
    Likes Received:
    2,585
    Location:
    Shropshire
    It is simple, I ran mine through a relay mounted behind the fuse panel to take the load off the switch though which is a bit more complicated but still easy really.
    Alternator is also simple BUT I can't recall what goes where but Google will be your friend here. On the back of the alty there will be letters moulded into the casing.
    The brown is battery positive which will be B+ on the alty. D is dash warning light iirc W is rev counter iirc etc etc.

  7. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    5,280
    Likes Received:
    2,585
    Location:
    Shropshire
    Also, depending on your alty output, the brown wire , if original, off the NAD may not be man enough , Some 300s had much more powerful altys than the nad had. You can run another cable or double up what you have as necessary.

    RicardoRich likes this.
  8. RicardoRich

    RicardoRich Member

    Joined:
    Oct 13, 2018
    Posts:
    18
    Likes Received:
    0
    Location:
    somerset
    Ok cheers , .
    I have wiring. Diagrams for 300 tdi. But. None of the timer relays, I want. If possible to retain the NAD,s set up. Glow plugs through first turn of ignition switch.

  9. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    5,280
    Likes Received:
    2,585
    Location:
    Shropshire
    You don't need a timer relay.
    The relay I fitted wasn't a timer relay just a standard one.
    Imho the ign switch terminals are only just man enough to handle the glowplugs load, so the relay I fitted takes the load instead. The two heavy cables and terminals on the switch are just now used to switch the relay. A new manly cable runs from that relay to number 4 glowplug.

  10. RicardoRich

    RicardoRich Member

    Joined:
    Oct 13, 2018
    Posts:
    18
    Likes Received:
    0
    Location:
    somerset
    Ok cheers Flossie
    I was of the belief my NAD ignition switch carried the amps through the ign switch to the glow plugs with ease ?
    I was hoping not to even need to preheat very often hence the manual ign switch setup .

  11. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    3,228
    Likes Received:
    460
    Location:
    west wales
    Been running my TDI's glow plugs through the ign switch since it went in ten years ago with no problem,they do not need to be on anything like the time they did with the old NA engine even in the cold weather.

  12. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    7,730
    Likes Received:
    3,194
    Location:
    Arse!
    I ran mine through a relay, live from battery to relay then to plugs, signal wire to relay from switch, live to switch isnt ignition switched so plugs can be energised before ignition. You can use a timer relay, with a 300 this is advisable.

  13. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    5,280
    Likes Received:
    2,585
    Location:
    Shropshire
    Yeah, it'll most likely be fine.
    I did mine with a relay because during the full rebuild, new chassis new bulkhead reconned engine etc I found heat damaged glow plug wiring for around 12" from the switch itself and the switch terminals were also heat damaged.

  14. nobber

    nobber Well-Known Member

    Joined:
    Dec 29, 2006
    Posts:
    7,730
    Likes Received:
    3,194
    Location:
    Arse!
    People seem to think holding the plugs in an energised state for prolonged periods is a good thing, if after 6 seconds of plugs your motor wont start you have a problem, killing your glow plugs and wiring isnt the answer to that problem.

  15. Gmacz

    Gmacz Well-Known Member

    Joined:
    Feb 12, 2016
    Posts:
    691
    Likes Received:
    212
    Location:
    Forfar/Dundee
    Just connect na glow plug wire to 300tdi No4 plug and you are good to go.
    If you use a big battery, it will start easily without using glow plugs, smaller battery struggles a bit in cold and needs help.
    That is what I have found.
    Test the plugs as well as you may find a few are not working if old and they are cheap.
    If any are stuck solid, just leave it as you will not need all 4 to start 110.

  16. Clunkbucket

    Clunkbucket Active Member

    Joined:
    Apr 6, 2018
    Posts:
    175
    Likes Received:
    94
    Location:
    Cumbira
    When the previous owner put the 300Tdi in my 90, they never connected the glow plugs up. I was initially a little alarmed, but to be honest even at -5 the engine starts on the first revolution without any glow plugs, gives a small puff of smoke and then runs happily.

    RicardoRich likes this.
  17. EeEk

    EeEk Active Member

    Joined:
    Aug 9, 2008
    Posts:
    509
    Likes Received:
    62
    Location:
    Elgin, Scotland
    300tdis dont need glow plugs :) If it doesnt start in 5 seconds of cranking even if its white with frost with no glow plugs theres something else wrong.

    Lots of tdi glow plugs dont work anyway and nobody notices :)

  18. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    3,228
    Likes Received:
    460
    Location:
    west wales
    They do run smoother on start up if given a little heat,more so when it's below zero.

  19. Rougharse Racing

    Rougharse Racing Well-Known Member

    Joined:
    Jan 27, 2017
    Posts:
    296
    Likes Received:
    127
    Location:
    The Grim North

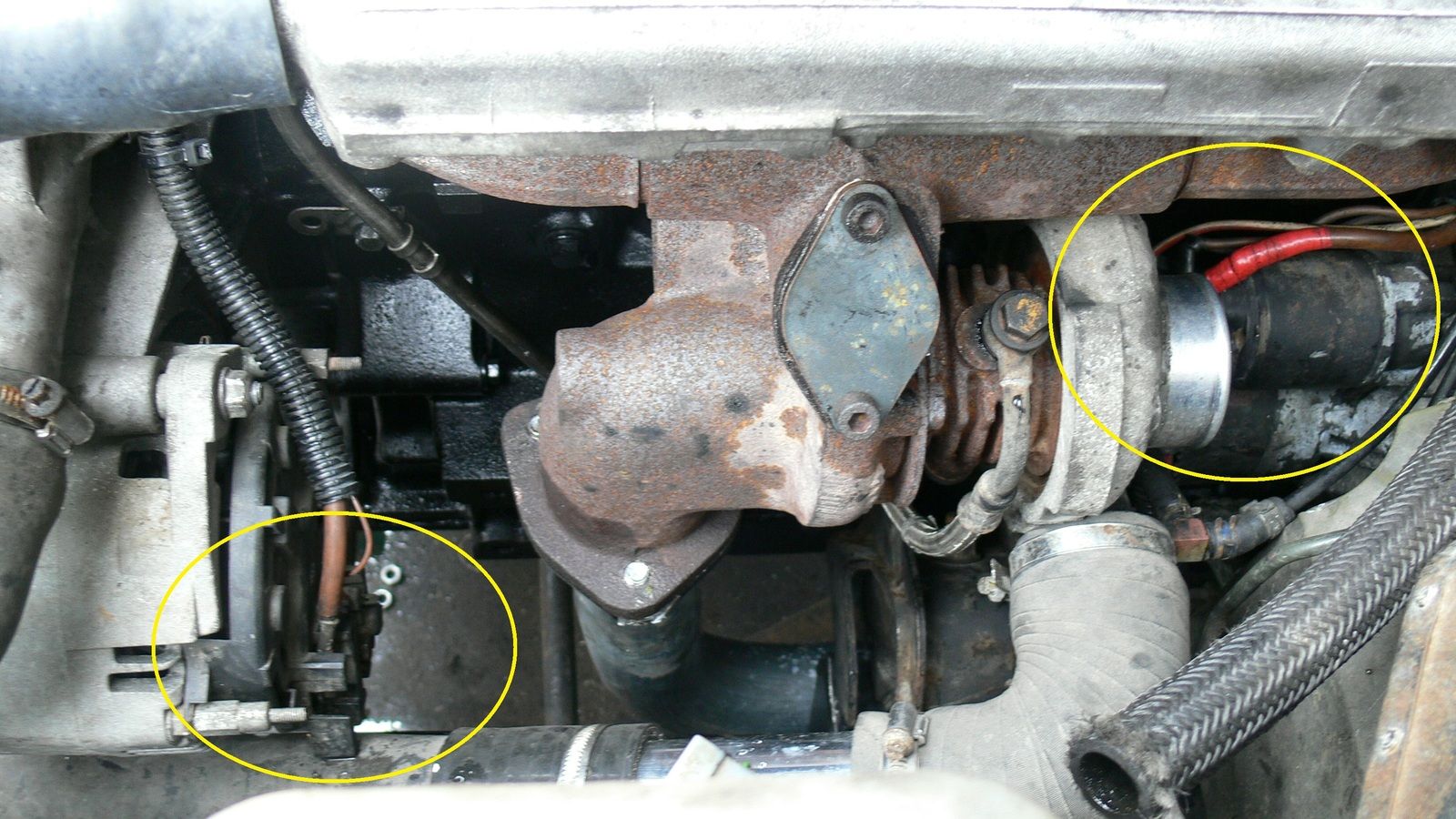

    The main wire from the alternator goes around the driver's side of the engine, then around the back and connects with the same termina as the main battery cable on the starter solenoid.
    The thin brown and yellow wire goes to the multi-plug on the drivers' side bulkhead, the same one as the stop solenoid and the temperature sender etc.


    RicardoRich likes this.
  20. RicardoRich

    RicardoRich Member

    Joined:
    Oct 13, 2018
    Posts:
    18
    Likes Received:
    0
    Location:
    somerset
    cheers guys your all amazzing
