Light bar

Hi all

Just bought a new light bar well misses did for Xmas, I want title to work with hight beam, and also come on and off on a switch if I want with out main lights on, I have a relay, wires, switch, solder etc, just need a simple to follow wiring diagram of how to hook it all up if anyone could help that would be great

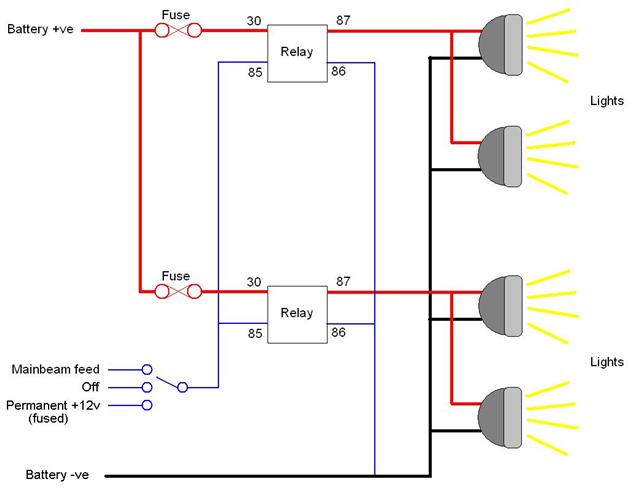

This will do what you want. You need a 2-way ON-OFF-ON switch so they can be either on with the main beam (legal for road use) off completely, or on independently (not for road use). Ignore the second relay and second set of lights. Remember to use wires that are capable of carrying the current, and fuse the circuit appropriately.

They make a massive difference, this is only a 34" 180w but it really improves the lighting on my morning commute



to this..
